Ceramic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | Temperature Coefficient | Operating Temperature | Features | Ratings | Applications | Failure Rate | Mounting Type | Package / Case | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing | Lead Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
-3,20mm-Tan.jpg)
|
1812Y5000224KJTCAP CER 0.22UF 500V X7R 1812 |
1,847 |
|
Datasheet |
FlexiCap™ | Tape & Reel (TR) | Active | 0.22 µF | ±10% | 500V | X7R | -55°C ~ 125°C | Soft Termination | - | Boardflex Sensitive | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.098" (2.50mm) | - | - |
|
KVD500L475M55A0T00CAP CER 4.7UF 50V X8L RADIAL |
1,680 |
|
Datasheet |
KVD | Cut Tape (CT) | Active | 4.7 µF | ±20% | 50V | X8L | -55°C ~ 150°C | High Temperature | AEC-Q200 | Automotive | - | Through Hole | Radial | 0.295" L x 0.177" W (7.50mm x 4.50mm) | 0.354" (9.00mm) | - | 0.197" (5.00mm) | Straight |
|
C1812X222KGRACTUCAP CER 2200PF 2KV X7R 1812 10% |
1,368 |
|
Datasheet |
SMD Comm X7R HV Flex | Tape & Reel (TR) | Active | 2200 pF | ±10% | 2000V (2kV) | X7R | -55°C ~ 125°C | Low ESL, Soft Termination, High Voltage | - | Boardflex Sensitive | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.061" (1.55mm) | - | - |
|
564R75GAD25CAP CER 2500PF 7.5KV Z5U RADIAL |
841 |
|
Datasheet |
Cera-Mite 564R | Bulk | Active | 2500 pF | -20%, +80% | 7500V (7.5kV) | Z5U | -25°C ~ 105°C | - | - | General Purpose | - | Through Hole | Radial, Disc | 0.618" Dia (15.70mm) | 0.807" (20.50mm) | - | 0.500" (12.70mm) | Straight |
-1,30mm.jpg)
|
CDR31BP331BJUS7185CAP CER 330PF 100V BP 0805 |
600 |
|
Datasheet |
Military, MIL-PRF-55681, CDR31 | Tape & Reel (TR) | Active | 330 pF | ±5% | 100V | BP | -55°C ~ 125°C | - | - | High Reliability | S (0.001%) | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.051" (1.30mm) | - | - |
|
VJ1111D1R8BXEQJHTCAP CER 1.8PF 500V C0G/NP0 1111 |
780 |
|
Datasheet |
VJ HIFREQ HT | Tape & Reel (TR) | Active | 1.8 pF | ±0.1pF | 500V | C0G, NP0 | -55°C ~ 200°C | High Temperature | - | RF, Microwave, High Frequency | - | Surface Mount, MLCC | 1111 (2828 Metric) | 0.117" L x 0.110" W (2.98mm x 2.79mm) | - | 0.102" (2.59mm) | - | - |
|

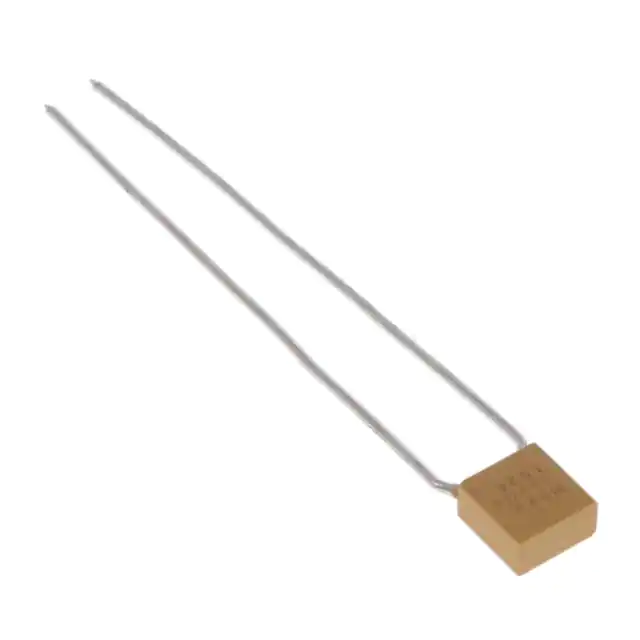

M39014/01-1526CAP CER 0.0033UF 100V BX RADIAL |
587 |
|
Datasheet |
Military, MIL-PRF-39014, CKR05 | Bulk | Active | 3300 pF | ±10% | 100V | BX | -55°C ~ 125°C | - | - | High Reliability | R (0.01%) | Through Hole | Radial | 0.190" L x 0.090" W (4.83mm x 2.29mm) | 0.200" (5.08mm) | - | 0.200" (5.08mm) | Formed Leads |
|
M39014/01-1535CAP CER 10000PF 100V BX RADIAL |
492 |
|
Datasheet |
Military, MIL-PRF-39014, CKR05 | Bulk | Active | 10000 pF | ±10% | 100V | BX | -55°C ~ 125°C | - | - | High Reliability | R (0.01%) | Through Hole | Radial | 0.190" L x 0.090" W (4.83mm x 2.29mm) | 0.200" (5.08mm) | - | 0.200" (5.08mm) | Formed Leads |
,-4-PC-Pad.jpg)
|

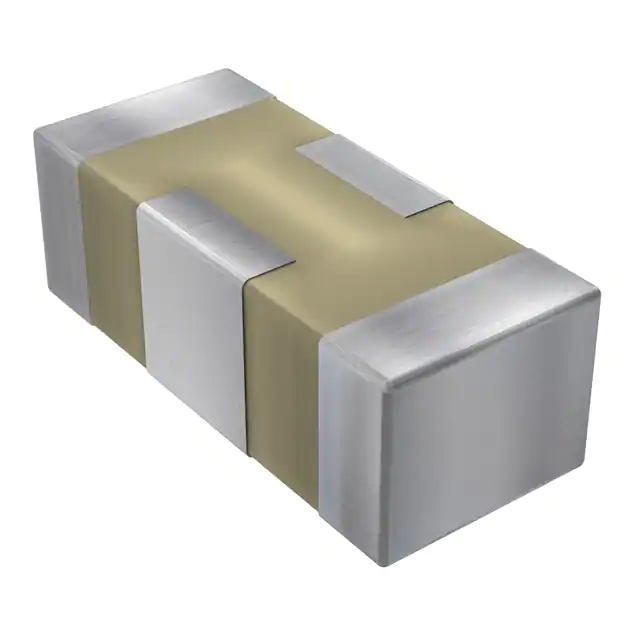

1206J0500104MXTE03CAP CER 0.1UF 50V X7R 1206 |
15,100 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 0.1 µF | ±20% | 50V | X7R | -55°C ~ 125°C | Low ESL (X2Y) | - | Bypass, Decoupling | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.051" (1.30mm) | - | - |
|
RDE7U3A103J5B1H03BCAP CER 10000PF 1KV U2J RADIAL |
723 |
|
Datasheet |
RDE | Bulk | Active | 10000 pF | ±5% | 1000V (1kV) | U2J | -55°C ~ 125°C | - | - | General Purpose | - | Through Hole | Radial | 0.295" L x 0.177" W (7.50mm x 4.50mm) | 0.354" (9.00mm) | - | 0.197" (5.00mm) | Straight |
-3.2.jpg)
|
CGA8R4NP02W683J320KACAP CER 0.068UF 450V NP0 1812 |
526 |
|
Datasheet |
CGA | Tape & Reel (TR) | Active | 0.068 µF | ±5% | 450V | C0G, NP0 | -55°C ~ 150°C | High Temperature | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.138" (3.50mm) | - | - |
|
|
C1206C102F2GACTUCAP CER 1000PF 200V C0G/NP0 1206 |
10,364 |
|
Datasheet |
SMD Comm C0G | Tape & Reel (TR) | Active | 1000 pF | ±1% | 200V | C0G, NP0 | -55°C ~ 125°C | Low ESL | - | General Purpose | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.035" (0.88mm) | - | - |
|
CAS26C221KARFCCAP CER 220PF 250VAC X7R 2211 |
2,565 |
|
Datasheet |
CAS SMD SFTY 250 | Tape & Reel (TR) | Active | 220 pF | ±10% | 250VAC | X7R | -55°C ~ 125°C | - | X1, Y2 | Safety | - | Surface Mount, MLCC | 2211 (5728 Metric) | 0.224" L x 0.110" W (5.70mm x 2.80mm) | - | 0.071" (1.80mm) | - | - |
|
|
C1812C223JBGACTUCAP CE 0.022UF 630V C0G/NP0 1812 |
2,429 |
|
Datasheet |
SMD Comm C0G HV | Tape & Reel (TR) | Active | 0.022 µF | ±5% | 630V | C0G, NP0 | -55°C ~ 125°C | Low ESL, High Voltage | - | General Purpose | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.061" (1.55mm) | - | - |
|
|
KGM56DR72D334KVCAP CER 0.33UF 200V X7R 2225 |
930 |
|
Datasheet |
KGM - X7R | Tape & Reel (TR) | Active | 0.33 µF | ±10% | 200V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 2225 (5763 Metric) | 0.224" L x 0.248" W (5.70mm x 6.30mm) | - | 0.087" (2.21mm) | - | - |
|
C330C124KCR5TACAP CER 0.12UF 500V X7R RADIAL |
245 |
|
Datasheet |
GoldMax 300 Comm X7R HV | Bulk | Active | 0.12 µF | ±10% | 500V | X7R | -55°C ~ 125°C | High Voltage | - | General Purpose | - | Through Hole | Radial | 0.300" L x 0.200" W (7.62mm x 5.08mm) | 0.360" (9.14mm) | - | 0.200" (5.08mm) | Formed Leads |
-1,60x0,80x0,87mm.jpg)
|
C0603H222J1GACT500CAP CER 2200PF 100V C0G/NP0 0603 |
10,177 |
|
Datasheet |
SMD Indust C0G HT200C | Tape & Reel (TR) | Active | 2200 pF | ±5% | 100V | C0G, NP0 | -55°C ~ 200°C | Low ESL, High Temperature | - | Downhole | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | 0.034" (0.87mm) | - | - |
-2,70mm.jpg)
|
AMK325ABJ227MMHTCAP CER 220UF 4V X5R 1210 |
3,485 |
|
Datasheet |
M | Tape & Reel (TR) | Not For New Designs | 220 µF | ±20% | 4V | X5R | -55°C ~ 85°C | - | - | Automotive | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.110" (2.80mm) | - | - |
-4,50x3,20x2,7mm.jpg)
|
C1812C124J5GAC7800CAP CER 0.12UF 50V C0G/NP0 1812 |
1,014 |
|
Datasheet |
SMD Comm C0G | Tape & Reel (TR) | Active | 0.12 µF | ±5% | 50V | C0G, NP0 | -55°C ~ 125°C | Low ESL | - | General Purpose | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.043" (1.10mm) | - | - |
|
|
564R75GAT47CAP CER 470PF 7.5KV X5F RADIAL |
883 |
|
Datasheet |
Cera-Mite 564R | Bulk | Active | 470 pF | ±20% | 7500V (7.5kV) | X5F | -25°C ~ 105°C | - | - | General Purpose | - | Through Hole | Radial, Disc | 0.618" Dia (15.70mm) | 0.807" (20.50mm) | - | 0.500" (12.70mm) | Straight |
