Ceramic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | Temperature Coefficient | Operating Temperature | Features | Ratings | Applications | Failure Rate | Mounting Type | Package / Case | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing | Lead Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|
1210D471J501KHTCAP CER 470PF 500V C0G/NP0 1210 |
9,012 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 470 pF | ±5% | 500V | C0G, NP0 | -55°C ~ 200°C | High Temperature | - | General Purpose | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.125" L x 0.100" W (3.18mm x 2.54mm) | - | 0.065" (1.65mm) | - | - |
|
CKC21C273JDGACAUTOCAP CER 27NF 1000V C0G 2220 |
433 |
|
Datasheet |
KC Link Auto C0G | Tape & Reel (TR) | Active | 0.027 µF | ±5% | 1000V (1kV) | C0G, NP0 | -55°C ~ 150°C | Low ESL, High Voltage, High Temperature | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 2220 (5750 Metric) | 0.224" L x 0.197" W (5.70mm x 5.00mm) | - | 0.087" (2.20mm) | - | - |
|
MD011C103KABCAP CER 10000PF 100V X7R 2-DIP |
395 |
|
Datasheet |
DIPGuard® MD | Tube | Active | 10000 pF | ±10% | 100V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Through Hole | 2-DIP | 0.260" L x 0.100" W (6.60mm x 2.54mm) | 0.175" (4.45mm) | - | 0.325" (8.25mm) | - |
|
C1210C105K1R1CAUTOCAP CER 1UF 100V X7R 1210 |
1,660 |
|
Datasheet |
KPS SMD Auto X7R | Tape & Reel (TR) | Active | 1 µF | ±10% | 100V | X7R | -55°C ~ 125°C | Low ESL | AEC-Q200 | Automotive, Boardflex Sensitive | - | Surface Mount, MLCC | SMD, J-Lead | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.136" (3.45mm) | - | J-Lead |
-4,50x3,20x2,7mm.jpg)
|
C1812X475K5RAC7800CAP CER 4.7UF 50V X7R 1812 |
724 |
|
Datasheet |
SMD Comm X7R Flex | Tape & Reel (TR) | Active | 4.7 µF | ±10% | 50V | X7R | -55°C ~ 125°C | Soft Termination | - | Boardflex Sensitive | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.071" (1.80mm) | - | - |
|
FG23C0G2J104JRT06CAP CER 0.1UF 630V C0G/NP0 RAD |
486 |
|
Datasheet |
FG | Cut Tape (CT) | Active | 0.1 µF | ±5% | 630V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Through Hole | Radial | 0.335" L x 0.217" W (8.50mm x 5.50mm) | 0.433" (11.00mm) | - | 0.197" (5.00mm) | Formed Leads - Kinked |
|
C2225C512JFGACTUCER CAP |
368 |
|
Datasheet |
SMD Comm C0G HV | Tape & Reel (TR) | Active | 5100 pF | ±5% | 1500V (1.5kV) | C0G, NP0 | -55°C ~ 125°C | Low ESL, High Voltage | - | General Purpose | - | Surface Mount, MLCC | 2225 (5763 Metric) | 0.220" L x 0.252" W (5.60mm x 6.40mm) | - | 0.087" (2.20mm) | - | - |
|
FG23C0G2A154JNT00CAP CER 0.15UF 100V C0G RADIAL |
190 |
|
Datasheet |
FG | Bulk | Active | 0.15 µF | ±5% | 100V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Through Hole | Radial | 0.335" L x 0.217" W (8.50mm x 5.50mm) | 0.433" (11.00mm) | - | 0.197" (5.00mm) | Formed Leads - Kinked |
|
|
FG23C0G2J104JRT00CAP CER 0.1UF 630V C0G RADIAL |
176 |
|
Datasheet |
FG | Bulk | Active | 0.1 µF | ±5% | 630V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Through Hole | Radial | 0.335" L x 0.217" W (8.50mm x 5.50mm) | 0.433" (11.00mm) | - | 0.197" (5.00mm) | Formed Leads - Kinked |
|
C1812C665K1RLCAUTOCAP CER 6.6UF 100V X7R 1812 |
218 |
|
Datasheet |
KONNEKT Auto X7R | Tape & Reel (TR) | Active | 6.6 µF | ±10% | 100V | X7R | -55°C ~ 125°C | Low ESL (Stacked) | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.169" (4.30mm) | - | - |
-1,80mm-C-Series.jpg)
|
C1825C911FZGACAUTOCAP CER 1825 910PF 2500V C0G 1% |
437 |
|
Datasheet |
SMD Auto C0G HV | Tape & Reel (TR) | Active | 910 pF | ±1% | 2500V (2.5kV) | C0G, NP0 | -55°C ~ 125°C | Low ESL, High Voltage | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 1825 (4564 Metric) | 0.177" L x 0.252" W (4.50mm x 6.40mm) | - | 0.071" (1.80mm) | - | - |
|
|
615R150GATD10CAP CER 1000PF 15KV Y5R RADIAL |
284 |
|
Datasheet |
Cera-Mite 615R | Bulk | Active | 1000 pF | ±20% | 15000V (15kV) | Y5R | -25°C ~ 105°C | High Voltage | - | SMPS Filtering | - | Through Hole | Radial, Disc | 0.980" Dia (24.90mm) | 1.232" (31.30mm) | - | 0.752" (19.10mm) | Straight |
|
|
C1812C304K1GLCTUCAP CER 0.3UF 100V C0G/NP0 1812 |
272 |
|
Datasheet |
KONNEKT Comm C0G | Tape & Reel (TR) | Active | 0.3 µF | ±10% | 100V | C0G, NP0 | -55°C ~ 125°C | Low ESL (Stacked) | - | General Purpose | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.154" (3.90mm) | - | - |
|
|
VPDV501W224K1GV001ECAP CER 0.22UF 500V X7R 1825 |
8,500 |
|
Datasheet |
HVS-PME | Tape & Reel (TR) | Active | 0.22 µF | ±10% | 500V | X7R | -55°C ~ 125°C | High Voltage | - | SMPS Filtering | - | Surface Mount, MLCC | 1825 (4564 Metric) | 0.180" L x 0.250" W (4.57mm x 6.35mm) | - | 0.140" (3.56mm) | - | - |
.jpg)
|
C1812X105K1RACAUTOCAP CER 1UF 100V X7R 1812 |
1,861 |
|
Datasheet |
SMD Auto X7R Flex | Tape & Reel (TR) | Active | 1 µF | ±10% | 100V | X7R | -55°C ~ 125°C | Soft Termination | AEC-Q200 | Automotive, Boardflex Sensitive | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.065" (1.65mm) | - | - |
|
C1812C304K1GLCAUTOCAP CER 0.3UF 100V C0G/NP0 1812 |
900 |
|
Datasheet |
KONNEKT Auto C0G | Tape & Reel (TR) | Active | 0.3 µF | ±10% | 100V | C0G, NP0 | -55°C ~ 125°C | Low ESL (Stacked) | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.154" (3.90mm) | - | - |
|
KTJ250B336M55BFT00CAP CER 33UF 25V X7R SMD |
494 |
|
Datasheet |
KTJ, NTJ | Tape & Reel (TR) | Active | 33 µF | ±20% | 25V | X7R | -55°C ~ 125°C | Low ESL (Stacked) | - | Bypass, Decoupling | - | Surface Mount, MLCC | Stacked SMD, 2 J-Lead | 0.236" L x 0.209" W (6.00mm x 5.30mm) | - | 0.217" (5.50mm) | - | J-Lead |
-Standard-MLCC.jpg)
|
1206Y0160105KXTCAP CER 1UF 16V X7R 1206 |
4,150 |
|
Datasheet |
FlexiCap™ | Tape & Reel (TR) | Active | 1 µF | ±10% | 16V | X7R | -55°C ~ 125°C | Soft Termination | - | Boardflex Sensitive | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.063" (1.60mm) | - | - |
|

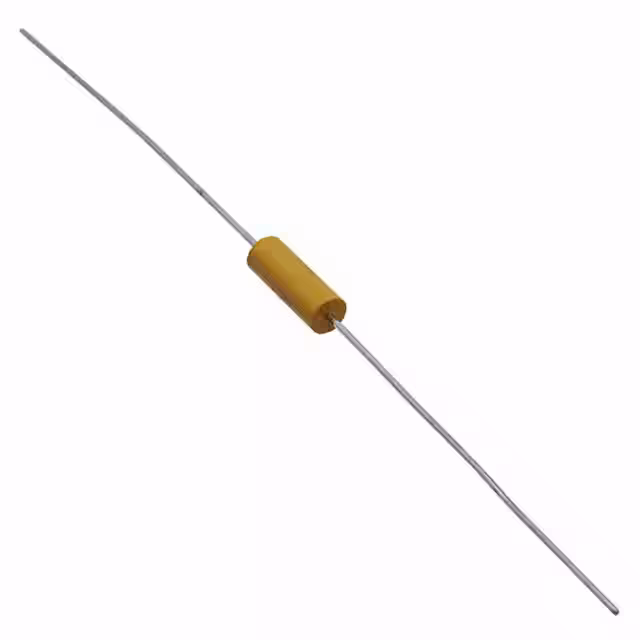

M39014/05-2297CAP CER 0.1UF 100V 10% AXIAL |
470 |
|
Datasheet |
Military, MIL-PRF-39014, CKR14 | Bulk | Active | 0.1 µF | ±10% | 100V | BR | -55°C ~ 125°C | - | - | High Reliability | S (0.001%) | Through Hole | Axial | 0.140" Dia x 0.390" L (3.56mm x 9.91mm) | - | - | - | Straight |
|
C2220X664KBRLCAUTOCAP CER 0.66UF 630V X7R 2220 |
784 |
|
Datasheet |
KONNEKT Auto X7R | Tape & Reel (TR) | Active | 0.66 µF | ±10% | 630V | X7R | -55°C ~ 125°C | Low ESL (Stacked), Soft Termination, High Voltage | AEC-Q200 | Automotive, Boardflex Sensitive | - | Surface Mount, MLCC | 2220 (5750 Metric) | 0.232" L x 0.197" W (5.90mm x 5.00mm) | - | 0.217" (5.50mm) | - | - |
