Ceramic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | Temperature Coefficient | Operating Temperature | Features | Ratings | Applications | Failure Rate | Mounting Type | Package / Case | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing | Lead Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
C2220C224J5GACTUCAP CER 0.22UF 50V C0G/NP0 2220 |
1,897 |
|
Datasheet |
SMD Comm C0G | Tape & Reel (TR) | Active | 0.22 µF | ±5% | 50V | C0G, NP0 | -55°C ~ 125°C | Low ESL | - | General Purpose | - | Surface Mount, MLCC | 2220 (5750 Metric) | 0.224" L x 0.197" W (5.70mm x 5.00mm) | - | 0.045" (1.15mm) | - | - |
-2,54mm-Tan.jpg)
|
2215YA250472KJTSYXCAP CER 4700PF 250VAC X7R 2215 |
1,429 |
|
Datasheet |
FlexiCap™ | Tape & Reel (TR) | Active | 4700 pF | ±10% | 250VAC | X7R | -55°C ~ 125°C | DC Annex H, Humidity 3B Annex I, Soft Termination, High Voltage | X1, Y2 | Safety, Boardflex Sensitive | - | Surface Mount, MLCC | 2215 (5738 Metric) | 0.224" L x 0.150" W (5.70mm x 3.81mm) | - | 0.100" (2.54mm) | - | - |
|
|
C2225V564JCRACTUCAP CER 0.56UF 500V X7R 2225 |
903 |
|
Datasheet |
ArcShield SMD Comm X7R HV | Tape & Reel (TR) | Active | 0.56 µF | ±5% | 500V | X7R | -55°C ~ 125°C | High Voltage, ArcShield™ | - | General Purpose | - | Surface Mount, MLCC | 2225 (5763 Metric) | 0.220" L x 0.252" W (5.60mm x 6.40mm) | - | 0.106" (2.70mm) | - | - |
|
VJ2220Y105KBBAT4XCAP CER 1UF 100V X7R 2220 |
2,787 |
|
Datasheet |
VJ OMD | Tape & Reel (TR) | Active | 1 µF | ±10% | 100V | X7R | -55°C ~ 125°C | Open Mode, Soft Termination | - | SMPS Filtering, Boardflex Sensitive | - | Surface Mount, MLCC | 2220 (5750 Metric) | 0.226" L x 0.200" W (5.74mm x 5.08mm) | - | 0.086" (2.18mm) | - | - |
|
FG23X7S2A685KRT06CAP CER 6.8UF 100V X7S RAD |
1,229 |
|
Datasheet |
FG | Cut Tape (CT) | Active | 6.8 µF | ±10% | 100V | X7S | -55°C ~ 125°C | - | - | General Purpose | - | Through Hole | Radial | 0.335" L x 0.217" W (8.50mm x 5.50mm) | 0.433" (11.00mm) | - | 0.197" (5.00mm) | Formed Leads - Kinked |
|
|
2211JA250221JKTSYXCAP CER 220PF 250VAC C0GNP0 2211 |
447 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 220 pF | ±5% | 250VAC | C0G, NP0 (1B) | -55°C ~ 125°C | DC Annex H, Humidity 3B Annex I, High Voltage | AEC-Q200, X1, Y2 | Safety, Automotive | - | Surface Mount, MLCC | 2211 (5728 Metric) | 0.224" L x 0.110" W (5.70mm x 2.80mm) | - | 0.079" (2.00mm) | - | - |
|
|
C2225C153KDGACTUCAP CER 0.015UF 1KV C0G/NP0 2225 |
339 |
|
Datasheet |
SMD Comm C0G HV | Tape & Reel (TR) | Active | 0.015 µF | ±10% | 1000V (1kV) | C0G, NP0 | -55°C ~ 125°C | Low ESL, High Voltage | - | General Purpose | - | Surface Mount, MLCC | 2225 (5763 Metric) | 0.220" L x 0.252" W (5.60mm x 6.40mm) | - | 0.106" (2.70mm) | - | - |
|

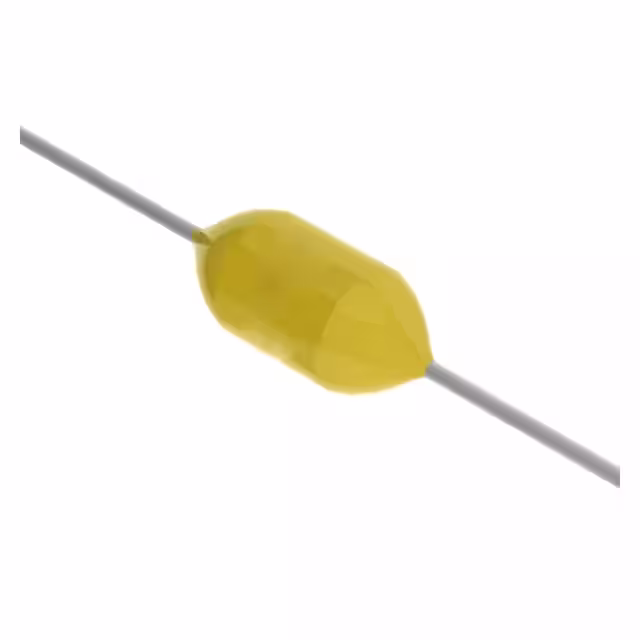

C440C103K5G5TACAP CER 10000PF 50V C0G/NP0 AX |
250 |
|
Datasheet |
AxiMax 400 Comm C0G | Bulk | Active | 10000 pF | ±10% | 50V | C0G, NP0 | -55°C ~ 125°C | Low ESL | - | General Purpose | - | Through Hole | Axial | 0.150" Dia x 0.400" L (3.81mm x 10.16mm) | - | - | - | Straight |
-2.8.jpg)
|
CGA9P1X7S3D103K250KECAP CER 10000PF 2KV X7S 2220 |
1,309 |
|
Datasheet |
CGA | Tape & Reel (TR) | Not For New Designs | 10000 pF | ±10% | 2000V (2kV) | X7S | -55°C ~ 125°C | Soft Termination | AEC-Q200 | Automotive, Boardflex Sensitive | - | Surface Mount, MLCC | 2220 (5750 Metric) | 0.224" L x 0.197" W (5.70mm x 5.00mm) | - | 0.110" (2.80mm) | - | - |
|
C330C105MAR5TACAP CER 1UF 250V X7R RADIAL |
252 |
|
Datasheet |
GoldMax 300 Comm X7R | Bulk | Active | 1 µF | ±20% | 250V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Through Hole | Radial | 0.280" L x 0.160" W (7.11mm x 4.07mm) | 0.420" (10.66mm) | - | 0.200" (5.08mm) | Straight |
|

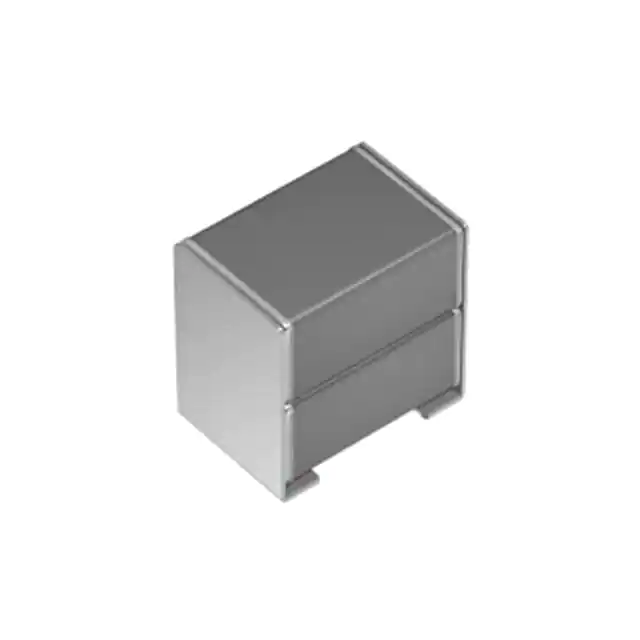

CKG45NC0G2W943J500JHCAP CER 0.094UF 450V C0G/NP0 SMD |
1,394 |
|
Datasheet |
CKG | Tape & Reel (TR) | Active | 0.094 µF | ±5% | 450V | C0G, NP0 | -55°C ~ 125°C | Low ESL | - | SMPS Filtering, Boardflex Sensitive | - | Surface Mount, MLCC | Stacked SMD, 2 J-Lead | 0.197" L x 0.138" W (5.00mm x 3.50mm) | - | 0.217" (5.50mm) | - | J-Lead |
|
|
C2225C102MHRACTUCAP CER 1000PF 3KV X7R 2225 |
447 |
|
Datasheet |
SMD Comm X7R HV | Tape & Reel (TR) | Active | 1000 pF | ±20% | 3000V (3kV) | X7R | -55°C ~ 125°C | Low ESL, High Voltage | - | General Purpose | - | Surface Mount, MLCC | 2225 (5763 Metric) | 0.220" L x 0.252" W (5.60mm x 6.40mm) | - | 0.071" (1.80mm) | - | - |
-2,00x1,20x1,00mm.jpg)
|
C0805X103F5GACAUTOCAP CER 10000PF 50V C0G/NP0 0805 |
6,303 |
|
Datasheet |
SMD Auto C0G Flex | Tape & Reel (TR) | Active | 10000 pF | ±1% | 50V | C0G, NP0 | -55°C ~ 125°C | Low ESL, Soft Termination, High Voltage | AEC-Q200 | Automotive, Boardflex Sensitive | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.039" (0.98mm) | - | - |
-1,55mm-C-Series.jpg)
|
C4532C0G2E104K320KNCAP CER 0.1UF 250V C0G 1812 |
437 |
|
Datasheet |
C | Tape & Reel (TR) | Not For New Designs | 0.1 µF | ±10% | 250V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.138" (3.50mm) | - | - |
.JPG)
|
D30BJ101M1BXCAP CER 100PF 100V BJ SMD |
2,000 |
|
Datasheet |
Border Cap® | Tray | Active | 100 pF | ±20% | 100V | BJ | -55°C ~ 125°C | Bonding Mountable, Single Layer | - | RF, Microwave, High Frequency, Bypass, Decoupling | - | Surface Mount, SLCC | Nonstandard SMD | 0.030" L x 0.030" W (0.76mm x 0.76mm) | - | 0.009" (0.22mm) | - | - |
.JPG)
|

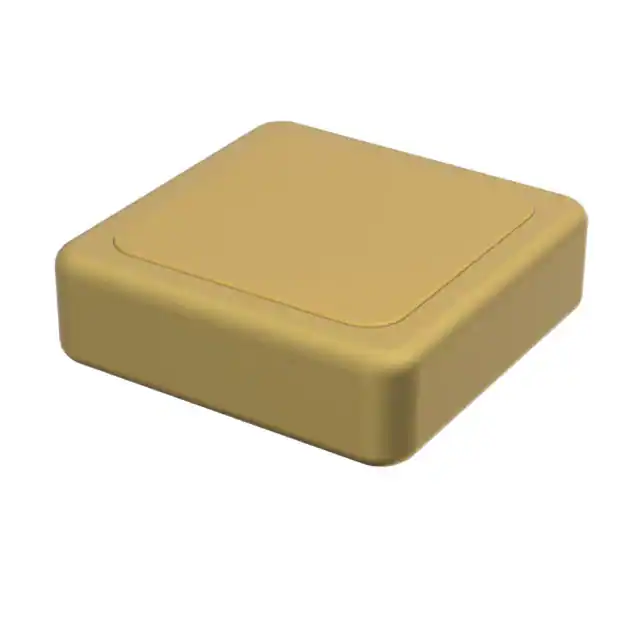

D20BD100M1BXCAP CER 10PF 100V BD 0202 |
400 |
|
Datasheet |
Border Cap® | Tray | Active | 10 pF | ±20% | 100V | BD | -55°C ~ 125°C | Bonding Mountable, Single Layer | - | RF, Microwave, High Frequency, Bypass, Decoupling | - | Surface Mount, SLCC | 0202 (0505 Metric) | 0.020" L x 0.020" W (0.51mm x 0.51mm) | - | 0.009" (0.22mm) | - | - |
.JPG)
|
D25BD100M1BXCAP CER 10PF 100V BD SMD |
200 |
|
Datasheet |
Border Cap® | Tray | Active | 10 pF | ±20% | 100V | BD | -55°C ~ 125°C | Bonding Mountable, Single Layer | - | RF, Microwave, High Frequency, Bypass, Decoupling | - | Surface Mount, SLCC | Nonstandard SMD | 0.025" L x 0.025" W (0.64mm x 0.64mm) | - | 0.009" (0.22mm) | - | - |
|
|
D25BJ101K1BXCAP CER 100PF 100V BG SMD |
200 |
|
Datasheet |
Border Cap® | Tray | Active | 100 pF | ±10% | 100V | BG | -55°C ~ 125°C | Bonding Mountable, Single Layer | - | RF, Microwave, High Frequency, Bypass, Decoupling | - | Surface Mount, SLCC | Nonstandard SMD | 0.025" L x 0.025" W (0.64mm x 0.64mm) | - | 0.009" (0.22mm) | - | - |
-3,20x2,50x2,80mm.jpg)
|
C1210C224J3GACAUTOCAP CER 0.22UF 25V C0G/NP0 1210 |
5,300 |
|
Datasheet |
SMD Auto C0G | Tape & Reel (TR) | Active | 0.22 µF | ±5% | 25V | C0G, NP0 | -55°C ~ 125°C | Low ESL | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.091" (2.30mm) | - | - |
|

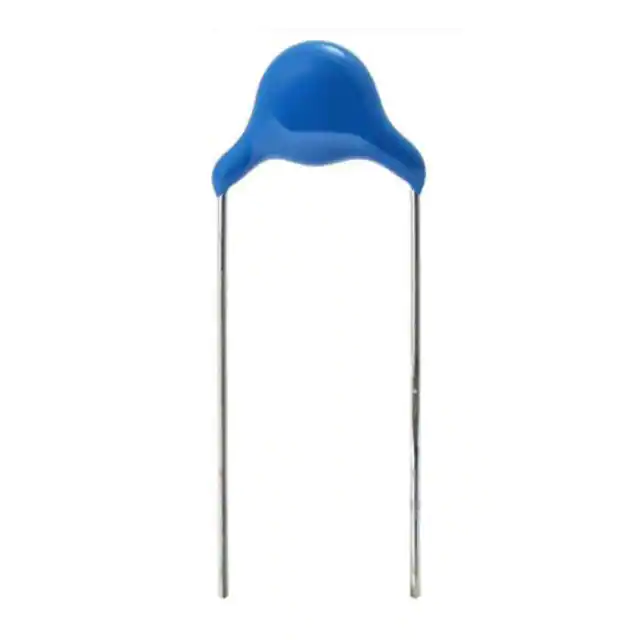

HCE103MBCDJ0KRCAP CER 10000PF 3KV RADIAL |
1,041 |
|
Datasheet |
HCE | Bulk | Active | 10000 pF | ±20% | 3000V (3kV) | - | -40°C ~ 85°C | High Voltage | - | General Purpose | - | Through Hole | Radial, Disc | 0.984" Dia (25.00mm) | 1.102" (28.00mm) | - | 0.394" (10.00mm) | Straight |
