Ceramic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | Temperature Coefficient | Operating Temperature | Features | Ratings | Applications | Failure Rate | Mounting Type | Package / Case | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing | Lead Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
-1,80mm-C-Series.jpg)
|
C1825C472JBGAC7800CAP CER 4700PF 630V C0G/NP0 1825 |
1,102 |
|
Datasheet |
SMD Comm C0G HV | Tape & Reel (TR) | Active | 4700 pF | ±5% | 630V | C0G, NP0 | -55°C ~ 125°C | Low ESL, High Voltage | - | General Purpose | - | Surface Mount, MLCC | 1825 (4564 Metric) | 0.177" L x 0.252" W (4.50mm x 6.40mm) | - | 0.071" (1.80mm) | - | - |
-4,50x3,20x2,7mm.jpg)
|
C1812X472JDGAC7800CAP CER 4700PF 1KV C0G/NP0 1812 |
12,993 |
|
Datasheet |
SMD Comm C0G HV Flex | Tape & Reel (TR) | Active | 4700 pF | ±5% | 1000V (1kV) | C0G, NP0 | -55°C ~ 125°C | Low ESL, Soft Termination, High Voltage | - | Boardflex Sensitive | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.061" (1.55mm) | - | - |
.jpg)
|
1812B104K501NTCAP CER 0.1UF 500V X7R 1812 |
1,960 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 0.1 µF | ±10% | 500V | X7R | -55°C ~ 125°C | - | - | SMPS Filtering | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.180" L x 0.125" W (4.57mm x 3.18mm) | - | 0.065" (1.65mm) | - | - |
.jpg)
|

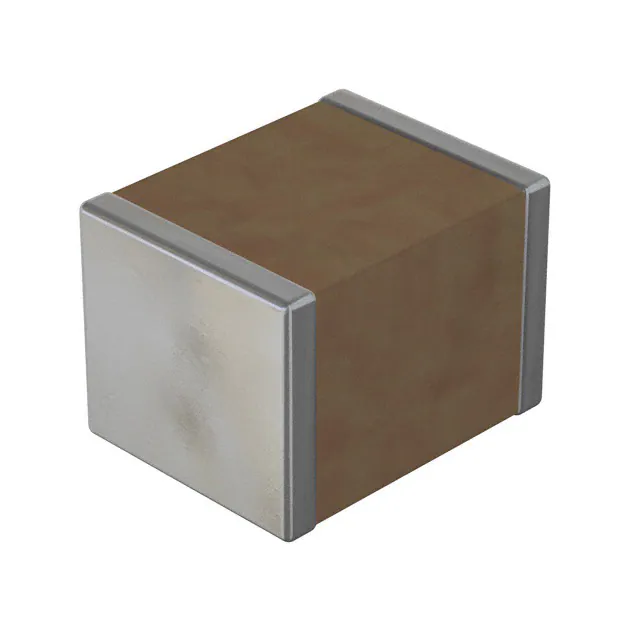

2520B102K502NTCAP CER 1000PF 5KV X7R 2520 |
1,785 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 1000 pF | ±10% | 5000V (5kV) | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 2520 (6450 Metric) | 0.250" L x 0.200" W (6.35mm x 5.08mm) | - | 0.180" (4.57mm) | - | - |
|
C2225C682KFGACTUCAP CER 6800PF 1.5KV C0G 2225 |
942 |
|
Datasheet |
SMD Comm C0G HV | Tape & Reel (TR) | Active | 6800 pF | ±10% | 1500V (1.5kV) | C0G, NP0 | -55°C ~ 125°C | Low ESL, High Voltage | - | General Purpose | - | Surface Mount, MLCC | 2225 (5763 Metric) | 0.220" L x 0.252" W (5.60mm x 6.40mm) | - | 0.106" (2.70mm) | - | - |
|
C340C473J2G5TACAP CER 0.047UF 200V NP0 RADIAL |
150 |
|
Datasheet |
GoldMax 300 Comm C0G | Bulk | Active | 0.047 µF | ±5% | 200V | C0G, NP0 | -55°C ~ 125°C | Low ESL | - | General Purpose | - | Through Hole | Radial | 0.290" L x 0.160" W (7.36mm x 4.07mm) | 0.500" (12.70mm) | - | 0.200" (5.08mm) | Straight |
|
KTJ101B685M55BFT00CAP CER 6.8UF 100V X7R SMD |
2,668 |
|
Datasheet |
KTJ, NTJ | Tape & Reel (TR) | Active | 6.8 µF | ±20% | 100V | X7R | -55°C ~ 125°C | Low ESL (Stacked) | - | Bypass, Decoupling | - | Surface Mount, MLCC | Stacked SMD, 2 J-Lead | 0.236" L x 0.209" W (6.00mm x 5.30mm) | - | 0.217" (5.50mm) | - | J-Lead |
|
|
CAN21X274KARACTUCAP CER 2220 270NF 250VAC X7R |
168 |
|
Datasheet |
CAN SMD Indust X7R | Tape & Reel (TR) | Active | 0.27 µF | ±10% | 250VAC | X7R | -55°C ~ 125°C | Low ESL, Soft Termination | - | Boardflex Sensitive | - | Surface Mount, MLCC | 2220 (5750 Metric) | 0.232" L x 0.197" W (5.90mm x 5.00mm) | - | 0.087" (2.20mm) | - | - |
.jpg)
|
1206D470J102KHTCAP CER 47PF 1KV C0G/NP0 1206 |
643 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 47 pF | ±5% | 1000V (1kV) | C0G, NP0 | -55°C ~ 200°C | High Temperature | - | General Purpose | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.125" L x 0.060" W (3.18mm x 1.52mm) | - | 0.064" (1.63mm) | - | - |
.jpg)
|
700A6R8CW150XTCAP CER 6.8PF 150V C0G/NP0 0505 |
230 |
|
Datasheet |
ATC 700A | Tape & Reel (TR) | Active | 6.8 pF | ±0.25pF | 150V | C0G, NP0 | -55°C ~ 125°C | Low ESL | - | RF, Microwave, High Frequency, Bypass, Decoupling | - | Surface Mount, MLCC | 0505 (1313 Metric) | 0.055" L x 0.055" W (1.40mm x 1.40mm) | - | 0.057" (1.45mm) | - | - |
|
100A3R9CW150XT1KCAP CER 3.9PF 150V P90 0505 |
2,079 |
|
Datasheet |
Porcelain Superchip® ATC 100A | Tape & Reel (TR) | Active | 3.9 pF | ±0.25pF | 150V | P90 | -55°C ~ 125°C | High Q, Low Loss, Low ESL | - | RF, Microwave, High Frequency, Bypass, Decoupling | - | Surface Mount, MLCC | 0505 (1313 Metric) | 0.055" L x 0.055" W (1.40mm x 1.40mm) | - | 0.057" (1.45mm) | - | - |
|
1210ZD107MAT2ACAP CER 100UF 10V X5R 1210 |
746 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 100 µF | ±20% | 10V | X5R | -55°C ~ 85°C | - | - | General Purpose | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.110" (2.79mm) | - | - |
-2,70mm-C-Series.jpg)
|
C2220C333JDTACAUTOCAP CER 0.033UF 1KV X8G 2220 |
2,000 |
|
Datasheet |
SMD Auto X8G HT150C HV | Tape & Reel (TR) | Active | 0.033 µF | ±5% | 1000V (1kV) | X8G | -55°C ~ 150°C | Low ESL, High Voltage, High Temperature | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 2220 (5750 Metric) | 0.224" L x 0.197" W (5.70mm x 5.00mm) | - | 0.106" (2.70mm) | - | - |
|
C1812C302KGGLCAUTOCAP CER 3000PF 2KV C0G/NP0 1812 |
284 |
|
Datasheet |
KONNEKT Auto C0G | Tape & Reel (TR) | Active | 3000 pF | ±10% | 2000V (2kV) | C0G, NP0 | -55°C ~ 125°C | Low ESL (Stacked), High Voltage | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.217" (5.50mm) | - | - |
|
KRM55LR72A475KH01KCAP CER 4.7UF 100V X7R SMD |
5,980 |
|
Datasheet |
KRM | Tape & Reel (TR) | Active | 4.7 µF | ±10% | 100V | X7R | -55°C ~ 125°C | - | - | Boardflex Sensitive | - | Surface Mount, MLCC | SMD, J-Lead | 0.240" L x 0.209" W (6.10mm x 5.30mm) | - | 0.118" (3.00mm) | - | J-Lead |
|
SR301A103JARTR1CAP CER 10000PF 100V C0G/NP0 RAD |
3,739 |
|
Datasheet |
SkyCap® SR | Tape & Reel (TR) | Active | 10000 pF | ±5% | 100V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Through Hole | Radial | 0.300" L x 0.150" W (7.62mm x 3.81mm) | 0.300" (7.62mm) | - | 0.200" (5.08mm) | Straight |
-3,30mm.jpg)
|
2220CC274KAZ1ACAP CER 0.27UF 630V X7R 2220 |
1,807 |
|
Datasheet |
FLEXITERM® | Tape & Reel (TR) | Active | 0.27 µF | ±10% | 630V | X7R | -55°C ~ 125°C | Soft Termination, High Voltage | - | SMPS Filtering, Boardflex Sensitive | - | Surface Mount, MLCC | 2220 (5750 Metric) | 0.224" L x 0.197" W (5.70mm x 5.00mm) | - | 0.130" (3.30mm) | - | - |
-4,2mm-Tan.jpg)
|
2220Y1000105KXTCAP CER 1UF 100V X7R 2220 |
1,225 |
|
Datasheet |
FlexiCap™ | Tape & Reel (TR) | Active | 1 µF | ±10% | 100V | X7R | -55°C ~ 125°C | Soft Termination | - | Boardflex Sensitive | - | Surface Mount, MLCC | 2220 (5750 Metric) | 0.224" L x 0.197" W (5.70mm x 5.00mm) | - | 0.165" (4.20mm) | - | - |
-2,54mm-Tan.jpg)
|
2211JA250102JKTSYXCAP CER 1000PF 250V C0G/NP0 2211 |
901 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 1000 pF | ±5% | 250VAC | C0G, NP0 (1B) | -55°C ~ 125°C | DC Annex H, Humidity 3B Annex I, High Voltage | AEC-Q200, X1, Y2 | Safety, Automotive | - | Surface Mount, MLCC | 2211 (5728 Metric) | 0.224" L x 0.110" W (5.70mm x 2.80mm) | - | 0.110" (2.80mm) | - | - |
|
|
C2225X334KBRACTUCAP CER 0.33UF 630V X7R 2225 |
663 |
|
Datasheet |
SMD Comm X7R HV Flex | Tape & Reel (TR) | Active | 0.33 µF | ±10% | 630V | X7R | -55°C ~ 125°C | Low ESL, Soft Termination, High Voltage | - | Boardflex Sensitive | - | Surface Mount, MLCC | 2225 (5763 Metric) | 0.232" L x 0.252" W (5.90mm x 6.40mm) | - | 0.087" (2.20mm) | - | - |
