Ceramic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | Temperature Coefficient | Operating Temperature | Features | Ratings | Applications | Failure Rate | Mounting Type | Package / Case | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing | Lead Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
KRM55WR71J226MH01LCAP CER MLCC |
274 |
|
Datasheet |
KRM | Tape & Reel (TR) | Active | 22 µF | ±20% | 63V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | Stacked SMD, 2 J-Lead | 0.240" L x 0.209" W (6.10mm x 5.30mm) | 0.264" (6.70mm) | - | - | J-Lead |
|
CKG57KX7R1E106M335JHCAP CER 10UF 25V X7R SMD |
254 |
|
Datasheet |
MEGACAP, CKG | Tape & Reel (TR) | Active | 10 µF | ±20% | 25V | X7R | -55°C ~ 125°C | Low ESL | - | SMPS Filtering, Bypass, Decoupling | - | Surface Mount, MLCC | SMD, J-Lead | 0.236" L x 0.197" W (6.00mm x 5.00mm) | - | 0.138" (3.50mm) | - | J-Lead |
|

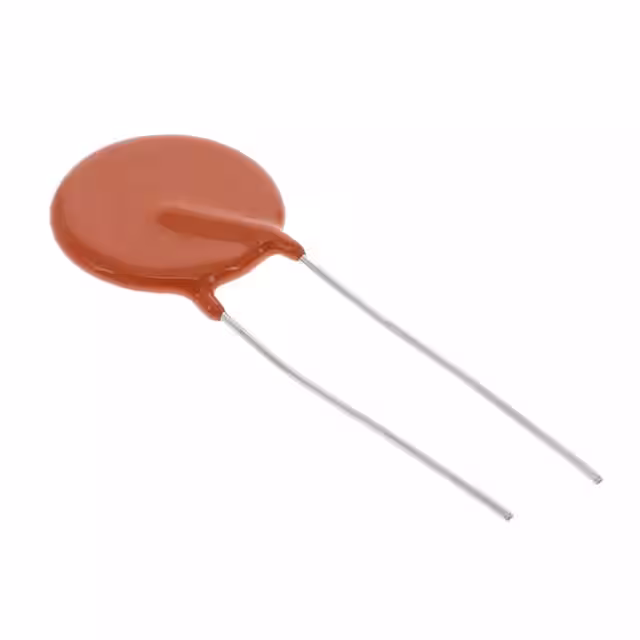

564RC0GAA302EP151JCAP CER 150PF 3KV NP0 RADIAL |
203 |
|
Datasheet |
Cera-Mite 564R | Bulk | Active | 150 pF | ±5% | 3000V (3kV) | C0G, NP0 | -25°C ~ 105°C | Low Dissipation Factor | - | General Purpose | - | Through Hole | Radial, Disc | - | - | - | - | Straight |
|
|
CKG57KX7R2A225K335JHCAP CER 2.2UF 100V X7R SMD |
173 |
|
Datasheet |
MEGACAP, CKG | Tape & Reel (TR) | Active | 2.2 µF | ±10% | 100V | X7R | -55°C ~ 125°C | Low ESL | - | SMPS Filtering, Bypass, Decoupling | - | Surface Mount, MLCC | SMD, J-Lead | 0.236" L x 0.197" W (6.00mm x 5.00mm) | - | 0.138" (3.50mm) | - | J-Lead |
|
VJ2225Y334KXEATCAP CER 0.33UF 500V X7R 2225 |
4,487 |
|
Datasheet |
VJ | Tape & Reel (TR) | Active | 0.33 µF | ±10% | 500V | X7R | -55°C ~ 150°C | - | - | General Purpose | - | Surface Mount, MLCC | 2225 (5763 Metric) | 0.220" L x 0.250" W (5.59mm x 6.35mm) | - | 0.086" (2.18mm) | - | - |
|
FA23X7S2A106KRU00CAP CER 10UF 100V X7S RADIAL |
607 |
|
Datasheet |
FA | Bulk | Active | 10 µF | ±10% | 100V | X7S | -55°C ~ 125°C | - | AEC-Q200 | Automotive | - | Through Hole | Radial | 0.335" L x 0.217" W (8.50mm x 5.50mm) | 0.433" (11.00mm) | - | 0.197" (5.00mm) | Formed Leads - Kinked |
.jpg)
|
100B8R2JW500XT1KCAP CER 8.2PF 500V P90 1111 |
4,355 |
|
Datasheet |
Porcelain Superchip® ATC 100B | Tape & Reel (TR) | Active | 8.2 pF | ±5% | 500V | P90 | -55°C ~ 125°C | High Q, Low Loss, Low ESL | - | RF, Microwave, High Frequency, Bypass, Decoupling | - | Surface Mount, MLCC | 1111 (2828 Metric) | 0.110" L x 0.110" W (2.79mm x 2.79mm) | - | 0.102" (2.59mm) | - | - |
|
C1210C224F5JACTUCAP CER 0.22UF 50V U2J 1210 |
4,807 |
|
Datasheet |
SMD Comm U2J | Tape & Reel (TR) | Active | 0.22 µF | ±1% | 50V | U2J | -55°C ~ 125°C | Low ESL, Low Dissipation Factor | - | General Purpose | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.035" (0.88mm) | - | - |
-4,50x6,40x1,50mm.jpg)
|
CDR35BX334AKUS7185CAP CER 0.33UF 50V BX 1825 |
300 |
|
Datasheet |
Military, MIL-PRF-55681, CDR35 | Tape & Reel (TR) | Active | 0.33 µF | ±10% | 50V | BX | -55°C ~ 125°C | - | - | High Reliability | S (0.001%) | Surface Mount, MLCC | 1825 (4564 Metric) | 0.177" L x 0.252" W (4.50mm x 6.40mm) | - | 0.059" (1.50mm) | - | - |
-3,20mm-Tan.jpg)
|
1812J1K00222FCTCAP CER 2200PF 1KV C0G/NP0 1812 |
3,066 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 2200 pF | ±1% | 1000V (1kV) | C0G, NP0 (1B) | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.098" (2.50mm) | - | - |
|
KC355WD7LQ125MV01LCAP CER |
2,416 |
|
Datasheet |
KC3 | Tape & Reel (TR) | Active | 1.2 µF | ±20% | 630V | X7T | -55°C ~ 125°C | - | AEC-Q200 | Automotive | - | Surface Mount, MLCC | Stacked SMD, 2 J-Lead | 0.240" L x 0.209" W (6.10mm x 5.30mm) | - | 0.264" (6.70mm) | - | J-Lead |
|
|
KR355TD7LP155MV01LCAP CER 1.5UF 450V X7T 2SMD |
450 |
|
Datasheet |
KR3 | Tape & Reel (TR) | Active | 1.5 µF | ±20% | 450V | X7T | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | Stacked SMD, 2 J-Lead | 0.240" L x 0.209" W (6.10mm x 5.30mm) | - | 0.197" (5.00mm) | - | J-Lead |
|
C2220X205K2RLCAUTOCAP CER 2UF 200V X7R 2220 |
413 |
|
Datasheet |
KONNEKT Auto X7R | Tape & Reel (TR) | Active | 2 µF | ±10% | 200V | X7R | -55°C ~ 125°C | Low ESL (Stacked), Soft Termination | AEC-Q200 | Automotive, Boardflex Sensitive | - | Surface Mount, MLCC | 2220 (5750 Metric) | 0.232" L x 0.197" W (5.90mm x 5.00mm) | - | 0.134" (3.40mm) | - | - |
|
|
SR305A103KARTR2CAP CER RADIAL |
918 |
|
Datasheet |
SkyCap® SR | Tape & Reel (TR) | Active | 10000 pF | ±10% | 50V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Through Hole | Radial | 0.300" L x 0.150" W (7.62mm x 3.81mm) | 0.360" (9.14mm) | - | 0.200" (5.08mm) | Straight |
|
KCM55V5C3A443JDL2LCAP CER 0.044UF 1KV C0G/NP0 2SMD |
200 |
|
Datasheet |
KCM | Tape & Reel (TR) | Active | 0.044 µF | ±5% | 1000V (1kV) | C0G, NP0 | -55°C ~ 125°C | - | AEC-Q200 | Automotive, Boardflex Sensitive | - | Surface Mount, MLCC | Stacked SMD, 2 J-Lead | 0.240" L x 0.201" W (6.10mm x 5.10mm) | - | 0.260" (6.60mm) | - | J-Lead |
|
100A200JT150XT1KCAP CER 20PF 150V P90 0505 |
1,803 |
|
Datasheet |
Porcelain Superchip® ATC 100A | Tape & Reel (TR) | Active | 20 pF | ±5% | 150V | P90 | -55°C ~ 125°C | High Q, Low Loss, Low ESL | - | RF, Microwave, High Frequency, Bypass, Decoupling | - | Surface Mount, MLCC | 0505 (1313 Metric) | 0.055" L x 0.055" W (1.40mm x 1.40mm) | - | 0.057" (1.45mm) | - | - |
|
|
800B180FT500XTCAP CER 18PF 500V C0G/NP0 1111 |
614 |
|
Datasheet |
ATC 800B | Tape & Reel (TR) | Active | 18 pF | ±1% | 500V | C0G, NP0 | -55°C ~ 125°C | High Q, Low Loss, Ultra Low ESR | - | RF, Microwave, High Frequency | - | Surface Mount, MLCC | 1111 (2828 Metric) | 0.110" L x 0.110" W (2.79mm x 2.79mm) | - | 0.070" (1.78mm) | - | - |
.jpg)
|
222523K62P00BQTAF9LMCAP CER 2PF 3.6KV C0G/NP0 2225 |
1,179 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 2 pF | ±0.1pF | 3600V (3.6kV) | C0G, NP0 | -55°C ~ 125°C | High Q, Low Loss, Non-Magnetic | - | RF, Microwave, High Frequency | - | Surface Mount, MLCC | 2225 (5763 Metric) | 0.224" L x 0.248" W (5.70mm x 6.30mm) | - | 0.165" (4.20mm) | - | - |
|
|
222523K61P50BQTAF9LMCAP CER 1.5PF 3.6KV C0G/NP0 2225 |
605 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 1.5 pF | ±0.1pF | 3600V (3.6kV) | C0G, NP0 | -55°C ~ 125°C | High Q, Low Loss, Non-Magnetic | - | RF, Microwave, High Frequency | - | Surface Mount, MLCC | 2225 (5763 Metric) | 0.224" L x 0.248" W (5.70mm x 6.30mm) | - | 0.165" (4.20mm) | - | - |
|
|
222523K63P00BQTAF9LMCAP CER 3PF 3.6KV C0G/NP0 2225 |
505 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 3 pF | ±0.1pF | 3600V (3.6kV) | C0G, NP0 | -55°C ~ 125°C | High Q, Low Loss, Non-Magnetic | - | RF, Microwave, High Frequency | - | Surface Mount, MLCC | 2225 (5763 Metric) | 0.224" L x 0.248" W (5.70mm x 6.30mm) | - | 0.165" (4.20mm) | - | - |
