Ceramic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | Temperature Coefficient | Operating Temperature | Features | Ratings | Applications | Failure Rate | Mounting Type | Package / Case | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing | Lead Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|
800B120JT500XT1KCAP CER 12PF 500V C0G/NP0 1111 |
3,749 |
|
Datasheet |
ATC 800B | Tape & Reel (TR) | Active | 12 pF | ±5% | 500V | C0G, NP0 | -55°C ~ 125°C | High Q, Low Loss, Ultra Low ESR | - | RF, Microwave, High Frequency | - | Surface Mount, MLCC | 1111 (2828 Metric) | 0.110" L x 0.110" W (2.79mm x 2.79mm) | - | 0.070" (1.78mm) | - | - |
|
|
100B5R6CW500XT1KCAP CER 5.6PF 500V P90 1111 |
614 |
|
Datasheet |
Porcelain Superchip® ATC 100B | Tape & Reel (TR) | Active | 5.6 pF | ±0.25pF | 500V | P90 | -55°C ~ 125°C | High Q, Low Loss, Low ESL | - | RF, Microwave, High Frequency, Bypass, Decoupling | - | Surface Mount, MLCC | 1111 (2828 Metric) | 0.110" L x 0.110" W (2.79mm x 2.79mm) | - | 0.102" (2.59mm) | - | - |
|
C2220C821JZGACTUCAP CER 820PF 2.5KV C0G/NP0 2220 |
2,781 |
|
Datasheet |
SMD Comm C0G HV | Tape & Reel (TR) | Active | 820 pF | ±5% | 2500V (2.5kV) | C0G, NP0 | -55°C ~ 125°C | Low ESL, High Voltage | - | General Purpose | - | Surface Mount, MLCC | 2220 (5750 Metric) | 0.224" L x 0.197" W (5.70mm x 5.00mm) | - | 0.071" (1.80mm) | - | - |
|
CKC21C204KCGLC7800CAP CER 0.2UF 500V C0G/NP0 2220 |
641 |
|
Datasheet |
KC Link Comm C0G | Tape & Reel (TR) | Active | 0.2 µF | ±10% | 500V | C0G, NP0 | -55°C ~ 150°C | Low ESL, High Voltage, High Temperature | - | General Purpose | - | Surface Mount, MLCC | 2220 (5750 Metric) | 0.224" L x 0.197" W (5.70mm x 5.00mm) | - | - | - | - |
|
|
100B3R0CT500XT1KCAP CER 3PF 500V P90 1111 |
644 |
|
Datasheet |
Porcelain Superchip® ATC 100B | Tape & Reel (TR) | Active | 3 pF | ±0.25pF | 500V | P90 | -55°C ~ 125°C | High Q, Low Loss, Low ESL | - | RF, Microwave, High Frequency, Bypass, Decoupling | - | Surface Mount, MLCC | 1111 (2828 Metric) | 0.110" L x 0.110" W (2.79mm x 2.79mm) | - | 0.102" (2.59mm) | - | - |
|
C2220C143KFGLCAUTOCAP CER 0.014UF 1.5KV C0G 2220 |
840 |
|
Datasheet |
KONNEKT Auto C0G | Tape & Reel (TR) | Active | 0.014 µF | ±10% | 1500V (1.5kV) | C0G, NP0 | -55°C ~ 125°C | Low ESL (Stacked), High Voltage | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 2220 (5750 Metric) | 0.224" L x 0.197" W (5.70mm x 5.00mm) | - | 0.217" (5.50mm) | - | - |
|
|
KR355WD7LP225MV01LCAP CER 2.2UF 450V X7T 2SMD |
600 |
|
Datasheet |
KR3 | Tape & Reel (TR) | Active | 2.2 µF | ±20% | 450V | X7T | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | Stacked SMD, 2 J-Lead | 0.240" L x 0.209" W (6.10mm x 5.30mm) | - | 0.264" (6.70mm) | - | J-Lead |
|
|
KR355WD7LP225MV01KCAP CER 2.2UF 450V X7T 2SMD |
495 |
|
Datasheet |
KR3 | Tape & Reel (TR) | Active | 2.2 µF | ±20% | 450V | X7T | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | Stacked SMD, 2 J-Lead | 0.240" L x 0.209" W (6.10mm x 5.30mm) | - | 0.264" (6.70mm) | - | J-Lead |
|
MD015E103MABCAP CER 10000PF 50V Z5U 2-DIP |
398 |
|
Datasheet |
DIPGuard® MD | Bulk | Active | 10000 pF | ±20% | 50V | Z5U | 10°C ~ 85°C | - | - | General Purpose | - | Through Hole | 2-DIP | 0.260" L x 0.100" W (6.60mm x 2.54mm) | 0.175" (4.45mm) | - | 0.325" (8.25mm) | - |
.jpg)
|

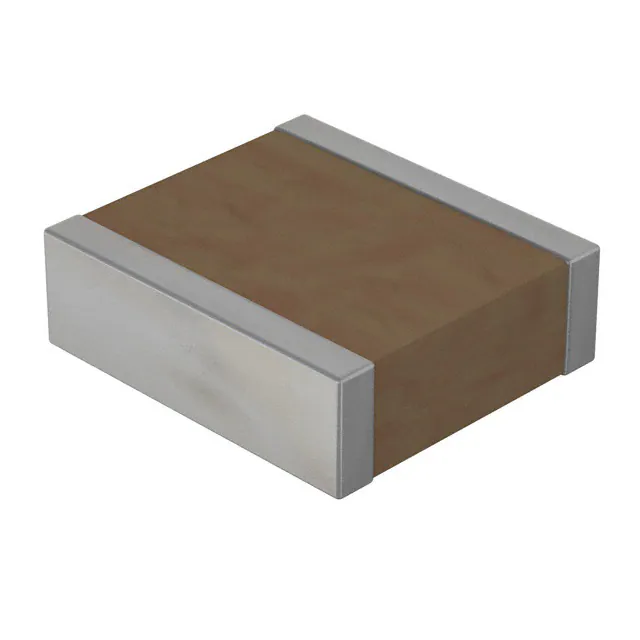

2225B104K102NTCAP CER 0.1UF 1KV X7R 2225 |
4,030 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 0.1 µF | ±10% | 1000V (1kV) | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 2225 (5763 Metric) | 0.220" L x 0.250" W (5.59mm x 6.35mm) | - | 0.080" (2.03mm) | - | - |
.jpg)
|
1812B223K251NTCAP CER 0.022UF 250V X7R 1812 |
2,111 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 0.022 µF | ±10% | 250V | X7R | -55°C ~ 125°C | - | - | SMPS Filtering | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.180" L x 0.125" W (4.57mm x 3.18mm) | - | 0.065" (1.65mm) | - | - |
|
CKC18C943KWGLCAUTOCAP CER 0.094UF 650V C0G 1812 |
417 |
|
Datasheet |
KC Link Auto C0G | Tape & Reel (TR) | Active | 0.094 µF | ±10% | 650V | C0G, NP0 | -55°C ~ 150°C | Low ESL, High Voltage, High Temperature | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | - | - | - |
|
|
1812B222K202NTCAP CER 2200PF 2KV X7R 1812 |
152 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 2200 pF | ±10% | 2000V (2kV) | X7R | -55°C ~ 125°C | - | - | SMPS Filtering | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.180" L x 0.125" W (4.57mm x 3.18mm) | - | 0.065" (1.65mm) | - | - |
|
|
100B201JW300XT1KCAP CER 200PF 300V P90 1111 |
3,361 |
|
Datasheet |
Porcelain Superchip® ATC 100B | Tape & Reel (TR) | Active | 200 pF | ±5% | 300V | P90 | -55°C ~ 125°C | High Q, Low Loss, Low ESL | - | RF, Microwave, High Frequency, Bypass, Decoupling | - | Surface Mount, MLCC | 1111 (2828 Metric) | 0.110" L x 0.110" W (2.79mm x 2.79mm) | - | 0.102" (2.59mm) | - | - |
|
C1812C303KDGLCAUTOCAP CER 0.03UF 1KV C0G/NP0 1812 |
127 |
|
Datasheet |
KONNEKT Auto C0G | Tape & Reel (TR) | Active | 0.03 µF | ±10% | 1000V (1kV) | C0G, NP0 | -55°C ~ 125°C | Low ESL (Stacked), High Voltage | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.217" (5.50mm) | - | - |
|
|
700B151JT300XT1KCAP CER 150PF 300V C0G/NP0 1111 |
7,184 |
|
Datasheet |
ATC 700B | Tape & Reel (TR) | Active | 150 pF | ±5% | 300V | C0G, NP0 | -55°C ~ 125°C | Low ESL | - | RF, Microwave, High Frequency, Bypass, Decoupling | - | Surface Mount, MLCC | 1111 (2828 Metric) | 0.110" L x 0.110" W (2.79mm x 2.79mm) | - | 0.102" (2.59mm) | - | - |
|
CDR32BX103BKUR\M500CAP CER SMP MLC HI-REL |
1,751 |
|
Datasheet |
Military, MIL-PRF-55681, CDR32 | Tape & Reel (TR) | Active | 10000 pF | ±10% | 100V | BX | -55°C ~ 125°C | - | - | General Purpose | R (0.01%) | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.051" (1.30mm) | - | - |
|
M3253505E1B103JZMBTRCAP CER 10000PF 100V C0G 1206 |
2,824 |
|
Datasheet |
Military, MIL-PRF-32535 | Tape & Reel (TR) | Active | 10000 pF | ±5% | 100V | C0G, NP0 | -55°C ~ 125°C | Low ESL | - | High Reliability | M (1%) | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.070" (1.78mm) | - | - |
-4,2mm-Tan.jpg)
|
2225Y5000474KXTCAP CER 0.47UF 500V X7R 2225 |
1,452 |
|
Datasheet |
FlexiCap™ | Tape & Reel (TR) | Active | 0.47 µF | ±10% | 500V | X7R | -55°C ~ 125°C | Soft Termination | - | Boardflex Sensitive | - | Surface Mount, MLCC | 2225 (5763 Metric) | 0.224" L x 0.248" W (5.70mm x 6.30mm) | - | 0.098" (2.50mm) | - | - |
|
|
800A120FT250XT4KCAP CER 12PF 250V C0G/NP0 0505 |
13,648 |
|
Datasheet |
ATC 800A | Tape & Reel (TR) | Active | 12 pF | ±1% | 250V | C0G, NP0 | -55°C ~ 125°C | Ultra Low ESR | - | RF, Microwave, High Frequency, Bypass, Decoupling | - | Surface Mount, MLCC | 0505 (1313 Metric) | 0.055" L x 0.055" W (1.40mm x 1.40mm) | - | 0.057" (1.45mm) | - | - |
