Ceramic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | Temperature Coefficient | Operating Temperature | Features | Ratings | Applications | Failure Rate | Mounting Type | Package / Case | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing | Lead Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|
GRT32ER61E226ME13LCAP CER 22UF 25V X5R 1210 |
622 |
|
Datasheet |
GRT | Tape & Reel (TR) | Not For New Designs | 22 µF | ±20% | 25V | X5R | -55°C ~ 85°C | - | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.106" (2.70mm) | - | - |
|

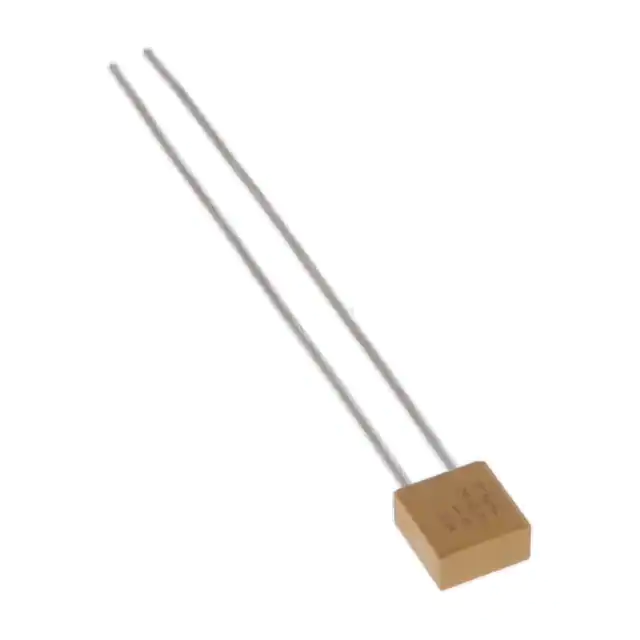

MR045X104KSCAP CER 0.1UF 50V RADIAL |
396 |
|
Datasheet |
Military, MIL-PRF-39014, Ceralam® MR04 | Bulk | Active | 0.1 µF | ±10% | 50V | - | - | - | - | High Reliability | S (0.001%) | Through Hole | Radial | 0.190" L x 0.090" W (4.83mm x 2.28mm) | 0.200" (5.08mm) | - | 0.100" (2.54mm) | Straight |
|
C1210C225M1R2CAUTOCAP CER 2.2UF 100V X7R SMD |
437 |
|
Datasheet |
KPS SMD Auto X7R | Tape & Reel (TR) | Active | 2.2 µF | ±20% | 100V | X7R | -55°C ~ 125°C | Low ESL (Stacked) | AEC-Q200 | Automotive, Boardflex Sensitive | - | Surface Mount, MLCC | Stacked SMD, 2 J-Lead | 0.138" L x 0.102" W (3.50mm x 2.60mm) | - | 0.248" (6.30mm) | - | J-Lead |
|
MD015A102KABCAP CER 1000PF 50V NP0 2-DIP |
500 |
|
Datasheet |
DIPGuard® MD | Bulk | Active | 1000 pF | ±10% | 50V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Through Hole | 2-DIP | 0.260" L x 0.100" W (6.60mm x 2.54mm) | 0.175" (4.45mm) | - | 0.325" (8.25mm) | - |
|
C2220X205K1RLCAUTOCAP CER 2UF 100V X7R 2220 |
158 |
|
Datasheet |
KONNEKT Auto X7R | Tape & Reel (TR) | Active | 2 µF | ±10% | 100V | X7R | -55°C ~ 125°C | Low ESL (Stacked), Soft Termination | AEC-Q200 | Automotive, Boardflex Sensitive | - | Surface Mount, MLCC | 2220 (5750 Metric) | 0.232" L x 0.197" W (5.90mm x 5.00mm) | - | 0.134" (3.40mm) | - | - |
.jpg)
|
100B9R1JW500XT1KCAP CER 9.1PF 500V P90 1111 |
572 |
|
Datasheet |
Porcelain Superchip® ATC 100B | Tape & Reel (TR) | Active | 9.1 pF | ±5% | 500V | P90 | -55°C ~ 125°C | High Q, Low Loss, Low ESL | - | RF, Microwave, High Frequency, Bypass, Decoupling | - | Surface Mount, MLCC | 1111 (2828 Metric) | 0.110" L x 0.110" W (2.79mm x 2.79mm) | - | 0.102" (2.59mm) | - | - |
|
CAS26C681KAGFCCAP CER 680PF 250V C0G/NP0 2211 |
2,929 |
|
Datasheet |
CAS SMD SFTY 250 | Tape & Reel (TR) | Active | 680 pF | ±10% | 250VAC | C0G, NP0 | -55°C ~ 125°C | - | X1, Y2 | Safety | - | Surface Mount, MLCC | 2211 (5728 Metric) | 0.224" L x 0.110" W (5.70mm x 2.80mm) | - | 0.110" (2.80mm) | - | - |
|
FG23C0G2W104JNT06CAP CER 0.1UF 450V C0G/NP0 RAD |
1,823 |
|
Datasheet |
FG | Cut Tape (CT) | Active | 0.1 µF | ±5% | 450V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Through Hole | Radial | 0.335" L x 0.217" W (8.50mm x 5.50mm) | 0.433" (11.00mm) | - | 0.197" (5.00mm) | Formed Leads - Kinked |
|
|
C1812C226M4R2C7186CAP CER 22UF 16V X7R SMD |
604 |
|
Datasheet |
KPS SMD Comm X7R | Tape & Reel (TR) | Active | 22 µF | ±20% | 16V | X7R | -55°C ~ 125°C | Low ESL (Stacked) | - | Boardflex Sensitive | - | Surface Mount, MLCC | Stacked SMD, 2 J-Lead | 0.197" L x 0.138" W (5.00mm x 3.50mm) | - | 0.217" (5.50mm) | - | J-Lead |
|
100A180JT150XT1KCAP CER 18PF 150V P90 0505 |
1,870 |
|
Datasheet |
Porcelain Superchip® ATC 100A | Tape & Reel (TR) | Active | 18 pF | ±5% | 150V | P90 | -55°C ~ 125°C | High Q, Low Loss, Low ESL | - | RF, Microwave, High Frequency, Bypass, Decoupling | - | Surface Mount, MLCC | 0505 (1313 Metric) | 0.055" L x 0.055" W (1.40mm x 1.40mm) | - | 0.057" (1.45mm) | - | - |
|
CKC18C622FDGACAUTOCAP CER 6.2NF 1000V C0G 1812 |
808 |
|
Datasheet |
KC Link Auto C0G | Tape & Reel (TR) | Active | 6200 pF | ±1% | 1000V (1kV) | C0G, NP0 | -55°C ~ 150°C | Low ESL, High Voltage, High Temperature | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.061" (1.55mm) | - | - |
|

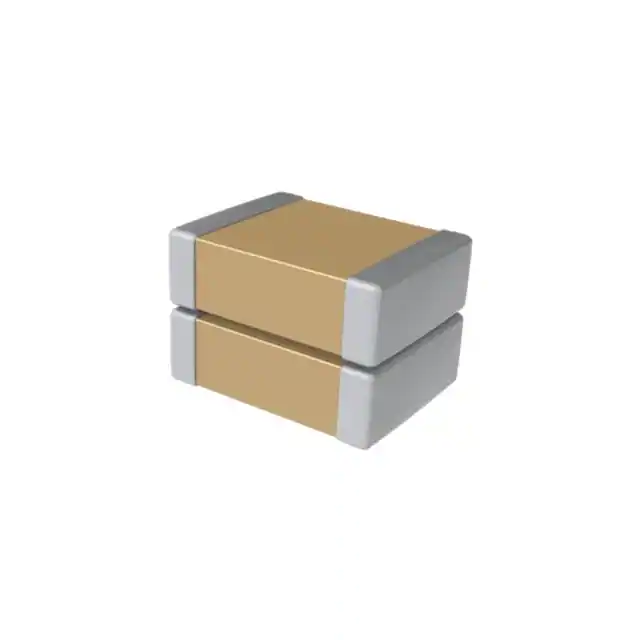

CKC18C943KCGLC7800CAP CER 0.094UF 500V C0G 1812 |
590 |
|
Datasheet |
KC Link Comm C0G | Tape & Reel (TR) | Active | 0.094 µF | ±10% | 500V | C0G, NP0 | -55°C ~ 150°C | Low ESL, High Voltage, High Temperature | - | General Purpose | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | - | - | - |
|
C1210H272JDGACTUCAP CER 2700PF 1KV C0G/NP0 1210 |
893 |
|
Datasheet |
SMD Indust C0G HVHT200C | Tape & Reel (TR) | Active | 2700 pF | ±5% | 1000V (1kV) | C0G, NP0 | -55°C ~ 200°C | Low ESL, High Voltage, High Temperature | - | Downhole | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.110" (2.80mm) | - | - |
|
CKG57KX7T2J474M335JHCAP CER 0.47UF 630V X7T SMD |
2,810 |
|
Datasheet |
MEGACAP, CKG | Tape & Reel (TR) | Active | 0.47 µF | ±20% | 630V | X7T | -55°C ~ 125°C | Low ESL | - | SMPS Filtering, Bypass, Decoupling | - | Surface Mount, MLCC | SMD, J-Lead | 0.236" L x 0.197" W (6.00mm x 5.00mm) | - | 0.138" (3.50mm) | - | J-Lead |
|
|
CKG57KX7S2A106K335JHCAP CER 10UF 100V X7S SMD |
2,300 |
|
Datasheet |
MEGACAP, CKG | Tape & Reel (TR) | Active | 10 µF | ±10% | 100V | X7S | -55°C ~ 125°C | Low ESL | - | SMPS Filtering, Bypass, Decoupling | - | Surface Mount, MLCC | SMD, J-Lead | 0.236" L x 0.197" W (6.00mm x 5.00mm) | - | 0.138" (3.50mm) | - | J-Lead |
|
|
CKG57KX7T2E225K335JHCAP CER 2.2UF 250V X7T SMD |
1,981 |
|
Datasheet |
MEGACAP, CKG | Tape & Reel (TR) | Active | 2.2 µF | ±10% | 250V | X7T | -55°C ~ 125°C | Low ESL | - | SMPS Filtering, Bypass, Decoupling | - | Surface Mount, MLCC | SMD, J-Lead | 0.236" L x 0.197" W (6.00mm x 5.00mm) | - | 0.138" (3.50mm) | - | J-Lead |
|
|
200B103MW50XT1KCAP CER 10000PF 50V BX 1111 |
1,170 |
|
Datasheet |
ATC 200B | Tape & Reel (TR) | Active | 10000 pF | ±20% | 50V | BX | -55°C ~ 125°C | Low ESL | - | Bypass, Decoupling | - | Surface Mount, MLCC | 1111 (2828 Metric) | 0.110" L x 0.110" W (2.79mm x 2.79mm) | - | 0.102" (2.59mm) | - | - |
|
|
CKG57KX7T2W105K335JHCAP CER 1UF 450V X7T SMD |
1,000 |
|
Datasheet |
MEGACAP, CKG | Tape & Reel (TR) | Active | 1 µF | ±10% | 450V | X7T | -55°C ~ 125°C | Low ESL | - | SMPS Filtering, Bypass, Decoupling | - | Surface Mount, MLCC | SMD, J-Lead | 0.236" L x 0.197" W (6.00mm x 5.00mm) | - | 0.138" (3.50mm) | - | J-Lead |
|
|
CKG57KX7S2A685K335JHCAP CER 6.8UF 100V X7S SMD |
873 |
|
Datasheet |
MEGACAP, CKG | Tape & Reel (TR) | Active | 6.8 µF | ±10% | 100V | X7S | -55°C ~ 125°C | Low ESL | - | SMPS Filtering, Bypass, Decoupling | - | Surface Mount, MLCC | SMD, J-Lead | 0.236" L x 0.197" W (6.00mm x 5.00mm) | - | 0.138" (3.50mm) | - | J-Lead |
|
|
MD015C473KABCAP CER 0.047UF 50V X7R 2-DIP |
345 |
|
Datasheet |
DIPGuard® MD | Tube | Active | 0.047 µF | ±10% | 50V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Through Hole | 2-DIP | 0.260" L x 0.100" W (6.60mm x 2.54mm) | 0.175" (4.45mm) | - | 0.325" (8.25mm) | - |
