Ceramic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | Temperature Coefficient | Operating Temperature | Features | Ratings | Applications | Failure Rate | Mounting Type | Package / Case | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing | Lead Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
404027K03P00BQRAF9LMCAP CER 3PF 7KV C0G 4040 |
441 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 3 pF | ±0.1pF | 7000V (7kV) | C0G, NP0 | -55°C ~ 125°C | High Q, Low Loss, Non-Magnetic | - | RF, Microwave, High Frequency | - | Surface Mount, MLCC | 4040 (1010 Metric) | 0.402" L x 0.402" W (10.20mm x 10.20mm) | - | 0.197" (5.00mm) | - | - |
|
|
404027K02P00BQRAF9LMCAP CER 2PF 7KV C0G 4040 |
420 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 2 pF | ±0.1pF | 7000V (7kV) | C0G, NP0 | -55°C ~ 125°C | High Q, Low Loss, Non-Magnetic | - | RF, Microwave, High Frequency | - | Surface Mount, MLCC | 4040 (1010 Metric) | 0.402" L x 0.402" W (10.20mm x 10.20mm) | - | 0.197" (5.00mm) | - | - |
|
|
404027K00510GQRAF9LMCAP CER 51PF 7KV C0G 4040 |
1,484 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 51 pF | ±2% | 7000V (7kV) | C0G, NP0 | -55°C ~ 125°C | High Q, Low Loss, Non-Magnetic | - | RF, Microwave, High Frequency | - | Surface Mount, MLCC | 4040 (1010 Metric) | 0.402" L x 0.402" W (10.20mm x 10.20mm) | - | 0.197" (5.00mm) | - | - |
|
|
404026K00181GQRAF9LMCAP CER 180PF 6KV C0G 4040 |
454 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 180 pF | ±2% | 6000V (6kV) | C0G, NP0 | -55°C ~ 125°C | High Q, Low Loss, Non-Magnetic | - | RF, Microwave, High Frequency | - | Surface Mount, MLCC | 4040 (1010 Metric) | 0.402" L x 0.402" W (10.20mm x 10.20mm) | - | 0.197" (5.00mm) | - | - |
|
|
404027K00180GQRAF9LMCAP CER 18PF 7KV C0G 4040 |
445 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 18 pF | ±2% | 7000V (7kV) | C0G, NP0 | -55°C ~ 125°C | High Q, Low Loss, Non-Magnetic | - | RF, Microwave, High Frequency | - | Surface Mount, MLCC | 4040 (1010 Metric) | 0.402" L x 0.402" W (10.20mm x 10.20mm) | - | 0.197" (5.00mm) | - | - |
|
|
404027K00330GQRAF9LMCAP CER 33PF 7KV C0G 4040 |
435 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 33 pF | ±2% | 7000V (7kV) | C0G, NP0 | -55°C ~ 125°C | High Q, Low Loss, Non-Magnetic | - | RF, Microwave, High Frequency | - | Surface Mount, MLCC | 4040 (1010 Metric) | 0.402" L x 0.402" W (10.20mm x 10.20mm) | - | 0.197" (5.00mm) | - | - |
|
|
404027K00750GQRAF9LMCAP CER 75PF 7KV C0G 4040 |
425 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 75 pF | ±2% | 7000V (7kV) | C0G, NP0 | -55°C ~ 125°C | High Q, Low Loss, Non-Magnetic | - | RF, Microwave, High Frequency | - | Surface Mount, MLCC | 4040 (1010 Metric) | 0.402" L x 0.402" W (10.20mm x 10.20mm) | - | 0.197" (5.00mm) | - | - |
|
|
404027K00820GQRAF9LMCAP CER 82PF 7KV C0G 4040 |
415 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 82 pF | ±2% | 7000V (7kV) | C0G, NP0 | -55°C ~ 125°C | High Q, Low Loss, Non-Magnetic | - | RF, Microwave, High Frequency | - | Surface Mount, MLCC | 4040 (1010 Metric) | 0.402" L x 0.402" W (10.20mm x 10.20mm) | - | 0.197" (5.00mm) | - | - |
|
|
404027K00120GQRAF9LMCAP CER 12PF 7KV C0G 4040 |
334 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 12 pF | ±2% | 7000V (7kV) | C0G, NP0 | -55°C ~ 125°C | High Q, Low Loss, Non-Magnetic | - | RF, Microwave, High Frequency | - | Surface Mount, MLCC | 4040 (1010 Metric) | 0.402" L x 0.402" W (10.20mm x 10.20mm) | - | 0.197" (5.00mm) | - | - |
|
|
404027K00100GQRAF9LMCAP CER 10PF 7KV C0G 4040 |
261 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 10 pF | ±2% | 7000V (7kV) | C0G, NP0 | -55°C ~ 125°C | High Q, Low Loss, Non-Magnetic | - | RF, Microwave, High Frequency | - | Surface Mount, MLCC | 4040 (1010 Metric) | 0.402" L x 0.402" W (10.20mm x 10.20mm) | - | 0.197" (5.00mm) | - | - |
|
|
404027K00470GQRAF9LMCAP CER 47PF 7KV C0G 4040 |
108 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 47 pF | ±2% | 7000V (7kV) | C0G, NP0 | -55°C ~ 125°C | High Q, Low Loss, Non-Magnetic | - | RF, Microwave, High Frequency | - | Surface Mount, MLCC | 4040 (1010 Metric) | 0.402" L x 0.402" W (10.20mm x 10.20mm) | - | 0.197" (5.00mm) | - | - |
|
M39014/22-0841-TUBECAP CER 2DIP |
200 |
|
Datasheet |
Military, MIL-PRF-39014, CKR22 | Bulk | Active | 0.15 µF | ±10% | 100V | BR | -55°C ~ 125°C | - | - | High Reliability | R (0.01%) | Through Hole | 2-DIP | 0.260" L x 0.092" W (6.60mm x 2.34mm) | 0.320" (8.13mm) | - | 0.035" (0.89mm) | Straight |
|

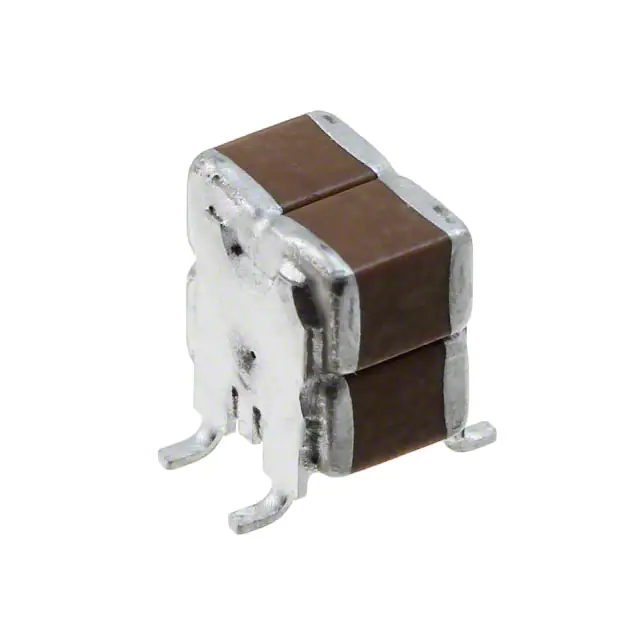

ST105C396MAM02CAP CER 39UF 50V X7R 4SMD |
220 |
|
Datasheet |
Mini-TurboCap™ | Bulk | Active | 39 µF | ±20% | 50V | X7R | -55°C ~ 125°C | Low ESL (Stacked) | - | SMPS Filtering, Bypass, Decoupling | - | Surface Mount, MLCC | Stacked SMD, 4 L-Lead | 0.210" L x 0.190" W (5.33mm x 4.83mm) | - | 0.220" (5.59mm) | 0.150" (3.80mm) | L-Lead |
|
100C272JT300XJ36CAP CER 2700PF 300V P90 2325 |
155 |
|
Datasheet |
ATC 100C | Tray | Active | 2700 pF | ±5% | 300V | P90 | -55°C ~ 125°C | High Q, Low Loss, Low ESL | - | RF, Microwave, High Frequency, Bypass, Decoupling | - | Surface Mount, MLCC | 2325 (5864 Metric) | 0.230" L x 0.250" W (5.84mm x 6.35mm) | - | 0.165" (4.19mm) | - | - |
|
SE041C685KARCAP CER 6.8UF 100V X7R RADIAL |
200 |
|
Datasheet |
SE | Bulk | Active | 6.8 µF | ±10% | 100V | X7R | -55°C ~ 125°C | - | - | SMPS Filtering | - | Through Hole | Radial | 0.402" L x 0.402" W (10.20mm x 10.20mm) | 0.200" (5.08mm) | - | 0.200" (5.08mm) | Straight |
|
SV08CC105KARCAP CER 1UF 630V X7R RADIAL |
116 |
|
Datasheet |
SV | Bulk | Active | 1 µF | ±10% | 630V | X7R | -55°C ~ 125°C | High Voltage | - | General Purpose | - | Through Hole | Radial | 0.669" L x 0.200" W (17.00mm x 5.08mm) | 0.598" (15.20mm) | - | 0.575" (14.60mm) | Straight |
|
|
SV09CC185KARCAP CER 1.8UF 630V X7R RADIAL |
166 |
|
Datasheet |
SV | Bulk | Active | 1.8 µF | ±10% | 630V | X7R | -55°C ~ 125°C | High Voltage | - | General Purpose | - | Through Hole | Radial | 0.772" L x 0.200" W (19.60mm x 5.08mm) | 0.720" (18.30mm) | - | 0.673" (17.10mm) | Straight |
|
715C20KTD10715C 20KVDC 1000PF 20% N4700 735 |
154 |
|
Datasheet |
Cera-Mite 715C | Bulk | Active | 1000 pF | ±20% | 20000V (20kV) | N4700 | -30°C ~ 85°C | High Voltage, Low Dissipation Factor | - | General Purpose | - | Requires Holder | Disk, Metal Fitting - Threaded | 1.260" Dia x 0.906" L (32.00mm x 23.00mm) | - | - | - | - |
|

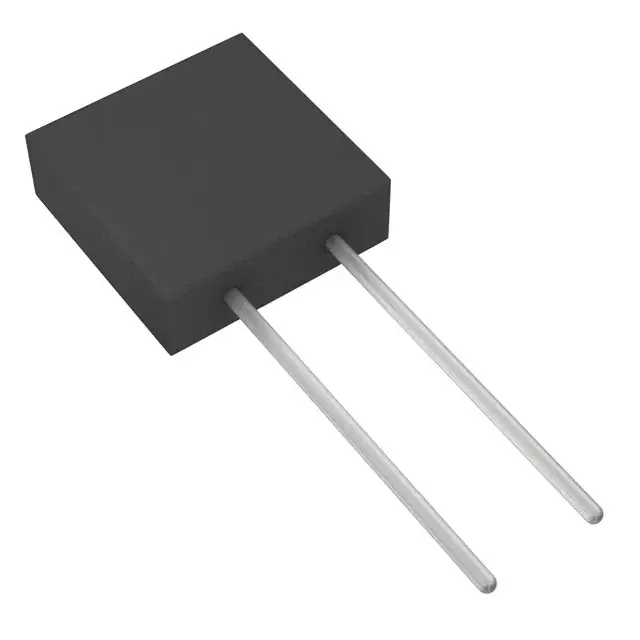

ARR06D105MGSCAP CER 1UF 100V X7R RADIAL |
81 |
|
Datasheet |
ARR Indust X7R HT200C | Bulk | Active | 1 µF | ±20% | 100V | X7R | -55°C ~ 200°C | High Temperature | - | General Purpose | - | Through Hole | Radial | 0.300" L x 0.100" W (7.62mm x 2.54mm) | 0.300" (7.62mm) | - | 0.200" (5.08mm) | Straight |
|
ACR05B102JGSCAP CER 1000PF 50V NP0 RADIAL |
111 |
|
Datasheet |
ACR Indust C0G HT200C | Bulk | Active | 1000 pF | ±5% | 50V | C0G, NP0 | -55°C ~ 200°C | High Temperature | - | General Purpose | - | Through Hole | Radial | 0.200" L x 0.100" W (5.08mm x 2.54mm) | 0.200" (5.08mm) | - | 0.200" (5.08mm) | Straight |
