Ceramic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | Temperature Coefficient | Operating Temperature | Features | Ratings | Applications | Failure Rate | Mounting Type | Package / Case | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing | Lead Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.JPG)
|
MHV15C106MAT2ACAP CER 10UF 50V X7R SMD |
582 |
|
Datasheet |
MH | Tape & Reel (TR) | Active | 10 µF | ±20% | 50V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | SMD, J-Lead | 0.287" L x 0.240" W (7.30mm x 6.10mm) | - | 0.148" (3.75mm) | - | J-Lead |
.jpg)
|
100B470GW500XT1KCAP CER 47PF 500V P90 1111 |
2,916 |
|
Datasheet |
Porcelain Superchip® ATC 100B | Tape & Reel (TR) | Active | 47 pF | ±2% | 500V | P90 | -55°C ~ 125°C | High Q, Low Loss, Low ESL | - | RF, Microwave, High Frequency, Bypass, Decoupling | - | Surface Mount, MLCC | 1111 (2828 Metric) | 0.110" L x 0.110" W (2.79mm x 2.79mm) | - | 0.102" (2.59mm) | - | - |
|
M39014/22-0814CAP CER 10000PF 200V X7R 2-DIP |
261 |
|
Datasheet |
Military, MIL-PRF-39014, CKR22 | Tube | Active | 10000 pF | ±10% | 200V | X7R | -55°C ~ 125°C | - | - | High Reliability | R (0.01%) | Through Hole | 2-DIP | 0.260" L x 0.092" W (6.60mm x 2.34mm) | 0.175" (4.45mm) | - | 0.325" (8.25mm) | - |
|
|
100B680GT500XT1KCAP CER 68PF 500V P90 1111 |
1,908 |
|
Datasheet |
Porcelain Superchip® ATC 100B | Tape & Reel (TR) | Active | 68 pF | ±2% | 500V | P90 | -55°C ~ 125°C | High Q, Low Loss, Low ESL | - | RF, Microwave, High Frequency, Bypass, Decoupling | - | Surface Mount, MLCC | 1111 (2828 Metric) | 0.110" L x 0.110" W (2.79mm x 2.79mm) | - | 0.102" (2.59mm) | - | - |
|
CKC33C103KJGACTUKC-LINK 3640 10NF 1700VDC C0G |
209 |
|
Datasheet |
KC Link Comm C0G | Tape & Reel (TR) | Active | 10000 pF | ±10% | 1700V (1.7kV) | C0G, NP0 | -55°C ~ 150°C | Low ESL, High Voltage, High Temperature | - | General Purpose | - | Surface Mount, MLCC | 3640 (9110 Metric) | 0.366" L x 0.402" W (9.30mm x 10.20mm) | - | 0.106" (2.70mm) | - | - |
|
|
M39014/22-0651CAP CER 2DIP |
400 |
|
Datasheet |
Military, MIL-PRF-39014, CKR05 | Bulk | Active | 22 pF | ±10% | 200V | C0G, NP0 | -55°C ~ 125°C | - | - | High Reliability | R (0.01%) | Through Hole | 2-DIP | 0.260" L x 0.092" W (6.60mm x 2.34mm) | 0.175" (4.45mm) | - | 0.035" (0.89mm) | Straight |
|
|
CKC33C123JGGACTUCAP CER 0.012UF 2KV C0G/NP0 3640 |
244 |
|
Datasheet |
KC Link Comm C0G | Tape & Reel (TR) | Active | 0.012 µF | ±5% | 2000V (2kV) | C0G, NP0 | -55°C ~ 150°C | Low ESL, High Voltage, High Temperature | - | General Purpose | - | Surface Mount, MLCC | 3640 (9110 Metric) | 0.366" L x 0.402" W (9.30mm x 10.20mm) | - | 0.087" (2.20mm) | - | - |
-9,30x10,20x2,70mm.jpg)
|
CKC33C563KDGACAUTOKC-LINK 3640 56NF 1000VDC C0G |
167 |
|
Datasheet |
KC Link Auto C0G | Tape & Reel (TR) | Active | 0.056 µF | ±10% | 1000V (1kV) | C0G, NP0 | -55°C ~ 150°C | Low ESL, High Voltage, High Temperature | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 3640 (9110 Metric) | 0.366" L x 0.402" W (9.30mm x 10.20mm) | - | 0.106" (2.70mm) | - | - |
-7,10x6,10x2,70mm.jpg)
|

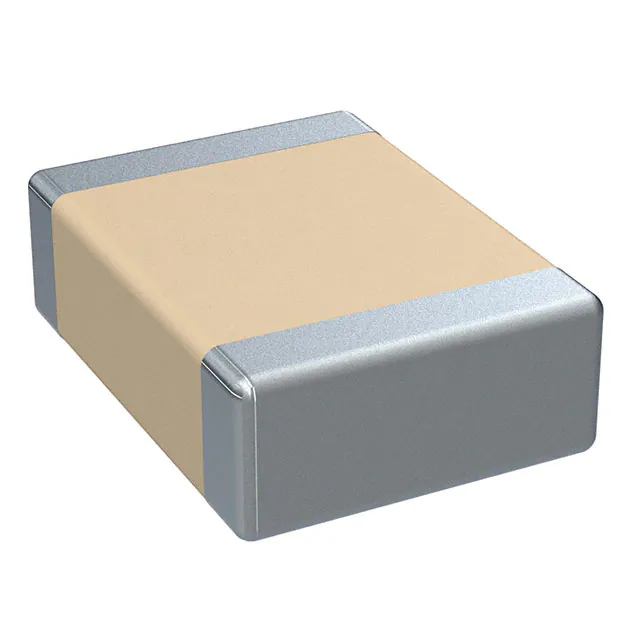

C2824C562JGGACAUTOCAP CER 5600PF 2KV C0G/NP0 2824 |
400 |
|
Datasheet |
SMD Auto C0G HV | Tape & Reel (TR) | Active | 5600 pF | ±5% | 2000V (2kV) | C0G, NP0 | -55°C ~ 125°C | Low ESL, High Voltage | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 2824 (7260 Metric) | 0.280" L x 0.240" W (7.10mm x 6.10mm) | - | 0.106" (2.70mm) | - | - |
|
|
CKC33C563JDGACAUTOCAP CER 0.056UF 1KV C0G/NP0 3640 |
250 |
|
Datasheet |
KC Link Auto C0G | Tape & Reel (TR) | Active | 0.056 µF | ±5% | 1000V (1kV) | C0G, NP0 | -55°C ~ 150°C | Low ESL, High Voltage, High Temperature | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 3640 (9110 Metric) | 0.366" L x 0.402" W (9.30mm x 10.20mm) | - | 0.106" (2.70mm) | - | - |
|
|
M39014/22-1076CAP CER 10000PF 100V X7R 2-DIP |
195 |
|
Datasheet |
Military, MIL-PRF-39014, CKR22 | Tube | Active | 10000 pF | ±10% | 100V | X7R | -55°C ~ 125°C | - | - | High Reliability | R (0.01%) | Through Hole | 2-DIP | 0.260" L x 0.092" W (6.60mm x 2.34mm) | 0.175" (4.45mm) | - | 0.325" (8.25mm) | - |
.jpg)
|
1210BW106K500YX110TCAP CER 10UF 50V X5R 1210 |
9,058 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 10 µF | ±10% | 50V | X5R | -55°C ~ 85°C | - | - | SMPS Filtering | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.110" (2.79mm) | - | - |
|
|
CKC33C224JCGACTUCAP CER 0.22UF 500V C0G/NP0 3640 |
183 |
|
Datasheet |
KC Link Comm C0G | Tape & Reel (TR) | Active | 0.22 µF | ±5% | 500V | C0G, NP0 | -55°C ~ 150°C | Low ESL, High Voltage, High Temperature | - | General Purpose | - | Surface Mount, MLCC | 3640 (9110 Metric) | 0.366" L x 0.402" W (9.30mm x 10.20mm) | - | 0.106" (2.70mm) | - | - |
|
SK032C224KARCAP CER 0.22UF 200V X7R RADIAL |
179 |
|
Datasheet |
SK | Bulk | Active | 0.22 µF | ±10% | 200V | X7R | -55°C ~ 125°C | - | - | SMPS Filtering | - | Through Hole | Radial | 0.300" L x 0.200" W (7.62mm x 5.08mm) | 0.360" (9.14mm) | - | 0.200" (5.08mm) | Straight |
-2,20-2,30.jpg)
|

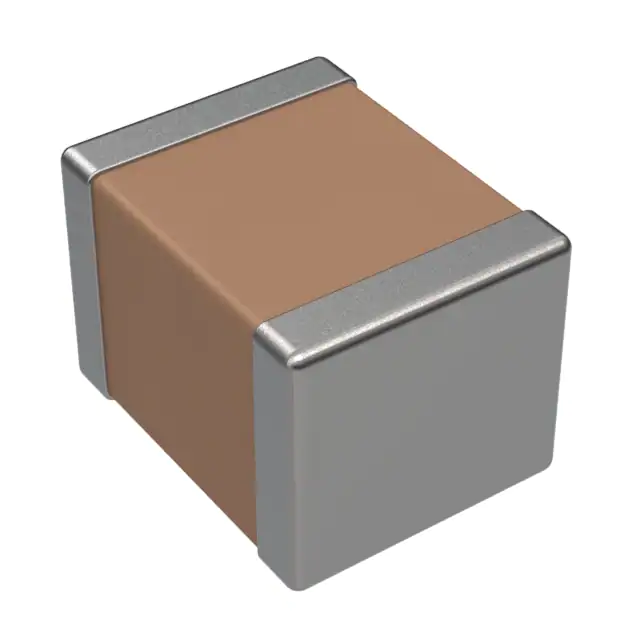

C1210H562KCGACT500CAP CER 5600PF 500V C0G/NP0 1210 |
2,360 |
|
Datasheet |
SMD Indust C0G HVHT200C | Tape & Reel (TR) | Active | 5600 pF | ±10% | 500V | C0G, NP0 | -55°C ~ 200°C | Low ESL, High Voltage, High Temperature | - | Downhole | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.087" (2.20mm) | - | - |
|
|
100B331GT200XT1KCAP CER 330PF 200V P90 1111 |
10,414 |
|
Datasheet |
Porcelain Superchip® ATC 100B | Tape & Reel (TR) | Active | 330 pF | ±2% | 200V | P90 | -55°C ~ 125°C | High Q, Low Loss, Low ESL | - | RF, Microwave, High Frequency, Bypass, Decoupling | - | Surface Mount, MLCC | 1111 (2828 Metric) | 0.110" L x 0.110" W (2.79mm x 2.79mm) | - | 0.102" (2.59mm) | - | - |
|
|
CKC33C472JJGACAUTOCAP CER 4700PF 1.7KV C0G 3640 |
276 |
|
Datasheet |
KC Link Auto C0G | Tape & Reel (TR) | Active | 4700 pF | ±5% | 1700V (1.7kV) | C0G, NP0 | -55°C ~ 150°C | Low ESL, High Voltage, High Temperature | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 3640 (9110 Metric) | 0.366" L x 0.402" W (9.30mm x 10.20mm) | - | 0.061" (1.55mm) | - | - |
|
|
CKC33C473JEGACAUTOCAP CER 0.047UF 1.2KV C0G 3640 |
1,047 |
|
Datasheet |
KC Link Auto C0G | Tape & Reel (TR) | Active | 0.047 µF | ±5% | 1200V (1.2kV) | C0G, NP0 | -55°C ~ 150°C | Low ESL, High Voltage, High Temperature | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 3640 (9110 Metric) | 0.366" L x 0.402" W (9.30mm x 10.20mm) | - | 0.106" (2.70mm) | - | - |
|
|
800B120GT500XT1KCAP CER 12PF 500V NP0 1111 |
2,225 |
|
Datasheet |
ATC 800B | Tape & Reel (TR) | Active | 12 pF | ±2% | 500V | C0G, NP0 | -55°C ~ 125°C | High Q, Low Loss, Ultra Low ESR | - | RF, Microwave, High Frequency | - | Surface Mount, MLCC | 1111 (2828 Metric) | 0.110" L x 0.110" W (2.79mm x 2.79mm) | - | 0.070" (1.78mm) | - | - |
|
|
800B7R5BT500XT1KCAP CER 7.5PF 500V C0G/NP0 1111 |
2,404 |
|
Datasheet |
ATC 800B | Tape & Reel (TR) | Active | 7.5 pF | ±0.1pF | 500V | C0G, NP0 | -55°C ~ 125°C | High Q, Low Loss, Ultra Low ESR | - | RF, Microwave, High Frequency | - | Surface Mount, MLCC | 1111 (2828 Metric) | 0.110" L x 0.110" W (2.79mm x 2.79mm) | - | 0.070" (1.78mm) | - | - |
