Ceramic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | Temperature Coefficient | Operating Temperature | Features | Ratings | Applications | Failure Rate | Mounting Type | Package / Case | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing | Lead Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SV14AA103KARCAP CER 10000PF 1KV NP0 RADIAL |
400 |
|
Datasheet |
SV | Bulk | Active | 10000 pF | ±10% | 1000V (1kV) | C0G, NP0 | -55°C ~ 125°C | High Voltage | - | General Purpose | - | Through Hole | Radial | 0.402" L x 0.200" W (10.20mm x 5.08mm) | 0.461" (11.70mm) | - | 0.200" (5.08mm) | Straight |
.jpg)
|
700A102JT50XT1KCAP CER 1000PF 50V C0G/NP0 0505 |
2,846 |
|
Datasheet |
ATC 700A | Tape & Reel (TR) | Active | 1000 pF | ±5% | 50V | C0G, NP0 | -55°C ~ 125°C | Low ESL | - | RF, Microwave, High Frequency, Bypass, Decoupling | - | Surface Mount, MLCC | 0505 (1313 Metric) | 0.055" L x 0.055" W (1.40mm x 1.40mm) | - | 0.057" (1.45mm) | - | - |
|
|
700A102JW50XT1KCAP CER 1000PF 50V C0G/NP0 0505 |
890 |
|
Datasheet |
ATC 700A | Tape & Reel (TR) | Active | 1000 pF | ±5% | 50V | C0G, NP0 | -55°C ~ 125°C | Low ESL | - | RF, Microwave, High Frequency, Bypass, Decoupling | - | Surface Mount, MLCC | 0505 (1313 Metric) | 0.055" L x 0.055" W (1.40mm x 1.40mm) | - | 0.057" (1.45mm) | - | - |
.jpg)
|
100B680FW500XT1KCAP CER 68PF 500V P90 1111 |
2,339 |
|
Datasheet |
Porcelain Superchip® ATC 100B | Tape & Reel (TR) | Active | 68 pF | ±1% | 500V | P90 | -55°C ~ 125°C | High Q, Low Loss, Low ESL | - | RF, Microwave, High Frequency, Bypass, Decoupling | - | Surface Mount, MLCC | 1111 (2828 Metric) | 0.110" L x 0.110" W (2.79mm x 2.79mm) | - | 0.102" (2.59mm) | - | - |
|
|
800A390FT250XT4KCAP CER 39PF 250V C0G/NP0 0505 |
3,861 |
|
Datasheet |
ATC 800A | Tape & Reel (TR) | Active | 39 pF | ±1% | 250V | C0G, NP0 | -55°C ~ 125°C | Ultra Low ESR | - | RF, Microwave, High Frequency, Bypass, Decoupling | - | Surface Mount, MLCC | 0505 (1313 Metric) | 0.055" L x 0.055" W (1.40mm x 1.40mm) | - | 0.057" (1.45mm) | - | - |
|

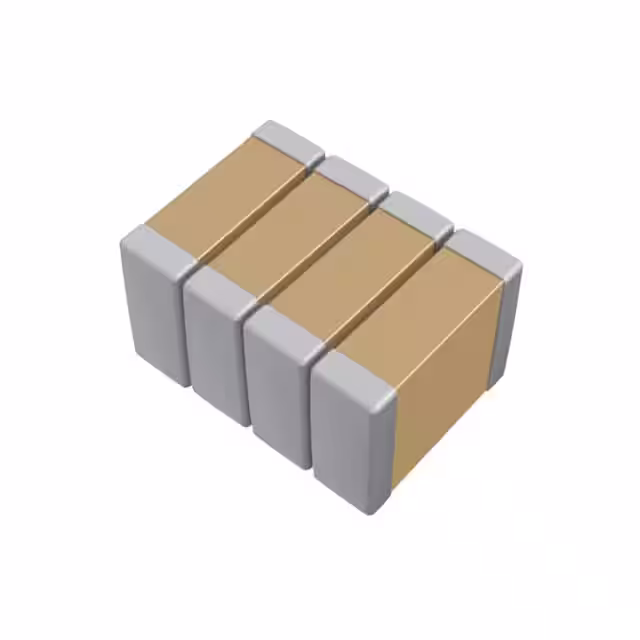

CKC21C273KJGLCAUTO7805CAP CER 0.027UF 1.7KV C0G 2220 |
156 |
|
Datasheet |
KC Link Auto C0G | Tape & Reel (TR) | Active | 0.027 µF | ±10% | 1700V (1.7kV) | C0G, NP0 | -55°C ~ 150°C | Low ESL, High Voltage, High Temperature | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 2220 (5750 Metric) | 0.224" L x 0.197" W (5.70mm x 5.00mm) | - | - | - | - |
|

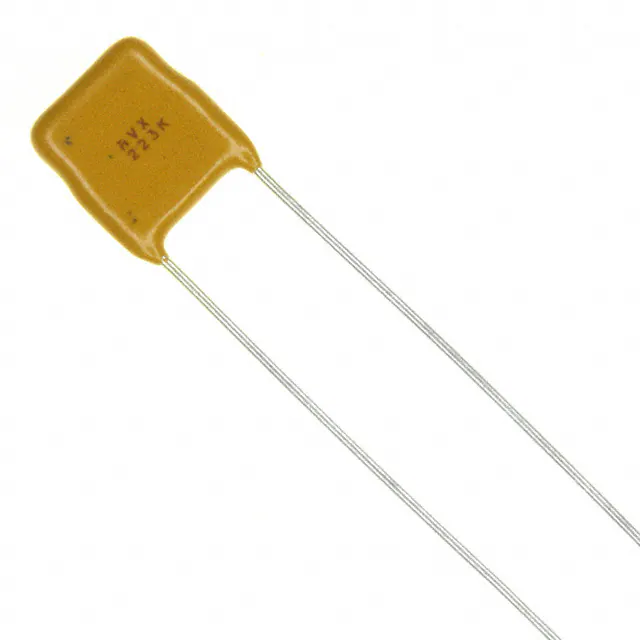

SV13CC104KARCAP CER 0.1UF 630V X7R RADIAL |
161 |
|
Datasheet |
SV | Bulk | Active | 0.1 µF | ±10% | 630V | X7R | -55°C ~ 125°C | High Voltage | - | General Purpose | - | Through Hole | Radial | 0.300" L x 0.200" W (7.62mm x 5.08mm) | 0.360" (9.14mm) | - | 0.200" (5.08mm) | Straight |
-3,20x1,60x1,80mm.jpg)
|
C1206H473K1GAC7800CAP CER 0.047UF 100V C0G 1206 |
3,875 |
|
Datasheet |
SMD Indust C0G HT200C | Tape & Reel (TR) | Active | 0.047 µF | ±10% | 100V | C0G, NP0 | -55°C ~ 200°C | Low ESL, High Temperature | - | Downhole | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.071" (1.80mm) | - | - |
|
|
100B390FT500XT1KCAP CER 39PF 500V P90 1111 |
2,380 |
|
Datasheet |
Porcelain Superchip® ATC 100B | Tape & Reel (TR) | Active | 39 pF | ±1% | 500V | P90 | -55°C ~ 125°C | High Q, Low Loss, Low ESL | - | RF, Microwave, High Frequency, Bypass, Decoupling | - | Surface Mount, MLCC | 1111 (2828 Metric) | 0.110" L x 0.110" W (2.79mm x 2.79mm) | - | 0.102" (2.59mm) | - | - |
|
700B512JT50XT1KCAP CER 5100PF 50V C0G/NP0 1111 |
2,818 |
|
Datasheet |
ATC 700B | Tape & Reel (TR) | Active | 5100 pF | ±5% | 50V | C0G, NP0 | -55°C ~ 125°C | Low ESL | - | RF, Microwave, High Frequency, Bypass, Decoupling | - | Surface Mount, MLCC | 1111 (2828 Metric) | 0.110" L x 0.110" W (2.79mm x 2.79mm) | - | 0.102" (2.59mm) | - | - |
|
|
100B102JP50XTCAP CER 1000PF 50V P90 1111 |
1,454 |
|
Datasheet |
Porcelain Superchip® ATC 100B | Tape & Reel (TR) | Active | 1000 pF | ±5% | 50V | P90 | -55°C ~ 125°C | High Q, Low Loss, Low ESL | - | RF, Microwave, High Frequency, Bypass, Decoupling | - | Surface Mount, MLCC | 1111 (2828 Metric) | 0.110" L x 0.110" W (2.79mm x 2.79mm) | - | 0.102" (2.59mm) | - | - |
|
CCR06CG103FSCAP CER RADIAL |
159 |
|
Datasheet |
Military, MIL-PRF-20, CCR06 | Bulk | Active | 10000 pF | ±1% | 50V | C0G, NP0 | -55°C ~ 125°C | - | - | High Reliability | S (0.001%) | Through Hole | Radial | 0.290" L x 0.090" W (7.37mm x 2.29mm) | 0.300" (7.62mm) | - | 0.200" (5.08mm) | Straight |
|
|
100B470FT500XT1KCAP CER 47PF 500V P90 1111 |
4,400 |
|
Datasheet |
Porcelain Superchip® ATC 100B | Tape & Reel (TR) | Active | 47 pF | ±1% | 500V | P90 | -55°C ~ 125°C | High Q, Low Loss, Low ESL | - | RF, Microwave, High Frequency, Bypass, Decoupling | - | Surface Mount, MLCC | 1111 (2828 Metric) | 0.110" L x 0.110" W (2.79mm x 2.79mm) | - | 0.102" (2.59mm) | - | - |
|
|
100B180FT500XTCAP CER 18PF 500V P90 1111 |
2,978 |
|
Datasheet |
Porcelain Superchip® ATC 100B | Tape & Reel (TR) | Active | 18 pF | ±1% | 500V | P90 | -55°C ~ 125°C | High Q, Low Loss, Low ESL | - | RF, Microwave, High Frequency, Bypass, Decoupling | - | Surface Mount, MLCC | 1111 (2828 Metric) | 0.110" L x 0.110" W (2.79mm x 2.79mm) | - | 0.102" (2.59mm) | - | - |
|
|
100B120FT500XT1KCAP CER 12PF 500V P90 1111 |
2,454 |
|
Datasheet |
Porcelain Superchip® ATC 100B | Tape & Reel (TR) | Active | 12 pF | ±1% | 500V | P90 | -55°C ~ 125°C | High Q, Low Loss, Low ESL | - | RF, Microwave, High Frequency, Bypass, Decoupling | - | Surface Mount, MLCC | 1111 (2828 Metric) | 0.110" L x 0.110" W (2.79mm x 2.79mm) | - | 0.102" (2.59mm) | - | - |
|
|
100B470FW500XT1KCAP CER 47PF 500V P90 1111 |
1,894 |
|
Datasheet |
Porcelain Superchip® ATC 100B | Tape & Reel (TR) | Active | 47 pF | ±1% | 500V | P90 | -55°C ~ 125°C | High Q, Low Loss, Low ESL | - | RF, Microwave, High Frequency, Bypass, Decoupling | - | Surface Mount, MLCC | 1111 (2828 Metric) | 0.110" L x 0.110" W (2.79mm x 2.79mm) | - | 0.102" (2.59mm) | - | - |
-7,60x10,20x2,70mm.jpg)
|
C3040C393JDGACAUTOCAP CER 0.039UF 1KV C0G/NP0 3040 |
570 |
|
Datasheet |
SMD Auto C0G HV | Tape & Reel (TR) | Active | 0.039 µF | ±5% | 1000V (1kV) | C0G, NP0 | -55°C ~ 125°C | Low ESL, High Voltage | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 3040 (7610 Metric) | 0.299" L x 0.402" W (7.60mm x 10.20mm) | - | 0.106" (2.70mm) | - | - |
|
|
C1206H823J5GACTUCAP CER 0.082UF 50V C0G/NP0 1206 |
2,855 |
|
Datasheet |
SMD Indust C0G HT200C | Tape & Reel (TR) | Active | 0.082 µF | ±5% | 50V | C0G, NP0 | -55°C ~ 200°C | Low ESL, High Temperature | - | Downhole | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.071" (1.80mm) | - | - |
|
|
SV01AC103MARCAP CER 10000PF 1KV X7R RADIAL |
348 |
|
Datasheet |
SV | Bulk | Active | 10000 pF | ±20% | 1000V (1kV) | X7R | -55°C ~ 125°C | High Voltage | - | General Purpose | - | Through Hole | Radial | 0.250" L x 0.200" W (6.35mm x 5.08mm) | 0.220" (5.59mm) | - | 0.170" (4.32mm) | Straight |
|
|
SV04AC103KARCAP CER 10000PF 1KV X7R RADIAL |
400 |
|
Datasheet |
SV | Bulk | Active | 10000 pF | ±10% | 1000V (1kV) | X7R | -55°C ~ 125°C | High Voltage | - | General Purpose | - | Through Hole | Radial | 0.449" L x 0.200" W (11.40mm x 5.08mm) | 0.220" (5.59mm) | - | 0.300" (7.62mm) | Straight |
