Ceramic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | Temperature Coefficient | Operating Temperature | Features | Ratings | Applications | Failure Rate | Mounting Type | Package / Case | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing | Lead Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|
1210B223K501NTCAP CER 0.022UF 500V X7R 1210 |
8,239 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 0.022 µF | ±10% | 500V | X7R | -55°C ~ 125°C | - | - | SMPS Filtering | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.065" (1.65mm) | - | - |
|
VJ1111D2R7BXEQJHTCAP CER 2.7PF 500V C0G/NP0 1111 |
1,968 |
|
Datasheet |
VJ HIFREQ HT | Tape & Reel (TR) | Active | 2.7 pF | ±0.1pF | 500V | C0G, NP0 | -55°C ~ 200°C | High Temperature | - | RF, Microwave, High Frequency | - | Surface Mount, MLCC | 1111 (2828 Metric) | 0.117" L x 0.110" W (2.98mm x 2.79mm) | - | 0.102" (2.59mm) | - | - |
|
C1808C680JGGACAUTOCAP CER 68PF 2KV C0G/NP0 1808 |
1,920 |
|
Datasheet |
SMD Auto C0G HV | Tape & Reel (TR) | Active | 68 pF | ±5% | 2000V (2kV) | C0G, NP0 | -55°C ~ 125°C | Low ESL, High Voltage | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 1808 (4520 Metric) | 0.185" L x 0.079" W (4.70mm x 2.00mm) | - | 0.069" (1.75mm) | - | - |
|
|
C1812C221MGRACTUCAP CER 220PF 2KV X7R 1812 |
1,871 |
|
Datasheet |
SMD Comm X7R HV | Tape & Reel (TR) | Active | 220 pF | ±20% | 2000V (2kV) | X7R | -55°C ~ 125°C | Low ESL, High Voltage | - | General Purpose | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.061" (1.55mm) | - | - |
.jpg)
|
GRJ55DR72J224KWJ1LCAP CER 0.22UF 630V X7R 2220 |
1,430 |
|
Datasheet |
GRJ | Tape & Reel (TR) | Active | 0.22 µF | ±10% | 630V | X7R | -55°C ~ 125°C | Soft Termination | - | Boardflex Sensitive | - | Surface Mount, MLCC | 2220 (5750 Metric) | 0.224" L x 0.197" W (5.70mm x 5.00mm) | - | 0.079" (2.00mm) | - | - |
|
1206J1000103KDTCAP CER 10000PF 100V X7R 1206 |
1,360 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 10000 pF | ±10% | 100V | X7R | -55°C ~ 125°C | High Temperature | - | High Reliability | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.063" (1.60mm) | - | - |
|

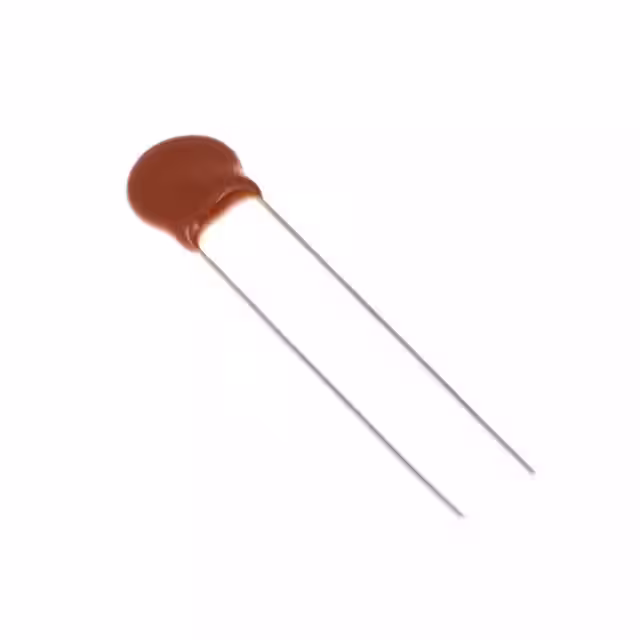

561R10TCCQ56CAP CER 56PF 1KV NP0 RADIAL |
996 |
|
Datasheet |
Cera-Mite 561R | Bulk | Active | 56 pF | ±5% | 1000V (1kV) | C0G, NP0 | -55°C ~ 105°C | Low Dissipation Factor | - | General Purpose | - | Through Hole | Radial, Disc | 0.441" Dia (11.20mm) | 0.566" (14.38mm) | - | 0.252" (6.40mm) | Straight |
|
|
VJ1111D2R2BXEQJHTCAP CER 2.2PF 500V C0G/NP0 1111 |
940 |
|
Datasheet |
VJ HIFREQ HT | Tape & Reel (TR) | Active | 2.2 pF | ±0.1pF | 500V | C0G, NP0 | -55°C ~ 200°C | High Temperature | - | RF, Microwave, High Frequency | - | Surface Mount, MLCC | 1111 (2828 Metric) | 0.117" L x 0.110" W (2.98mm x 2.79mm) | - | 0.102" (2.59mm) | - | - |
|
FK22C0G1H154JN000CAP CER 0.15UF 50V C0G RADIAL |
597 |
|
Datasheet |
FK | Bulk | Not For New Designs | 0.15 µF | ±5% | 50V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Through Hole | Radial | 0.295" L x 0.157" W (7.50mm x 4.00mm) | 0.315" (8.00mm) | - | 0.197" (5.00mm) | Formed Leads - Kinked |
|
|
FK22X5R1C336MN000CAP CER 33UF 16V X5R RADIAL |
363 |
|
Datasheet |
FK | Bulk | Not For New Designs | 33 µF | ±20% | 16V | X5R | -55°C ~ 85°C | - | - | General Purpose | - | Through Hole | Radial | 0.295" L x 0.157" W (7.50mm x 4.00mm) | 0.315" (8.00mm) | - | 0.197" (5.00mm) | Formed Leads - Kinked |
-2,54.jpg)
|
1825CC104KAT2ACAP CER 0.1UF 630V X7R 1825 |
239 |
|
Datasheet |
KGM - HV | Tape & Reel (TR) | Active | 0.1 µF | ±10% | 630V | X7R | -55°C ~ 125°C | High Voltage | - | General Purpose | - | Surface Mount, MLCC | 1825 (4564 Metric) | 0.181" L x 0.248" W (4.60mm x 6.30mm) | - | 0.087" (2.21mm) | - | - |
|
|
KGA15ZS70G474MUCAP CER 0.47UF 4V X7S 0306 |
15,925 |
|
Datasheet |
LG22 (LGA) | Tape & Reel (TR) | Active | 0.47 µF | ±20% | 4V | X7S | -55°C ~ 125°C | Low ESL (Reverse Geometry) | - | Bypass, Decoupling | - | Surface Mount, MLCC | 0306 (0816 Metric) | 0.030" L x 0.063" W (0.76mm x 1.60mm) | - | 0.022" (0.55mm) | - | - |
|
W2L14C105MAT1ACAP CER 1UF 4V X7R 0508 |
6,796 |
|
Datasheet |
IDC, W | Tape & Reel (TR) | Active | 1 µF | ±20% | 4V | X7R | -55°C ~ 125°C | Low ESL (Multi-Terminal) | - | Bypass, Decoupling | - | Surface Mount, MLCC | 0508 (1220 Metric) | 0.050" L x 0.080" W (1.27mm x 2.03mm) | - | 0.037" (0.95mm) | - | - |
|
|
W2L14C334MAT1ACAP CER 0.33UF 4V X7R 0508 |
5,589 |
|
Datasheet |
IDC, W | Tape & Reel (TR) | Active | 0.33 µF | ±20% | 4V | X7R | -55°C ~ 125°C | Low ESL (Multi-Terminal) | - | Bypass, Decoupling | - | Surface Mount, MLCC | 0508 (1220 Metric) | 0.050" L x 0.080" W (1.27mm x 2.03mm) | - | 0.037" (0.95mm) | - | - |
|
LD105C225KAB2ACAP CER 2.2UF 50V X7R 1210 |
3,903 |
|
Datasheet |
LD | Tape & Reel (TR) | Active | 2.2 µF | ±10% | 50V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.110" (2.79mm) | - | - |
|
FG20C0G2W333JNT06CAP CER 0.033UF 450V C0G RADIAL |
2,681 |
|
Datasheet |
FG | Cut Tape (CT) | Active | 0.033 µF | ±5% | 450V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Through Hole | Radial | 0.217" L x 0.157" W (5.50mm x 4.00mm) | 0.276" (7.00mm) | - | 0.197" (5.00mm) | Formed Leads - Kinked |
|
|
FG20C0G2E473JNT06CAP CER 0.047UF 250V C0G RADIAL |
2,458 |
|
Datasheet |
FG | Cut Tape (CT) | Active | 0.047 µF | ±5% | 250V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Through Hole | Radial | 0.217" L x 0.157" W (5.50mm x 4.00mm) | 0.276" (7.00mm) | - | 0.197" (5.00mm) | Formed Leads - Kinked |
|
|
VJ1111D390JXEQJHTCAP CER 39PF 500V C0G/NP0 1111 |
1,915 |
|
Datasheet |
VJ HIFREQ HT | Tape & Reel (TR) | Active | 39 pF | ±5% | 500V | C0G, NP0 | -55°C ~ 200°C | High Temperature | - | RF, Microwave, High Frequency | - | Surface Mount, MLCC | 1111 (2828 Metric) | 0.117" L x 0.110" W (2.98mm x 2.79mm) | - | 0.102" (2.59mm) | - | - |
|
|
C1812C101JCGACTUCAP CER 100PF 500V C0G/NP0 1812 |
194 |
|
Datasheet |
SMD Comm C0G HV | Tape & Reel (TR) | Active | 100 pF | ±5% | 500V | C0G, NP0 | -55°C ~ 125°C | Low ESL, High Voltage | - | General Purpose | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.071" (1.80mm) | - | - |
|
FA22X7R1E106KNU00CAP CER 10UF 25V X7R RADIAL |
973 |
|
Datasheet |
FA | Bulk | Active | 10 µF | ±10% | 25V | X7R | -55°C ~ 125°C | - | AEC-Q200 | Automotive | - | Through Hole | Radial | 0.295" L x 0.177" W (7.50mm x 4.50mm) | 0.335" (8.50mm) | - | 0.197" (5.00mm) | Formed Leads - Kinked |
