Ceramic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | Temperature Coefficient | Operating Temperature | Features | Ratings | Applications | Failure Rate | Mounting Type | Package / Case | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing | Lead Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VJ1808Y103KXEAT5ZCAP CER 10000PF 500V X7R 1808 |
3,614 |
|
Datasheet |
VJ HVArc Guard™ | Tape & Reel (TR) | Active | 10000 pF | ±10% | 500V | X7R | -55°C ~ 125°C | High Voltage | - | General Purpose | - | Surface Mount, MLCC | 1808 (4520 Metric) | 0.180" L x 0.080" W (4.57mm x 2.03mm) | - | 0.067" (1.70mm) | - | - |
|
C1206C152F5GACTUCAP CER 1500PF 50V C0G/NP0 1206 |
3,557 |
|
Datasheet |
SMD Comm C0G | Tape & Reel (TR) | Active | 1500 pF | ±1% | 50V | C0G, NP0 | -55°C ~ 125°C | Low ESL | - | General Purpose | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.035" (0.88mm) | - | - |
|
|
561R10TCUT56CAP CER 560PF 1KV M3K RADIAL |
932 |
|
Datasheet |
Cera-Mite 561R | Bulk | Active | 560 pF | ±5% | 1000V (1kV) | U2J | -55°C ~ 105°C | Low Dissipation Factor | - | General Purpose | - | Through Hole | Radial, Disc | 0.650" Dia (16.50mm) | 0.684" (17.38mm) | - | 0.374" (9.50mm) | Straight |
-1,35mm.jpg)
|
GQM22M5C2H270GB01LCAP CER 27PF 500V C0G/NP0 1111 |
708 |
|
Datasheet |
GQM | Tape & Reel (TR) | Active | 27 pF | ±2% | 500V | C0G, NP0 | -55°C ~ 125°C | High Q, Low Loss | - | RF, Microwave, High Frequency | - | Surface Mount, MLCC | 1111 (2828 Metric) | 0.110" L x 0.110" W (2.80mm x 2.80mm) | - | 0.053" (1.35mm) | - | - |
-3,50mm_BN.jpg)
|
885012010016CAP CER 0.033UF 50V C0G/NP0 1812 |
489 |
|
Datasheet |
WCAP-CSGP | Tape & Reel (TR) | Active | 0.033 µF | ±5% | 50V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.053" (1.35mm) | - | - |
-0,94mm.jpg)
|

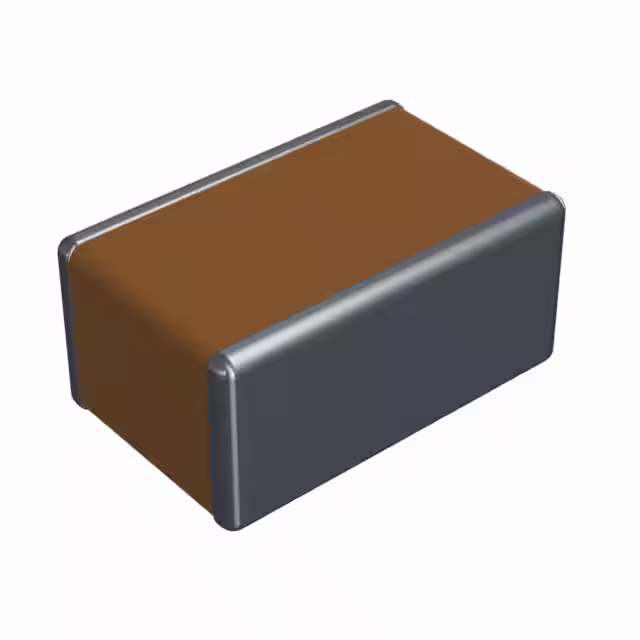

0508ZD105KAT2ACAP CER 1UF 10V X5R 0508 |
6,060 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 1 µF | ±10% | 10V | X5R | -55°C ~ 85°C | Low ESL (Reverse Geometry) | - | Bypass, Decoupling | - | Surface Mount, MLCC | 0508 (1220 Metric) | 0.049" L x 0.079" W (1.25mm x 2.00mm) | - | 0.037" (0.94mm) | - | - |
-1,02mm.jpg)
|
0508ZC105MAT2ACAP CER 1UF 10V X7R 0508 |
3,585 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 1 µF | ±20% | 10V | X7R | -55°C ~ 125°C | Low ESL (Reverse Geometry) | - | Bypass, Decoupling | - | Surface Mount, MLCC | 0508 (1220 Metric) | 0.050" L x 0.079" W (1.27mm x 2.00mm) | - | 0.040" (1.02mm) | - | - |
.jpg)
|
600L0R6AW200TCAP CER 0.6PF 200V NP0 0402 |
2,600 |
|
Datasheet |
ATC 600L | Tape & Reel (TR) | Active | 0.6 pF | ±0.05pF | 200V | C0G, NP0 | -55°C ~ 125°C | High Q, Low Loss, Ultra Low ESR | - | RF, Microwave, High Frequency, Bypass, Decoupling | - | Surface Mount, MLCC | 0402 (1005 Metric) | 0.040" L x 0.020" W (1.02mm x 0.51mm) | - | 0.024" (0.60mm) | - | - |
|
|
C1825C274KBRACTUCAP CER 0.27UF 630V X7R 1825 |
117 |
|
Datasheet |
SMD Comm X7R HV | Tape & Reel (TR) | Active | 0.27 µF | ±10% | 630V | X7R | -55°C ~ 125°C | Low ESL, High Voltage | - | General Purpose | - | Surface Mount, MLCC | 1825 (4564 Metric) | 0.177" L x 0.252" W (4.50mm x 6.40mm) | - | 0.087" (2.20mm) | - | - |
|
VJ1206Y103MLEAJ32CAP CER 10000 PF 500V X7R 1206 P |
1,985 |
|
Datasheet |
VJ Pb-Bearing | Tape & Reel (TR) | Active | 10000 pF | ±20% | 500V | X7R | -55°C ~ 150°C | High Temperature | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.067" (1.70mm) | - | - |
|
FA20C0G2W223JNU06CAP CER 0.022UF 450V C0G RADIAL |
1,376 |
|
Datasheet |
FA | Cut Tape (CT) | Active | 0.022 µF | ±5% | 450V | C0G, NP0 | -55°C ~ 125°C | - | AEC-Q200 | Automotive | - | Through Hole | Radial | 0.217" L x 0.157" W (5.50mm x 4.00mm) | 0.276" (7.00mm) | - | 0.197" (5.00mm) | Formed Leads - Kinked |
|
RDER73A683K5B1H03BCAP CER 0.068UF 1KV X7R RADIAL |
478 |
|
Datasheet |
RDE | Bulk | Active | 0.068 µF | ±10% | 1000V (1kV) | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Through Hole | Radial | 0.295" L x 0.157" W (7.50mm x 4.00mm) | 0.315" (8.00mm) | - | 0.197" (5.00mm) | Straight |
|
|
C1812C684J5RACTUCAP CER 0.68UF 50V X7R 1812 |
449 |
|
Datasheet |
SMD Comm X7R | Tape & Reel (TR) | Active | 0.68 µF | ±5% | 50V | X7R | -55°C ~ 125°C | - | - | Bypass, Decoupling | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.047" (1.20mm) | - | - |
|
VJ1111D3R3CXEQJHTCAP CER 3.3PF 500V C0G/NP0 1111 |
1,940 |
|
Datasheet |
VJ HIFREQ HT | Tape & Reel (TR) | Active | 3.3 pF | ±0.25pF | 500V | C0G, NP0 | -55°C ~ 200°C | High Temperature | - | RF, Microwave, High Frequency | - | Surface Mount, MLCC | 1111 (2828 Metric) | 0.117" L x 0.110" W (2.98mm x 2.79mm) | - | 0.102" (2.59mm) | - | - |
|
C3225C0G3A272J200AECAP CER 2700PF 1KV C0G/NP0 1210 |
1,940 |
|
Datasheet |
C | Tape & Reel (TR) | Active | 2700 pF | ±5% | 1000V (1kV) | C0G, NP0 | -55°C ~ 125°C | Soft Termination | - | Boardflex Sensitive | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.091" (2.30mm) | - | - |
|
|
VJ1111D6R8CXEQJHTCAP CER 6.8PF 500V C0G/NP0 1111 |
1,900 |
|
Datasheet |
VJ HIFREQ HT | Tape & Reel (TR) | Active | 6.8 pF | ±0.25pF | 500V | C0G, NP0 | -55°C ~ 200°C | High Temperature | - | RF, Microwave, High Frequency | - | Surface Mount, MLCC | 1111 (2828 Metric) | 0.117" L x 0.110" W (2.98mm x 2.79mm) | - | 0.102" (2.59mm) | - | - |
-2,80mm-C-Series.jpg)
|
C3225NP02E473J250AACAP CER 0.047UF 250V NP0 1210 |
1,205 |
|
Datasheet |
C | Tape & Reel (TR) | Active | 0.047 µF | ±5% | 250V | C0G, NP0 | -55°C ~ 150°C | High Temperature | - | General Purpose | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.110" (2.80mm) | - | - |
|
GRM55Q7U2J273JW31LCAP CER 0.027UF 630V U2J 2220 |
1,184 |
|
Datasheet |
GRM | Tape & Reel (TR) | Active | 0.027 µF | ±5% | 630V | U2J | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 2220 (5750 Metric) | 0.224" L x 0.197" W (5.70mm x 5.00mm) | - | - | - | - |
-2,54.jpg)
|
1825SC103KAT1ACAP CER 10000PF 1.5KV X7R 1825 |
241 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 10000 pF | ±10% | 1500V (1.5kV) | X7R | -55°C ~ 125°C | High Voltage | - | General Purpose | - | Surface Mount, MLCC | 1825 (4564 Metric) | 0.177" L x 0.252" W (4.50mm x 6.40mm) | - | 0.100" (2.54mm) | - | - |
-2,80mm.jpg)
|
MM121C474KCZ2ACAP CER 0.47UF 100V X7R 1812 |
4,627 |
|
Datasheet |
MM | Tape & Reel (TR) | Active | 0.47 µF | ±10% | 100V | X7R | -55°C ~ 125°C | - | - | Medical, Non-Critical | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.029" (0.74mm) | - | - |
