Ceramic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | Temperature Coefficient | Operating Temperature | Features | Ratings | Applications | Failure Rate | Mounting Type | Package / Case | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing | Lead Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
V30BZ222M8SXCAP CER 2200PF 150V X7R NONS SMD |
500 |
|
Datasheet |
V | Tray | Active | 2200 pF | ±20% | 150V | X7R | -55°C ~ 125°C | Epoxy Mountable, Single Layer | - | RF, Microwave, High Frequency, Bypass, Decoupling | - | Surface Mount, SLCC, Epoxy | 0303 (0808 Metric) | 0.030" L x 0.030" W (0.76mm x 0.76mm) | - | 0.025" (0.64mm) | - | - |
 2.5.jpg)
|
CGA6P4C0G2W333J250AECAP CER .033UF 450V C0G/NP0 1210 |
1,439 |
|
Datasheet |
CGA | Tape & Reel (TR) | Active | 0.033 µF | ±5% | 450V | C0G, NP0 | -55°C ~ 125°C | Soft Termination | AEC-Q200 | Automotive, Boardflex Sensitive | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.110" (2.80mm) | - | - |
-2.3.jpg)
|
CGA9L2X7R2A684K160KACAP CER 0.68UF 100V X7R 2220 |
938 |
|
Datasheet |
CGA | Tape & Reel (TR) | Not For New Designs | 0.68 µF | ±10% | 100V | X7R | -55°C ~ 125°C | - | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 2220 (5750 Metric) | 0.224" L x 0.197" W (5.70mm x 5.00mm) | - | 0.075" (1.90mm) | - | - |
|
C1808C330MHRACTUCAP CER 33PF 3KV X7R 1808 |
921 |
|
Datasheet |
SMD Comm X7R HV | Tape & Reel (TR) | Active | 33 pF | ±20% | 3000V (3kV) | X7R | -55°C ~ 125°C | Low ESL, High Voltage | - | General Purpose | - | Surface Mount, MLCC | 1808 (4520 Metric) | 0.185" L x 0.079" W (4.70mm x 2.00mm) | - | 0.069" (1.75mm) | - | - |
|
|
C1812C474K3JACTUCAP CER 0.47UF 25V U2J 1812 |
339 |
|
Datasheet |
SMD Comm U2J | Tape & Reel (TR) | Active | 0.47 µF | ±10% | 25V | U2J | -55°C ~ 125°C | Low ESL, Low Dissipation Factor | - | General Purpose | - | Surface Mount, MLCC | 1810 (4525 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.043" (1.10mm) | - | - |
|
|
GRM32D5C3A562GWA1KCAP CER 5600PF 1KV C0G/NP0 1210 |
4,000 |
|
Datasheet |
GRM | Tape & Reel (TR) | Active | 5600 pF | ±2% | 1000V (1kV) | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.079" (2.00mm) | - | - |
|
|
GRM32D5C3A822GWA1KCAP CER 8200PF 1KV C0G/NP0 1210 |
3,990 |
|
Datasheet |
GRM | Tape & Reel (TR) | Active | 8200 pF | ±2% | 1000V (1kV) | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.079" (2.00mm) | - | - |
|
VJ1111D120JXEQJHTCAP CER 12PF 500V C0G/NP0 1111 |
3,880 |
|
Datasheet |
VJ HIFREQ HT | Tape & Reel (TR) | Active | 12 pF | ±5% | 500V | C0G, NP0 | -55°C ~ 200°C | High Temperature | - | RF, Microwave, High Frequency | - | Surface Mount, MLCC | 1111 (2828 Metric) | 0.117" L x 0.110" W (2.98mm x 2.79mm) | - | 0.102" (2.59mm) | - | - |
|
|
CGA6L4C0G2J153J160AECAP CER .015UF 630V C0G/NP0 1210 |
3,814 |
|
Datasheet |
CGA | Tape & Reel (TR) | Active | 0.015 µF | ±5% | 630V | C0G, NP0 | -55°C ~ 125°C | Soft Termination | AEC-Q200 | Automotive, Boardflex Sensitive | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.075" (1.90mm) | - | - |
|
|
600F430JT250XT4KCAP CER 43PF 250V NP0 0805 |
3,455 |
|
Datasheet |
ATC 600F | Tape & Reel (TR) | Active | 43 pF | ±5% | 250V | C0G, NP0 | -55°C ~ 125°C | High Q, Low Loss, Ultra Low ESR | - | RF, Microwave, High Frequency, Bypass, Decoupling | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.01mm x 1.24mm) | - | 0.051" (1.30mm) | - | - |
|
|
GRM32D5C3A682GWA1KCAP CER 6800PF 1KV C0G/NP0 1210 |
3,370 |
|
Datasheet |
GRM | Tape & Reel (TR) | Active | 6800 pF | ±2% | 1000V (1kV) | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.079" (2.00mm) | - | - |
|
C3225C0G3A822J230ACCAP CER 8200PF 1KV C0G/NP0 1210 |
1,700 |
|
Datasheet |
C | Tape & Reel (TR) | Active | 8200 pF | ±5% | 1000V (1kV) | C0G, NP0 | -55°C ~ 125°C | High Voltage | - | General Purpose | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.098" (2.50mm) | - | - |
-2.2.jpg)
|

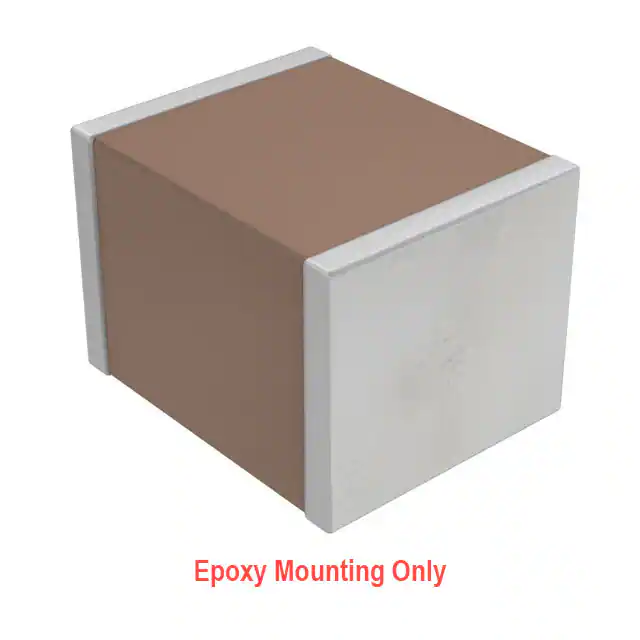

CGA6P3X7R1H475K250ADCAP CER 4.7UF 50V X7R 1210 EPOXY |
842 |
|
Datasheet |
CGA | Tape & Reel (TR) | Active | 4.7 µF | ±10% | 50V | X7R | -55°C ~ 125°C | Epoxy Mountable | AEC-Q200 | Automotive | - | Surface Mount, MLCC, Epoxy | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.110" (2.80mm) | - | - |
|
GRM32D5C2J183FWA1LCAP CER 0.018UF 630V C0GNP0 1210 |
811 |
|
Datasheet |
GRM | Tape & Reel (TR) | Active | 0.018 µF | ±1% | 630V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.089" (2.25mm) | - | - |
|
|
C3225C0G3A392J200ACCAP CER 3900PF 1KV C0G/NP0 1210 |
743 |
|
Datasheet |
C | Tape & Reel (TR) | Active | 3900 pF | ±5% | 1000V (1kV) | C0G, NP0 | -55°C ~ 125°C | High Voltage | - | General Purpose | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.087" (2.20mm) | - | - |
|
|
CGA6P3X7R1H475M250ADCAP CER 4.7UF 50V X7R 1210 EPOXY |
667 |
|
Datasheet |
CGA | Tape & Reel (TR) | Active | 4.7 µF | ±20% | 50V | X7R | -55°C ~ 125°C | Epoxy Mountable | AEC-Q200 | Automotive | - | Surface Mount, MLCC, Epoxy | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.110" (2.80mm) | - | - |
-4,70x2,00x2,15mm.jpg)
|
C1808C220KHGACAUTOCAP CER 1808 22PF 3000V C0G 10% |
311 |
|
Datasheet |
SMD Auto C0G HV | Tape & Reel (TR) | Active | 22 pF | ±10% | 3000V (3kV) | C0G, NP0 | -55°C ~ 125°C | Low ESL, High Voltage | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 1808 (4520 Metric) | 0.185" L x 0.079" W (4.70mm x 2.00mm) | - | 0.069" (1.75mm) | - | - |
.jpg)
|

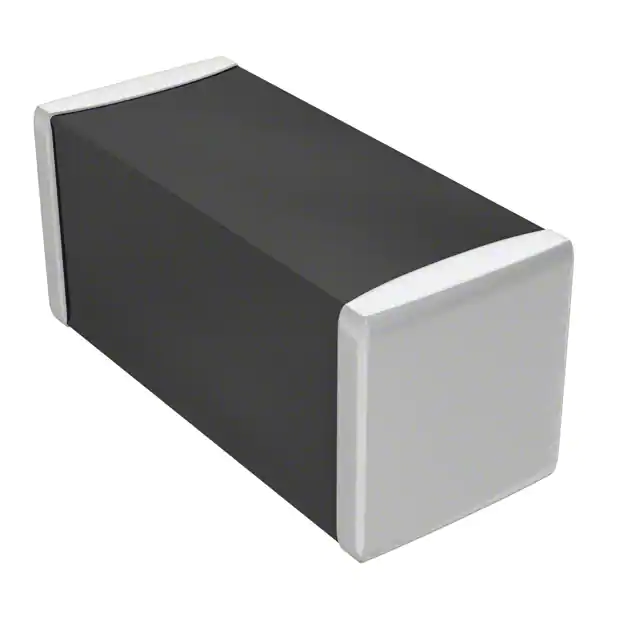

CDR03BX223BKUS7185CAP CER 0.022UF 100V BX 1808 |
275 |
|
Datasheet |
Military, MIL-PRF-55681, CDR03 | Tape & Reel (TR) | Active | 0.022 µF | ±10% | 100V | BX | -55°C ~ 125°C | - | - | High Reliability | S (0.001%) | Surface Mount, MLCC | 1808 (4520 Metric) | 0.180" L x 0.080" W (4.57mm x 2.03mm) | - | 0.080" (2.03mm) | - | - |
.jpg)
|
0201BB102K500YTCAP CER 1000PF 50V X7R 0201 |
21,900 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 1000 pF | ±10% | 50V | X7R | -55°C ~ 125°C | - | - | SMPS Filtering | - | Surface Mount, MLCC | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | 0.013" (0.33mm) | - | - |
|
|
VJ1111D820JXEQJHTCAP CER 82PF 500V C0G/NP0 1111 |
4,990 |
|
Datasheet |
VJ HIFREQ HT | Tape & Reel (TR) | Active | 82 pF | ±5% | 500V | C0G, NP0 | -55°C ~ 200°C | High Temperature | - | RF, Microwave, High Frequency | - | Surface Mount, MLCC | 1111 (2828 Metric) | 0.117" L x 0.110" W (2.98mm x 2.79mm) | - | 0.102" (2.59mm) | - | - |
