Ceramic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | Temperature Coefficient | Operating Temperature | Features | Ratings | Applications | Failure Rate | Mounting Type | Package / Case | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing | Lead Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
100A150GT150XT1KCAP CER 15PF 150V P90 0505 |
7,174 |
|
Datasheet |
Porcelain Superchip® ATC 100A | Tape & Reel (TR) | Active | 15 pF | ±2% | 150V | P90 | -55°C ~ 125°C | High Q, Low Loss, Low ESL | - | RF, Microwave, High Frequency, Bypass, Decoupling | - | Surface Mount, MLCC | 0505 (1313 Metric) | 0.055" L x 0.055" W (1.40mm x 1.40mm) | - | 0.057" (1.45mm) | - | - |
|
CKC18C333FWGACAUTOCAP CER 33NF 650V C0G 1812 |
6,889 |
|
Datasheet |
KC Link Auto C0G | Tape & Reel (TR) | Active | 0.033 µF | ±1% | 650V | C0G, NP0 | -55°C ~ 150°C | Low ESL, High Voltage, High Temperature | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.087" (2.20mm) | - | - |
|
CKG57KX7R1H475M335JJCAP CER 4.7UF 50V X7R SMD |
2,764 |
|
Datasheet |
MEGACAP, CKG | Tape & Reel (TR) | Active | 4.7 µF | ±20% | 50V | X7R | -55°C ~ 125°C | Low ESL | AEC-Q200 | Automotive, SMPS Filtering, Bypass, Decoupling | - | Surface Mount, MLCC | SMD, J-Lead | 0.236" L x 0.197" W (6.00mm x 5.00mm) | - | 0.138" (3.50mm) | - | J-Lead |
|
CKG57NX5R1E476M500JJCAP CER 47UF 25V X5R SMD |
2,208 |
|
Datasheet |
MEGACAP, CKG | Tape & Reel (TR) | Active | 47 µF | ±20% | 25V | X5R | -55°C ~ 85°C | Low ESL (Stacked) | AEC-Q200 | Automotive, SMPS Filtering, Bypass, Decoupling | - | Surface Mount, MLCC | Stacked SMD, 2 J-Lead | 0.236" L x 0.197" W (6.00mm x 5.00mm) | - | 0.217" (5.50mm) | - | J-Lead |
|
|
CKG57KX7T2W684K335JJCAP CER 0.68UF 450V X7T SMD |
1,739 |
|
Datasheet |
MEGACAP, CKG | Tape & Reel (TR) | Active | 0.68 µF | ±10% | 450V | X7T | -55°C ~ 125°C | Low ESL | AEC-Q200 | Automotive, SMPS Filtering, Bypass, Decoupling | - | Surface Mount, MLCC | SMD, J-Lead | 0.236" L x 0.197" W (6.00mm x 5.00mm) | - | 0.138" (3.50mm) | - | J-Lead |
|
|
CKG57KX7R2A225M335JJCAP CER 2.2UF 100V X7R SMD |
1,371 |
|
Datasheet |
MEGACAP, CKG | Tape & Reel (TR) | Active | 2.2 µF | ±20% | 100V | X7R | -55°C ~ 125°C | Low ESL | AEC-Q200 | Automotive, SMPS Filtering, Bypass, Decoupling | - | Surface Mount, MLCC | SMD, J-Lead | 0.236" L x 0.197" W (6.00mm x 5.00mm) | - | 0.138" (3.50mm) | - | J-Lead |
|
|
CKG57KX7R2A335M335JJCAP CER 3.3UF 100V X7R SMD |
757 |
|
Datasheet |
MEGACAP, CKG | Tape & Reel (TR) | Active | 3.3 µF | ±20% | 100V | X7R | -55°C ~ 125°C | Low ESL | AEC-Q200 | Automotive, SMPS Filtering, Bypass, Decoupling | - | Surface Mount, MLCC | SMD, J-Lead | 0.236" L x 0.197" W (6.00mm x 5.00mm) | - | 0.138" (3.50mm) | - | J-Lead |
|
|
CKG57KX7R2J224K335JJCAP CER 0.22UF 630V X7R SMD |
747 |
|
Datasheet |
MEGACAP, CKG | Tape & Reel (TR) | Active | 0.22 µF | ±10% | 630V | X7R | -55°C ~ 125°C | Low ESL | AEC-Q200 | Automotive, SMPS Filtering, Bypass, Decoupling | - | Surface Mount, MLCC | SMD, J-Lead | 0.236" L x 0.197" W (6.00mm x 5.00mm) | - | 0.138" (3.50mm) | - | J-Lead |
|
|
CKG57KX7T2J334M335JJCAP CER 0.33UF 630V X7T SMD |
732 |
|
Datasheet |
MEGACAP, CKG | Tape & Reel (TR) | Active | 0.33 µF | ±20% | 630V | X7T | -55°C ~ 125°C | Low ESL | AEC-Q200 | Automotive, SMPS Filtering, Bypass, Decoupling | - | Surface Mount, MLCC | SMD, J-Lead | 0.236" L x 0.197" W (6.00mm x 5.00mm) | - | 0.138" (3.50mm) | - | J-Lead |
|
|
CKG57KX7T2E225M335JJCAP CER 2.2UF 250V X7T SMD |
599 |
|
Datasheet |
MEGACAP, CKG | Tape & Reel (TR) | Active | 2.2 µF | ±20% | 250V | X7T | -55°C ~ 125°C | Low ESL | AEC-Q200 | Automotive, SMPS Filtering, Bypass, Decoupling | - | Surface Mount, MLCC | SMD, J-Lead | 0.236" L x 0.197" W (6.00mm x 5.00mm) | - | 0.138" (3.50mm) | - | J-Lead |
|
|
CKG57NX7R1E226M500JJCAP CER 22UF 25V X7R SMD |
539 |
|
Datasheet |
MEGACAP, CKG | Tape & Reel (TR) | Active | 22 µF | ±20% | 25V | X7R | -55°C ~ 125°C | Low ESL (Stacked) | AEC-Q200 | Automotive, SMPS Filtering, Bypass, Decoupling | - | Surface Mount, MLCC | Stacked SMD, 2 J-Lead | 0.236" L x 0.197" W (6.00mm x 5.00mm) | - | 0.217" (5.50mm) | - | J-Lead |
|
|
CKG57NX7R1C336M500JJCAP CER 33UF 16V X7R SMD |
392 |
|
Datasheet |
MEGACAP, CKG | Tape & Reel (TR) | Active | 33 µF | ±20% | 16V | X7R | -55°C ~ 125°C | Low ESL (Stacked) | AEC-Q200 | Automotive, SMPS Filtering, Bypass, Decoupling | - | Surface Mount, MLCC | Stacked SMD, 2 J-Lead | 0.236" L x 0.197" W (6.00mm x 5.00mm) | - | 0.217" (5.50mm) | - | J-Lead |
|
CKC18C393FWGACAUTOKC-LINK 1812 39NF 650VDC C0G |
454 |
|
Datasheet |
KC Link Auto C0G | Tape & Reel (TR) | Active | 0.039 µF | ±1% | 650V | C0G, NP0 | -55°C ~ 150°C | Low ESL, High Voltage, High Temperature | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.106" (2.70mm) | - | - |
.jpg)
|
100B430GW500XT1KCAP CER 43PF 500V P90 1111 |
839 |
|
Datasheet |
Porcelain Superchip® ATC 100B | Tape & Reel (TR) | Active | 43 pF | ±2% | 500V | P90 | -55°C ~ 125°C | High Q, Low Loss, Low ESL | - | RF, Microwave, High Frequency, Bypass, Decoupling | - | Surface Mount, MLCC | 1111 (2828 Metric) | 0.110" L x 0.110" W (2.79mm x 2.79mm) | - | 0.102" (2.59mm) | - | - |
|
C2225X103KGRACTUCAP CER 10000PF 2KV X7R 2225 |
843 |
|
Datasheet |
SMD Comm X7R HV Flex | Tape & Reel (TR) | Active | 10000 pF | ±10% | 2000V (2kV) | X7R | -55°C ~ 125°C | Low ESL, Soft Termination, High Voltage | - | Boardflex Sensitive | - | Surface Mount, MLCC | 2225 (5763 Metric) | 0.232" L x 0.252" W (5.90mm x 6.40mm) | - | 0.071" (1.80mm) | - | - |
-4,50x6,40x1,55mm.jpg)
|
C1825X103KDGAC7800CAP CER 10000PF 1000V C0G 1825 |
271 |
|
Datasheet |
SMD Comm C0G HV Flex | Tape & Reel (TR) | Active | 10000 pF | ±10% | 1000V (1kV) | C0G, NP0 | -55°C ~ 125°C | Low ESL, Soft Termination, High Voltage | - | Boardflex Sensitive | - | Surface Mount, MLCC | 1825 (4564 Metric) | 0.181" L x 0.252" W (4.60mm x 6.40mm) | - | 0.043" (1.10mm) | - | - |
|
FA23C0G2A154JNU06CAP CER 0.15UF 100V C0G/NP0 RAD |
1,000 |
|
Datasheet |
FA | Cut Tape (CT) | Active | 0.15 µF | ±5% | 100V | C0G, NP0 | -55°C ~ 125°C | - | AEC-Q200 | Automotive | - | Through Hole | Radial | 0.335" L x 0.217" W (8.50mm x 5.50mm) | 0.433" (11.00mm) | - | 0.197" (5.00mm) | Formed Leads - Kinked |
|
|
FA23C0G2J104JRU00CAP CER 0.1UF 630V C0G RADIAL |
154 |
|
Datasheet |
FA | Bulk | Active | 0.1 µF | ±5% | 630V | C0G, NP0 | -55°C ~ 125°C | - | AEC-Q200 | Automotive | - | Through Hole | Radial | 0.335" L x 0.217" W (8.50mm x 5.50mm) | 0.433" (11.00mm) | - | 0.197" (5.00mm) | Formed Leads - Kinked |
|
M3253507E1C102KZMBTRCAP CER 1000PF 200V C0G/NP0 1812 |
655 |
|
Datasheet |
Military, MIL-PRF-32535 | Tape & Reel (TR) | Active | 1000 pF | ±10% | 200V | C0G, NP0 | -55°C ~ 125°C | Low ESL | - | High Reliability | M (1%) | Surface Mount, MLCC | 1812 (4532 Metric) | 0.178" L x 0.126" W (4.52mm x 3.20mm) | - | 0.110" (2.79mm) | - | - |
|

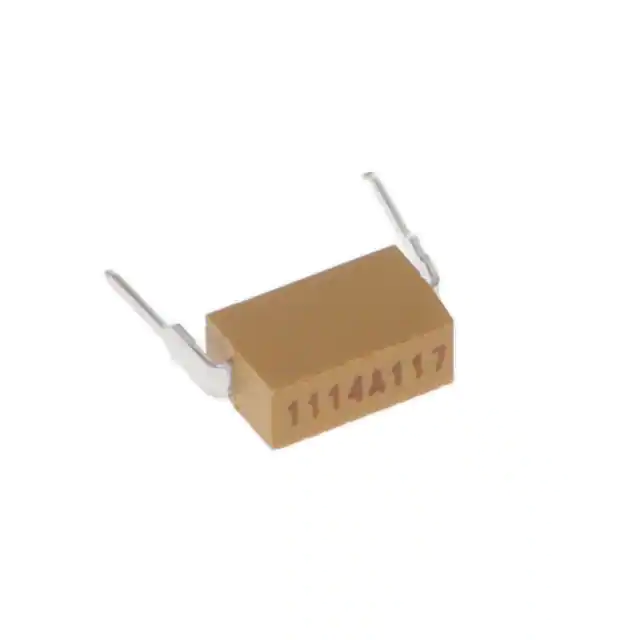

M39014/22-1114CAP CER 2DIP |
127 |
|
Datasheet |
Military, MIL-PRF-39014, CKR23 | Bulk | Active | 10000 pF | ±10% | 200V | BX | -55°C ~ 125°C | - | - | High Reliability | S (0.001%) | Through Hole | 2-DIP | 0.260" L x 0.092" W (6.60mm x 2.34mm) | 0.195" (4.95mm) | - | 0.035" (0.89mm) | Straight |
