Ceramic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | Temperature Coefficient | Operating Temperature | Features | Ratings | Applications | Failure Rate | Mounting Type | Package / Case | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing | Lead Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
M39014/05-2240CAP CER 1500PF 100V 10% AXIAL |
180 |
|
Datasheet |
Military, MIL-PRF-39014, CKR11 | Bulk | Active | 1500 pF | ±10% | 100V | BX | -55°C ~ 125°C | - | - | High Reliability | S (0.001%) | Through Hole | Axial | 0.090" Dia x 0.160" L (2.29mm x 4.06mm) | - | - | - | Straight |
|
C2220C103KCRACTUCAP CER 10000PF 500V X7R 2220 |
887 |
|
Datasheet |
SMD Comm X7R HV | Tape & Reel (TR) | Active | 10000 pF | ±10% | 500V | X7R | -55°C ~ 125°C | Low ESL, High Voltage | - | General Purpose | - | Surface Mount, MLCC | 2220 (5750 Metric) | 0.224" L x 0.197" W (5.70mm x 5.00mm) | - | 0.061" (1.55mm) | - | - |
|
|
C2220C331KFGACTUCAP CER 330PF 1.5KV C0G/NP0 2220 |
123 |
|
Datasheet |
SMD Comm C0G HV | Tape & Reel (TR) | Active | 330 pF | ±10% | 1500V (1.5kV) | C0G, NP0 | -55°C ~ 125°C | Low ESL, High Voltage | - | General Purpose | - | Surface Mount, MLCC | 2220 (5750 Metric) | 0.224" L x 0.197" W (5.70mm x 5.00mm) | - | 0.061" (1.55mm) | - | - |
-4,50x6,40x1,55mm.jpg)
|
C1825C561JZGAC7800CAP CER 560PF 2.5KV C0G/NP0 1825 |
1,171 |
|
Datasheet |
SMD Comm C0G HV | Tape & Reel (TR) | Active | 560 pF | ±5% | 2500V (2.5kV) | C0G, NP0 | -55°C ~ 125°C | Low ESL, High Voltage | - | General Purpose | - | Surface Mount, MLCC | 1825 (4564 Metric) | 0.177" L x 0.252" W (4.50mm x 6.40mm) | - | 0.061" (1.55mm) | - | - |
|
MD011C472KABCAP CER 4700PF 100V X7R 2-DIP |
200 |
|
Datasheet |
DIPGuard® MD | Bulk | Active | 4700 pF | ±10% | 100V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Through Hole | 2-DIP | 0.260" L x 0.100" W (6.60mm x 2.54mm) | 0.175" (4.45mm) | - | 0.325" (8.25mm) | - |
|
|
MD015C472KABCAP CER 4700PF 50V X7R 2-DIP |
200 |
|
Datasheet |
DIPGuard® MD | Tube | Active | 4700 pF | ±10% | 50V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Through Hole | 2-DIP | 0.260" L x 0.100" W (6.60mm x 2.54mm) | 0.175" (4.45mm) | - | 0.325" (8.25mm) | - |
|
100A330JT150XT1KCAP CER 33PF 150V P90 0505 |
1,231 |
|
Datasheet |
Porcelain Superchip® ATC 100A | Tape & Reel (TR) | Active | 33 pF | ±5% | 150V | P90 | -55°C ~ 125°C | High Q, Low Loss, Low ESL | - | RF, Microwave, High Frequency, Bypass, Decoupling | - | Surface Mount, MLCC | 0505 (1313 Metric) | 0.055" L x 0.055" W (1.40mm x 1.40mm) | - | 0.057" (1.45mm) | - | - |
|
CKC18X682JDGACAUTOCAP CER 6.8NF 1000V C0G 1812 |
1,810 |
|
Datasheet |
KC Link Auto C0G | Tape & Reel (TR) | Active | 6800 pF | ±5% | 1000V (1kV) | C0G, NP0 | -55°C ~ 150°C | Low ESL, Soft Termination, High Voltage, High Temperature | AEC-Q200 | Automotive, Boardflex Sensitive | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.061" (1.55mm) | - | - |
|
C1812C142KZGLCAUTOCAP CER 1400PF 2.5KV C0G 1812 |
124 |
|
Datasheet |
KONNEKT Auto C0G | Tape & Reel (TR) | Active | 1400 pF | ±10% | 2500V (2.5kV) | C0G, NP0 | -55°C ~ 125°C | Low ESL (Stacked), High Voltage | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.217" (5.50mm) | - | - |
|
|
KR355TD7LQ684MV01KCAP CER 0.68UF 630V X7T 2SMD |
1,000 |
|
Datasheet |
KR3 | Tape & Reel (TR) | Active | 0.68 µF | ±20% | 630V | X7T | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | Stacked SMD, 2 J-Lead | 0.240" L x 0.209" W (6.10mm x 5.30mm) | - | 0.197" (5.00mm) | - | J-Lead |
|
|
KR355TD7LQ684MV01LCAP CER 0.68UF 630V X7T 2SMD |
400 |
|
Datasheet |
KR3 | Tape & Reel (TR) | Active | 0.68 µF | ±20% | 630V | X7T | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | Stacked SMD, 2 J-Lead | 0.240" L x 0.209" W (6.10mm x 5.30mm) | - | 0.197" (5.00mm) | - | J-Lead |
|
ES2211N680K502NTMCAP CER 68PF 250VAC C0G/NP0 2211 |
1,887 |
|
Datasheet |
- | Tape & Reel (TR) | Not For New Designs | 68 pF | ±10% | 250VAC | C0G, NP0 | -55°C ~ 125°C | - | X1, Y2 | Safety | - | Surface Mount, MLCC | 2211 (5728 Metric) | 0.220" L x 0.110" W (5.58mm x 2.79mm) | - | 0.110" (2.79mm) | - | - |
|
|
C2220Y102KDRACAUTOCAP CER 1000PF 1KV X7R 2220 |
1,611 |
|
Datasheet |
SMD Auto X7R FF | Tape & Reel (TR) | Active | 1000 pF | ±10% | 1000V (1kV) | X7R | -55°C ~ 125°C | Floating Electrode, Soft Termination | AEC-Q200 | Automotive, Boardflex Sensitive | - | Surface Mount, MLCC | 2220 (5750 Metric) | 0.232" L x 0.197" W (5.90mm x 5.00mm) | - | 0.071" (1.80mm) | - | - |
-2,54mm-Tan.jpg)
|

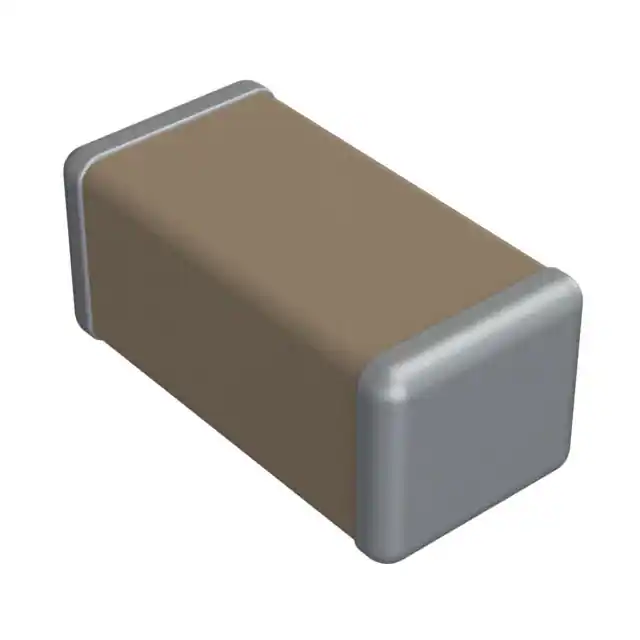

2215YA250472KSTSYXCAP CER 4700PF 250VAC X7R 2215 |
676 |
|
Datasheet |
FlexiCap™ | Tape & Reel (TR) | Active | 4700 pF | ±10% | 250VAC | X7R | -55°C ~ 125°C | DC Annex H, Humidity 3B Annex I, Soft Termination, High Voltage | AEC-Q200, X1, Y2 | Safety, Automotive, Boardflex Sensitive | - | Surface Mount, MLCC | 2215 (5738 Metric) | 0.224" L x 0.150" W (5.70mm x 3.81mm) | - | 0.100" (2.54mm) | - | - |
|
C2220C273JCGACAUTOCOMSMDHIVOLTAGE.027UF 500V |
500 |
|
Datasheet |
SMD Auto C0G HV | Tape & Reel (TR) | Active | 0.027 µF | ±5% | 500V | C0G, NP0 | -55°C ~ 125°C | Low ESL, High Voltage | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 2220 (5750 Metric) | 0.224" L x 0.197" W (5.70mm x 5.00mm) | - | 0.087" (2.20mm) | - | - |
-2,54mm-Tan.jpg)
|
2211YA250222KETSPUCAP CER 2200PF 250V X7R 2211 |
1,466 |
|
- |
FlexiCap™ | Tape & Reel (TR) | Not For New Designs | 2200 pF | ±10% | 250V | X7R | -55°C ~ 125°C | Soft Termination | AEC-Q200, X1, Y2 | Safety, Automotive, Boardflex Sensitive | - | Surface Mount, MLCC | 2211 (5728 Metric) | 0.224" L x 0.110" W (5.70mm x 2.80mm) | - | 0.100" (2.54mm) | - | - |
.jpg)
|
1206D102J101KHTCAP CER 1000PF 100V C0G/NP0 1206 |
1,240 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 1000 pF | ±5% | 100V | C0G, NP0 | -55°C ~ 200°C | High Temperature | - | General Purpose | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.125" L x 0.060" W (3.18mm x 1.52mm) | - | 0.064" (1.63mm) | - | - |
|
CKC18X912JDGACAUTOKC-LINK 1812 9.1NF 1000VDC C0G |
980 |
|
Datasheet |
KC Link Auto C0G | Tape & Reel (TR) | Active | 9100 pF | ±5% | 1000V (1kV) | C0G, NP0 | -55°C ~ 150°C | Low ESL, Soft Termination, High Voltage, High Temperature | AEC-Q200 | Automotive, Boardflex Sensitive | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.087" (2.20mm) | - | - |
|
CKG57KX7R1C156M335JHCAP CER 15UF 16V X7R SMD |
920 |
|
Datasheet |
MEGACAP, CKG | Tape & Reel (TR) | Active | 15 µF | ±20% | 16V | X7R | -55°C ~ 125°C | Low ESL | - | SMPS Filtering, Bypass, Decoupling | - | Surface Mount, MLCC | SMD, J-Lead | 0.236" L x 0.197" W (6.00mm x 5.00mm) | - | 0.138" (3.50mm) | - | J-Lead |
|
|
C2220C333KDRACTUCAP CER 0.033UF 1KV X7R 2220 |
272 |
|
Datasheet |
SMD Comm X7R HV | Tape & Reel (TR) | Active | 0.033 µF | ±10% | 1000V (1kV) | X7R | -55°C ~ 125°C | Low ESL, High Voltage | - | General Purpose | - | Surface Mount, MLCC | 2220 (5750 Metric) | 0.224" L x 0.197" W (5.70mm x 5.00mm) | - | 0.071" (1.80mm) | - | - |
