Ceramic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | Temperature Coefficient | Operating Temperature | Features | Ratings | Applications | Failure Rate | Mounting Type | Package / Case | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing | Lead Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|
100B430JP500XTCAP CER 43PF 500V P90 1111 |
894 |
|
Datasheet |
Porcelain Superchip® ATC 100B | Tape & Reel (TR) | Active | 43 pF | ±5% | 500V | P90 | -55°C ~ 125°C | High Q, Low Loss, Low ESL | - | RF, Microwave, High Frequency, Bypass, Decoupling | - | Surface Mount, MLCC | 1111 (2828 Metric) | 0.110" L x 0.110" W (2.79mm x 2.79mm) | - | 0.102" (2.59mm) | - | - |
|
KTJ500B226M76AFT00CAP CER 22UF 50V X7R SMD |
361 |
|
Datasheet |
KTJ, NTJ | Tape & Reel (TR) | Active | 22 µF | ±20% | 50V | X7R | -55°C ~ 125°C | Low ESL | - | Bypass, Decoupling | - | Surface Mount, MLCC | SMD, J-Lead | 0.307" L x 0.260" W (7.80mm x 6.60mm) | - | 0.217" (5.50mm) | - | J-Lead |
|
FG23C0G2W104JNT00CAP CER 0.1UF 450V C0G RADIAL |
190 |
|
Datasheet |
FG | Bulk | Active | 0.1 µF | ±5% | 450V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Through Hole | Radial | 0.335" L x 0.217" W (8.50mm x 5.50mm) | 0.433" (11.00mm) | - | 0.197" (5.00mm) | Formed Leads - Kinked |
|
|
FG23C0G2E154JRT00CAP CER 0.15UF 250V C0G RADIAL |
118 |
|
Datasheet |
FG | Bulk | Active | 0.15 µF | ±5% | 250V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Through Hole | Radial | 0.335" L x 0.217" W (8.50mm x 5.50mm) | 0.433" (11.00mm) | - | 0.197" (5.00mm) | Formed Leads - Kinked |

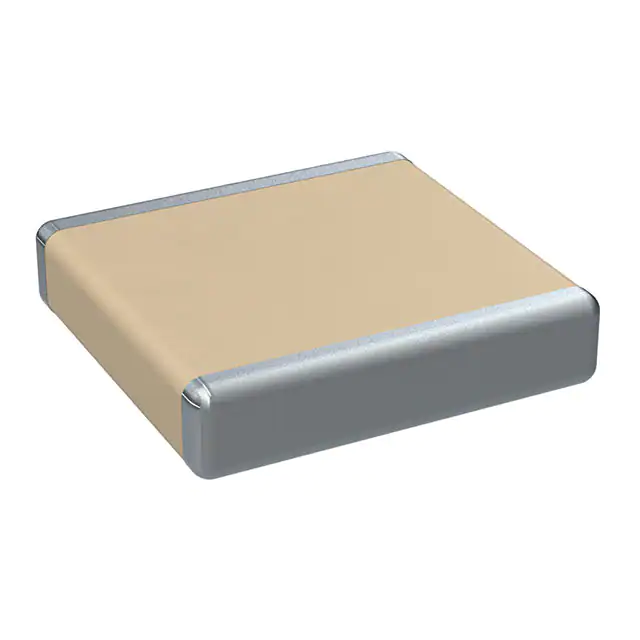

-5,60x6,40x1,45mm.jpg)
|
C2225X105K1RACAUTOCAP CER 1UF 100V X7R 2225 |
575 |
|
Datasheet |
SMD Auto X7R Flex | Tape & Reel (TR) | Active | 1 µF | ±10% | 100V | X7R | -55°C ~ 125°C | Soft Termination | AEC-Q200 | Automotive, Boardflex Sensitive | - | Surface Mount, MLCC | 2225 (5763 Metric) | 0.232" L x 0.252" W (5.90mm x 6.40mm) | - | 0.057" (1.45mm) | - | - |
|
|
KTJ251B225M76AFT00CAP CER 2.2UF 250V X7R SMD |
1,058 |
|
Datasheet |
KTJ, NTJ | Tape & Reel (TR) | Active | 2.2 µF | ±20% | 250V | X7R | -55°C ~ 125°C | Low ESL | - | Bypass, Decoupling | - | Surface Mount, MLCC | SMD, J-Lead | 0.307" L x 0.260" W (7.80mm x 6.60mm) | - | 0.217" (5.50mm) | - | J-Lead |
|
C1812C106M3R2C7186CAP CER 10UF 25V X7R SMD |
807 |
|
Datasheet |
KPS SMD Comm X7R | Tape & Reel (TR) | Active | 10 µF | ±20% | 25V | X7R | -55°C ~ 125°C | Low ESL (Stacked) | - | Boardflex Sensitive | - | Surface Mount, MLCC | Stacked SMD, 2 J-Lead | 0.197" L x 0.138" W (5.00mm x 3.50mm) | - | 0.217" (5.50mm) | - | J-Lead |
|
CKG57KX7S1H106M335JHCAP CER 10UF 50V X7S SMD |
2,267 |
|
Datasheet |
MEGACAP, CKG | Tape & Reel (TR) | Active | 10 µF | ±20% | 50V | X7S | -55°C ~ 125°C | Low ESL | - | SMPS Filtering, Bypass, Decoupling | - | Surface Mount, MLCC | SMD, J-Lead | 0.236" L x 0.197" W (6.00mm x 5.00mm) | - | 0.138" (3.50mm) | - | J-Lead |
|
|
CKG57KX7R2A335K335JHCAP CER 3.3UF 100V X7R SMD |
919 |
|
Datasheet |
MEGACAP, CKG | Tape & Reel (TR) | Active | 3.3 µF | ±10% | 100V | X7R | -55°C ~ 125°C | Low ESL | - | SMPS Filtering, Bypass, Decoupling | - | Surface Mount, MLCC | SMD, J-Lead | 0.236" L x 0.197" W (6.00mm x 5.00mm) | - | 0.138" (3.50mm) | - | J-Lead |
|
|
CKG57KX7T2J334K335JHCAP CER 0.33UF 630V X7T SMD |
876 |
|
Datasheet |
MEGACAP, CKG | Tape & Reel (TR) | Active | 0.33 µF | ±10% | 630V | X7T | -55°C ~ 125°C | Low ESL | - | SMPS Filtering, Bypass, Decoupling | - | Surface Mount, MLCC | SMD, J-Lead | 0.236" L x 0.197" W (6.00mm x 5.00mm) | - | 0.138" (3.50mm) | - | J-Lead |
|
|
CKG57KX7T2E155K335JHCAP CER 1.5UF 250V X7T SMD |
805 |
|
Datasheet |
MEGACAP, CKG | Tape & Reel (TR) | Active | 1.5 µF | ±10% | 250V | X7T | -55°C ~ 125°C | Low ESL | - | SMPS Filtering, Bypass, Decoupling | - | Surface Mount, MLCC | SMD, J-Lead | 0.236" L x 0.197" W (6.00mm x 5.00mm) | - | 0.138" (3.50mm) | - | J-Lead |
|
|
CKG57KX7R1H475K335JHCAP CER 4.7UF 50V X7R SMD |
771 |
|
Datasheet |
MEGACAP, CKG | Tape & Reel (TR) | Active | 4.7 µF | ±10% | 50V | X7R | -55°C ~ 125°C | Low ESL | - | SMPS Filtering, Bypass, Decoupling | - | Surface Mount, MLCC | SMD, J-Lead | 0.236" L x 0.197" W (6.00mm x 5.00mm) | - | 0.138" (3.50mm) | - | J-Lead |
|
|
CKG57KX7R2E474M335JHCAP CER 0.47UF 250V X7R SMD |
765 |
|
Datasheet |
MEGACAP, CKG | Tape & Reel (TR) | Active | 0.47 µF | ±20% | 250V | X7R | -55°C ~ 125°C | Low ESL | - | SMPS Filtering, Bypass, Decoupling | - | Surface Mount, MLCC | SMD, J-Lead | 0.236" L x 0.197" W (6.00mm x 5.00mm) | - | 0.138" (3.50mm) | - | J-Lead |
|
|
CKG57KX7T2W684M335JHCAP CER 0.68UF 450V X7T SMD |
750 |
|
Datasheet |
MEGACAP, CKG | Tape & Reel (TR) | Active | 0.68 µF | ±20% | 450V | X7T | -55°C ~ 125°C | Low ESL | - | SMPS Filtering, Bypass, Decoupling | - | Surface Mount, MLCC | SMD, J-Lead | 0.236" L x 0.197" W (6.00mm x 5.00mm) | - | 0.138" (3.50mm) | - | J-Lead |
|
|
CKG57KX7S2A685M335JHCAP CER 6.8UF 100V X7S SMD |
628 |
|
Datasheet |
MEGACAP, CKG | Tape & Reel (TR) | Active | 6.8 µF | ±20% | 100V | X7S | -55°C ~ 125°C | Low ESL | - | SMPS Filtering, Bypass, Decoupling | - | Surface Mount, MLCC | SMD, J-Lead | 0.236" L x 0.197" W (6.00mm x 5.00mm) | - | 0.138" (3.50mm) | - | J-Lead |
|
|
CKG57KX7R2A335M335JHCAP CER 3.3UF 100V X7R SMD |
489 |
|
Datasheet |
MEGACAP, CKG | Tape & Reel (TR) | Active | 3.3 µF | ±20% | 100V | X7R | -55°C ~ 125°C | Low ESL | - | SMPS Filtering, Bypass, Decoupling | - | Surface Mount, MLCC | SMD, J-Lead | 0.236" L x 0.197" W (6.00mm x 5.00mm) | - | 0.138" (3.50mm) | - | J-Lead |
|
|
CKG57KX7R2A105K335JHCAP CER 1UF 100V X7R SMD |
451 |
|
Datasheet |
MEGACAP, CKG | Tape & Reel (TR) | Active | 1 µF | ±10% | 100V | X7R | -55°C ~ 125°C | Low ESL | - | SMPS Filtering, Bypass, Decoupling | - | Surface Mount, MLCC | SMD, J-Lead | 0.236" L x 0.197" W (6.00mm x 5.00mm) | - | 0.138" (3.50mm) | - | J-Lead |
|
|
CKG57KX7R2A105M335JHCAP CER 1UF 100V X7R SMD |
423 |
|
Datasheet |
MEGACAP, CKG | Tape & Reel (TR) | Active | 1 µF | ±20% | 100V | X7R | -55°C ~ 125°C | Low ESL | - | SMPS Filtering, Bypass, Decoupling | - | Surface Mount, MLCC | SMD, J-Lead | 0.236" L x 0.197" W (6.00mm x 5.00mm) | - | 0.138" (3.50mm) | - | J-Lead |
|
MD015C223KABCAP CER 0.022UF 50V X7R 2-DIP |
385 |
|
Datasheet |
DIPGuard® MD | Tube | Active | 0.022 µF | ±10% | 50V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Through Hole | 2-DIP | 0.260" L x 0.100" W (6.60mm x 2.54mm) | 0.175" (4.45mm) | - | 0.325" (8.25mm) | - |
|
|
MD015A101JABCAP CER 100PF 50V NP0 2-DIP |
191 |
|
Datasheet |
DIPGuard® MD | Tube | Active | 100 pF | ±5% | 50V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Through Hole | 2-DIP | 0.260" L x 0.100" W (6.60mm x 2.54mm) | 0.175" (4.45mm) | - | 0.325" (8.25mm) | - |
