Ceramic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | Temperature Coefficient | Operating Temperature | Features | Ratings | Applications | Failure Rate | Mounting Type | Package / Case | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing | Lead Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VJ0805A681JXBMCCAP CER 680PF 100V C0G/NP0 0805 |
5,850 |
|
Datasheet |
VJ | Tape & Reel (TR) | Active | 680 pF | ±5% | 100V | C0G, NP0 | -55°C ~ 150°C | - | - | General Purpose | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.057" (1.45mm) | - | - |
|
CC0805FRNPO9BN300CAP CER 30PF 50V C0G/NPO 0805 |
5,558 |
|
Datasheet |
CC | Tape & Reel (TR) | Active | 30 pF | ±1% | 50V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.028" (0.70mm) | - | - |
|
KGM21AR70J106MUCAP CER 10UF 6.3V X7R 0805 |
5,550 |
|
Datasheet |
KGM - X7R | Tape & Reel (TR) | Active | 10 µF | ±20% | 6.3V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.01mm x 1.25mm) | - | 0.057" (1.45mm) | - | - |
-0,55mm.jpg)
|
GCQ1555C1H160GB01DCAP CER 16PF 50V C0G/NP0 0402 |
5,478 |
|
Datasheet |
GCQ | Tape & Reel (TR) | Active | 16 pF | ±2% | 50V | C0G, NP0 | -55°C ~ 125°C | - | AEC-Q200 | RF, Microwave, High Frequency, Automotive | - | Surface Mount, MLCC | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | 0.022" (0.55mm) | - | - |
|
|
CC0805FRNPO9BN200CAP CER 20PF 50V C0G/NPO 0805 |
5,370 |
|
Datasheet |
CC | Tape & Reel (TR) | Active | 20 pF | ±1% | 50V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.028" (0.70mm) | - | - |
|
|
KGM31BR72A562JTCAP CER 5600PF 100V X7R 1206 |
4,000 |
|
Datasheet |
KGM - X7R | Tape & Reel (TR) | Active | 5600 pF | ±5% | 100V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.037" (0.94mm) | - | - |
|
|
KGM31BR71H332JTCAP CER 3300PF 50V X7R 1206 |
4,000 |
|
Datasheet |
KGM - X7R | Tape & Reel (TR) | Active | 3300 pF | ±5% | 50V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.037" (0.94mm) | - | - |
-0,94mm-J-Code.jpg)
|
12065C822JAT2ACAP CER 8200PF 50V X7R 1206 |
4,000 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 8200 pF | ±5% | 50V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.037" (0.94mm) | - | - |
|
|
C0603C681K3RACTUCAP CER 680PF 25V X7R 0603 |
4,000 |
|
Datasheet |
SMD Comm X7R | Tape & Reel (TR) | Active | 680 pF | ±10% | 25V | X7R | -55°C ~ 125°C | - | - | Bypass, Decoupling | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | 0.034" (0.87mm) | - | - |
|
|
C0805C561J1GALTUCAP CER 560PF 100V NP0 0805 |
4,000 |
|
Datasheet |
SMD Comm C0G SnPb | Tape & Reel (TR) | Active | 560 pF | ±5% | 100V | C0G, NP0 | -55°C ~ 125°C | Low ESL | - | General Purpose | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.035" (0.88mm) | - | - |
|
|
C0805C162F5HACTUCAP CER 1600PF 50V X8R 0805 |
4,000 |
|
Datasheet |
SMD Comm X8R HT150C | Tape & Reel (TR) | Active | 1600 pF | ±1% | 50V | X8R | -55°C ~ 150°C | Low ESL, High Temperature | - | General Purpose | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.039" (1.00mm) | - | - |
-0,94mm.jpg)
|
08053F102K4T2ACAP CER SMD |
4,000 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 1000 pF | ±10% | 25V | X8R | -55°C ~ 150°C | - | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.01mm x 1.25mm) | - | 0.037" (0.94mm) | - | - |
|
|
12065C682K4T2ACAP CER 6800PF 50V X7R 1206 |
4,000 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 6800 pF | ±10% | 50V | X7R | -55°C ~ 125°C | - | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | - | - | - |
-2,00x1,20x1,00mm.jpg)
|
C0805C680K1GACAUTOCAP CER 68PF 100V C0G/NP0 0805 |
4,000 |
|
Datasheet |
SMD Auto C0G | Tape & Reel (TR) | Active | 68 pF | ±10% | 100V | C0G, NP0 | -55°C ~ 125°C | Low ESL | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.035" (0.88mm) | - | - |
|

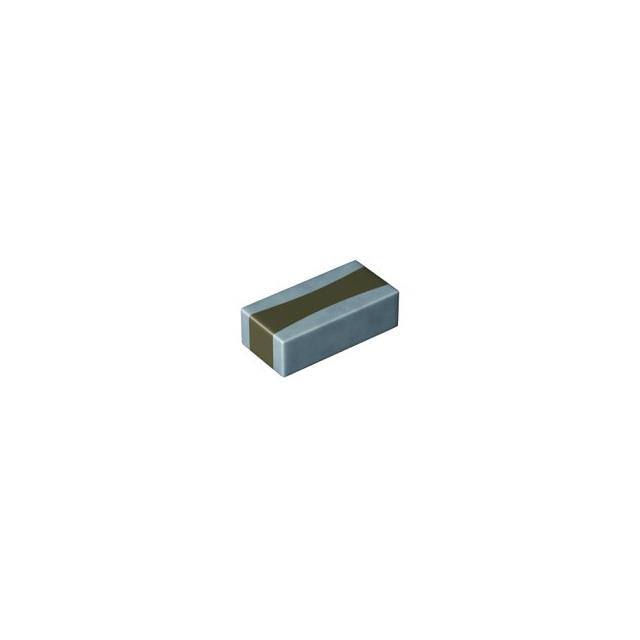

MCRLL165SB7474MTNA01CAP CER 0.47UF 10V X7R 0306 |
4,000 |
|
Datasheet |
MCRL | Tape & Reel (TR) | Active | 0.47 µF | ±20% | 10V | X7R | -55°C ~ 125°C | Low ESL (Reverse Geometry) | AEC-Q200 | Automotive, Bypass, Decoupling | - | Surface Mount, MLCC | 0306 (0816 Metric) | 0.031" L x 0.063" W (0.80mm x 1.60mm) | - | 0.022" (0.55mm) | - | - |
|
|
GCM1885C1H102GA16DCAP CER 1000PF 50V C0G/NP0 0603 |
4,000 |
|
Datasheet |
GCM | Tape & Reel (TR) | Active | 1000 pF | ±2% | 50V | C0G, NP0 | -55°C ~ 125°C | - | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | 0.035" (0.90mm) | - | - |
|
|
KGM31BR71E103JTCAP CER 10000PF 25V X7R 1206 |
3,982 |
|
Datasheet |
KGM - X7R | Tape & Reel (TR) | Active | 10000 pF | ±5% | 25V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.037" (0.94mm) | - | - |
|
|
C0805C562K4RACTUCAP CER 5600PF 16V X7R 0805 |
3,980 |
|
Datasheet |
SMD Comm X7R | Tape & Reel (TR) | Active | 5600 pF | ±10% | 16V | X7R | -55°C ~ 125°C | - | - | Bypass, Decoupling | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.035" (0.88mm) | - | - |
|
|
C0805C560J5RACAUTOCAP CER 0805 |
3,966 |
|
Datasheet |
SMD Auto X7R | Tape & Reel (TR) | Active | 56 pF | ±5% | 50V | X7R | -55°C ~ 125°C | - | AEC-Q200 | Automotive, Bypass, Decoupling | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | - | - | - |
|
|
C0603C821K3RACTUCAP CER 820PF 25V X7R 0603 |
3,960 |
|
Datasheet |
SMD Comm X7R | Tape & Reel (TR) | Active | 820 pF | ±10% | 25V | X7R | -55°C ~ 125°C | - | - | Bypass, Decoupling | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | 0.034" (0.87mm) | - | - |
