Ceramic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | Temperature Coefficient | Operating Temperature | Features | Ratings | Applications | Failure Rate | Mounting Type | Package / Case | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing | Lead Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
KGM31BR71H152JTCAP CER 1500PF 50V X7R 1206 |
3,485 |
|
Datasheet |
KGM - X7R | Tape & Reel (TR) | Active | 1500 pF | ±5% | 50V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.037" (0.94mm) | - | - |
-3,20x1,60x0,88mm.jpg)
|
C1206C102G1HACAUTOCAP CER 1206 1NF 100V ULTRA STAB |
3,394 |
|
Datasheet |
SMD Auto X8R HT150C | Tape & Reel (TR) | Active | 1000 pF | ±2% | 100V | X8R | -55°C ~ 150°C | Low ESL, High Temperature | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.035" (0.88mm) | - | - |
|
|
C0603C121K1GACTUCAP CER 120PF 100V C0G/NP0 0603 |
3,339 |
|
Datasheet |
SMD Comm C0G | Tape & Reel (TR) | Active | 120 pF | ±10% | 100V | C0G, NP0 | -55°C ~ 125°C | Low ESL | - | General Purpose | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | 0.034" (0.87mm) | - | - |
|
|
C0603C222K9RACTUCAP CER 2200PF 6.3V X7R 0603 |
3,290 |
|
Datasheet |
SMD Comm X7R | Tape & Reel (TR) | Active | 2200 pF | ±10% | 6.3V | X7R | -55°C ~ 125°C | - | - | Bypass, Decoupling | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | 0.034" (0.87mm) | - | - |
|
|
C0805C121K1RACAUTOCAP CER 0805 |
3,290 |
|
Datasheet |
SMD Auto X7R | Tape & Reel (TR) | Active | 120 pF | ±10% | 100V | X7R | -55°C ~ 125°C | - | AEC-Q200 | Automotive, Bypass, Decoupling | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | - | - | - |
|
C410C473M5U5TACAP CER 0.047UF 50V Z5U AXIAL |
3,270 |
|
Datasheet |
AxiMax 400 Comm Z5U | Bulk | Active | 0.047 µF | ±20% | 50V | Z5U | 10°C ~ 85°C | - | - | Bypass, Decoupling | - | Through Hole | Axial | 0.095" Dia x 0.170" L (2.41mm x 4.32mm) | - | - | - | Straight |
|
|
KGM31BR71H102JTCAP CER 1000PF 50V X7R 1206 |
3,180 |
|
Datasheet |
KGM - X7R | Tape & Reel (TR) | Active | 1000 pF | ±5% | 50V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.037" (0.94mm) | - | - |
-1,45mm.jpg)
|
GRT21BC81E335KE13LCAP CER 3.3UF 25V X6S 0805 |
3,000 |
|
Datasheet |
GRT | Tape & Reel (TR) | Active | 3.3 µF | ±10% | 25V | X6S | -55°C ~ 105°C | - | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.055" (1.40mm) | - | - |
|
|
GCJ21BR71C474KA01LCAP CER |
3,000 |
|
Datasheet |
GCJ | Tape & Reel (TR) | Active | 0.47 µF | ±10% | 16V | X7R | -55°C ~ 125°C | Soft Termination | AEC-Q200 | Automotive, Boardflex Sensitive | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.057" (1.45mm) | - | - |
|

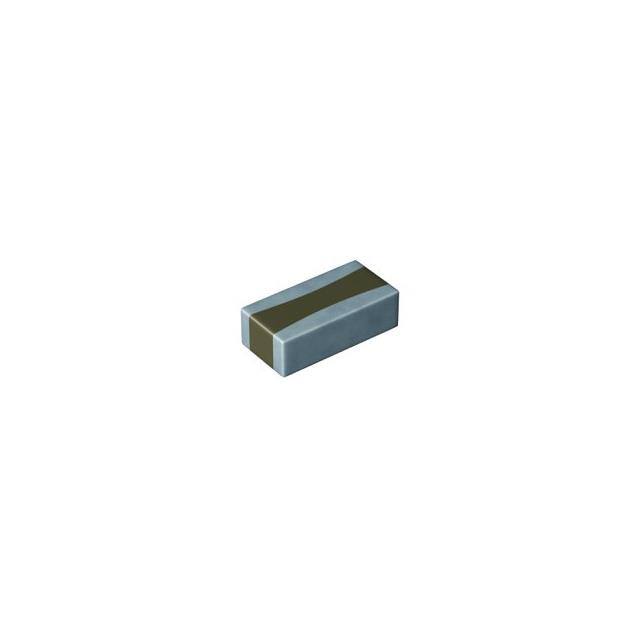

MSRLJ165SC7105MTNA01CAP CER 1UF 6.3V X7S 0306 |
3,000 |
|
Datasheet |
MSRL | Tape & Reel (TR) | Active | 1 µF | ±20% | 6.3V | X7S | -55°C ~ 125°C | Low ESL (Reverse Geometry) | - | Bypass, Decoupling | - | Surface Mount, MLCC | 0306 (0816 Metric) | 0.031" L x 0.063" W (0.80mm x 1.60mm) | - | 0.022" (0.55mm) | - | - |
|
MAASU21GSB7105MTNA01CAP CER 1UF 50V X7R 0805 |
2,998 |
|
Datasheet |
MAAS | Tape & Reel (TR) | Active | 1 µF | ±20% | 50V | X7R | -55°C ~ 125°C | - | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.053" (1.35mm) | - | - |
|
MSAST21GAB7475MTNA01CAP CER 4.7UF 25V X7R 0805 |
2,980 |
|
Datasheet |
MSAS | Tape & Reel (TR) | Active | 4.7 µF | ±20% | 25V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.055" (1.40mm) | - | - |
|
MAASU21GSB7105KTNA01CAP CER 1UF 50V X7R 0805 |
2,968 |
|
Datasheet |
MAAS | Tape & Reel (TR) | Active | 1 µF | ±10% | 50V | X7R | -55°C ~ 125°C | - | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.053" (1.35mm) | - | - |
|
|
C1206C102J5RECTUCAP CER 1206 1NF 50V X7R 5% |
2,900 |
|
Datasheet |
ESD SMD Comm X7R | Tape & Reel (TR) | Active | 1000 pF | ±5% | 50V | X7R | -55°C ~ 125°C | - | - | ESD Protection | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.035" (0.88mm) | - | - |
|
|
C0603C151K1GACTUCAP CER 150PF 100V C0G/NP0 0603 |
2,690 |
|
Datasheet |
SMD Comm C0G | Tape & Reel (TR) | Active | 150 pF | ±10% | 100V | C0G, NP0 | -55°C ~ 125°C | Low ESL | - | General Purpose | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | 0.034" (0.87mm) | - | - |
|
|
C0805C474M4VACTUCAP CER 0.47UF 16V Y5V 0805 |
2,500 |
|
Datasheet |
SMD Comm Y5V | Tape & Reel (TR) | Active | 0.47 µF | ±20% | 16V | Y5V (F) | -30°C ~ 85°C | - | - | General Purpose | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.039" (1.00mm) | - | - |
|
|
KGM05ACG1C220JHCAP CER 22PF 16V C0G/NP0 0402 |
2,091 |
|
Datasheet |
KGM - C0G | Tape & Reel (TR) | Active | 22 pF | ±5% | 16V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | 0.022" (0.55mm) | - | - |
|
|
C0603C473K1RECTUCAP CER 0.047UF 100V X7R 0603 |
2,048 |
|
Datasheet |
ESD SMD Comm X7R | Tape & Reel (TR) | Active | 0.047 µF | ±10% | 100V | X7R | -55°C ~ 125°C | - | - | ESD Protection | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | 0.034" (0.87mm) | - | - |
|
MSASL31LAB7106MTNA01CAP CER 10UF 10V X7R 1206 |
2,000 |
|
Datasheet |
MSAS | Tape & Reel (TR) | Active | 10 µF | ±20% | 10V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.071" (1.80mm) | - | - |
|
MCASE31LSB5225KTNA01CAP CER 2.2UF 16V X5R 1206 |
2,000 |
|
Datasheet |
MCAS | Tape & Reel (TR) | Active | 2.2 µF | ±10% | 16V | X5R | -55°C ~ 85°C | - | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.071" (1.80mm) | - | - |
