Ceramic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | Temperature Coefficient | Operating Temperature | Features | Ratings | Applications | Failure Rate | Mounting Type | Package / Case | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing | Lead Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
C0603C821K4RACTUCAP CER 820PF 16V X7R 0603 |
3,950 |
|
Datasheet |
SMD Comm X7R | Tape & Reel (TR) | Active | 820 pF | ±10% | 16V | X7R | -55°C ~ 125°C | - | - | Bypass, Decoupling | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | 0.034" (0.87mm) | - | - |
|
|
C0805C182F1HACTUCAP CER 1800PF 100V X8R 0805 |
3,935 |
|
Datasheet |
SMD Comm X8R HT150C | Tape & Reel (TR) | Active | 1800 pF | ±1% | 100V | X8R | -55°C ~ 150°C | Low ESL, High Temperature | - | General Purpose | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.039" (1.00mm) | - | - |
-0,95mm.jpg)
|
GCM3195C2A562JA16DCAP CER 5600PF 100V C0G/NP0 1206 |
3,910 |
|
Datasheet |
GCM | Tape & Reel (TR) | Active | 5600 pF | ±5% | 100V | C0G, NP0 | -55°C ~ 125°C | - | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.037" (0.95mm) | - | - |
|
|
KGM31BR72A152JTCAP CER 1500PF 100V X7R 1206 |
3,900 |
|
Datasheet |
KGM - X7R | Tape & Reel (TR) | Active | 1500 pF | ±5% | 100V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.037" (0.94mm) | - | - |
|
|
GCM3195C2A392JA16DCAP CER 3900PF 100V C0G/NP0 1206 |
3,900 |
|
Datasheet |
GCM | Tape & Reel (TR) | Active | 3900 pF | ±5% | 100V | C0G, NP0 | -55°C ~ 125°C | - | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.037" (0.95mm) | - | - |
|
|
C0603C209D5GACTUCAP CER 2PF 50V C0G/NP0 0603 |
3,898 |
|
Datasheet |
SMD Comm C0G | Tape & Reel (TR) | Active | 2 pF | ±0.5pF | 50V | C0G, NP0 | -55°C ~ 125°C | Low ESL | - | General Purpose | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | 0.034" (0.87mm) | - | - |
|

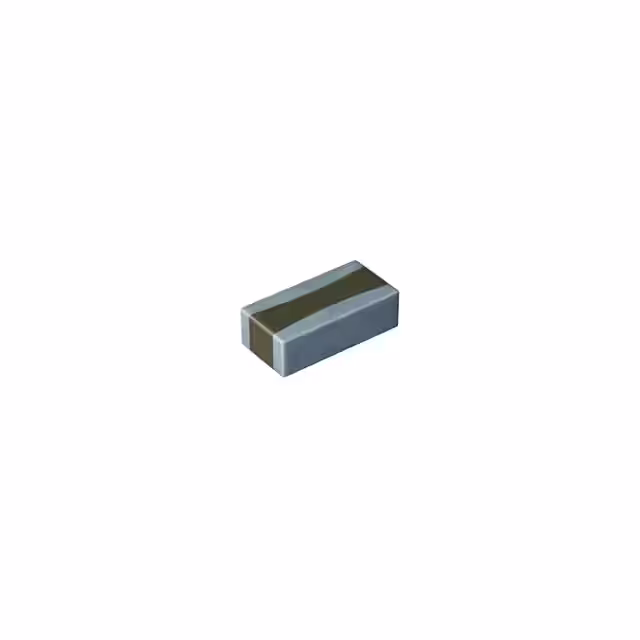

MCRLE165SB7474MTNA01CAP CER 0.47UF 16V X7R 0306 |
3,896 |
|
Datasheet |
MCRL | Tape & Reel (TR) | Active | 0.47 µF | ±20% | 16V | X7R | -55°C ~ 125°C | Low ESL (Reverse Geometry) | AEC-Q200 | Automotive, Bypass, Decoupling | - | Surface Mount, MLCC | 0306 (0816 Metric) | 0.031" L x 0.063" W (0.80mm x 1.60mm) | - | 0.022" (0.55mm) | - | - |
|
|
C0805C822K4RACTUCAP CER 8200PF 16V X7R 0805 |
3,890 |
|
Datasheet |
SMD Comm X7R | Tape & Reel (TR) | Active | 8200 pF | ±10% | 16V | X7R | -55°C ~ 125°C | - | - | Bypass, Decoupling | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.035" (0.88mm) | - | - |
|
|
C0603C240J4GACTUCAP CER 24PF 16V C0G/NP0 0603 |
3,876 |
|
Datasheet |
SMD Comm C0G | Tape & Reel (TR) | Active | 24 pF | ±5% | 16V | C0G, NP0 | -55°C ~ 125°C | Low ESL | - | General Purpose | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | 0.034" (0.87mm) | - | - |
|
|
C0603C271J3GACTUCAP CER 270PF 25V C0G/NP0 0603 |
3,876 |
|
Datasheet |
SMD Comm C0G | Tape & Reel (TR) | Active | 270 pF | ±5% | 25V | C0G, NP0 | -55°C ~ 125°C | Low ESL | - | General Purpose | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | 0.034" (0.87mm) | - | - |
-2,00x1,20x1,00mm.jpg)
|
C0805C150F5HACAUTOCAP CER 0805 15PF 50V ULTRA STAB |
3,865 |
|
Datasheet |
SMD Auto X8R HT150C | Tape & Reel (TR) | Active | 15 pF | ±1% | 50V | X8R | -55°C ~ 150°C | Low ESL, High Temperature | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.035" (0.88mm) | - | - |
|
|
KGM15AR71C473MTCAP CER 0.047UF 16V X7R 0603 |
3,850 |
|
Datasheet |
KGM - X7R | Tape & Reel (TR) | Active | 0.047 µF | ±20% | 16V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.063" L x 0.032" W (1.60mm x 0.81mm) | - | 0.035" (0.90mm) | - | - |
|
MSASL16KJB5475MTNB33CAP CER 4.7UF 10V X5R 0603 |
3,850 |
|
Datasheet |
MSA | Tape & Reel (TR) | Active | 4.7 µF | ±20% | 10V | X5R | -55°C ~ 85°C | - | - | General Purpose | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | 0.020" (0.50mm) | - | - |
|
|
C0805C331K3GACTUCAP CER 330PF 25V C0G/NP0 0805 |
3,825 |
|
Datasheet |
SMD Comm C0G | Tape & Reel (TR) | Active | 330 pF | ±10% | 25V | C0G, NP0 | -55°C ~ 125°C | Low ESL | - | General Purpose | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.035" (0.88mm) | - | - |
|
|
12065C222K4T2ACAP CER 2200PF 50V X7R 1206 |
3,800 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 2200 pF | ±10% | 50V | X7R | -55°C ~ 125°C | - | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | - | - | - |
|
|
C0805C562K3RACTUCAP CER 5600PF 25V X7R 0805 |
3,790 |
|
Datasheet |
SMD Comm X7R | Tape & Reel (TR) | Active | 5600 pF | ±10% | 25V | X7R | -55°C ~ 125°C | - | - | Bypass, Decoupling | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.035" (0.88mm) | - | - |
|
|
C0805C471F5HACTUCAP CER 470PF 50V X8R 0805 |
3,733 |
|
Datasheet |
SMD Comm X8R HT150C | Tape & Reel (TR) | Active | 470 pF | ±1% | 50V | X8R | -55°C ~ 150°C | Low ESL, High Temperature | - | General Purpose | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.035" (0.88mm) | - | - |
|
MSASL168AC6475KTNA01CAP CER 4.7UF 10V X6S 0603 |
3,700 |
|
Datasheet |
MSAS | Tape & Reel (TR) | Active | 4.7 µF | ±10% | 10V | X6S | -55°C ~ 105°C | - | - | SMPS Filtering | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | 0.037" (0.95mm) | - | - |
|
VJ0603Y223KXXAPCAP CER 0.022UF 25V X7R 0603 |
3,581 |
|
Datasheet |
VJ | Tape & Reel (TR) | Active | 0.022 µF | ±10% | 25V | X7R | -55°C ~ 150°C | - | - | General Purpose | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | 0.038" (0.97mm) | - | - |
|
|
KAM21BR71H332JTCAP CER 3300PF 50V X7R 0805 |
3,490 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 3300 pF | ±5% | 50V | X7R | -55°C ~ 125°C | - | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.037" (0.94mm) | - | - |
