Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
F872RF684J480Z.680UF 480V |
9,625 |
|
Datasheet |
Radial | 0.68 µF | ±5% | 480V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.614" L x 0.512" W (41.00mm x 13.00mm) | 0.945" (24.00mm) | PC Pins | 1.476" (37.50mm) | EMI, RFI Suppression | X1 | - |
|
|
DCP4P043006FD2JSC9DC-LINK MKP 4 3.0 F 1100 VDC 15X |
7,335 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
DCP4H148006DD2JSSDDC-LINK MKP 4 8.0 F 500 VDC 13X2 |
5,802 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
F462DY394J1L2LCAP FILM POLYPROP RAD |
5,003 |
|
Datasheet |
Radial | 0.39 µF | ±5% | 400V | 1250V (1.25kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.610" W (26.00mm x 15.50mm) | 0.965" (24.50mm) | PC Pins | 0.886" (22.50mm) | High Pulse, DV/DT | - | - |
|
|
DCP4H151006DD2KSC9DC-LINK MKP 4 10.0 F 500 VDC 13X |
5,609 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MKP4O141006J00JSC9MKP 4 1.0 F 1000 VDC 20X39.5X31. |
3,038 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MKP4O141007E00JSC9MKP 4 1.0 F 1000 VDC 17X29X41.5 |
4,362 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
BFC247955114CAP FILM 0.11UF 5% 400VDC RADIAL |
2,696 |
|
Datasheet |
Radial | 0.11 µF | ±5% | 200V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.728" L x 0.276" W (18.50mm x 7.00mm) | 0.630" (16.00mm) | PC Pins | 0.591" (15.00mm) | High Pulse, DV/DT | - | Long Life |
|
|
BFC247990022CAP FILM 0.43UF 5% 250VDC RADIAL |
6,395 |
|
Datasheet |
Radial | 0.43 µF | ±5% | 160V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.728" L x 0.354" W (18.50mm x 9.00mm) | 0.827" (21.00mm) | PC Pins | 0.591" (15.00mm) | High Pulse, DV/DT | - | Long Life |
|
|
BFC238313164CAP FILM 0.16UF 5% 400VDC RADIAL |
5,888 |
|
Datasheet |
Radial | 0.16 µF | ±5% | 200V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.689" L x 0.335" W (17.50mm x 8.50mm) | 0.669" (17.00mm) | PC Pins | 0.295" (7.50mm) | High Pulse, DV/DT | - | - |
|
|
B32564J1106J000CAP FILM 10UF 5% 100VDC 2DIP |
8,257 |
|
Datasheet |
2-DIP | 10 µF | ±5% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Through Hole | 1.142" L x 0.299" W (29.00mm x 7.60mm) | 0.433" (11.00mm) | PC Pins | 1.083" (27.50mm) | General Purpose | - | - |
|
|
B32564J1106K000CAP FILM 10UF 10% 100VDC 2DIP |
5,620 |
|
Datasheet |
2-DIP | 10 µF | ±10% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Through Hole | 1.142" L x 0.299" W (29.00mm x 7.60mm) | 0.433" (11.00mm) | PC Pins | 1.083" (27.50mm) | General Purpose | - | - |
|
|
MKP385362200JKI2B0CAP FILM 0.062UF 5% 2KVDC RADIAL |
9,329 |
|
Datasheet |
Radial | 0.062 µF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.220" L x 0.433" W (31.00mm x 11.00mm) | 0.827" (21.00mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
|

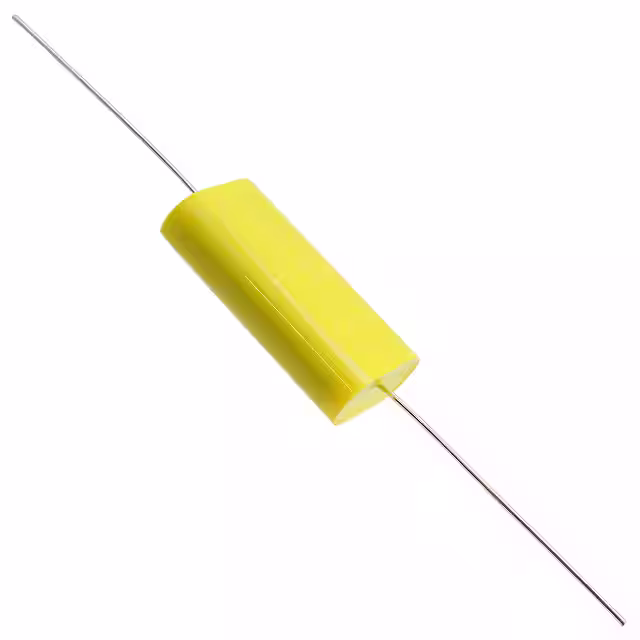

QAK2J474KTPCAP FILM 0.47UF 10% 630VDC AXIAL |
3,785 |
|
Datasheet |
Axial | 0.47 µF | ±10% | - | 630V | Polyester, Metallized | - | -40°C ~ 85°C | Through Hole | 0.748" W, 0.374" T x 1.299" L (19.00mm, 9.50mm x 33.00mm) | - | PC Pins | - | General Purpose | - | - |
|
|
MKP385362200JKM2T0CAP FILM 0.062UF 5% 2KVDC RADIAL |
4,938 |
|
Datasheet |
Radial | 0.062 µF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.220" L x 0.433" W (31.00mm x 11.00mm) | 0.827" (21.00mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
MKP385362200JKP2T0CAP FILM 0.062UF 5% 2KVDC RADIAL |
3,338 |
|
Datasheet |
Radial | 0.062 µF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.220" L x 0.433" W (31.00mm x 11.00mm) | 0.827" (21.00mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
R75TR33305030JCAP FILM AUTO POLYPROP RAD |
7,873 |
|
Datasheet |
Radial | 0.33 µF | ±5% | 650V | 1600V (1.6kV) | Polypropylene (PP), Metallized | 8.2 mOhms | -55°C ~ 105°C | Through Hole | 1.260" L x 0.709" W (32.00mm x 18.00mm) | 1.303" (33.10mm) | PC Pins | 1.083" (27.50mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
BFC247936304CAP FILM 0.3UF 5% 160VDC RADIAL |
3,354 |
|
Datasheet |
Radial | 0.3 µF | ±5% | 100V | 160V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.728" L x 0.276" W (18.50mm x 7.00mm) | 0.630" (16.00mm) | PC Pins | 0.591" (15.00mm) | High Pulse, DV/DT | - | Long Life |
|
BFC237347125CAP FILM 1.2UF 10% 250VDC RADIAL |
7,151 |
|
Datasheet |
Radial | 1.2 µF | ±10% | 160V | 250V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 0.689" L x 0.394" W (17.50mm x 10.00mm) | 0.728" (18.50mm) | PC Pins | 0.591" (15.00mm) | General Purpose | - | Long Life |
|
MKP1839418134HQGCAP FILM 0.18UF 5% 1.6KVDC AXIAL |
7,696 |
|
Datasheet |
Axial | 0.18 µF | ±5% | 450V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 0.591" Dia x 1.240" L (15.00mm x 31.50mm) | - | PC Pins | - | High Pulse, DV/DT | - | - |
