Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MKP1839447635CAP FILM 0.47UF 10% 630VDC AXIAL |
8,828 |
|
Datasheet |
Axial | 0.47 µF | ±10% | 250V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.591" Dia x 1.240" L (15.00mm x 31.50mm) | - | PC Pins | - | DC Link, DC Filtering; High Pulse, DV/DT | - | - |
|
MKP385527025JI02W0CAP FILM 2.7UF 5% 250VDC RADIAL |
3,988 |
|
Datasheet |
Radial | 2.7 µF | ±5% | 160V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.024" L x 0.472" W (26.00mm x 12.00mm) | 0.866" (22.00mm) | PC Pins | 0.886" (22.50mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
BFC237894752CAP FILM 7500PF 5% 2KVDC RADIAL |
7,457 |
|
Datasheet |
Radial | 7500 pF | ±5% | 600V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 1.024" L x 0.276" W (26.00mm x 7.00mm) | 0.650" (16.50mm) | PC Pins | 0.886" (22.50mm) | High Pulse, DV/DT | - | Long Life |
|
|
BFC237540153CAP FILM 0.015UF 5% 2KVDC RADIAL |
7,320 |
|
Datasheet |
Radial | 0.015 µF | ±5% | 600V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.181" L x 0.413" W (30.00mm x 10.50mm) | 0.925" (23.50mm) | PC Pins | 0.394" (10.00mm) | High Pulse, DV/DT | - | - |
|
|
BFC233410185CAP FILM 1.8UF 10% 400VDC RADIAL |
4,228 |
|
Datasheet |
Radial | 1.8 µF | ±10% | 275V | 400V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 1.220" L x 0.512" W (31.00mm x 13.00mm) | 0.906" (23.00mm) | PC Pins | 1.083" (27.50mm) | General Purpose | - | Long Life |
|
|
F462RF474J1L2ZCAP FILM POLYPROP RAD |
5,180 |
|
Datasheet |
Radial | 0.47 µF | ±5% | 400V | 1250V (1.25kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.614" L x 0.512" W (41.00mm x 13.00mm) | 0.945" (24.00mm) | PC Pins | 1.476" (37.50mm) | High Pulse, DV/DT | - | - |
|
|
MKS4D051806B00KSC9CAP FILM 18UF 10% 100VDC RADIAL |
3,218 |
|
Datasheet |
Radial | 18 µF | ±10% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 1.240" L x 0.433" W (31.50mm x 11.00mm) | 0.827" (21.00mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
|
F1778447M3IBT0CAP FILM 0.47UF 20% 630VDC RAD |
6,552 |
|
Datasheet |
Radial | 0.47 µF | ±20% | 310V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.024" L x 0.276" W (26.00mm x 7.00mm) | 0.650" (16.50mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|
F340X142748KKI2B0MKP F340X1 0,27F 10% 480VAC |
5,103 |
|
Datasheet |
Radial | 0.27 µF | ±10% | 480V, 530V | 800V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.260" L x 0.827" W (32.00mm x 21.00mm) | 1.248" (31.70mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression; 3 Phase | X1 | 85C/85% Humidity |
|
|
F340X142748KKM2T0MKP F340X1 0,27F 10% 480VAC |
3,862 |
|
Datasheet |
Radial | 0.27 µF | ±10% | 480V, 530V | 800V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.260" L x 0.827" W (32.00mm x 21.00mm) | 1.248" (31.70mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression; 3 Phase | X1 | 85C/85% Humidity |
|
|
F340X142748KKP2T0MKP F340X1 0,27F 10% 480VAC |
2,002 |
|
Datasheet |
Radial | 0.27 µF | ±10% | 480V, 530V | 800V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.260" L x 0.512" W (32.00mm x 13.00mm) | 0.933" (23.70mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression; 3 Phase | X1 | 85C/85% Humidity |
|
BFC238340203CAP FILM 0.02UF 5% 1.4KVDC RAD |
4,425 |
|
Datasheet |
Radial | 0.02 µF | ±5% | 500V | 1400V (1.4kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.276" W (26.00mm x 7.00mm) | 0.650" (16.50mm) | PC Pins | 0.886" (22.50mm) | High Pulse, DV/DT | - | - |
|
|
BFC238351223CAP FILM 0.022UF 5% 1.6KVDC RAD |
6,117 |
|
Datasheet |
Radial | 0.022 µF | ±5% | 550V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.335" W (26.00mm x 8.50mm) | 0.709" (18.00mm) | PC Pins | 0.886" (22.50mm) | High Pulse, DV/DT | - | - |
|
|
BFC238360113CAP FILM 0.011UF 5% 2KVDC RADIAL |
7,309 |
|
Datasheet |
Radial | 0.011 µF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.276" W (26.00mm x 7.00mm) | 0.650" (16.50mm) | PC Pins | 0.886" (22.50mm) | High Pulse, DV/DT | - | - |
|
930C6S56K-FCAP FILM 0.056UF 630VDC AXIAL |
8,198 |
|
Datasheet |
Axial | 0.056 µF | ±10% | 250V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.417" Dia x 0.748" L (10.60mm x 19.00mm) | - | PC Pins | - | General Purpose | - | - |
|
|
MKP383410160JKI2B0CAP FILM 0.1UF 5% 1.6KVDC RADIAL |
9,064 |
|
Datasheet |
Radial | 0.1 µF | ±5% | 550V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | - | - | PC Pins | 1.083" (27.50mm) | High Pulse, DV/DT | - | - |
|
|
R46KW4680JHM2MCAP FILM SAFETY/EMI SUPP RAD |
2,726 |
|
Datasheet |
Radial | 6.8 µF | ±20% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.634" L x 0.787" W (41.50mm x 20.00mm) | 1.579" (40.10mm) | PC Pins | 1.476" (37.50mm) | EMI, RFI Suppression | X2 | - |
|
|
DCP4G051506DD2JSC9DC-LINK MKP 4 15.0 F 400 VDC 13X |
8,439 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

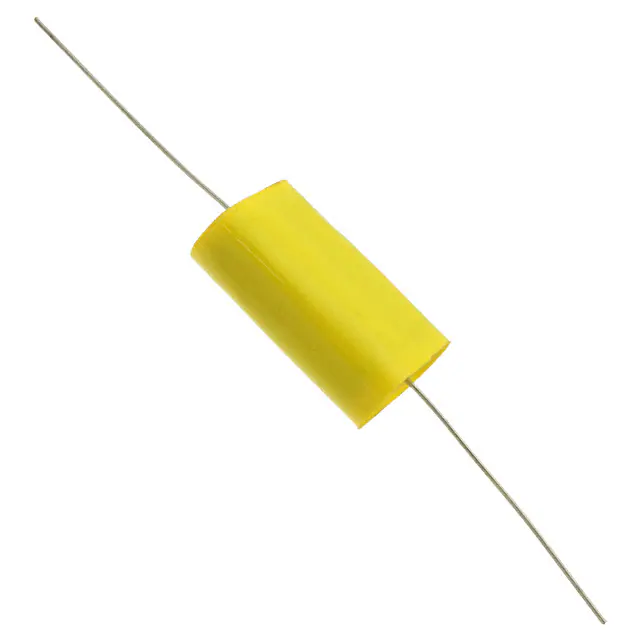

QAP2G155KRPCAP FILM 1.5UF 10% 400VDC AXIAL |
8,018 |
|
Datasheet |
Axial | 1.5 µF | ±10% | - | 400V | Polypropylene (PP), Metallized | - | -40°C ~ 85°C | Through Hole | 0.909" W, 0.528" T x 1.378" L (23.10mm, 13.40mm x 35.00mm) | - | PC Pins | - | High Frequency, Switching | - | - |
|

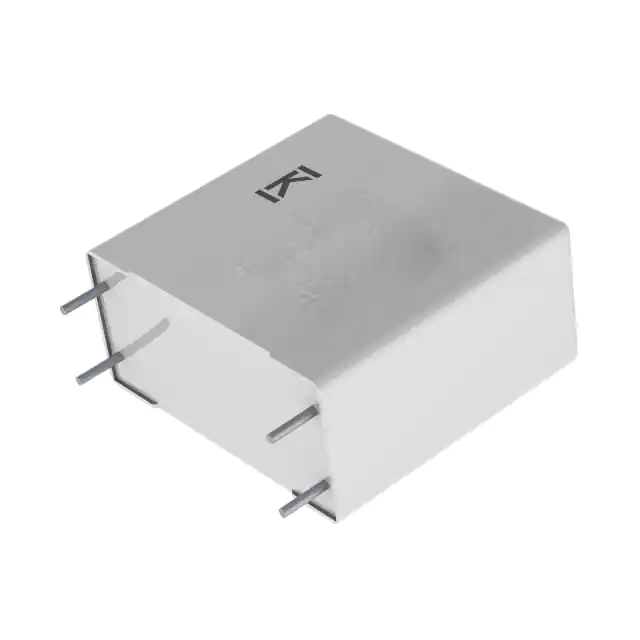

C4AQQLW4380A34JCAP FILM 3.8UF 5% 1.1KVDC RADIAL |
4,775 |
|
Datasheet |
Radial - 4 Leads | 3.8 µF | ±5% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | 19.3 mOhms | -55°C ~ 105°C | Through Hole | 1.634" L x 0.945" W (41.50mm x 24.00mm) | 0.598" (15.20mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
