Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MKP385520025JKP2T0CAP FILM 2UF 5% 250VDC RADIAL |
4,828 |
|
Datasheet |
Radial | 2 µF | ±5% | 160V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.220" L x 0.433" W (31.00mm x 11.00mm) | 0.827" (21.00mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
F339X144748KKM2T0CAP FILM 0.47UF 10% 1KVDC RADIAL |
9,204 |
|
Datasheet |
Radial | 0.47 µF | ±10% | 480V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.220" L x 0.512" W (31.00mm x 13.00mm) | 0.906" (23.00mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X1 | - |
|
|
F339X144748KKP2T0CAP FILM 0.47UF 10% 1KVDC RADIAL |
5,536 |
|
Datasheet |
Radial | 0.47 µF | ±10% | 480V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.220" L x 0.512" W (31.00mm x 13.00mm) | 0.906" (23.00mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X1 | - |
|
|
MKP385520025JKI2B0CAP FILM 2UF 5% 250VDC RADIAL |
6,068 |
|
Datasheet |
Radial | 2 µF | ±5% | 160V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.220" L x 0.433" W (31.00mm x 11.00mm) | 0.827" (21.00mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
F339X144748KKI2B0CAP FILM 0.47UF 10% 1KVDC RADIAL |
3,732 |
|
Datasheet |
Radial | 0.47 µF | ±10% | 480V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.220" L x 0.512" W (31.00mm x 13.00mm) | 0.906" (23.00mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X1 | - |
|
BFC246804275CAP FILM 2.7UF 10% 100VDC RADIAL |
6,458 |
|
Datasheet |
Radial | 2.7 µF | ±10% | 63V | 100V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 0.689" L x 0.315" W (17.50mm x 8.00mm) | 0.669" (17.00mm) | PC Pins | 0.591" (15.00mm) | General Purpose | - | - |
|
|
BFC246851275CAP FILM 2.7UF 10% 100VDC RADIAL |
3,096 |
|
Datasheet |
Radial | 2.7 µF | ±10% | 63V | 100V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 0.689" L x 0.315" W (17.50mm x 8.00mm) | 0.669" (17.00mm) | PC Pins | 0.591" (15.00mm) | General Purpose | - | - |
|
|
BFC247932684CAP FILM 0.68UF 5% 160VDC RADIAL |
2,104 |
|
Datasheet |
Radial | 0.68 µF | ±5% | 100V | 160V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.728" L x 0.354" W (18.50mm x 9.00mm) | 0.709" (18.00mm) | PC Pins | 0.591" (15.00mm) | High Pulse, DV/DT | - | Long Life |
|
|
F873FS334J760Z.330UF 760V |
7,235 |
|
- |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
F339MX253331MI02W0CAP FILM 3.3UF 20% 630VDC RADIAL |
3,862 |
|
Datasheet |
Radial | 3.3 µF | ±20% | 310V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | - | - | PC Pins | - | EMI, RFI Suppression | X2 | - |
|

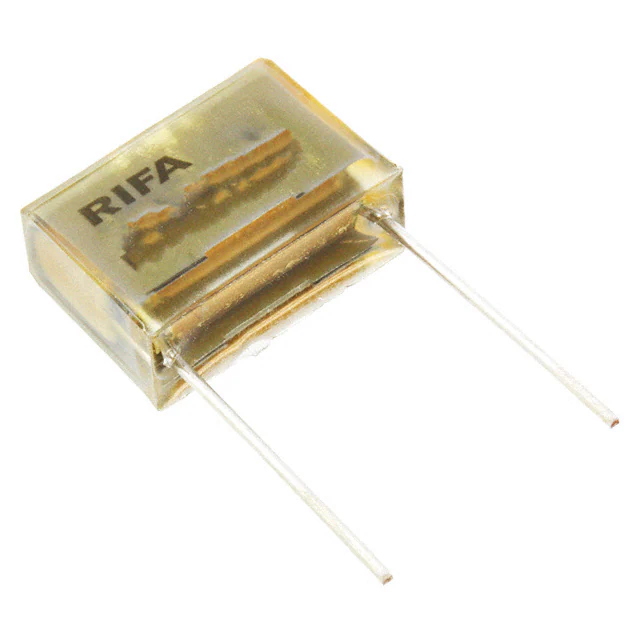

PME271YB5220MR19T0CAP FILM 0.022UF 20% 1KVDC RAD |
3,606 |
|
Datasheet |
Radial | 0.022 µF | ±20% | 300V | 1000V (1kV) | Paper, Metallized | - | -40°C ~ 115°C | Through Hole | 0.728" L x 0.287" W (18.50mm x 7.30mm) | 0.512" (13.00mm) | PC Pins | 0.598" (15.20mm) | EMI, RFI Suppression | Y2 | - |
|
|
F461DY685J160LCAP FILM POLYPROP RAD |
4,445 |
|
Datasheet |
Radial | 6.8 µF | ±5% | 90V | 160V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.610" W (26.00mm x 15.50mm) | 0.965" (24.50mm) | PC Pins | 0.886" (22.50mm) | High Pulse, DV/DT | - | - |
|
|
C276CC34315AA0JCAP FILM 3.15UF 5% 470VAC RADIAL |
9,408 |
|
Datasheet |
Radial, Can | 3.15 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 0.984" Dia (25.00mm) | 2.362" (60.00mm) | Quick Connect - 0.250" (6.3mm) | 0.528" (13.40mm) | Motor Run | - | - |
|
|
MKP383482063JKP2T0CAP FILM 0.82UF 5% 630VDC RADIAL |
7,704 |
|
Datasheet |
Radial | 0.82 µF | ±5% | 220V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.240" L x 0.709" W (31.50mm x 18.00mm) | 1.102" (28.00mm) | PC Pins | 1.083" (27.50mm) | High Pulse, DV/DT | - | - |
|
|
MKS4D051806B00KH00CAP FILM 18UF 10% 100VDC RADIAL |
8,298 |
|
Datasheet |
Radial | 18 µF | ±10% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 1.240" L x 0.433" W (31.50mm x 11.00mm) | 0.827" (21.00mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
|
MKS4D051806B00KJ00CAP FILM 18UF 10% 100VDC RADIAL |
8,379 |
|
Datasheet |
Radial | 18 µF | ±10% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 1.240" L x 0.433" W (31.50mm x 11.00mm) | 0.827" (21.00mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
|
EFDKA80J126E102LHCAP EFDKA 800VDC 12UF J 2LEADS |
6,999 |
|
Datasheet |
Radial | 12 µF | ±5% | - | 800V | Polypropylene (PP), Metallized | 12 mOhms | -55°C ~ 105°C | Through Hole | 1.654" L x 0.748" W (42.00mm x 19.00mm) | 1.299" (33.00mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
|
C4GAFUC4400AA1JCAP FILM METAL AXL POLYPROP |
7,862 |
|
Datasheet |
Axial | 4 µF | ±5% | 250V | 400V | Polypropylene (PP), Metallized | 4.6 mOhms | -40°C ~ 85°C | Through Hole | 0.768" Dia x 1.732" L (19.50mm x 44.00mm) | - | PC Pins | - | High Frequency, Switching | - | - |
|
BFC238372622CAP FILM 6200PF 5% 2.5KVDC RAD |
8,310 |
|
Datasheet |
Radial | 6200 pF | ±5% | 900V | 2500V (2.5kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.276" W (26.00mm x 7.00mm) | 0.650" (16.50mm) | PC Pins | 0.886" (22.50mm) | High Pulse, DV/DT | - | - |
|
|
BFC238303364CAP FILM 0.36UF 5% 250VDC RADIAL |
7,967 |
|
Datasheet |
Radial | 0.36 µF | ±5% | 125V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.689" L x 0.394" W (17.50mm x 10.00mm) | 0.728" (18.50mm) | PC Pins | 0.295" (7.50mm) | High Pulse, DV/DT | - | - |
