Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BFC238332473CAP FILM 0.047UF 5% 1KVDC RADIAL |
5,819 |
|
Datasheet |
Radial | 0.047 µF | ±5% | 350V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.689" L x 0.335" W (17.50mm x 8.50mm) | 0.591" (15.00mm) | PC Pins | 0.591" (15.00mm) | High Pulse, DV/DT | - | - |
|
MKP1841410134MCAP FILM 0.1UF 5% 1.6KVDC RADIAL |
4,770 |
|
Datasheet |
Radial | 0.1 µF | ±5% | 650V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.240" L x 0.531" W (31.50mm x 13.50mm) | 0.925" (23.50mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Pulse, DV/DT; Snubber | - | - |
|
|
MKP1841410135MCAP FILM 0.1UF 10% 1.6KVDC RAD |
4,394 |
|
Datasheet |
Radial | 0.1 µF | ±10% | 650V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.240" L x 0.531" W (31.50mm x 13.50mm) | 0.925" (23.50mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Pulse, DV/DT; Snubber | - | - |
|
F340X251530MKM2T0CAP FILM 1.5UF 20% 630V RADIAL |
5,661 |
|
Datasheet |
Radial | 1.5 µF | ±20% | 305V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.260" L x 0.591" W (32.00mm x 15.00mm) | 1.012" (25.70mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | 85C/85% Humidity |
|
|
F340X251530MKP2T0MKP F340X2 1,5F 20% 305VAC |
5,124 |
|
Datasheet |
Radial | 1.5 µF | ±20% | 305V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.260" L x 0.591" W (32.00mm x 15.00mm) | 1.012" (25.70mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | 85C/85% Humidity |
|
|
F340X251530MKI2T0MKP F340X2 1,5F 20% 305VAC |
6,637 |
|
Datasheet |
Radial | 1.5 µF | ±20% | 305V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.260" L x 0.591" W (32.00mm x 15.00mm) | 1.012" (25.70mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | 85C/85% Humidity |
|
|
F462RF564M1L2ZCAP |
7,815 |
|
Datasheet |
Radial | 0.56 µF | ±20% | 400V | 1250V (1.25kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.614" L x 0.512" W (41.00mm x 13.00mm) | 0.945" (24.00mm) | PC Pins | 1.476" (37.50mm) | High Pulse, DV/DT | - | - |
|
BLH805K551A052DC LINK, THB, 85/85, AEC-Q200 |
9,164 |
|
Datasheet |
Radial | 8 µF | ±10% | - | 550V | Polypropylene (PP), Metallized | 12.5 mOhms | -40°C ~ 105°C | Through Hole | 1.260" L x 0.551" W (32.00mm x 14.00mm) | 1.134" (28.80mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | 85C/85% Humidity, THB, Low ESR, Low ESL, Long Life |
|
|
BLH805K601A052DC LINK, THB, 85/85, AEC-Q200 |
4,375 |
|
Datasheet |
Radial | 8 µF | ±10% | - | 600V | Polypropylene (PP), Metallized | 12 mOhms | -40°C ~ 105°C | Through Hole | 1.260" L x 0.551" W (32.00mm x 14.00mm) | 1.134" (28.80mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | 85C/85% Humidity, THB, Low ESR, Low ESL, Long Life |
|

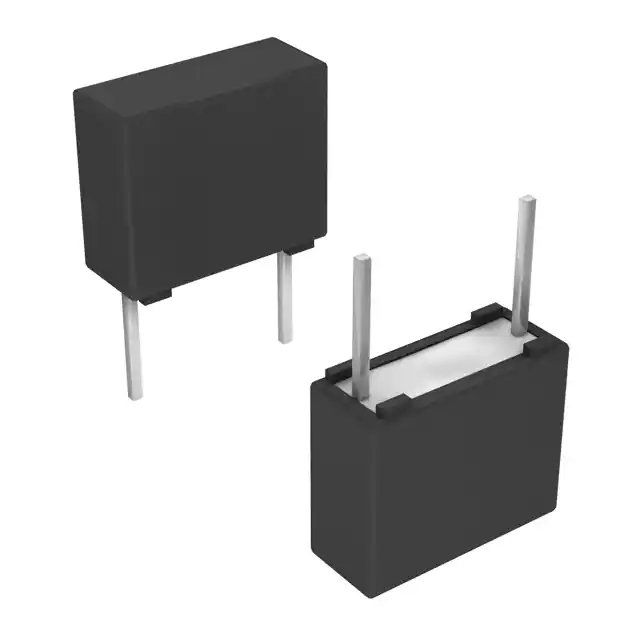

BFC247066222CAP FILM 2200PF 5% 400VDC RADIAL |
8,383 |
|
Datasheet |
Radial | 2200 pF | ±5% | 200V | 400V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.283" L x 0.098" W (7.20mm x 2.50mm) | 0.256" (6.50mm) | PC Pins | 0.197" (5.00mm) | General Purpose | - | Long Life |
|
LDEED3330JA5N00CAP FILM 0.33UF 5% 100VDC 2220 |
2,790 |
|
Datasheet |
2220 (5750 Metric) | 0.33 µF | ±5% | 63V | 100V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.236" L x 0.197" W (6.00mm x 5.00mm) | 0.130" (3.30mm) | Solder Pads | - | Automotive | AEC-Q200 | High Temperature |
|
|
BFC237544153CAP FILM 0.015UF 5% 2KVDC RADIAL |
2,803 |
|
Datasheet |
Radial | 0.015 µF | ±5% | 600V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.181" L x 0.413" W (30.00mm x 10.50mm) | 0.925" (23.50mm) | PC Pins | 0.394" (10.00mm) | High Pulse, DV/DT | - | - |
|
|
LDEPH3270MA5N00CAP FILM SMD PEN |
3,645 |
|
Datasheet |
6054 (153137 Metric) | 0.27 µF | ±20% | 200V | 630V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.610" L x 0.539" W (15.50mm x 13.70mm) | 0.224" (5.70mm) | Solder Pads | - | Automotive | AEC-Q200 | High Temperature |
|
|
BFC237342125CAP FILM 1.2UF 5% 250VDC RADIAL |
7,815 |
|
Datasheet |
Radial | 1.2 µF | ±5% | 160V | 250V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.335" W (26.00mm x 8.50mm) | 0.709" (18.00mm) | PC Pins | 0.886" (22.50mm) | General Purpose | - | Long Life |
|
|
BFC237344155CAP FILM 1.5UF 5% 250VDC RADIAL |
2,140 |
|
Datasheet |
Radial | 1.5 µF | ±5% | 160V | 250V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.335" W (26.00mm x 8.50mm) | 0.709" (18.00mm) | PC Pins | 0.886" (22.50mm) | General Purpose | - | Long Life |
|
|
BFC237874183CAP FILM 0.018UF 5% 1KVDC RADIAL |
9,255 |
|
Datasheet |
Radial | 0.018 µF | ±5% | 300V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 1.024" L x 0.236" W (26.00mm x 6.00mm) | 0.610" (15.50mm) | PC Pins | 0.886" (22.50mm) | High Pulse, DV/DT | - | Long Life |
|
|
BFC237882113CAP FILM 0.011UF 5% 1.6KVDC RAD |
5,856 |
|
Datasheet |
Radial | 0.011 µF | ±5% | 500V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 1.024" L x 0.236" W (26.00mm x 6.00mm) | 0.610" (15.50mm) | PC Pins | 0.886" (22.50mm) | High Pulse, DV/DT | - | Long Life |
|
|
BFC237884113CAP FILM 0.011UF 5% 1.6KVDC RAD |
7,515 |
|
Datasheet |
Radial | 0.011 µF | ±5% | 500V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 1.024" L x 0.236" W (26.00mm x 6.00mm) | 0.610" (15.50mm) | PC Pins | 0.886" (22.50mm) | High Pulse, DV/DT | - | Long Life |
|
|
F871RC225M330ZCAP FILM POLYPROP RAD X1 |
2,009 |
|
Datasheet |
Radial | 2.2 µF | ±20% | 330V | 800V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.614" L x 0.630" W (41.00mm x 16.00mm) | 1.122" (28.50mm) | PC Pins | 1.476" (37.50mm) | EMI, RFI Suppression | X1 | - |
|
|
BFC237390173CAP FILM 1.2UF 5% 250VDC RADIAL |
9,498 |
|
Datasheet |
Radial | - | - | - | - | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 1.240" L x 0.354" W (31.50mm x 9.00mm) | 0.748" (19.00mm) | PC Pins | 1.083" (27.50mm) | General Purpose | - | Long Life |
