Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MKP1840522166CAP FILM 2.2UF 20% RADIAL |
6,511 |
|
Datasheet |
Radial | 2.2 µF | ±20% | - | - | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.240" L x 0.354" W (31.50mm x 9.00mm) | 0.748" (19.00mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Pulse, DV/DT | - | - |
|
MKP1847H52031KK2CAP FILM 2UF 10% 630VDC RADIAL |
3,371 |
|
Datasheet |
Radial | 2 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | 9.5 mOhms | -40°C ~ 105°C | Through Hole | 1.260" L x 0.709" W (32.00mm x 18.00mm) | 1.130" (28.70mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | - | 85C/85% Humidity |
|
|
MKX14W41506J00MSC9MKP-X1 R 1.5 F 440 VAC 20X39.5X3 |
3,323 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MKP383347250JKI2B0CAP FILM 0.047UF 5% 2.5KVDC RAD |
4,504 |
|
Datasheet |
Radial | 0.047 µF | ±5% | 900V | 2500V (2.5kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | - | - | PC Pins | 1.083" (27.50mm) | High Pulse, DV/DT | - | - |
|
|
MKP383347250JKM2T0CAP FILM 0.047UF 5% 2.5KVDC RAD |
2,553 |
|
Datasheet |
Radial | 0.047 µF | ±5% | 900V | 2500V (2.5kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.240" L x 0.709" W (31.50mm x 18.00mm) | 1.102" (28.00mm) | PC Pins | 1.083" (27.50mm) | High Pulse, DV/DT | - | - |
|
|
MKP383482063JKI2B0CAP FILM 0.82UF 5% 630VDC RADIAL |
5,251 |
|
Datasheet |
Radial | 0.82 µF | ±5% | 220V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.240" L x 0.709" W (31.50mm x 18.00mm) | 1.102" (28.00mm) | PC Pins | 1.083" (27.50mm) | High Pulse, DV/DT | - | - |
|
|
MKP383482063JKM2T0CAP FILM 0.82UF 5% 630VDC RADIAL |
8,597 |
|
Datasheet |
Radial | 0.82 µF | ±5% | 220V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.240" L x 0.709" W (31.50mm x 18.00mm) | 1.102" (28.00mm) | PC Pins | 1.083" (27.50mm) | High Pulse, DV/DT | - | - |
|
|
MKP1D044707E00MSSDMKP 10 4.7 F 100 VDC 17X29X41.5 |
9,234 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
715P473912MD3CAP FILM 0.047UF 10% 1.2KVDC RAD |
2,379 |
|
Datasheet |
Radial | 0.047 µF | ±10% | 475V | 1200V (1.2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 0.740" Dia x 1.650" L (18.80mm x 41.90mm) | 1.051" (26.70mm) | PC Pins | 1.094" (27.80mm) | Audio; High Frequency, Switching; High Pulse, DV/DT; Snubber | - | - |
|
|
R75QW4220JE00KCAP FILM AUTO POLYPROP RAD |
6,191 |
|
Datasheet |
Radial | 2.2 µF | ±10% | 300V | 1000V (1kV) | Polypropylene (PP), Metallized | 7.2 mOhms | -55°C ~ 105°C | Through Hole | 1.634" L x 0.787" W (41.50mm x 20.00mm) | 1.579" (40.10mm) | PC Pins | 1.476" (37.50mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
R75QW42205000KCAP FILM AUTO POLYPROP RAD |
5,822 |
|
Datasheet |
Radial | 2.2 µF | ±10% | 300V | 1000V (1kV) | Polypropylene (PP), Metallized | 7.2 mOhms | -55°C ~ 105°C | Through Hole | 1.634" L x 0.787" W (41.50mm x 20.00mm) | 1.579" (40.10mm) | PC Pins | 1.476" (37.50mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
R75QW4220AA00KCAP FILM AUTO POLYPROP RAD |
8,535 |
|
Datasheet |
Radial | 2.2 µF | ±10% | 300V | 1000V (1kV) | Polypropylene (PP), Metallized | 7.2 mOhms | -55°C ~ 105°C | Through Hole | 1.634" L x 0.787" W (41.50mm x 20.00mm) | 1.579" (40.10mm) | PC Pins | 1.476" (37.50mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |

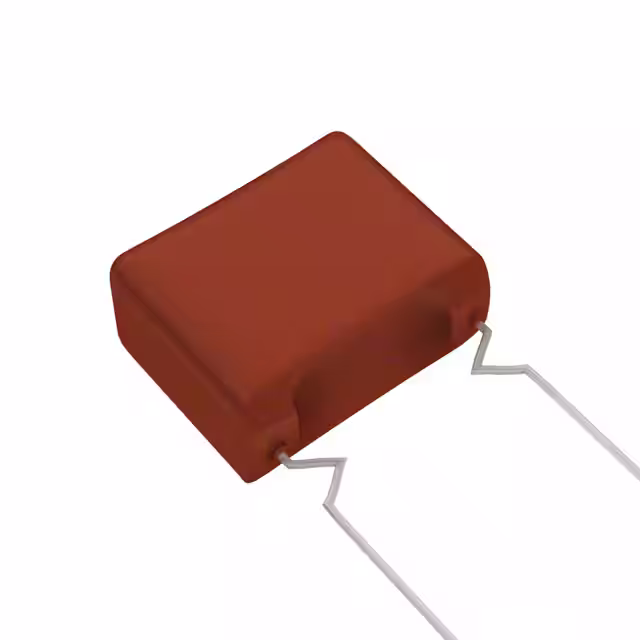

 Series Style D 23x14.jpg)
|
ECW-F2475JAQCAP FILM 4.7UF 5% 250VDC RADIAL |
7,212 |
|
Datasheet |
Radial | 4.7 µF | ±5% | - | 250V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.937" L x 0.583" W (23.80mm x 14.80mm) | 1.146" (29.10mm) | PC Pins | 0.787" (20.00mm) | High Frequency, Switching | - | - |
|
|
B32024H3684M000FILM CAP Y2 - COMPACT, AEC-Q200, |
8,456 |
|
Datasheet |
Radial | 0.68 µF | ±20% | 300V | 1500V (1.5kV) | Polypropylene (PP), Metallized | - | -40°C ~ 125°C | Through Hole | 1.240" L x 0.709" W (31.50mm x 18.00mm) | 1.299" (33.00mm) | PC Pins | 1.083" (27.50mm) | Automotive, EMI, RFI Suppression | AEC-Q200, Y2 | - |
|
|
BFC238374103CAP FILM 1000PF 5% 2.5KVDC RAD |
2,644 |
|
Datasheet |
Radial | 1000 pF | ±5% | 900V | 2500V (2.5kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.335" W (26.00mm x 8.50mm) | 0.709" (18.00mm) | PC Pins | 0.886" (22.50mm) | High Pulse, DV/DT | - | - |
|
|
MKP385E51863JKP2T0CAP FILM 1.8UF 5% 630VDC RAD |
9,852 |
|
Datasheet |
Radial | 1.8 µF | ±5% | 220V | 630V | Polypropylene (PP), Metallized | 7 mOhms | -40°C ~ 105°C | Through Hole | - | - | PC Pins | 1.083" (27.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT; Snubber | AEC-Q200 | High Temperature |
|
|
MKP385E51863JKM2T0CAP FILM 1.8UF 5% 630VDC RAD |
7,328 |
|
Datasheet |
Radial | 1.8 µF | ±5% | 220V | 630V | Polypropylene (PP), Metallized | 7 mOhms | -40°C ~ 105°C | Through Hole | - | - | PC Pins | 1.083" (27.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT; Snubber | AEC-Q200 | High Temperature |
|
|
MKP385E4331AKKP2T0CAP FILM 0.33UF 10% 1.6KVDC RAD |
5,083 |
|
Datasheet |
Radial | 0.33 µF | ±10% | 550V | 1600V (1.6kV) | Polypropylene (PP), Metallized | 24 mOhms | -40°C ~ 105°C | Through Hole | 1.220" L x 0.827" W (31.00mm x 21.00mm) | 1.224" (31.10mm) | PC Pins | 1.083" (27.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT; Snubber | AEC-Q200 | High Temperature |
|
|
MKP385E51863JKI2B0CAP FILM 1.8UF 5% 630VDC RAD |
9,432 |
|
Datasheet |
Radial | 1.8 µF | ±5% | 220V | 630V | Polypropylene (PP), Metallized | 7 mOhms | -40°C ~ 105°C | Through Hole | - | - | PC Pins | 1.083" (27.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT; Snubber | AEC-Q200 | High Temperature |
|
|
MKP385E4331AKKI2B0CAP FILM 0.33UF 10% 1.6KVDC RAD |
5,911 |
|
Datasheet |
Radial | 0.33 µF | ±10% | 550V | 1600V (1.6kV) | Polypropylene (PP), Metallized | 24 mOhms | -40°C ~ 105°C | Through Hole | 1.220" L x 0.827" W (31.00mm x 21.00mm) | 1.224" (31.10mm) | PC Pins | 1.083" (27.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT; Snubber | AEC-Q200 | High Temperature |
