Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MKP1845368206CAP FILM 0.068UF 20% 2KVDC AXIAL |
6,336 |
|
Datasheet |
Axial | 0.068 µF | ±20% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.709" Dia x 1.732" L (18.00mm x 44.00mm) | - | PC Pins | - | DC Link, DC Filtering; High Pulse, DV/DT; Snubber | - | - |
|
|
F871RV155J330Z1.50UF 330V |
9,270 |
|
- |
Radial | 1.5 µF | ±5% | 330V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.614" L x 0.945" W (41.00mm x 24.00mm) | 0.591" (15.00mm) | PC Pins | 1.476" (37.50mm) | EMI, RFI Suppression | X1 | - |
|
|
BFC247935624CAP FILM 0.62UF 5% 160VDC RADIAL |
9,342 |
|
Datasheet |
Radial | 0.62 µF | ±5% | 100V | 160V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.728" L x 0.335" W (18.50mm x 8.50mm) | 0.630" (16.00mm) | PC Pins | 0.591" (15.00mm) | High Pulse, DV/DT | - | Long Life |
|
|
DCP4N051006JD2MSSDDC-LINK MKP 4 10.0 F 900 VDC 20X |
8,899 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
DCP4N051006JD2KSSDDC-LINK MKP 4 10.0 F 900 VDC 20X |
6,473 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MKP18424154000CAP FILM 0.15UF 10% 400VAC AXIAL |
3,668 |
|
Datasheet |
Axial, Can | 0.15 µF | ±10% | 400V | - | Polypropylene (PP), Metallized | - | -40°C ~ 85°C | Through Hole | 0.551" Dia x 1.240" L (14.00mm x 31.50mm) | - | PC Pins | - | General Purpose | - | - |
|
|
MKS4C052206D00KH00CAP FILM 22UF 10% 63VDC RADIAL |
4,920 |
|
Datasheet |
Radial | 22 µF | ±10% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 1.240" L x 0.512" W (31.50mm x 13.00mm) | 0.945" (24.00mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
|
MKS4C052206D00KJ00CAP FILM 22UF 10% 63VDC RADIAL |
3,598 |
|
Datasheet |
Radial | 22 µF | ±10% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 1.240" L x 0.512" W (31.50mm x 13.00mm) | 0.945" (24.00mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
|
FKP4R034707G00KSC9FKP 4 0.47 F 1250 VDC 20X39.5X41 |
9,231 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
BFC238304624CAP FILM 0.62UF 5% 250VDC RADIAL |
9,360 |
|
Datasheet |
Radial | 0.62 µF | ±5% | 125V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.335" W (26.00mm x 8.50mm) | 0.709" (18.00mm) | PC Pins | 0.886" (22.50mm) | High Pulse, DV/DT | - | - |
|
|
KP1836418635CAP FILM 0.18UF 10% 630VDC RAD |
9,108 |
|
Datasheet |
Radial | 0.18 µF | ±10% | 300V | 630V | Polypropylene (PP) | - | -55°C ~ 100°C | Through Hole | 1.634" L x 0.571" W (41.50mm x 14.50mm) | 0.965" (24.50mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering; High Pulse, DV/DT; Snubber | - | - |
|
BFC233912125CAP FILM 1.2UF 10% 630VDC RADIAL |
7,461 |
|
Datasheet |
Radial | 1.2 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.220" L x 0.433" W (31.00mm x 11.00mm) | 0.827" (21.00mm) | PC Pins | 1.083" (27.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | - |
|
|
BFC233914125CAP FILM 1.2UF 10% 630VDC RADIAL |
7,982 |
|
Datasheet |
Radial | 1.2 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.220" L x 0.433" W (31.00mm x 11.00mm) | 0.827" (21.00mm) | PC Pins | 1.083" (27.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | - |
|

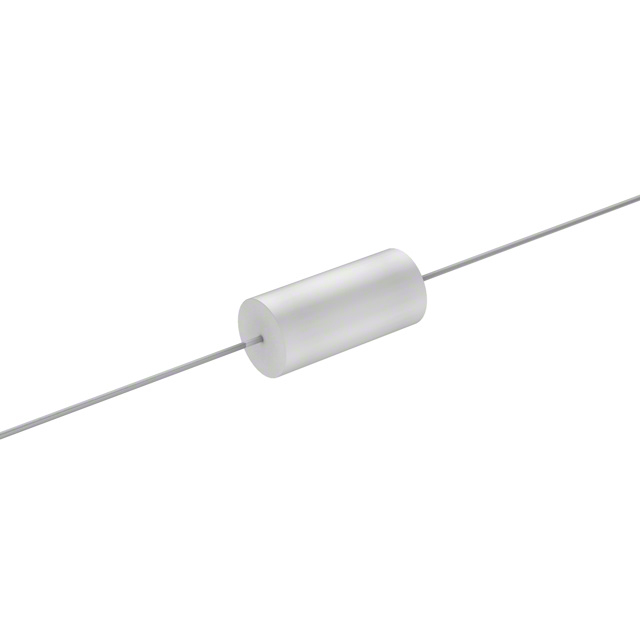

MMWA05P47K-FCAP FILM 0.47UF 10% 50VDC AXIAL |
7,526 |
|
Datasheet |
Axial | 0.47 µF | ±10% | 35V | 50V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.319" Dia x 0.685" L (8.10mm x 17.40mm) | - | PC Pins | - | General Purpose | - | - |
|
|
F462RC474K1K6ZCAP FILM POLYPROP RAD |
3,684 |
|
Datasheet |
Radial | 0.47 µF | ±10% | 500V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.614" L x 0.630" W (41.00mm x 16.00mm) | 1.122" (28.50mm) | PC Pins | 1.476" (37.50mm) | High Pulse, DV/DT | - | - |
|
|
F462RB394R1L2ZCAP |
9,845 |
|
- |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
DCP4G052006FD2MSC9DC-LINK MKP 4 20.0 F 400 VDC 15X |
4,173 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
BFC236862334CAP FILM 0.33UF 5% 630VDC RADIAL |
5,328 |
|
Datasheet |
Radial | 0.33 µF | ±5% | 250V | 630V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 1.181" L x 0.453" W (30.00mm x 11.50mm) | 0.965" (24.50mm) | PC Pins | 0.394" (10.00mm) | General Purpose | - | Long Life |
|
|
EFX2S30K106E142LHCAP EFX2S 305VAC 10UF 2LEADS |
4,123 |
|
Datasheet |
Radial | 10 µF | ±10% | 305V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.654" L x 1.102" W (42.00mm x 28.00mm) | 1.732" (44.00mm) | PC Pins | 1.476" (37.50mm) | EMI, RFI Suppression | X2 | - |
|
|
F462FY125J1K0ZCAP FILM POLYPROP RAD |
2,631 |
|
Datasheet |
Radial | 1.2 µF | ±5% | 300V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.240" L x 0.866" W (31.50mm x 22.00mm) | 1.457" (37.00mm) | PC Pins | 1.083" (27.50mm) | High Pulse, DV/DT | - | - |
