Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LDEDF4330MA0N00CAP FILM SMD PEN |
5,537 |
|
Datasheet |
4030 (10276 Metric) | 3.3 µF | ±20% | 40V | 63V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.413" L x 0.311" W (10.50mm x 7.90mm) | 0.185" (4.70mm) | Solder Pads | - | Automotive | AEC-Q200 | High Temperature |
|
685MPW160KCAP FILM 6.8UF 10% 160VDC AXIAL |
9,392 |
|
Datasheet |
Axial | 6.8 µF | ±10% | 90V | 160V | Polypropylene (PP), Metallized | 26 mOhms | -55°C ~ 105°C | Through Hole | 0.728" Dia x 1.831" L (18.50mm x 46.50mm) | - | PC Pins | - | DC Link, DC Filtering | - | Low ESR |
|
|
F339MX251031MKI2B0CAP FILM 1UF 20% 630VDC RADIAL |
4,350 |
|
Datasheet |
Radial | 1 µF | ±20% | 310V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.240" L x 0.354" W (31.50mm x 9.00mm) | 0.748" (19.00mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
|
|
F339MX251031MKM2T0CAP FILM 1UF 20% 630VDC RADIAL |
7,571 |
|
Datasheet |
Radial | 1 µF | ±20% | 310V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.240" L x 0.354" W (31.50mm x 9.00mm) | 0.748" (19.00mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
|

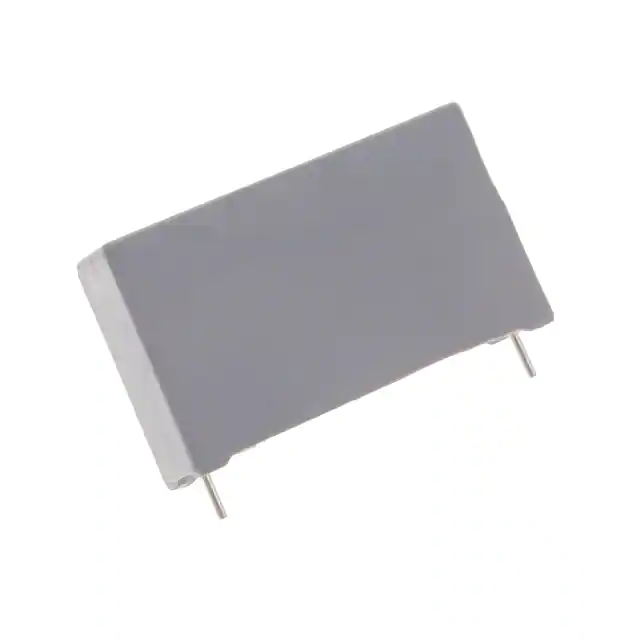

F339MX251031MKP2T0CAP FILM 1UF 20% 630VDC RADIAL |
6,809 |
|
Datasheet |
Radial | 1 µF | ±20% | 310V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.240" L x 0.354" W (31.50mm x 9.00mm) | 0.748" (19.00mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
|
|
BFC238301824CAP FILM 0.82UF 5% 250VDC RADIAL |
9,330 |
|
Datasheet |
Radial | 0.82 µF | ±5% | 125V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.394" W (26.00mm x 10.00mm) | 0.768" (19.50mm) | PC Pins | 0.886" (22.50mm) | High Pulse, DV/DT | - | - |
|
|
BFC238304824CAP FILM 0.82UF 5% 250VDC RADIAL |
8,224 |
|
Datasheet |
Radial | 0.82 µF | ±5% | 125V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.394" W (26.00mm x 10.00mm) | 0.768" (19.50mm) | PC Pins | 0.886" (22.50mm) | High Pulse, DV/DT | - | - |
|
|
F861RH475M310ZCAP FILM POLYPROP RAD X2 |
3,132 |
|
Datasheet |
Radial | 4.7 µF | ±20% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.614" L x 0.591" W (41.00mm x 15.00mm) | 1.024" (26.00mm) | PC Pins | 1.476" (37.50mm) | EMI, RFI Suppression | X2 | - |
|
MKT1822568014CAP FILM 6.8UF 5% 100VDC RADIAL |
4,988 |
|
Datasheet |
Radial | 6.8 µF | ±5% | 63V | 100V | Polyester, Metallized | - | -55°C ~ 100°C | Through Hole | 1.240" L x 0.531" W (31.50mm x 13.50mm) | 0.925" (23.50mm) | PC Pins | 1.083" (27.50mm) | General Purpose | - | - |
|
|
MKP385413200JKI2B0CAP FILM 0.13UF 5% 2KVDC RADIAL |
5,543 |
|
Datasheet |
Radial | 0.13 µF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.240" L x 0.709" W (31.50mm x 18.00mm) | 1.102" (28.00mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
MKP385413200JKM2T0CAP FILM 0.13UF 5% 2KVDC RADIAL |
2,753 |
|
Datasheet |
Radial | 0.13 µF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.240" L x 0.709" W (31.50mm x 18.00mm) | 1.102" (28.00mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
MKP385413200JKP2T0CAP FILM 0.13UF 5% 2KVDC RADIAL |
3,135 |
|
Datasheet |
Radial | 0.13 µF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.240" L x 0.709" W (31.50mm x 18.00mm) | 1.102" (28.00mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
F873FY394K760ZCAP FILM POLYPROP RAD X1 |
5,417 |
|
Datasheet |
Radial | 0.39 µF | ±10% | 760V | 1500V (1.5kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.240" L x 0.866" W (31.50mm x 22.00mm) | 1.457" (37.00mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X1 | - |
|
BFC238352303CAP FILM 0.03UF 5% 1.6KVDC RAD |
7,682 |
|
Datasheet |
Radial | 0.03 µF | ±5% | 550V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.335" W (26.00mm x 8.50mm) | 0.709" (18.00mm) | PC Pins | 0.886" (22.50mm) | High Pulse, DV/DT | - | - |
|
|
F873FY564J760Z.560UF 760V |
4,157 |
|
- |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
DCP4I051206GD2JSC9DC-LINK MKP 4 12.0 F 600 VDC 17X |
3,742 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MKT1813547254CAP FILM 4.7UF 5% 250VDC AXIAL |
4,240 |
|
Datasheet |
Axial | 4.7 µF | ±5% | 160V | 250V | Polyester, Metallized | - | -55°C ~ 100°C | Through Hole | 0.610" Dia x 1.634" L (15.50mm x 41.50mm) | - | PC Pins | - | General Purpose | - | - |
|
|
MKT1813610064RCAP FILM 10UF 5% 63VDC AXIAL |
7,972 |
|
Datasheet |
Axial | 10 µF | ±5% | 40V | 63V | Polyester, Metallized | - | -55°C ~ 100°C | Through Hole | 0.571" Dia x 1.240" L (14.50mm x 31.50mm) | - | PC Pins | - | General Purpose | - | - |
|
|
C277LCB4700AF0JCAP FILM 7UF 5% 425VAC RADIAL |
9,143 |
|
Datasheet |
Radial, Can | 7 µF | ±5% | 425V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 1.181" Dia (30.00mm) | 2.244" (57.00mm) | Wire Leads | - | Motor Run | - | - |
|
|
MKP383413160JKI2B0CAP FILM 0.13UF 5% 1.6KVDC RAD |
3,800 |
|
Datasheet |
Radial | 0.13 µF | ±5% | 550V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | - | - | PC Pins | 1.083" (27.50mm) | High Pulse, DV/DT | - | - |
