Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MKP383413160JKM2T0CAP FILM 0.13UF 5% 1.6KVDC RAD |
5,571 |
|
Datasheet |
Radial | 0.13 µF | ±5% | 550V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.240" L x 0.709" W (31.50mm x 18.00mm) | 1.102" (28.00mm) | PC Pins | 1.083" (27.50mm) | High Pulse, DV/DT | - | - |
|
|
MKP383413160JKP2T0CAP FILM 0.13UF 5% 1.6KVDC RAD |
6,457 |
|
Datasheet |
Radial | 0.13 µF | ±5% | 550V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.240" L x 0.709" W (31.50mm x 18.00mm) | 1.102" (28.00mm) | PC Pins | 1.083" (27.50mm) | High Pulse, DV/DT | - | - |
|
BFC241913304CAP FILM 0.33UF 2% 400VDC RADIAL |
5,571 |
|
Datasheet |
Radial | 0.33 µF | ±2% | 125V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 0.689" L x 0.394" W (17.50mm x 10.00mm) | 0.650" (16.50mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching | - | - |
|
|
MKS4D052206F00JSC9CAP FILM 22UF 5% 100VDC RADIAL |
6,486 |
|
Datasheet |
Radial | 22 µF | ±5% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 1.240" L x 0.591" W (31.50mm x 15.00mm) | 1.024" (26.00mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
|
BFC237590481CAP FILM 0.036UF 5% 1.6KVDC RAD |
5,715 |
|
Datasheet |
Radial | 0.036 µF | ±5% | 500V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.181" L x 0.472" W (30.00mm x 12.00mm) | 1.102" (28.00mm) | PC Pins | 1.083" (27.50mm) | High Pulse, DV/DT | - | - |
|

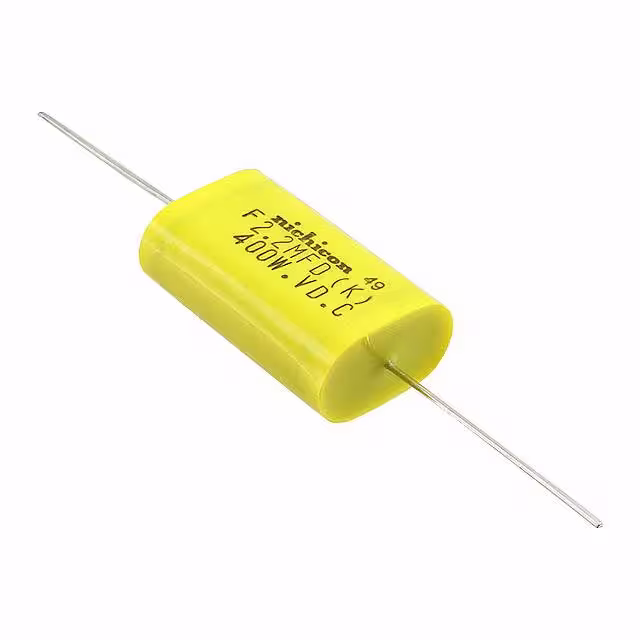

QAP2G225KRPCAP FILM 2.2UF 10% 400VDC AXIAL |
7,120 |
|
Datasheet |
Axial | 2.2 µF | ±10% | - | 400V | Polypropylene (PP), Metallized | - | -40°C ~ 85°C | Through Hole | 0.953" W, 0.583" T x 1.575" L (24.20mm, 14.80mm x 40.00mm) | - | PC Pins | - | High Frequency, Switching | - | - |
|
|
F861FQ275K310ZCAP FILM POLYPROP RAD X2 |
8,456 |
|
Datasheet |
Radial | 2.7 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.240" L x 1.083" W (31.50mm x 27.50mm) | 0.630" (16.00mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
|
BFC246856125CAP FILM 1.2UF 5% 400VDC RADIAL |
2,921 |
|
Datasheet |
Radial | 1.2 µF | ±5% | 220V | 400V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.433" W (26.00mm x 11.00mm) | 0.945" (24.00mm) | PC Pins | 0.886" (22.50mm) | General Purpose | - | - |
|
|
BFC237521823CAP FILM 0.082UF 3.5% 1KVDC RAD |
3,239 |
|
Datasheet |
Radial | 0.082 µF | ±3.5% | 400V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.181" L x 0.374" W (30.00mm x 9.50mm) | 0.886" (22.50mm) | PC Pins | 0.394" (10.00mm) | High Pulse, DV/DT | - | - |
|
|
BFC237525823CAP FILM 0.082UF 3.5% 1KVDC RAD |
5,429 |
|
Datasheet |
Radial | 0.082 µF | ±3.5% | 400V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.181" L x 0.374" W (30.00mm x 9.50mm) | 0.886" (22.50mm) | PC Pins | 0.394" (10.00mm) | High Pulse, DV/DT | - | - |
|
|
F871FQ125K330ZCAP FILM POLYPROP RAD X1 |
7,428 |
|
Datasheet |
Radial | 1.2 µF | ±10% | 330V | 800V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.240" L x 1.083" W (31.50mm x 27.50mm) | 0.630" (16.00mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X1 | - |
|
|
170684J630ZFCAP FILM 0.68UF 5% 630VDC AXIAL |
2,856 |
|
Datasheet |
Axial | 0.68 µF | ±5% | 250V | 630V | Polypropylene (PP), Metallized | 25 mOhms | -55°C ~ 105°C | Through Hole | 0.827" Dia x 1.299" L (21.00mm x 33.00mm) | - | PC Pins | - | DC Link, DC Filtering | - | Low ESR |
|
|
F871FH474K330ZCAP FILM POLYPROP RAD X1 |
5,994 |
|
Datasheet |
Radial | 0.47 µF | ±10% | 330V | 800V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.240" L x 0.827" W (31.50mm x 21.00mm) | 0.492" (12.50mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X1 | - |
|
|
BFC241769104CAP FILM 0.91UF 5% 160VDC RADIAL |
3,404 |
|
Datasheet |
Radial | - | - | - | - | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 0.689" L x 0.394" W (17.50mm x 10.00mm) | 0.650" (16.50mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching | - | Long Life |
|
|
MKS4C052206B00JJ00CAP FILM 22UF 5% 63VDC RADIAL |
5,038 |
|
Datasheet |
Radial | 22 µF | ±5% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 1.240" L x 0.433" W (31.50mm x 11.00mm) | 0.827" (21.00mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
|
MKS4C052206B00JH00CAP FILM 22UF 5% 63VDC RADIAL |
4,978 |
|
Datasheet |
Radial | 22 µF | ±5% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 1.240" L x 0.433" W (31.50mm x 11.00mm) | 0.827" (21.00mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
|
BFC238302684CAP FILM 0.68UF 5% 250VDC RADIAL |
7,775 |
|
Datasheet |
Radial | 0.68 µF | ±5% | 125V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.394" W (26.00mm x 10.00mm) | 0.768" (19.50mm) | PC Pins | 0.886" (22.50mm) | High Pulse, DV/DT | - | - |
|
|
F339MX251031KKM2T0CAP FILM 1UF 10% 630VDC RADIAL |
5,945 |
|
Datasheet |
Radial | 1 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.220" L x 0.433" W (31.00mm x 11.00mm) | 0.827" (21.00mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
|
|
F339MX251031KKP2T0CAP FILM 1UF 10% 630VDC RADIAL |
4,398 |
|
Datasheet |
Radial | 1 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.220" L x 0.433" W (31.00mm x 11.00mm) | 0.827" (21.00mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
|
|
F339MX251031KKI2B0CAP FILM 1UF 10% 630VDC RADIAL |
2,156 |
|
Datasheet |
Radial | 1 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.220" L x 0.433" W (31.00mm x 11.00mm) | 0.827" (21.00mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
