Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
F339MX251531KII2B0CAP FILM 1.5UF 10% 630VDC RADIAL |
4,951 |
|
Datasheet |
Radial | 1.5 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.024" L x 0.472" W (26.00mm x 12.00mm) | 0.866" (22.00mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|
|
FKP1X023307G00KSSDFKP 1 0.033 F 4000 VDC 20X39.5X4 |
8,885 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FKP1Y023307G00KSSDFKP 1 0.033 F 6000 VDC 20X39.5X4 |
3,572 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MKS4D052706F00KSSDCAP FILM 27UF 10% 100VDC RADIAL |
5,204 |
|
Datasheet |
Radial | 27 µF | ±10% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 1.240" L x 0.591" W (31.50mm x 15.00mm) | 1.024" (26.00mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
MKP1839056631CAP FILM 56PF 1% 630VDC AXIAL |
5,306 |
|
Datasheet |
Axial | 56 pF | ±1% | 250V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.197" Dia x 0.433" L (5.00mm x 11.00mm) | - | PC Pins | - | DC Link, DC Filtering; High Pulse, DV/DT | - | - |
|
|
MKP1839056631RCAP FILM 56PF 1% 630VDC AXIAL |
8,918 |
|
Datasheet |
Axial | 56 pF | ±1% | 250V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.197" Dia x 0.433" L (5.00mm x 11.00mm) | - | PC Pins | - | DC Link, DC Filtering; High Pulse, DV/DT | - | - |
|
|
DCP4P051007GD2JSSDDC-LINK MKP 4 10.0 F 1100 VDC 20 |
2,674 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
DCP4P051007GD4JSSDDC-LINK MKP 4 10.0 F 1100 VDC 20 |
8,616 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
R71VR4680AA30KCAP FILM METAL RAD POLYPROP |
9,057 |
|
Datasheet |
Radial | 6.8 µF | ±10% | 250V | 520V | Polypropylene (PP), Metallized | 18 mOhms | -55°C ~ 105°C | Through Hole | 1.260" L x 0.866" W (32.00mm x 22.00mm) | 1.461" (37.10mm) | PC Pins | 1.083" (27.50mm) | High Frequency, Switching; High Pulse, DV/DT; Power Factor Correction (PFC) | - | - |
|
|
F462RD155J1K0ZCAP FILM POLYPROP RAD |
9,438 |
|
Datasheet |
Radial | 1.5 µF | ±5% | 300V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.614" L x 0.748" W (41.00mm x 19.00mm) | 1.260" (32.00mm) | PC Pins | 1.476" (37.50mm) | High Pulse, DV/DT | - | - |
|
|
BFC2373EF106MKCAP FILM 10UF 5% 250VDC RADIAL |
2,018 |
|
Datasheet |
Radial | 10 µF | ±5% | 63V | 250V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 1.240" L x 0.591" W (31.50mm x 15.00mm) | 0.984" (25.00mm) | PC Pins | 1.083" (27.50mm) | General Purpose | - | Long Life |
|
|
MKP1841533166CAP FILM 3.3UF 20% 160VDC RADIAL |
3,778 |
|
Datasheet |
Radial | 3.3 µF | ±20% | 100V | 160V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.220" L x 0.827" W (31.00mm x 21.00mm) | 1.220" (31.00mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Pulse, DV/DT; Snubber | - | - |
|

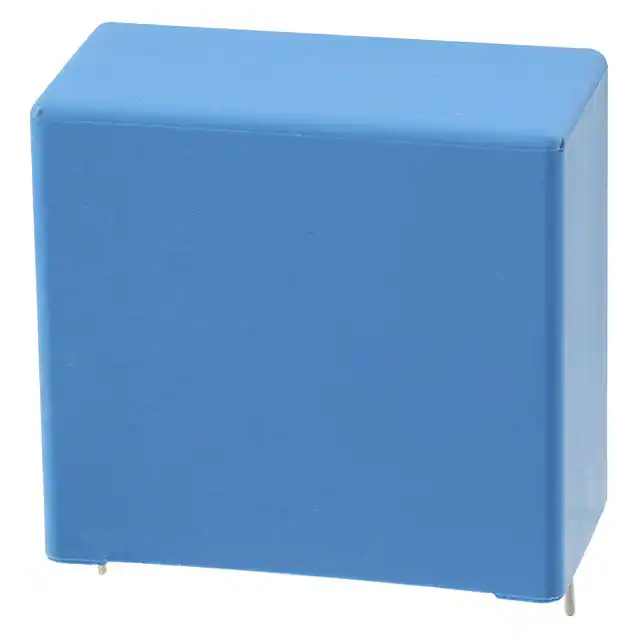

PHE844RR7150MR30L2CAP FILM 1.5UF 20% 1KVDC RADIAL |
2,836 |
|
Datasheet |
Radial | 1.5 µF | ±20% | 480V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.614" L x 0.748" W (41.00mm x 19.00mm) | 1.417" (36.00mm) | PC Pins | 1.476" (37.50mm) | EMI, RFI Suppression | X1 | - |
|
|
EFDKS90J156E154BHCAP EFDKS 900VDC 15UF J 4LEADS |
8,848 |
|
Datasheet |
Radial - 4 Leads | 15 µF | ±5% | - | 900V | Polypropylene (PP), Metallized | 10.5 mOhms | -40°C ~ 105°C | Through Hole | 1.654" L x 0.945" W (42.00mm x 24.00mm) | 1.772" (45.00mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering | - | - |
|
|
FKP4T032207G00KSC9FKP 4 0.22 F 1600 VDC 20X39.5X41 |
9,730 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FKP4T033307G00KSC9FKP 4 0.33 F 1600 VDC 20X39.5X41 |
4,106 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
BFC238340104CAP FILM 0.1UF 5% 1.4KVDC RADIAL |
5,342 |
|
Datasheet |
Radial | 0.1 µF | ±5% | 500V | 1400V (1.4kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.220" L x 0.591" W (31.00mm x 15.00mm) | 0.984" (25.00mm) | PC Pins | 1.083" (27.50mm) | High Pulse, DV/DT | - | - |
|
|
F461RH225R630Z2.20UF 630V |
4,390 |
|
- |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MKS4J043307F00JSC9CAP FILM 3.3UF 5% 630VDC RADIAL |
3,927 |
|
Datasheet |
Radial | 3.3 µF | ±5% | 400V | 630V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 1.634" L x 0.748" W (41.50mm x 19.00mm) | 1.260" (32.00mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
BFC246807335CAP FILM 3.3UF 5% 100VDC RADIAL |
4,466 |
|
Datasheet |
Radial | 3.3 µF | ±5% | 63V | 100V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.374" W (26.00mm x 9.50mm) | 0.630" (16.00mm) | PC Pins | 0.886" (22.50mm) | General Purpose | - | - |
