Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
F462RC105R1K0ZCAP |
9,090 |
|
- |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
F462RD564K1K6ZCAP FILM POLYPROP RAD |
4,078 |
|
Datasheet |
Radial | 0.56 µF | ±10% | 500V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.614" L x 0.748" W (41.00mm x 19.00mm) | 1.260" (32.00mm) | PC Pins | 1.476" (37.50mm) | High Pulse, DV/DT | - | - |
|

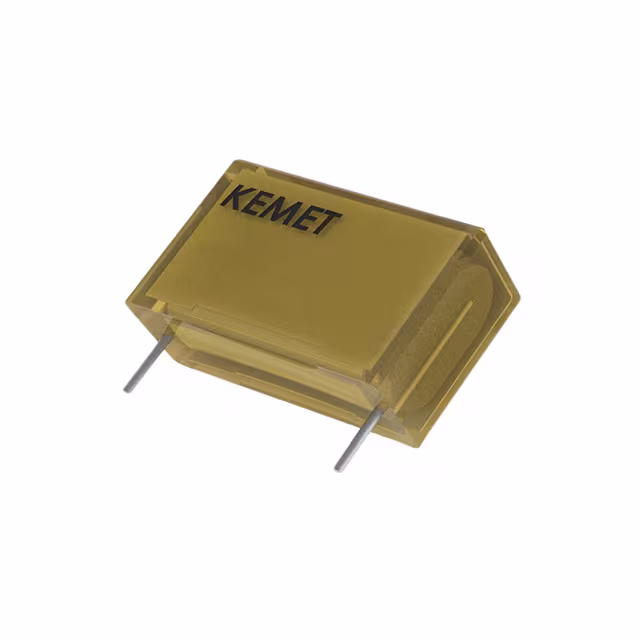

P278EL154M480ACAP FILM 0.15UF 20% 480VAC RAD |
7,118 |
|
Datasheet |
Radial | 0.15 µF | ±20% | 480V | - | Paper, Metallized | - | -40°C ~ 110°C | Through Hole | 1.201" L x 0.602" W (30.50mm x 15.30mm) | 0.866" (22.00mm) | PC Pins | 1.000" (25.40mm) | EMI, RFI Suppression | X1 | - |
|
|
BFC237862124CAP FILM 0.12UF 5% 630VDC RADIAL |
5,356 |
|
Datasheet |
Radial | 0.12 µF | ±5% | 300V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 1.024" L x 0.276" W (26.00mm x 7.00mm) | 0.650" (16.50mm) | PC Pins | 0.886" (22.50mm) | High Pulse, DV/DT | - | Long Life |
|
|
BFC237864124CAP FILM 0.12UF 5% 630VDC RADIAL |
3,429 |
|
Datasheet |
Radial | 0.12 µF | ±5% | 300V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 1.024" L x 0.276" W (26.00mm x 7.00mm) | 0.650" (16.50mm) | PC Pins | 0.886" (22.50mm) | High Pulse, DV/DT | - | Long Life |
|
|
MKPF3Y51207F00KSC9MKP 4F 12.0 F 230 VAC 19X32X41.5 |
7,077 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
KP1836333204CAP FILM 0.033UF 5% 2KVDC RADIAL |
7,096 |
|
Datasheet |
Radial | 0.033 µF | ±5% | 600V | 2000V (2kV) | Polypropylene (PP) | - | -55°C ~ 100°C | Through Hole | 1.240" L x 0.453" W (31.50mm x 11.50mm) | 0.807" (20.50mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Pulse, DV/DT; Snubber | - | - |
|
|
KP1836347134CAP FILM 0.047UF 5% 1.6KVDC RAD |
4,253 |
|
Datasheet |
Radial | 0.047 µF | ±5% | 500V | 1600V (1.6kV) | Polypropylene (PP) | - | -55°C ~ 100°C | Through Hole | 1.634" L x 0.492" W (41.50mm x 12.50mm) | 0.886" (22.50mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering; High Pulse, DV/DT; Snubber | - | - |
|
|
MKP385536016JKM2T0CAP FILM 3.6UF 5% 160VDC RADIAL |
5,977 |
|
Datasheet |
Radial | 3.6 µF | ±5% | 110V | 160V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.220" L x 0.512" W (31.00mm x 13.00mm) | 0.906" (23.00mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
MKP385536016JKP2T0CAP FILM 3.6UF 5% 160VDC RADIAL |
7,125 |
|
Datasheet |
Radial | 3.6 µF | ±5% | 110V | 160V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.220" L x 0.512" W (31.00mm x 13.00mm) | 0.906" (23.00mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
BFC237521913CAP FILM 0.091UF 3.5% 1KVDC RAD |
7,697 |
|
Datasheet |
Radial | 0.091 µF | ±3.5% | 400V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.181" L x 0.394" W (30.00mm x 10.00mm) | 0.906" (23.00mm) | PC Pins | 0.394" (10.00mm) | High Pulse, DV/DT | - | - |
|
|
BFC237525913CAP FILM 0.091UF 3.5% 1KVDC RAD |
7,108 |
|
Datasheet |
Radial | 0.091 µF | ±3.5% | 400V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.181" L x 0.394" W (30.00mm x 10.00mm) | 0.906" (23.00mm) | PC Pins | 0.394" (10.00mm) | High Pulse, DV/DT | - | - |
|
|
R75TW36804030JCAP FILM AUTO POLYPROP RAD |
2,451 |
|
Datasheet |
Radial | 0.68 µF | ±5% | 650V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.634" L x 0.748" W (41.50mm x 19.00mm) | 1.264" (32.10mm) | PC Pins | 1.476" (37.50mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
504K500RA6CAPACITOR MLP 0.5UF 500V RADIAL |
11 |
|
Datasheet |
Radial | 0.5 µF | ±10% | 250V | 500V | Polyester, Metallized | 12 mOhms | -55°C ~ 125°C | Through Hole | 0.650" L x 0.280" W (16.50mm x 7.10mm) | 0.539" (13.70mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression; High Pulse, DV/DT | - | Low ESR, High Temperature |
|
|
KP1836333205CAP FILM 0.033UF 10% 2KVDC RAD |
4,931 |
|
Datasheet |
Radial | 0.033 µF | ±10% | 600V | 2000V (2kV) | Polypropylene (PP) | - | -55°C ~ 100°C | Through Hole | 1.240" L x 0.453" W (31.50mm x 11.50mm) | 0.807" (20.50mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Pulse, DV/DT; Snubber | - | - |
|
|
152MWS402KGCAP FILM 1500PF 10% 4KVDC AXIAL |
7,303 |
|
Datasheet |
Axial | 1500 pF | ±10% | 750V | 4000V (4kV) | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.335" Dia x 1.142" L (8.50mm x 29.00mm) | - | PC Pins | - | General Purpose | - | - |
|
|
472MWS402KGCAP FILM 4700PF 10% 4KVDC AXIAL |
3,724 |
|
Datasheet |
Axial | 4700 pF | ±10% | 750V | 4000V (4kV) | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.492" Dia x 1.142" L (12.50mm x 29.00mm) | - | PC Pins | - | General Purpose | - | - |
|
|
BFC247990192CAP FILM 0.62UF 5% 400VDC RADIAL |
2,710 |
|
Datasheet |
Radial | 0.62 µF | ±5% | 200V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.413" W (26.00mm x 10.50mm) | 1.043" (26.50mm) | PC Pins | 0.886" (22.50mm) | High Pulse, DV/DT | - | Long Life |
|
|
MKP385539025JKM2T0CAP FILM 3.9UF 5% 250VDC RADIAL |
8,378 |
|
Datasheet |
Radial | 3.9 µF | ±5% | 160V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.240" L x 0.591" W (31.50mm x 15.00mm) | 0.984" (25.00mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
MKP385539025JKP2T0CAP FILM 3.9UF 5% 250VDC RADIAL |
7,760 |
|
Datasheet |
Radial | 3.9 µF | ±5% | 160V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.240" L x 0.591" W (31.50mm x 15.00mm) | 0.984" (25.00mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
