Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MKP385539025JKI2B0CAP FILM 3.9UF 5% 250VDC RADIAL |
3,668 |
|
Datasheet |
Radial | 3.9 µF | ±5% | 160V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.240" L x 0.591" W (31.50mm x 15.00mm) | 0.984" (25.00mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
C870CF24600AA1JCAP FILM MOTOR START RUN |
9,059 |
|
Datasheet |
Radial, Can | 6 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 1.181" Dia (30.00mm) | 2.441" (62.00mm) | Quick Connect, Disconnect | 0.394" (10.00mm) | Motor Run | - | - |
|
BFC237390102CAP FILM 1.8UF 10% 250VDC RADIAL |
8,292 |
|
Datasheet |
Radial | - | - | - | - | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 1.220" L x 0.354" W (31.00mm x 9.00mm) | 0.827" (21.00mm) | PC Pins | 1.083" (27.50mm) | General Purpose | - | Long Life |
|
|
BFC233840155CAP FILM 1.5UF 20% 800VDC RADIAL |
4,282 |
|
Datasheet |
Radial | 1.5 µF | ±20% | 300V | 800V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.220" L x 0.591" W (31.00mm x 15.00mm) | 0.984" (25.00mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
|
|
BFC233844155CAP FILM 1.5UF 20% 800VDC RADIAL |
2,537 |
|
Datasheet |
Radial | 1.5 µF | ±20% | 300V | 800V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.220" L x 0.591" W (31.00mm x 15.00mm) | 0.984" (25.00mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
|
|
BFC233841155CAP FILM 1.5UF 20% 800VDC RADIAL |
5,838 |
|
Datasheet |
Radial | 1.5 µF | ±20% | 300V | 800V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.220" L x 0.591" W (31.00mm x 15.00mm) | 0.984" (25.00mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
|
|
MKP385462100JKP2T0CAP FILM 0.62UF 5% 1KVDC RADIAL |
3,582 |
|
Datasheet |
Radial | 0.62 µF | ±5% | 350V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.240" L x 0.709" W (31.50mm x 18.00mm) | 1.102" (28.00mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
942C6W1KCAP FILM 1UF 10% 600VDC AXIAL |
6,393 |
|
Datasheet |
Axial | 1 µF | ±10% | 300V | 600V | Polypropylene (PP), Metallized | 5 mOhms | -55°C ~ 105°C | Through Hole | 0.925" Dia x 1.811" L (23.50mm x 46.00mm) | - | PC Pins | - | High Pulse, DV/DT | - | - |
|
FCN6031E564K-TCAP FILM 0.56UF 10% 250VDC 6031 |
3,222 |
|
Datasheet |
6031 (1580 Metric) | 0.56 µF | ±10% | - | 250V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -40°C ~ 85°C | Surface Mount | 0.598" L x 0.315" W (15.20mm x 8.00mm) | 0.154" (3.90mm) | Solder Pads | - | General Purpose | - | - |
|

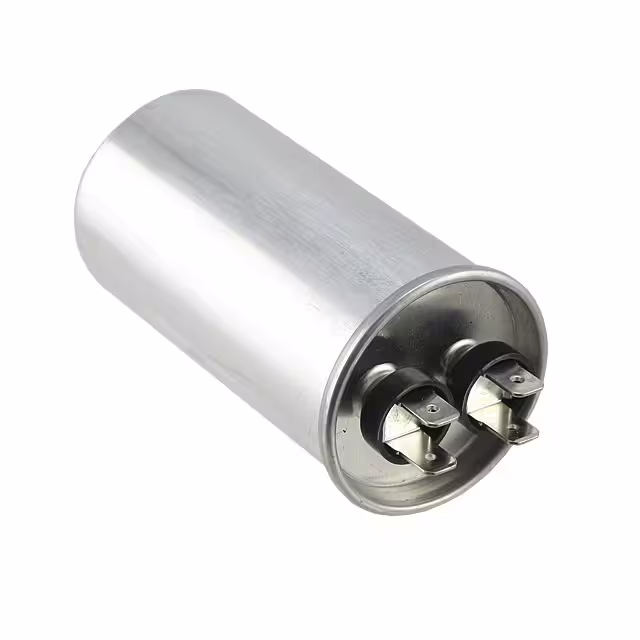

DS371306-CACAP FILM 30UF 10% 370VAC RADIAL |
2,931 |
|
Datasheet |
Radial, Can | 30 µF | ±10% | 370V | - | Polypropylene (PP), Metallized | - | -25°C ~ 70°C | Chassis Mount, Requires Holder/Bracket | 1.614" Dia (41.00mm) | 4.409" (112.00mm) | Quick Connect, Disconnect | 0.630" (16.00mm) | Motor Run | - | - |
|
171335K160Q-FCAP FILM 3.3UF 10% 160VDC RADIAL |
2,991 |
|
Datasheet |
Radial | 3.3 µF | ±10% | 90V | 160V | Polypropylene (PP), Metallized | 16 mOhms | -55°C ~ 105°C | Through Hole | 1.260" L x 0.512" W (32.00mm x 13.00mm) | 0.886" (22.50mm) | PC Pins | 1.083" (27.50mm) | High Pulse, DV/DT | - | - |
|
|
BFC237346225CAP FILM 2.2UF 5% 250VDC RADIAL |
4,163 |
|
Datasheet |
Radial | 2.2 µF | ±5% | 160V | 250V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.394" W (26.00mm x 10.00mm) | 0.728" (18.50mm) | PC Pins | 0.886" (22.50mm) | General Purpose | - | Long Life |
|
|
MKP1841515404MCAP FILM 1.5UF 5% 400VDC RADIAL |
9,842 |
|
Datasheet |
Radial | 1.5 µF | ±5% | 220V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.240" L x 0.650" W (31.50mm x 16.50mm) | 1.161" (29.50mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Pulse, DV/DT; Snubber | - | - |
|
|
MKP1841515405MCAP FILM 1.5UF 10% 400VDC RADIAL |
2,722 |
|
Datasheet |
Radial | 1.5 µF | ±10% | 220V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.240" L x 0.650" W (31.50mm x 16.50mm) | 1.161" (29.50mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Pulse, DV/DT; Snubber | - | - |
|
|
F161ZS475M063VCAP FILM SMD PET |
6,083 |
|
Datasheet |
Nonstandard SMD | 4.7 µF | ±20% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.650" L x 0.591" W (16.50mm x 15.00mm) | 0.283" (7.20mm) | Solder Pads | - | Automotive | AEC-Q200 | - |
|
MKT1822610066CAP FILM 10UF 20% 63VDC RADIAL |
4,250 |
|
Datasheet |
Radial | 10 µF | ±20% | 40V | 63V | Polyester, Metallized | - | -55°C ~ 100°C | Through Hole | 1.240" L x 0.453" W (31.50mm x 11.50mm) | 0.807" (20.50mm) | PC Pins | 1.083" (27.50mm) | General Purpose | - | - |
|
|
F161YR475M050VCAP FILM SMD PET |
9,001 |
|
Datasheet |
Nonstandard SMD | 4.7 µF | ±20% | 30V | 50V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.500" L x 0.453" W (12.70mm x 11.50mm) | 0.264" (6.70mm) | Solder Pads | - | Automotive | AEC-Q200 | - |
|
|
C4AFABW4350F3JKCAP FILM METAL RAD POLYPROP |
6,256 |
|
Datasheet |
Radial - 4 Leads | 3.5 µF | ±10% | 500V | 1000V (1kV) | Polypropylene (PP), Metallized | 15.9 mOhms | -55°C ~ 105°C | Through Hole | 1.654" L x 1.102" W (42.00mm x 28.00mm) | 1.465" (37.20mm) | PC Pins | 1.476" (37.50mm) | Automotive | AEC-Q200 | - |
|
|
F861FT475K310ZCAP FILM POLYPROP RAD X2 |
2,278 |
|
Datasheet |
Radial | 4.7 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.240" L x 1.220" W (31.50mm x 31.00mm) | 0.748" (19.00mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
|
|
BFC237343275CAP FILM 2.7UF 10% 250VDC RADIAL |
6,622 |
|
Datasheet |
Radial | 2.7 µF | ±10% | 160V | 250V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.394" W (26.00mm x 10.00mm) | 0.768" (19.50mm) | PC Pins | 0.886" (22.50mm) | General Purpose | - | Long Life |
