Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BFC246855185CAP FILM 1.8UF 10% 400VDC RADIAL |
4,049 |
|
Datasheet |
Radial | 1.8 µF | ±10% | 220V | 400V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 1.181" L x 0.492" W (30.00mm x 12.50mm) | 1.004" (25.50mm) | PC Pins | 1.083" (27.50mm) | General Purpose | - | - |
|
|
BFC246828185CAP FILM 1.8UF 10% 400VDC RADIAL |
2,138 |
|
Datasheet |
Radial | 1.8 µF | ±10% | 220V | 400V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 1.181" L x 0.492" W (30.00mm x 12.50mm) | 1.004" (25.50mm) | PC Pins | 1.083" (27.50mm) | General Purpose | - | - |
|
EFDKA90J156E154BHCAP EFDKA 900VDC 15UF J 4LEADS |
4,545 |
|
Datasheet |
Radial - 4 Leads | 15 µF | ±5% | - | 900V | Polypropylene (PP), Metallized | 10.5 mOhms | -55°C ~ 105°C | Through Hole | 1.654" L x 0.945" W (42.00mm x 24.00mm) | 1.772" (45.00mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
|
F881RD105K300ZCAP FILM POLYPROP RAD Y2 |
6,311 |
|
Datasheet |
Radial | 1 µF | ±10% | 300V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.614" L x 0.748" W (41.00mm x 19.00mm) | 1.260" (32.00mm) | PC Pins | 1.476" (37.50mm) | EMI, RFI Suppression | Y2 | - |
|
|
C276CC25110AA0JCAP FILM 11UF 5% 470VAC RADIAL |
7,920 |
|
Datasheet |
Radial, Can | 11 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 1.378" Dia (35.00mm) | 2.303" (58.50mm) | Quick Connect - 0.250" (6.3mm) | 0.394" (10.00mm) | Motor Run | - | - |
|
|
SFA37S2K156B-FCAP FILM 2UF 10% 370VAC RADIAL |
2,666 |
|
Datasheet |
Radial, Can | 2 µF | ±10% | 370V | - | Polypropylene (PP), Metallized | - | -40°C ~ 70°C | Chassis Mount, Requires Holder/Bracket | 2.160" L x 1.310" W (54.86mm x 33.27mm), Lip | 1.680" (42.67mm) | Quick Connect, Disconnect | 0.810" (20.57mm) | Motor Run | - | - |
|
|
SFA44S2K156B-FCAP FILM 2UF 10% 440VAC RADIAL |
3,574 |
|
Datasheet |
Radial, Can | 2 µF | ±10% | 440V | - | Polypropylene (PP), Metallized | - | -40°C ~ 70°C | Chassis Mount, Requires Holder/Bracket | 2.160" L x 1.310" W (54.86mm x 33.27mm), Lip | 1.680" (42.67mm) | Quick Connect, Disconnect | 0.810" (20.57mm) | Motor Run | - | - |
|
|
F881FY105M300ZCAP FILM POLYPROP RAD Y2 |
7,869 |
|
Datasheet |
Radial | 1 µF | ±20% | 300V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.240" L x 0.866" W (31.50mm x 22.00mm) | 1.457" (37.00mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | Y2 | - |
|
MKP1848H58070JK2CAP FILM 8UF 5% 700VDC RADIAL |
2,624 |
|
Datasheet |
Radial | 8 µF | ±5% | - | 700V | Polypropylene (PP), Metallized | 5.6 mOhms | -40°C ~ 85°C | Through Hole | 1.260" L x 0.827" W (32.00mm x 21.00mm) | 1.248" (31.70mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | 85C/85% Humidity; Low ESR, Low ESL |
|
685PHC250KCAP FILM 6.8UF 10% 250VDC AXIAL |
3,514 |
|
Datasheet |
Axial | 6.8 µF | ±10% | 160V | 250V | Polypropylene (PP), Metallized | 3.1 mOhms | -40°C ~ 85°C | Through Hole | 0.827" Dia x 1.339" L (21.00mm x 34.00mm) | - | PC Pins | - | DC Link, DC Filtering; High Frequency, Switching | - | Low ESR, Low ESL |
|
|
C878AF35100AA0JCAP FILM MOTOR START RUN |
7,698 |
|
Datasheet |
Radial, Can | 10 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 1.378" Dia (35.00mm) | 3.150" (80.00mm) | Quick Connect - 0.250" (6.3mm) | 0.528" (13.40mm) | Motor Run | - | - |
|
|
C870CF35150AA0JCAP FILM MOTOR START RUN |
9,949 |
|
Datasheet |
Radial, Can | 15 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 1.378" Dia (35.00mm) | 3.150" (80.00mm) | Quick Connect, Disconnect | 0.528" (13.40mm) | Motor Run | - | - |
|
|
BFC237590452CAP FILM 0.11UF 5% 1KVDC RADIAL |
8,652 |
|
Datasheet |
Radial | 0.11 µF | ±5% | 400V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.181" L x 0.433" W (30.00mm x 11.00mm) | 1.063" (27.00mm) | PC Pins | 1.083" (27.50mm) | High Pulse, DV/DT | - | - |
|
|
MKP4O141807G00MSC9MKP 4 1.8 F 1000 VDC 20X39.5X41. |
3,414 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MKP4R041207G00MSC9MKP 4 1.2 F 1250 VDC 20X39.5X41. |
5,114 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
BFC241711105CAP FILM 1.1UF 2% 160VDC RADIAL |
5,330 |
|
Datasheet |
Radial | 1.1 µF | ±2% | 63V | 160V | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 0.689" L x 0.394" W (17.50mm x 10.00mm) | 0.650" (16.50mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching | - | - |
|

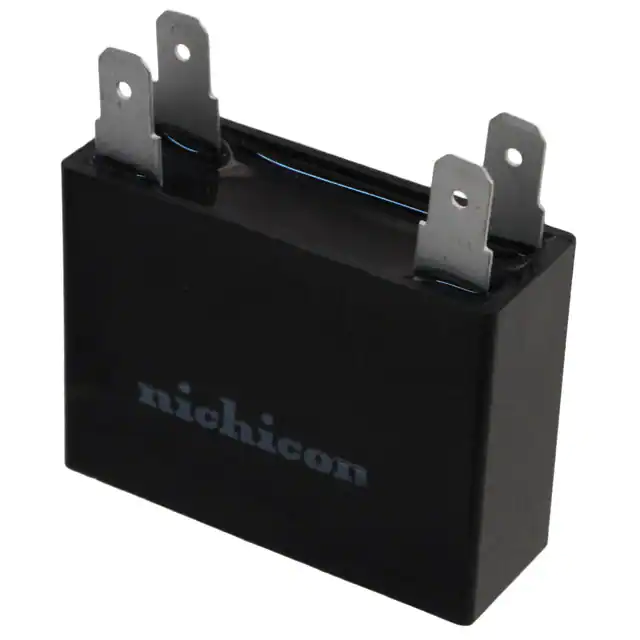

EEC2G205HQA402CAP FILM 2UF 400VAC QC TERM |
9,305 |
|
Datasheet |
Rectangular Box | 2 µF | -5%, +10% | 400V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis Mount | 1.457" L x 0.531" W (37.00mm x 13.50mm) | 1.102" (28.00mm) | Quick Connect, Disconnect | - | Motor Run | - | - |
|
|
BFC247990122CAP FILM 1.2UF 5% 160VDC RADIAL |
4,538 |
|
Datasheet |
Radial | 1.2 µF | ±5% | 100V | 160V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.335" W (26.00mm x 8.50mm) | 0.965" (24.50mm) | PC Pins | 0.886" (22.50mm) | High Pulse, DV/DT | - | Long Life |
|
|
BFC247990239CAP FILM 0.33UF 5% 630VDC RADIAL |
8,776 |
|
Datasheet |
Radial | 0.33 µF | ±5% | 200V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.181" L x 0.374" W (30.00mm x 9.50mm) | 1.004" (25.50mm) | PC Pins | 1.083" (27.50mm) | High Pulse, DV/DT | - | Long Life |
|
|
A50IT4680AA60JCAP FILM AXL |
4,267 |
|
Datasheet |
Axial | 6.8 µF | ±5% | 160V | 250V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 105°C | Through Hole | 0.728" Dia x 1.299" L (18.50mm x 33.00mm) | - | PC Pins | - | Automotive | AEC-Q200 | - |
