Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DCP4I051507ED2JSSDDC-LINK MKP 4 15.0 F 600 VDC 17X |
9,185 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
B32776G0106K000CAP FILM 10UF 1.1KVDC RAD 4 LEAD |
3,244 |
|
Datasheet |
Radial - 4 Leads | 10 µF | ±10% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | - | - | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering | - | Long Life |
|
BFC246840824CAP FILM 0.82UF 10% 630VDC RAD |
2,665 |
|
Datasheet |
Radial | 0.82 µF | ±10% | 250V | 630V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 1.181" L x 0.591" W (30.00mm x 15.00mm) | 1.102" (28.00mm) | PC Pins | 1.083" (27.50mm) | General Purpose | - | - |
|
|
BFC238354473CAP FILM 0.047UF 5% 1.6KVDC RAD |
9,594 |
|
Datasheet |
Radial | 0.047 µF | ±5% | 550V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.220" L x 0.433" W (31.00mm x 11.00mm) | 0.827" (21.00mm) | PC Pins | 1.083" (27.50mm) | High Pulse, DV/DT | - | - |
|
|
BFC238364303CAP FILM 0.03UF 5% 2KVDC RADIAL |
5,974 |
|
Datasheet |
Radial | 0.03 µF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.220" L x 0.433" W (31.00mm x 11.00mm) | 0.827" (21.00mm) | PC Pins | 1.083" (27.50mm) | High Pulse, DV/DT | - | - |
|
|
BFC238364393CAP FILM 0.039UF 5% 2KVDC RADIAL |
7,090 |
|
Datasheet |
Radial | 0.039 µF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.220" L x 0.433" W (31.00mm x 11.00mm) | 0.827" (21.00mm) | PC Pins | 1.083" (27.50mm) | High Pulse, DV/DT | - | - |
|
|
C878AF24400AA5JCAP FILM MOTOR START RUN |
7,530 |
|
Datasheet |
Radial, Can | 4 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 1.181" Dia (30.00mm) | 3.150" (80.00mm) | Quick Connect, Disconnect | 0.394" (10.00mm) | Motor Run | - | - |
|
MKT1822610015VCAP FILM 10UF 10% 100VDC RADIAL |
6,380 |
|
Datasheet |
Radial | 10 µF | ±10% | 63V | 100V | Polyester, Metallized | - | -55°C ~ 100°C | Through Hole | 1.240" L x 0.591" W (31.50mm x 15.00mm) | 0.965" (24.50mm) | PC Pins | 1.083" (27.50mm) | General Purpose | - | - |
|
|
MKT1822610016VCAP FILM 10UF 20% 100VDC RADIAL |
7,310 |
|
Datasheet |
Radial | 10 µF | ±20% | 63V | 100V | Polyester, Metallized | - | -55°C ~ 100°C | Through Hole | 1.240" L x 0.591" W (31.50mm x 15.00mm) | 0.965" (24.50mm) | PC Pins | 1.083" (27.50mm) | General Purpose | - | - |
|
|
MKP385543025JKM2T0CAP FILM 4.3UF 5% 250VDC RADIAL |
7,409 |
|
Datasheet |
Radial | 4.3 µF | ±5% | 160V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.240" L x 0.591" W (31.50mm x 15.00mm) | 0.984" (25.00mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
MKP385543025JKP2T0CAP FILM 4.3UF 5% 250VDC RADIAL |
5,116 |
|
Datasheet |
Radial | 4.3 µF | ±5% | 160V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.240" L x 0.591" W (31.50mm x 15.00mm) | 0.984" (25.00mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
EFDKS60J306E154BHCAP EFDKS 600VDC 30UF J 4LEADS |
9,352 |
|
Datasheet |
Radial - 4 Leads | 30 µF | ±5% | - | 600V | Polypropylene (PP), Metallized | 6.5 mOhms | -40°C ~ 105°C | Through Hole | 1.654" L x 0.945" W (42.00mm x 24.00mm) | 1.772" (45.00mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering | - | - |
|
|
EFDKS70J306E154BHCAP EFDKS 700VDC 30UF J 4LEADS |
5,413 |
|
Datasheet |
Radial - 4 Leads | 30 µF | ±5% | - | 700V | Polypropylene (PP), Metallized | 6.5 mOhms | -40°C ~ 105°C | Through Hole | 1.654" L x 0.945" W (42.00mm x 24.00mm) | 1.772" (45.00mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering | - | - |
|
|
BFC238331124CAP FILM 0.12UF 5% 1KVDC RADIAL |
5,009 |
|
Datasheet |
Radial | 0.12 µF | ±5% | 350V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.394" W (26.00mm x 10.00mm) | 0.768" (19.50mm) | PC Pins | 0.886" (22.50mm) | High Pulse, DV/DT | - | - |
|
|
BFC238334124CAP FILM 0.12UF 5% 1KVDC RADIAL |
6,808 |
|
Datasheet |
Radial | 0.12 µF | ±5% | 350V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.394" W (26.00mm x 10.00mm) | 0.768" (19.50mm) | PC Pins | 0.886" (22.50mm) | High Pulse, DV/DT | - | - |
|

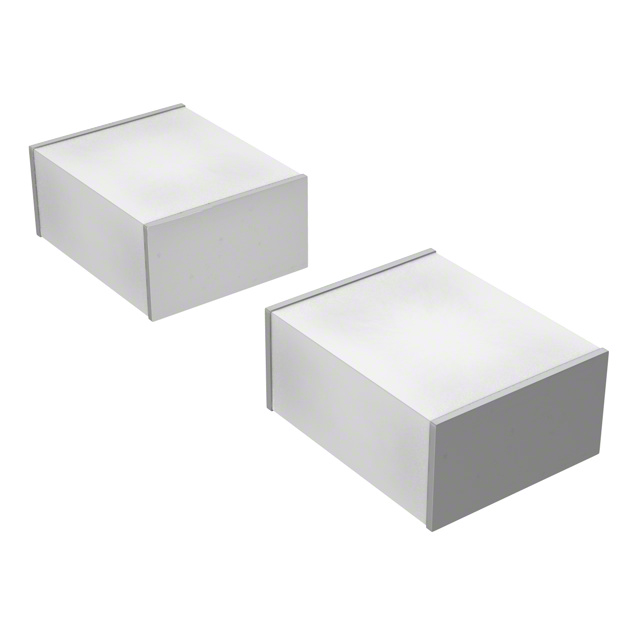

FCN6031E684K-TCAP FILM 0.68UF 10% 250VDC 6031 |
9,013 |
|
Datasheet |
6031 (1580 Metric) | 0.68 µF | ±10% | - | 250V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -40°C ~ 85°C | Surface Mount | 0.598" L x 0.315" W (15.20mm x 8.00mm) | 0.181" (4.60mm) | Solder Pads | - | General Purpose | - | - |
|
|
MKP4O141807G00KSC9MKP 4 1.8 F 1000 VDC 20X39.5X41. |
6,642 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MKP4R041207G00KSC9MKP 4 1.2 F 1250 VDC 20X39.5X41. |
4,173 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MKPF1W51007G00JSC9MKP 4F 10.0 F 275 VAC 20X39.5X41 |
6,937 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
R76QR36805030JCAP FILM AUTO POLYPROP RAD |
4,168 |
|
Datasheet |
Radial | 0.68 µF | ±5% | 600V | 1000V (1kV) | Polypropylene (PP), Metallized | 11 mOhms | -55°C ~ 110°C | Through Hole | 1.260" L x 0.866" W (32.00mm x 22.00mm) | 1.461" (37.10mm) | PC Pins | 1.083" (27.50mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
