Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MKP1840547164CAP FILM 4.7UF 5% RADIAL |
9,009 |
|
Datasheet |
Radial | 4.7 µF | ±5% | - | - | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.634" L x 0.492" W (41.50mm x 12.50mm) | 0.886" (22.50mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering; High Pulse, DV/DT | - | - |
|
MKP1839091631GCAP FILM 91PF 1% 630VDC AXIAL |
6,241 |
|
Datasheet |
Axial | 91 pF | ±1% | 250V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.217" Dia x 0.433" L (5.50mm x 11.00mm) | - | PC Pins | - | DC Link, DC Filtering; High Pulse, DV/DT | - | - |
|
|
MKP1839091631RCAP FILM 91PF 1% 630VDC AXIAL |
2,180 |
|
Datasheet |
Axial | 91 pF | ±1% | 250V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.217" Dia x 0.433" L (5.50mm x 11.00mm) | - | PC Pins | - | DC Link, DC Filtering; High Pulse, DV/DT | - | - |
|
|
BFC237882303CAP FILM 0.03UF 5% 1.6KVDC RAD |
6,179 |
|
Datasheet |
Radial | 0.03 µF | ±5% | 500V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 1.240" L x 0.354" W (31.50mm x 9.00mm) | 0.748" (19.00mm) | PC Pins | 1.083" (27.50mm) | High Pulse, DV/DT | - | Long Life |
|
|
BFC237884303CAP FILM 0.03UF 5% 1.6KVDC RAD |
6,352 |
|
Datasheet |
Radial | 0.03 µF | ±5% | 500V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 1.240" L x 0.354" W (31.50mm x 9.00mm) | 0.748" (19.00mm) | PC Pins | 1.083" (27.50mm) | High Pulse, DV/DT | - | Long Life |
|
|
MKP385482085JKI2B0CAP FILM 0.82UF 5% 850VDC RADIAL |
3,226 |
|
Datasheet |
Radial | 0.82 µF | ±5% | 300V | 850V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.240" L x 0.709" W (31.50mm x 18.00mm) | 1.102" (28.00mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
MKP385482085JKM2T0CAP FILM 0.82UF 5% 850VDC RADIAL |
3,074 |
|
Datasheet |
Radial | 0.82 µF | ±5% | 300V | 850V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.240" L x 0.709" W (31.50mm x 18.00mm) | 1.102" (28.00mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
MKP385482085JKP2T0CAP FILM 0.82UF 5% 850VDC RADIAL |
3,694 |
|
Datasheet |
Radial | 0.82 µF | ±5% | 300V | 850V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.240" L x 0.709" W (31.50mm x 18.00mm) | 1.102" (28.00mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
BFC233848108CAP FILM 1UF 20% 800VDC RADIAL |
7,248 |
|
Datasheet |
Radial | 1 µF | ±20% | 300V | 800V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.220" L x 0.433" W (31.00mm x 11.00mm) | 0.827" (21.00mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
|
|
BFC233848117CAP FILM 1UF 20% 800VDC RADIAL |
7,157 |
|
Datasheet |
Radial | 1 µF | ±20% | 300V | 800V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.220" L x 0.433" W (31.00mm x 11.00mm) | 0.827" (21.00mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
|
|
BFC233848126CAP FILM 1UF 20% 800VDC RADIAL |
4,044 |
|
Datasheet |
Radial | 1 µF | ±20% | 300V | 800V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.220" L x 0.433" W (31.00mm x 11.00mm) | 0.827" (21.00mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
|

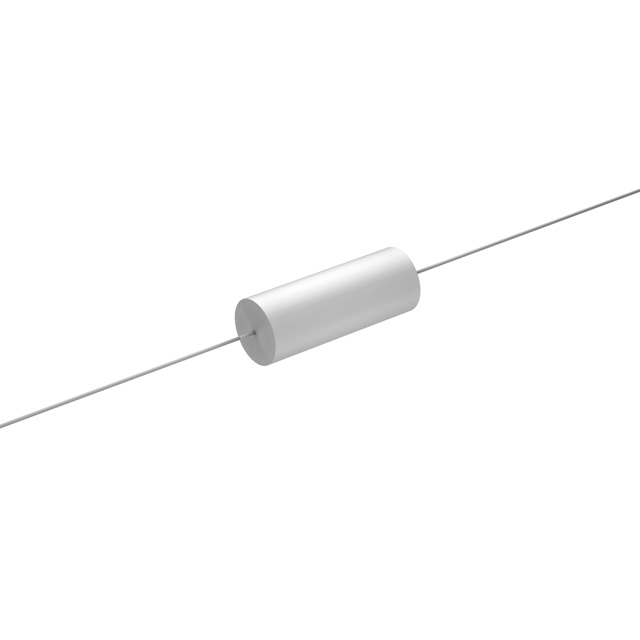

MMWA6P33K-FCAP FILM 0.33UF 10% 630VDC AXIAL |
4,748 |
|
Datasheet |
Axial | 0.33 µF | ±10% | 250V | 630V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.480" Dia x 1.248" L (12.20mm x 31.70mm) | - | PC Pins | - | General Purpose | - | - |
|
|
MKP4O141807G00KSSDMKP 4 1.8 F 1000 VDC 20X39.5X41. |
9,611 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MKP4R041207G00KSSDMKP 4 1.2 F 1250 VDC 20X39.5X41. |
7,809 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
DCP4I051507ED4MSC9DC-LINK MKP 4 15.0 F 600 VDC 17X |
8,212 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
DCP4I051507ED4MSSDDC-LINK MKP 4 15.0 F 600 VDC 17X |
7,635 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MKPF1W51007G00JSSDMKP 4F 10.0 F 275 VAC 20X39.5X41 |
3,538 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
F461RD126J250ZCAP FILM POLYPROP RAD |
8,786 |
|
Datasheet |
Radial | 12 µF | ±5% | 160V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.614" L x 0.748" W (41.00mm x 19.00mm) | 1.260" (32.00mm) | PC Pins | 1.476" (37.50mm) | High Pulse, DV/DT | - | - |
|
|
MKP1841415134CAP FILM 0.15UF 5% 1.6KVDC RAD |
7,317 |
|
Datasheet |
Radial | 0.15 µF | ±5% | 650V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.634" L x 0.630" W (41.50mm x 16.00mm) | 1.122" (28.50mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering; High Pulse, DV/DT; Snubber | - | - |
|
MKP1847H53031KK2CAP FILM 3UF 10% 630VDC RADIAL |
8,227 |
|
Datasheet |
Radial | 3 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | 6.5 mOhms | -40°C ~ 105°C | Through Hole | 1.260" L x 0.827" W (32.00mm x 21.00mm) | 1.248" (31.70mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | - | 85C/85% Humidity |
