Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FKP4T033307G00JSSDFKP 4 0.33 F 1600 VDC 20X39.5X41 |
5,798 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
MKP1848540924K2CAP FILM 4UF 5% 1.2KVDC RADIAL |
4,979 |
|
Datasheet |
Radial | 4 µF | ±5% | - | 1200V (1.2kV) | Polypropylene (PP), Metallized | 11 mOhms | -40°C ~ 105°C | Through Hole | 1.260" L x 0.827" W (32.00mm x 21.00mm) | 1.220" (31.00mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Low ESR |
|
|
B32756G7126J000CAP FILM 12UF 5% 550VDC RADIAL |
5,502 |
|
Datasheet |
Radial - 4 Leads | 12 µF | ±5% | 275V | 550V | Polypropylene (PP), Metallized | 5.6 mOhms | -40°C ~ 105°C | Through Hole | 1.654" L x 0.866" W (42.00mm x 22.00mm) | 1.772" (45.00mm) | PC Pins | 1.476" (37.50mm) | General Purpose | - | - |
|
|
F461RD156M250Z15.0UF 250V |
2,574 |
|
Datasheet |
Radial | 15 µF | ±20% | 160V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.614" L x 0.748" W (41.00mm x 19.00mm) | 1.260" (32.00mm) | PC Pins | 1.476" (37.50mm) | High Pulse, DV/DT | - | - |
|
BFC236822565CAP FILM 5.6UF 5% 100VDC RADIAL |
2,364 |
|
Datasheet |
Radial | 5.6 µF | ±5% | 63V | 100V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 1.181" L x 0.433" W (30.00mm x 11.00mm) | 0.945" (24.00mm) | PC Pins | 1.083" (27.50mm) | General Purpose | - | Long Life |
|
|
BFC236826565CAP FILM 5.6UF 5% 100VDC RADIAL |
2,098 |
|
Datasheet |
Radial | 5.6 µF | ±5% | 63V | 100V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 1.181" L x 0.433" W (30.00mm x 11.00mm) | 0.945" (24.00mm) | PC Pins | 1.083" (27.50mm) | General Purpose | - | Long Life |
|
|
BFC236827565CAP FILM 5.6UF 5% 100VDC RADIAL |
9,401 |
|
Datasheet |
Radial | 5.6 µF | ±5% | 63V | 100V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 1.181" L x 0.433" W (30.00mm x 11.00mm) | 0.945" (24.00mm) | PC Pins | 1.083" (27.50mm) | General Purpose | - | Long Life |
|
|
DCP4L051506JD2JSC9DC-LINK MKP 4 15.0 F 800 VDC 20X |
6,709 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
MKP1848H58080KK2CAP FILM 8UF 10% 800VDC RADIAL |
3,344 |
|
Datasheet |
Radial | 8 µF | ±10% | - | 800V | Polypropylene (PP), Metallized | 6.2 mOhms | -40°C ~ 85°C | Through Hole | 1.260" L x 0.866" W (32.00mm x 22.00mm) | 1.524" (38.70mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | 85C/85% Humidity; Low ESR, Low ESL |
|
|
FKP1O133307G00KSC9FKP 1 0.33 F 1000 VDC 20X39.5X41 |
2,595 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MKP385543016JKM2T0CAP FILM 4.3UF 5% 160VDC RADIAL |
8,940 |
|
Datasheet |
Radial | 4.3 µF | ±5% | 110V | 160V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.220" L x 0.512" W (31.00mm x 13.00mm) | 0.906" (23.00mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
MKP385543016JKP2T0CAP FILM 4.3UF 5% 160VDC RADIAL |
2,919 |
|
Datasheet |
Radial | 4.3 µF | ±5% | 110V | 160V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.220" L x 0.512" W (31.00mm x 13.00mm) | 0.906" (23.00mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
MKP385543016JKI2B0CAP FILM 4.3UF 5% 160VDC RADIAL |
9,774 |
|
Datasheet |
Radial | 4.3 µF | ±5% | 110V | 160V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.220" L x 0.512" W (31.00mm x 13.00mm) | 0.906" (23.00mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
MKS4C052706B00JSC9CAP FILM 27UF 5% 63VDC RADIAL |
6,115 |
|
Datasheet |
Radial | 27 µF | ±5% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 1.240" L x 0.433" W (31.50mm x 11.00mm) | 0.827" (21.00mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
|
F461RB685R160Z6.80UF 160V |
7,252 |
|
- |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MKP1G043907G00JSSDMKP 10 3.9 F 400 VDC 20X39.5X41. |
7,914 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
C4ATGBU4100A3AJCAP FILM METAL RAD POLYPROP |
7,816 |
|
Datasheet |
Radial | 1 µF | ±5% | 275V | 450V | Polypropylene (PP), Metallized | 9.4 mOhms | -40°C ~ 85°C | Through Hole | 1.260" L x 0.394" W (32.00mm x 10.00mm) | 0.787" (20.00mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Frequency, Switching | - | - |
|
|
MKP1F045607G00MSSDMKP 10 5.6 F 250 VDC 20X39.5X41. |
5,337 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MKP1F046807G00MSSDMKP 10 6.8 F 250 VDC 20X39.5X41. |
9,239 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

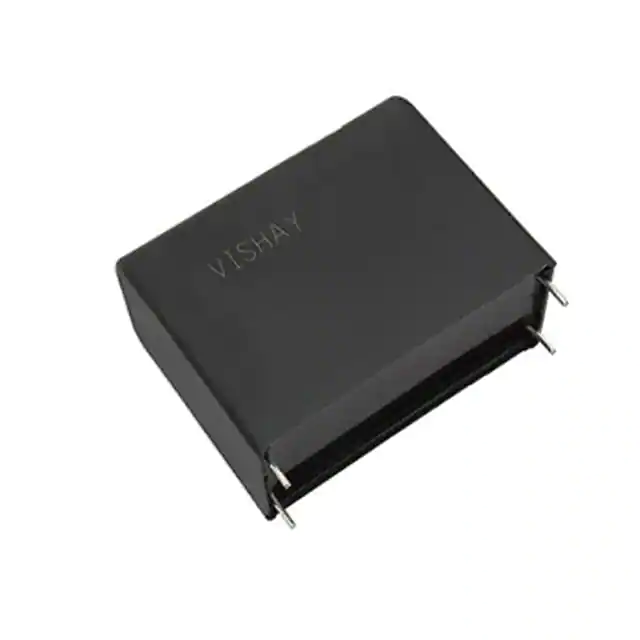

MKT1820610064CAP FILM 10UF 5% 63VDC RADIAL |
4,185 |
|
Datasheet |
Radial | 10 µF | ±5% | 40V | 63V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.709" L x 0.335" W (18.00mm x 8.50mm) | 0.571" (14.50mm) | PC Pins | 0.591" (15.00mm) | DC Link, DC Filtering | - | - |
