Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BFC238321434CAP FILM 0.43UF 5% 630VDC RADIAL |
2,454 |
|
Datasheet |
Radial | 0.43 µF | ±5% | 220V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.220" L x 0.433" W (31.00mm x 11.00mm) | 0.827" (21.00mm) | PC Pins | 1.083" (27.50mm) | High Pulse, DV/DT | - | - |
|
|
MKP385418200JKI2B0CAP FILM 0.18UF 5% 2KVDC RADIAL |
4,686 |
|
Datasheet |
Radial | 0.18 µF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.220" L x 0.827" W (31.00mm x 21.00mm) | 1.220" (31.00mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
MKP385418200JKM2T0CAP FILM 0.18UF 5% 2KVDC RADIAL |
6,070 |
|
Datasheet |
Radial | 0.18 µF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.220" L x 0.827" W (31.00mm x 21.00mm) | 1.220" (31.00mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
MKP385418200JKP2T0CAP FILM 0.18UF 5% 2KVDC RADIAL |
6,293 |
|
Datasheet |
Radial | 0.18 µF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.220" L x 0.827" W (31.00mm x 21.00mm) | 1.220" (31.00mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
MKP1848H55012KP2CAP FILM 5UF 10% 1.2KVDC RADIAL |
3,256 |
|
Datasheet |
Radial | 5 µF | ±10% | - | 1200V (1.2kV) | Polypropylene (PP), Metallized | 10.3 mOhms | -40°C ~ 85°C | Through Hole | 1.654" L x 0.846" W (42.00mm x 21.50mm) | 1.543" (39.20mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | 85C/85% Humidity; Low ESR, Low ESL |
.JPG)
|
225PPB400KCAP FILM 2.2UF 10% 400VDC RADIAL |
3,401 |
|
Datasheet |
Radial | 2.2 µF | ±10% | 250V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.673" L x 0.866" W (42.50mm x 22.00mm) | 0.866" (22.00mm) | PC Pins | 1.083" (27.50mm) | Commutation; High Pulse, DV/DT; Snubber | - | - |
|
|
EFDKA1CJ126E164DHCAP EFDKA 1200VDC 12UF J 4LEADS |
5,238 |
|
Datasheet |
Radial - 4 Leads | 12 µF | ±5% | - | 1200V (1.2kV) | Polypropylene (PP), Metallized | 8.5 mOhms | -55°C ~ 105°C | Through Hole | 1.654" L x 1.181" W (42.00mm x 30.00mm) | 1.811" (46.00mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
|
EFDKA1AJ186E164DHCAP EFDKA 1000VDC 18UF J 4LEADS |
5,989 |
|
Datasheet |
Radial - 4 Leads | 18 µF | ±5% | - | 1000V (1kV) | Polypropylene (PP), Metallized | 7.8 mOhms | -55°C ~ 105°C | Through Hole | 1.654" L x 1.181" W (42.00mm x 30.00mm) | 1.811" (46.00mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
|
MKS4C053306F00MH00CAP FILM 33UF 20% 63VDC RADIAL |
4,230 |
|
Datasheet |
Radial | 33 µF | ±20% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 1.240" L x 0.591" W (31.50mm x 15.00mm) | 1.024" (26.00mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
|
MKS4C053306F00MJ00CAP FILM 33UF 20% 63VDC RADIAL |
9,183 |
|
Datasheet |
Radial | 33 µF | ±20% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 1.240" L x 0.591" W (31.50mm x 15.00mm) | 1.024" (26.00mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
|
F871RV824M330ZCAP FILM POLYPROP RAD X1 |
7,227 |
|
Datasheet |
Radial | 0.82 µF | ±20% | 330V | 800V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.614" L x 0.945" W (41.00mm x 24.00mm) | 0.591" (15.00mm) | PC Pins | 1.476" (37.50mm) | EMI, RFI Suppression | X1 | - |
|
|
FKP4R036807H00KSSDFKP 4 0.68 F 1250 VDC 24X45.5X41 |
6,588 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MKS4F052207F00MSC9CAP FILM 22UF 20% 250VDC RADIAL |
9,256 |
|
Datasheet |
Radial | 22 µF | ±20% | 160V | 250V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 1.634" L x 0.748" W (41.50mm x 19.00mm) | 1.260" (32.00mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
|
MKP4R041507H00JSSDMKP 4 1.5 F 1250 VDC 24X45.5X41. |
8,518 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
BFC237872753CAP FILM 0.075UF 5% 1KVDC RADIAL |
4,823 |
|
Datasheet |
Radial | 0.075 µF | ±5% | 300V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 1.240" L x 0.354" W (31.50mm x 9.00mm) | 0.748" (19.00mm) | PC Pins | 1.083" (27.50mm) | High Pulse, DV/DT | - | Long Life |
|
|
FKP1J036807H00KSSDFKP 1 0.68 F 630 VDC 24X45.5X41. |
4,561 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
F161ZS565J050VCAP FILM SMD PET |
6,336 |
|
Datasheet |
Nonstandard SMD | 5.6 µF | ±5% | 30V | 50V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.650" L x 0.591" W (16.50mm x 15.00mm) | 0.283" (7.20mm) | Solder Pads | - | Automotive | AEC-Q200 | - |
|
|
C878AF34600AA1JCAP FILM MOTOR START RUN |
8,000 |
|
Datasheet |
Radial, Can | 6 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 1.378" Dia (35.00mm) | 3.150" (80.00mm) | Quick Connect - 0.250" (6.3mm) | 0.528" (13.40mm) | Motor Run | - | - |
|

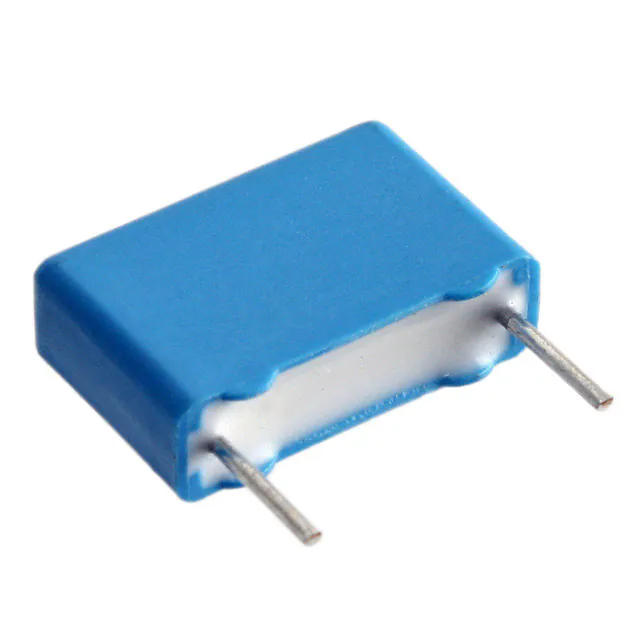

PHE450MR7150JR06L2CAP FILM 1.5UF 5% 630VDC RADIAL |
2,991 |
|
Datasheet |
Radial | 1.5 µF | ±5% | 300V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.614" L x 0.650" W (41.00mm x 16.50mm) | 1.260" (32.00mm) | PC Pins | 1.476" (37.50mm) | High Frequency, Switching | - | - |
|
|
F881RV474M300ZCAP FILM POLYPROP RAD Y2 |
4,954 |
|
Datasheet |
Radial | 0.47 µF | ±20% | 300V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.614" L x 0.945" W (41.00mm x 24.00mm) | 0.591" (15.00mm) | PC Pins | 1.476" (37.50mm) | EMI, RFI Suppression | Y2 | - |
