Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MKP4R041507H00JSC9MKP 4 1.5 F 1250 VDC 24X45.5X41. |
3,263 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MKP385375250JKI2B0CAP FILM 0.075UF 5% 2.5KVDC RAD |
3,276 |
|
Datasheet |
Radial | 0.075 µF | ±5% | 900V | 2500V (2.5kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.220" L x 0.827" W (31.00mm x 21.00mm) | 1.220" (31.00mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
MKP385375250JKM2T0CAP FILM 0.075UF 5% 2.5KVDC RAD |
4,592 |
|
Datasheet |
Radial | 0.075 µF | ±5% | 900V | 2500V (2.5kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.220" L x 0.827" W (31.00mm x 21.00mm) | 1.220" (31.00mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
MKP385375250JKP2T0CAP FILM 0.075UF 5% 2.5KVDC RAD |
3,130 |
|
Datasheet |
Radial | 0.075 µF | ±5% | 900V | 2500V (2.5kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.220" L x 0.827" W (31.00mm x 21.00mm) | 1.220" (31.00mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
|

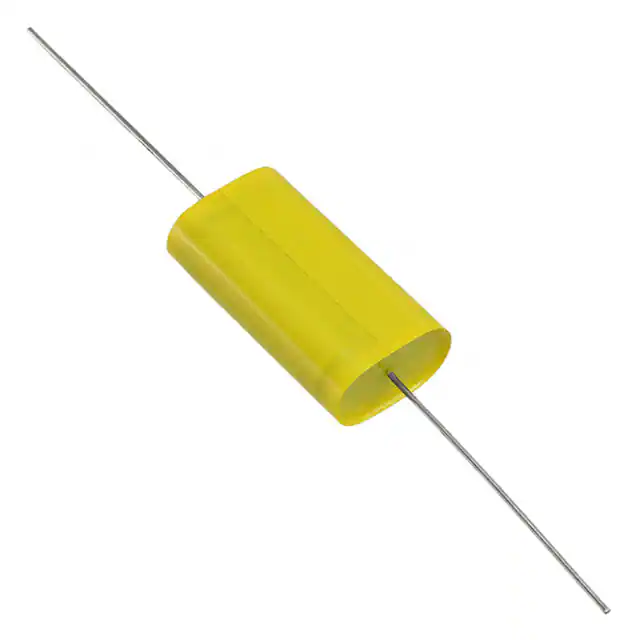

QAP2G105KRPCAP FILM 1UF 10% 400VDC AXIAL |
5 |
|
Datasheet |
Axial | 1 µF | ±10% | - | 400V | Polypropylene (PP), Metallized | - | -40°C ~ 85°C | Through Hole | 1.004" W, 0.622" T x 1.811" L (25.50mm, 15.80mm x 46.00mm) | - | PC Pins | - | High Frequency, Switching | - | - |
|
|
MKP385462125JKI2B0CAP FILM 0.62UF 5% 1.25KVDC RAD |
7,875 |
|
Datasheet |
Radial | 0.62 µF | ±5% | 450V | 1250V (1.25kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.220" L x 0.827" W (31.00mm x 21.00mm) | 1.220" (31.00mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
MKP385462125JKM2T0CAP FILM 0.62UF 5% 1.25KVDC RAD |
3,984 |
|
Datasheet |
Radial | 0.62 µF | ±5% | 450V | 1250V (1.25kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.220" L x 0.827" W (31.00mm x 21.00mm) | 1.220" (31.00mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
MKP385462125JKP2T0CAP FILM 0.62UF 5% 1.25KVDC RAD |
2,297 |
|
Datasheet |
Radial | 0.62 µF | ±5% | 450V | 1250V (1.25kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.220" L x 0.827" W (31.00mm x 21.00mm) | 1.220" (31.00mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
MKS4C053306F00KJ00CAP FILM 33UF 10% 63VDC RADIAL |
5,534 |
|
Datasheet |
Radial | 33 µF | ±10% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 1.240" L x 0.591" W (31.50mm x 15.00mm) | 1.024" (26.00mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
|
MKS4C053306F00KH00CAP FILM 33UF 10% 63VDC RADIAL |
2,781 |
|
Datasheet |
Radial | 33 µF | ±10% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 1.240" L x 0.591" W (31.50mm x 15.00mm) | 1.024" (26.00mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
|
DCP4G052507DD4JSC9DC-LINK MKP 4 25.0 F 400 VDC 15X |
3,302 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
DCP4H151507DD4JSSDDC-LINK MKP 4 15.0 F 500 VDC 15X |
6,166 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
DCP4G052507DD4JSSDDC-LINK MKP 4 25.0 F 400 VDC 15X |
2,925 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
DCP4H151507DD4JSC9DC-LINK MKP 4 15.0 F 500 VDC 15X |
2,129 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FKP1G041007G00JSC9FKP 1 1.0 F 400 VDC 20X39.5X41.5 |
7,871 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
C4AF3BW4850F3LKCAP FILM METAL RAD POLYPROP |
6,966 |
|
Datasheet |
Radial - 4 Leads | 8.5 µF | ±10% | 400V | 800V | Polypropylene (PP), Metallized | 8.3 mOhms | -55°C ~ 105°C | Through Hole | 1.654" L x 1.181" W (42.00mm x 30.00mm) | 1.780" (45.20mm) | PC Pins | 1.476" (37.50mm) | Automotive | AEC-Q200 | - |
|
MKP1847560274K2CAP FILM 6UF 5% 275VAC RADIAL |
9,218 |
|
Datasheet |
Radial | 6 µF | ±5% | 275V | - | Polypropylene (PP), Metallized | - | -40°C ~ 85°C | Through Hole | - | - | PC Pins | - | DC Link, DC Filtering; EMI, RFI Suppression; High Pulse, DV/DT | - | Long Life |
|
BFC246817395CAP FILM 3.9UF 5% 250VDC RADIAL |
7,194 |
|
Datasheet |
Radial | 3.9 µF | ±5% | 160V | 250V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.531" W (26.00mm x 13.50mm) | 1.043" (26.50mm) | PC Pins | 0.886" (22.50mm) | General Purpose | - | - |
|
|
BFC246854395CAP FILM 3.9UF 5% 250VDC RADIAL |
6,317 |
|
Datasheet |
Radial | 3.9 µF | ±5% | 160V | 250V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.531" W (26.00mm x 13.50mm) | 1.043" (26.50mm) | PC Pins | 0.886" (22.50mm) | General Purpose | - | - |
|
|
DCP4S047007HD4JSSDDC-LINK MKP 4 7.0 F 1500 VDC 24X |
8,002 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
