Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SNMPTA31506DB8MS00SNUBBER MKP 0.15 F 1700 VDC 13X2 |
2,383 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SNMPTA31506DD2MSSDSNUBBER MKP 0.15 F 1700 VDC 13X2 |
8,452 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SNMPTA31506DFSMS00SNUBBER MKP 0.15 F 1700 VDC 13X2 |
9,109 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SNMPT031506DB8MS00SNUBBER MKP 0.15 F 1600 VDC 13X2 |
2,189 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FOIL CAPACITOR MKP 8,2 UF/250VCAP FILM 8.2UF 5% 250VDC RADIAL |
5,619 |
|
- |
Radial | 8.2 µF | ±5% | - | 250V | Polypropylene (PP) | - | - | Through Hole | 1.969" L x 0.787" W (50.00mm x 20.00mm) | 1.220" (31.00mm) | PC Pins | 1.575" (40.00mm) | General Purpose | - | - |
|
|
MKP1F051007L00MSSDMKP 10 10.0 F 250 VDC 28X38X41.5 |
3,529 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

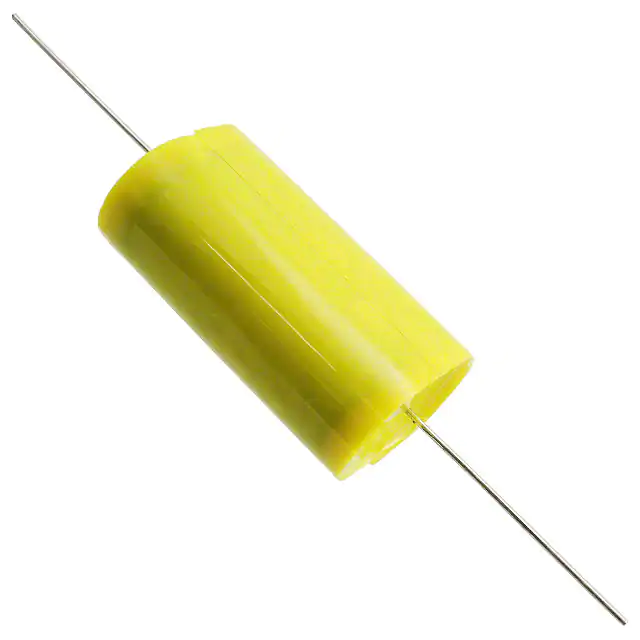

QAK2J335KTPCAP FILM 3.3UF 10% 630VDC AXIAL |
6,787 |
|
Datasheet |
Axial | 3.3 µF | ±10% | - | 630V | Polyester, Metallized | - | -40°C ~ 85°C | Through Hole | 1.240" W, 0.827" T x 1.969" L (31.50mm, 21.00mm x 50.00mm) | - | PC Pins | - | General Purpose | - | - |
|
|
MKP385536040JKI2B0CAP FILM 3.6UF 5% 400VDC RADIAL |
5,349 |
|
Datasheet |
Radial | 3.6 µF | ±5% | 200V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.220" L x 0.827" W (31.00mm x 21.00mm) | 1.220" (31.00mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
MKP385536040JKM2T0CAP FILM 3.6UF 5% 400VDC RADIAL |
4,384 |
|
Datasheet |
Radial | 3.6 µF | ±5% | 200V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.220" L x 0.827" W (31.00mm x 21.00mm) | 1.220" (31.00mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
MKP385536040JKP2T0CAP FILM 3.6UF 5% 400VDC RADIAL |
3,874 |
|
Datasheet |
Radial | 3.6 µF | ±5% | 200V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.220" L x 0.827" W (31.00mm x 21.00mm) | 1.220" (31.00mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
B32563J1226J000CAP FILM 22UF 5% 100VDC 2DIP |
4,219 |
|
Datasheet |
2-DIP | 22 µF | ±5% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Through Hole | 0.945" L x 0.504" W (24.00mm x 12.80mm) | 0.677" (17.20mm) | PC Pins | 0.886" (22.50mm) | General Purpose | - | - |
|
|
MKP1G046807L00MSC9MKP 10 6.8 F 400 VDC 28X38X41.5 |
7,474 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
R60IR5220AA00JCAP FILM AUTOMOTIVE |
6,714 |
|
Datasheet |
Radial | 22 µF | ±5% | 160V | 250V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 1.260" L x 0.709" W (32.00mm x 18.00mm) | 1.303" (33.10mm) | PC Pins | 1.083" (27.50mm) | General Purpose | - | - |
|
|
R60QW43305000KCAP FILM AUTOMOTIVE |
9,149 |
|
Datasheet |
Radial | 3.3 µF | ±10% | 250V | 1000V (1kV) | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 1.634" L x 0.945" W (41.50mm x 24.00mm) | 1.736" (44.10mm) | PC Pins | 1.476" (37.50mm) | General Purpose | - | - |
|
|
SNMPU031006DFSMS00SNUBBER MKP 0.1 F 2000 VDC 13X24 |
7,602 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SNMPU031006DD2MSSDSNUBBER MKP 0.1 F 2000 VDC 13X24 |
8,564 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SNMPU031006DB8MS00SNUBBER MKP 0.1 F 2000 VDC 13X24 |
2,017 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SNMPU031006DD4MSSDSNUBBER MKP 0.1 F 2000 VDC 13X24 |
6,390 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
BFC238324684CAP FILM 0.68UF 5% 630VDC RADIAL |
7,901 |
|
Datasheet |
Radial | 0.68 µF | ±5% | 220V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.220" L x 0.591" W (31.00mm x 15.00mm) | 0.984" (25.00mm) | PC Pins | 1.083" (27.50mm) | High Pulse, DV/DT | - | - |
|
BFC246853475CAP FILM 4.7UF 10% 250VDC RADIAL |
2,334 |
|
Datasheet |
Radial | 4.7 µF | ±10% | 160V | 250V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.587" W (26.00mm x 14.90mm) | 1.102" (28.00mm) | PC Pins | 0.886" (22.50mm) | General Purpose | - | - |
