Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MKP1848H61570JP2CAP FILM 15UF 5% 700VDC RADIAL |
3,799 |
|
Datasheet |
Radial | 15 µF | ±5% | - | 700V | Polypropylene (PP), Metallized | 4.7 mOhms | -40°C ~ 85°C | Through Hole | 1.654" L x 0.846" W (42.00mm x 21.50mm) | 1.543" (39.20mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | 85C/85% Humidity; Low ESR, Low ESL |
|
C4GAMUD4300AA3JCAP FILM METAL AXL POLYPROP |
9,970 |
|
Datasheet |
Axial | 3 µF | ±5% | 450V | 850V | Polypropylene (PP), Metallized | 3.6 mOhms | -40°C ~ 85°C | Through Hole | 1.102" Dia x 2.283" L (28.00mm x 58.00mm) | - | PC Pins | - | High Frequency, Switching | - | - |
|
|
MKP1V034707I00KSC9MKP 10 0.47 F 2500 VDC 31X46X41. |
4,456 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
R73QW41005030JCAP FILM METAL RAD POLYPROP |
6,371 |
|
Datasheet |
Radial | 1 µF | ±5% | 400V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.634" L x 0.945" W (41.50mm x 24.00mm) | 1.736" (44.10mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
MKP1847H56031JP4CAP FILM 6UF 5% 630VDC RADIAL |
8,488 |
|
Datasheet |
Radial - 4 Leads | 6 µF | ±5% | 310V | 630V | Polypropylene (PP), Metallized | 6 mOhms | -40°C ~ 105°C | Through Hole | 1.654" L x 0.846" W (42.00mm x 21.50mm) | 1.543" (39.20mm) | PC Pins | 1.476" (37.50mm) | EMI, RFI Suppression | - | 85C/85% Humidity |
|
|
MKP385E51512KPP4T0CAP FILM 1.5UF 1.25KVDC RAD |
5,326 |
|
Datasheet |
Radial - 4 Leads | 1.5 µF | ±10% | 450V | 1250V (1.25kV) | Polypropylene (PP), Metallized | 6 mOhms | -40°C ~ 105°C | Through Hole | 1.693" L x 0.846" W (43.00mm x 21.50mm) | 1.535" (39.00mm) | PC Pins | 1.476" (37.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT; Snubber | AEC-Q200 | High Temperature |
|
|
MKP385E51512KPM4T0CAP FILM 1.5UF 1.25KVDC RAD |
7,169 |
|
Datasheet |
Radial - 4 Leads | 1.5 µF | ±10% | 450V | 1250V (1.25kV) | Polypropylene (PP), Metallized | 6 mOhms | -40°C ~ 105°C | Through Hole | 1.693" L x 0.846" W (43.00mm x 21.50mm) | 1.535" (39.00mm) | PC Pins | 1.476" (37.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT; Snubber | AEC-Q200 | High Temperature |
|
|
F461RP186J250ZCAP FILM POLYPROP RAD |
9,864 |
|
Datasheet |
Radial | 18 µF | ±5% | 160V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.614" L x 0.827" W (41.00mm x 21.00mm) | 1.496" (38.00mm) | PC Pins | 1.476" (37.50mm) | High Pulse, DV/DT | - | - |
|
|
C870CF25250AA1JCAP FILM MOTOR START RUN |
9,817 |
|
Datasheet |
Radial, Can | 25 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 1.575" Dia (40.00mm) | 3.937" (100.00mm) | Quick Connect, Disconnect | 0.394" (10.00mm) | Motor Run | - | - |
|
|
MKP4J045607L00KSSDMKP 4 5.6 F 630 VDC 28X38X41.5 P |
9,492 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MKP4J045607H00KSSDMKP 4 5.6 F 630 VDC 24X45.5X41.5 |
8,008 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SNMPO133306F4LMS00SNUBBER MKP 0.33 F 1000 VDC 15X2 |
9,567 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SNMPU031506F4MMS00SNUBBER MKP 0.15 F 2000 VDC 15X2 |
5,811 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SNMPU031506F4LMS00SNUBBER MKP 0.15 F 2000 VDC 15X2 |
6,356 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
B32776P6206K000CAP FILM 20UF 10% 630VDC RADIAL |
4,347 |
|
Datasheet |
Radial - 4 Leads | 20 µF | ±10% | - | 630V | Polypropylene (PP), Metallized | 3.6 mOhms | -40°C ~ 125°C | Through Hole | 1.654" L x 1.102" W (42.00mm x 28.00mm) | 1.457" (37.00mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|

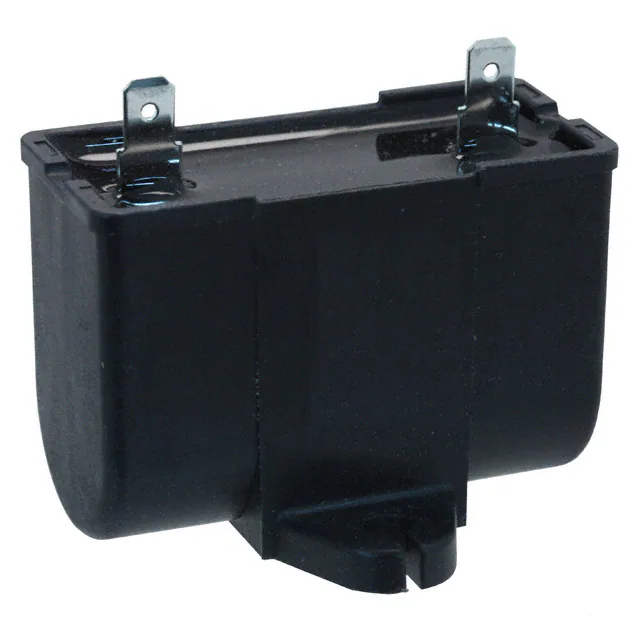

JS251106-BACAP FILM 10UF 10% 250VAC CHAS MT |
8,666 |
|
Datasheet |
Rectangular Box | 10 µF | ±10% | 250V | - | Polypropylene (PP), Metallized | - | -25°C ~ 70°C | Chassis Mount | 1.957" L x 0.945" W (49.70mm x 24.00mm) | 1.378" (35.00mm) | Quick Connect - 0.187" (4.7mm) | - | Motor Run | - | - |
|
|
F461RD226J160ZCAP FILM POLYPROP RAD |
4,289 |
|
Datasheet |
Radial | 22 µF | ±5% | 90V | 160V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.614" L x 0.748" W (41.00mm x 19.00mm) | 1.260" (32.00mm) | PC Pins | 1.476" (37.50mm) | High Pulse, DV/DT | - | - |
|
MKP1848C57012JP2CAP FILM 7UF 5% 1.2KVDC RADIAL |
9,448 |
|
Datasheet |
Radial | 7 µF | ±5% | - | 1200V (1.2kV) | Polypropylene (PP), Metallized | 13 mOhms | -55°C ~ 105°C | Through Hole | 1.693" L x 0.846" W (43.00mm x 21.50mm) | 1.516" (38.50mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering | - | Low ESR; Low ESL; Long Life |
|
MKP1848C61280JP4CAP FILM 12UF 5% 800VDC RADIAL |
8,372 |
|
Datasheet |
Radial - 4 Leads | 12 µF | ±5% | - | 800V | Polypropylene (PP), Metallized | 10 mOhms | -55°C ~ 105°C | Through Hole | 1.693" L x 0.728" W (43.00mm x 18.50mm) | 1.398" (35.50mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering | - | Low ESR; Low ESL; Long Life |
|
|
MKP385E58240KPP2T0CAP FILM 8.2UF 10% 400VDC RAD |
3,516 |
|
Datasheet |
Radial | 8.2 µF | ±10% | 200V | 400V | Polypropylene (PP), Metallized | 5 mOhms | -40°C ~ 105°C | Through Hole | 1.693" L x 0.846" W (43.00mm x 21.50mm) | 1.535" (39.00mm) | PC Pins | 1.476" (37.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT; Snubber | AEC-Q200 | High Temperature |
