Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
F17725222260CAP FILM 2.2UF 20% 630VDC RADIAL |
3,226 |
|
Datasheet |
Radial | 2.2 µF | ±20% | 310V | 630V | Polyester, Metallized | - | -40°C ~ 110°C | Through Hole | 1.220" L x 0.827" W (31.00mm x 21.00mm) | 1.122" (28.50mm) | PC Pins | 1.476" (37.50mm) | EMI, RFI Suppression | X2 | - |
|
SNMPU026806BD2MS00SNUBBER MKP 0.068 F 2000 VDC 11X |
4,122 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
BFC238310914CAP FILM 0.91UF 5% 400VDC RADIAL |
8,932 |
|
Datasheet |
Radial | 0.91 µF | ±5% | 200V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.220" L x 0.591" W (31.00mm x 15.00mm) | 0.984" (25.00mm) | PC Pins | 1.083" (27.50mm) | High Pulse, DV/DT | - | - |
|
|
BFC238311914CAP FILM 0.91UF 5% 400VDC RADIAL |
6,297 |
|
Datasheet |
Radial | 0.91 µF | ±5% | 200V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.220" L x 0.591" W (31.00mm x 15.00mm) | 0.984" (25.00mm) | PC Pins | 1.083" (27.50mm) | High Pulse, DV/DT | - | - |
|
|
21FD3704-FCAP FILM 4UF 10% 370VAC RADIAL |
2,689 |
|
Datasheet |
Radial, Can | 4 µF | ±10% | 370V | - | Polypropylene (PP), Metallized | - | -40°C ~ 70°C | Chassis Mount, Requires Holder/Bracket | 1.875" Dia (47.63mm), Lip | 2.880" (73.15mm) | Quick Connect, Disconnect | 0.813" (20.64mm) | Motor Run; Power Factor Correction (PFC) | - | - |
|
|
21FD3705-FCAP FILM 5UF 10% 370VAC RADIAL |
8,555 |
|
Datasheet |
Radial, Can | 5 µF | ±10% | 370V | - | Polypropylene (PP), Metallized | - | -40°C ~ 70°C | Chassis Mount, Requires Holder/Bracket | 1.875" Dia (47.63mm), Lip | 2.880" (73.15mm) | Quick Connect, Disconnect | 0.813" (20.64mm) | Motor Run; Power Factor Correction (PFC) | - | - |
|
|
MKP1845522405CAP FILM 2.2UF 10% 400VDC AXIAL |
8,708 |
|
Datasheet |
Axial | 2.2 µF | ±10% | 220V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.024" Dia x 1.811" L (26.00mm x 46.00mm) | - | PC Pins | - | DC Link, DC Filtering; High Pulse, DV/DT; Snubber | - | - |
|
|
MKP1845522406CAP FILM 2.2UF 20% 400VDC AXIAL |
7,877 |
|
Datasheet |
Axial | 2.2 µF | ±20% | 220V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.024" Dia x 1.811" L (26.00mm x 46.00mm) | - | PC Pins | - | DC Link, DC Filtering; High Pulse, DV/DT; Snubber | - | - |
|

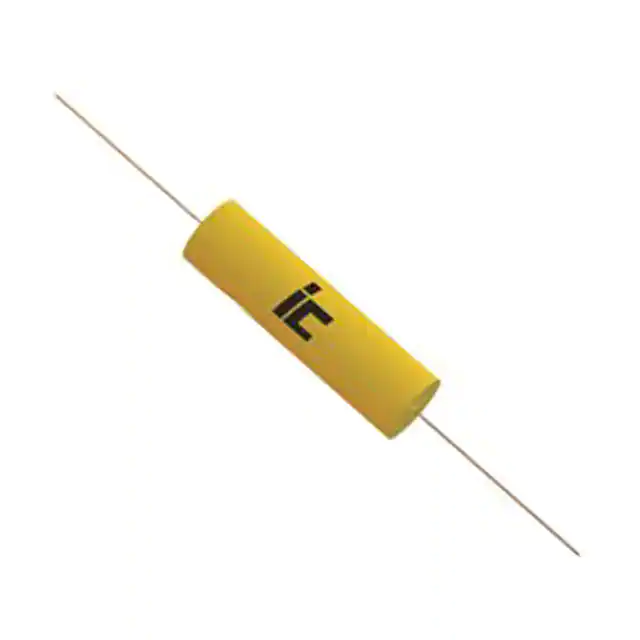

684MWR152KNCAP FILM 0.68UF 1.5KVDC AXIAL |
3,260 |
|
Datasheet |
Axial | 0.68 µF | ±10% | 300V | 1500V (1.5kV) | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.965" Dia x 1.831" L (24.50mm x 46.50mm) | - | PC Pins | - | General Purpose | - | Low ESR |
|
|
C878AF35180AA0JCAP FILM MOTOR START RUN |
6,671 |
|
Datasheet |
Radial, Can | 18 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 1.772" Dia (45.00mm) | 3.150" (80.00mm) | Quick Connect - 0.250" (6.3mm) | 0.528" (13.40mm) | Motor Run | - | - |
|
|
SNMPU031007B3GKS00SNUBBER MKP 0.1 F 2000 VDC 11X22 |
5,574 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SNMPU031007B3IKS00SNUBBER MKP 0.1 F 2000 VDC 11X22 |
5,856 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SNMPW031006F4MKS00SNUBBER MKP 0.1 F 3000 VDC 15X26 |
2,561 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SNMPW031006F4LKS00SNUBBER MKP 0.1 F 3000 VDC 15X26 |
9,238 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SNMPU031007B1KKS00SNUBBER MKP 0.1 F 2000 VDC 11X22 |
4,505 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SNMPU031007B3AKS00SNUBBER MKP 0.1 F 2000 VDC 11X22 |
8,812 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SNMPU031007B1IKS00SNUBBER MKP 0.1 F 2000 VDC 11X22 |
4,547 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SNMPU031007B1AKS00SNUBBER MKP 0.1 F 2000 VDC 11X22 |
2,299 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SNMPU031007B1JKS00SNUBBER MKP 0.1 F 2000 VDC 11X22 |
3,856 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SNMPU031007B1HKS00SNUBBER MKP 0.1 F 2000 VDC 11X22 |
2,381 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
