Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SNFPT026807DB8JS00SNUBBER FKP 0.068 F 1600 VDC 15X |
3,926 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SNFPX023307DB8JS00SNUBBER FKP 0.033 F 4000 VDC 15X |
4,901 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SNFPT026807DD2JSSDSNUBBER FKP 0.068 F 1600 VDC 15X |
2,726 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SNFPX023307DFSJS00SNUBBER FKP 0.033 F 4000 VDC 15X |
4,929 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MKP1845533165CAP FILM 3.3UF 10% 160VDC AXIAL |
6,465 |
|
Datasheet |
Axial | 3.3 µF | ±10% | 100V | 160V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.728" Dia x 1.732" L (18.50mm x 44.00mm) | - | PC Pins | - | DC Link, DC Filtering; High Pulse, DV/DT; Snubber | - | - |
|
|
BFC238374363CAP FILM 0.036UF 5% 2.5KVDC RAD |
7,538 |
|
Datasheet |
Radial | 0.036 µF | ±5% | 900V | 2500V (2.5kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.220" L x 0.591" W (31.00mm x 15.00mm) | 0.984" (25.00mm) | PC Pins | 1.083" (27.50mm) | High Pulse, DV/DT | - | - |
|
|
SNMPO133306F4MJS00SNUBBER MKP 0.33 F 1000 VDC 15X2 |
8,295 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
BLH156K901B092DC LINK, THB, 85/85, AEC-Q200 |
8,861 |
|
Datasheet |
Radial | 15 µF | ±10% | - | 900V | Polypropylene (PP), Metallized | 8 mOhms | -40°C ~ 105°C | Through Hole | 1.673" L x 0.945" W (42.50mm x 24.00mm) | 1.732" (44.00mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | 85C/85% Humidity, THB, Low ESR, Low ESL, Long Life |
|
|
BLH256K451B054DC LINK, THB, 85/85, AEC-Q200 |
9,420 |
|
Datasheet |
Radial - 4 Leads | 25 µF | ±10% | - | 450V | Polypropylene (PP), Metallized | 5.5 mOhms | -40°C ~ 105°C | Through Hole | 1.673" L x 0.866" W (42.50mm x 22.00mm) | 1.488" (37.80mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | 85C/85% Humidity, THB, Low ESR, Low ESL, Long Life |
|
|
BFC233611684CAP FILM 0.68UF 10% 630VDC RAD |
2,520 |
|
Datasheet |
Radial | 0.68 µF | ±10% | 275V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.220" L x 0.709" W (31.00mm x 18.00mm) | 1.102" (28.00mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X1 | - |
|
FB37L6L0106KCCAP FILM 10UF 10% 1.1KVDC RADIAL |
6,341 |
|
Datasheet |
Radial | 10 µF | ±10% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | 9 mOhms | -40°C ~ 100°C | Through Hole | 1.673" L x 0.945" W (42.50mm x 24.00mm) | 1.732" (44.00mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering | - | Low ESR |
|
|
MKP1V034707I00KSSDMKP 10 0.47 F 2500 VDC 31X46X41. |
6,144 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
F340X151548MKI2B0MKP F340X1 1,5F 20% 480VAC |
9,699 |
|
Datasheet |
Radial | 1.5 µF | ±20% | 480V, 530V | 800V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.260" L x 0.866" W (32.00mm x 22.00mm) | 1.524" (38.70mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression; 3 Phase | X1 | 85C/85% Humidity |
.jpg)
|

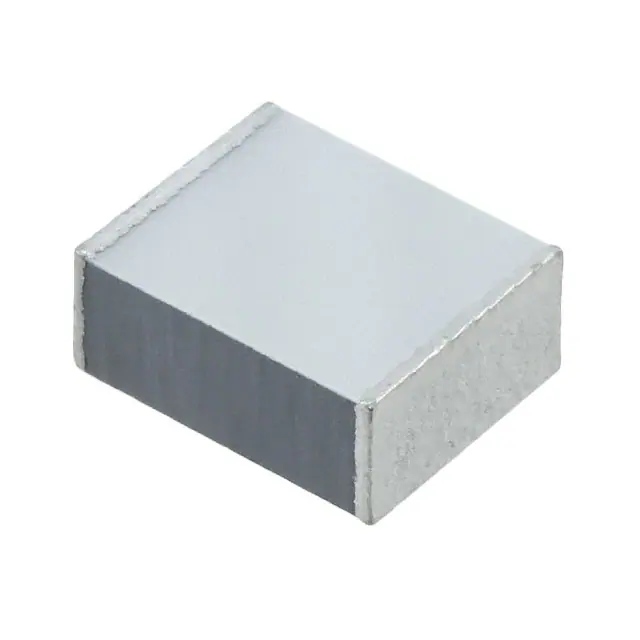

LDECG4470KA0N00CAP FILM 4.7UF 10% 50VDC 5040 |
4,064 |
|
Datasheet |
5040 (127102 Metric) | 4.7 µF | ±10% | 40V | 50V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.512" L x 0.409" W (13.00mm x 10.40mm) | 0.161" (4.10mm) | Solder Pads | - | Automotive | AEC-Q200 | High Temperature |
|
|
SNMPW031507DFSKS00SNUBBER MKP 0.15 F 3000 VDC 15X2 |
5,222 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MKP4J045607L00MSC9MKP 4 5.6 F 630 VDC 28X38X41.5 P |
3,920 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MKP4J045607H00MSC9MKP 4 5.6 F 630 VDC 24X45.5X41.5 |
9,934 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
C870CF35250AA1JCAP FILM MOTOR START RUN |
3,910 |
|
Datasheet |
Radial, Can | 25 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 0.984" Dia (25.00mm) | 2.303" (58.50mm) | Quick Connect - 0.250" (6.3mm) | 0.528" (13.40mm) | Motor Run | - | - |
|
|
BFC237872114CAP FILM 0.11UF 5% 1KVDC RADIAL |
3,747 |
|
Datasheet |
Radial | 0.11 µF | ±5% | 300V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 1.240" L x 0.433" W (31.50mm x 11.00mm) | 0.827" (21.00mm) | PC Pins | 1.083" (27.50mm) | High Pulse, DV/DT | - | Long Life |
|
|
BFC237874114CAP FILM 0.11UF 5% 1KVDC RADIAL |
5,008 |
|
Datasheet |
Radial | 0.11 µF | ±5% | 300V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 1.240" L x 0.433" W (31.50mm x 11.00mm) | 0.827" (21.00mm) | PC Pins | 1.083" (27.50mm) | High Pulse, DV/DT | - | Long Life |
