Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SNMPTA31507B1AKS00SNUBBER MKP 0.15 F 1700 VDC 11X2 |
8,476 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
SFA37T2K156B-FCAP FILM 2UF 10% 370VAC RADIAL |
8,814 |
|
Datasheet |
Radial, Can | 2 µF | ±10% | 370V | - | Polypropylene (PP), Metallized | - | -40°C ~ 70°C | Chassis Mount, Requires Holder/Bracket | 2.160" L x 1.310" W (54.86mm x 33.27mm), Lip | 1.680" (42.67mm) | Quick Connect, Disconnect | 0.810" (20.57mm) | Motor Run | - | - |
|
|
SFA44T2K156B-FCAP FILM 2UF 10% 440VAC RADIAL |
8,641 |
|
Datasheet |
Radial, Can | 2 µF | ±10% | 440V | - | Polypropylene (PP), Metallized | - | -40°C ~ 70°C | Chassis Mount, Requires Holder/Bracket | 2.160" L x 1.310" W (54.86mm x 33.27mm), Lip | 1.680" (42.67mm) | Quick Connect, Disconnect | 0.810" (20.57mm) | Motor Run | - | - |
|
|
MKP383422200JPP2T0CAP FILM 0.22UF 5% 2KVDC RADIAL |
6,763 |
|
Datasheet |
Radial | 0.22 µF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.634" L x 0.709" W (41.50mm x 18.00mm) | 1.280" (32.50mm) | PC Pins | 1.476" (37.50mm) | High Pulse, DV/DT | - | - |
|
|
C870CF35140AA0JCAP FILM MOTOR START RUN |
5,894 |
|
Datasheet |
Radial, Can | 14 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 1.378" Dia (35.00mm) | 3.150" (80.00mm) | Quick Connect, Disconnect | 0.528" (13.40mm) | Motor Run | - | - |
|
|
DCP4H152507FD2JSSDDC-LINK MKP 4 25.0 F 500 VDC 19X |
7,183 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

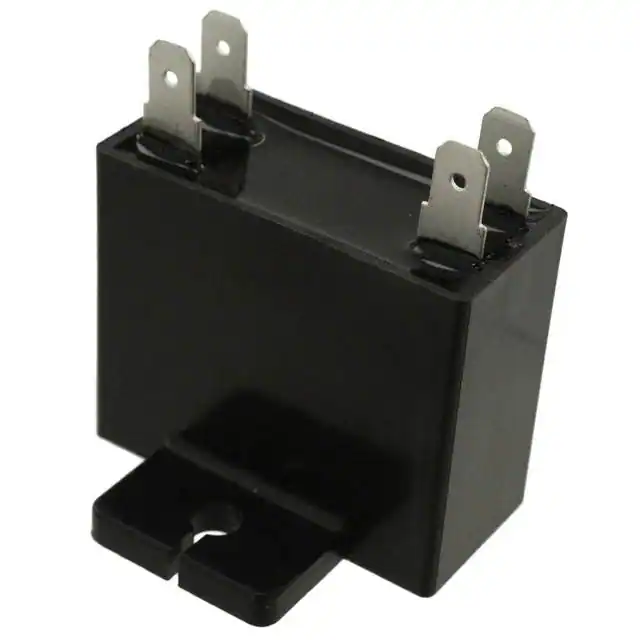

EEC2E805HQA404CAP FILM 8UF 250VAC QC TERM |
8,231 |
|
Datasheet |
Rectangular Box | 8 µF | -5%, +10% | 250V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis Mount | 1.457" L x 0.689" W (37.00mm x 17.50mm) | 1.260" (32.00mm) | Quick Connect, Disconnect | - | Motor Run | - | - |
|
|
B32776E9226K000CAP FILM 22UF 10% 900VDC RADIAL |
9,605 |
|
Datasheet |
Radial | 22 µF | ±10% | - | 900V | Polypropylene (PP), Metallized | 6.6 mOhms | -40°C ~ 105°C | Through Hole | 1.654" L x 1.102" W (42.00mm x 28.00mm) | 1.673" (42.50mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering | - | Long Life |
|
|
B32776G9226K000CAP FILM 22UF 900VDC RAD 4 LEAD |
5,336 |
|
Datasheet |
Radial - 4 Leads | 22 µF | ±10% | - | 900V | Polypropylene (PP), Metallized | 6.3 mOhms | -40°C ~ 105°C | Through Hole | 1.654" L x 1.102" W (42.00mm x 28.00mm) | 1.673" (42.50mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering | - | Long Life |
|
MKP1848S63070JY2FCAP FILM 30UF 5% 700VDC RADIAL |
3,865 |
|
Datasheet |
Radial | 30 µF | ±5% | - | 700V | Polypropylene (PP), Metallized | 6 mOhms | -40°C ~ 105°C | Through Hole | 2.264" L x 1.535" W (57.50mm x 39.00mm) | 0.945" (24.00mm) | PC Pins | 2.067" (52.50mm) | DC Link, DC Filtering | - | Low ESR; Low ESL; Long Life |
|
|
SNMPU031506FFSJS00SNUBBER MKP 0.15 F 2000 VDC 15X2 |
9,316 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SNMPU031506FD4JSSDSNUBBER MKP 0.15 F 2000 VDC 15X2 |
8,985 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SNMPU031506FD2JSSDSNUBBER MKP 0.15 F 2000 VDC 15X2 |
6,977 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SNMPU031506FB8JS00SNUBBER MKP 0.15 F 2000 VDC 15X2 |
5,930 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SNMPO133306FD2JSSDSNUBBER MKP 0.33 F 1000 VDC 15X2 |
6,719 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SNMPO133306FB8JS00SNUBBER MKP 0.33 F 1000 VDC 15X2 |
5,806 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SNMPO133306FFSJS00SNUBBER MKP 0.33 F 1000 VDC 15X2 |
6,873 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SNMPO134707DB8JS00SNUBBER MKP 0.47 F 1000 VDC 15X2 |
6,949 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SNMPO134707DD4JSSDSNUBBER MKP 0.47 F 1000 VDC 15X2 |
4,128 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SNMPO134707DFSJS00SNUBBER MKP 0.47 F 1000 VDC 15X2 |
5,791 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
