DC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Number of Outputs | Voltage - Input (Min) | Voltage - Input (Max) | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Current - Output (Max) | Power (Watts) | Voltage - Isolation | Applications | Features | Operating Temperature | Efficiency | Grade | Qualification | Mounting Type | Size / Dimension | Supplier Device Package | Control Features | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PT6445CDC DC CONVERTER 1.5V 6A |
0 |
|
Datasheet |
Excalibur™ PT6440 | 12-SIP SMD Module | Tray | Obsolete | Non-Isolated PoL Module | 1 | 3.1V | 5.5V | 1.5V | - | - | - | 6A | - | - | ITE (Commercial) | - | -40°C ~ 85°C | 81% | - | - | Surface Mount | - | - | - | - | |
|
|
PT6444CDC DC CONVERTER 1.8V 6A |
11 |
|
Datasheet |
Excalibur™ PT6440 | 12-SIP SMD Module | Tray | Obsolete | Non-Isolated PoL Module | 1 | 3.1V | 5.5V | 1.8V | - | - | - | 6A | - | - | ITE (Commercial) | - | -40°C ~ 85°C | 85% | - | - | Surface Mount | - | - | - | - | |
|
|
RDL03-110S15WDC DC CONVERTER 15V 3W |
10 |
|
Datasheet |
RDL03W (3W) | 12-SIP Module, 10 Leads | Tube | Active | Isolated Module | 1 | 43V | 160V | 15V | - | - | - | 200mA | 3 W | 3 kV | ITE (Commercial) | Remote On/Off, Standby Output | -40°C ~ 100°C (With Derating) | 83% | - | - | Through Hole | - | - | CB, CE, cURus | 60950-1; 62368-1 | |
|
|
RDL03-110S24WDC DC CONVERTER 24V 3W |
10 |
|
Datasheet |
RDL03W (3W) | 12-SIP Module, 10 Leads | Tube | Active | Isolated Module | 1 | 43V | 160V | 24V | - | - | - | 125mA | 3 W | 3 kV | ITE (Commercial) | Remote On/Off, Standby Output | -40°C ~ 100°C (With Derating) | 83% | - | - | Through Hole | - | - | CB, CE, cURus | 60950-1; 62368-1 | |
|
|
PT6444NDC DC CONVERTER 1.8V 6A |
63 |
|
Datasheet |
Excalibur™ PT6440 | 12-SIP Module | Tray | Obsolete | Non-Isolated PoL Module | 1 | 3.1V | 5.5V | 1.8V | - | - | - | 6A | - | - | ITE (Commercial) | - | -40°C ~ 85°C | 85% | - | - | Through Hole | - | - | - | - | |
|
JWE0648D15DC DC CONVERTER +/-15V 6W |
30 |
|
Datasheet |
JWE06 (6W) | 16-DIP Module, 6 Leads | Tube | Active | Isolated Module | 2 | 18V | 75V | 15V | -15V | - | - | 200mA, 200mA | 6 W | 1.5 kV | ITE (Commercial) | OCP, SCP | -40°C ~ 105°C (With Derating) | 87% | - | - | Through Hole | 16-DIP | - | - | 62368-1 | |
|
ICZ0948D15DC DC CONVERTER +/-15V 9W |
19 |
|
Datasheet |
ICZ (9W) | 12-SIP Module, 6 Leads | Tube | Active | Isolated Module | 2 | 36V | 75V | 15V | -15V | - | - | 300mA, 300mA | 9 W | 1.6 kV | ITE (Commercial) | Remote On/Off, OCP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 87% | - | - | Through Hole | 12-SIP | - | - | 62368-1 | |
|
|
ICZ0948D12DC DC CONVERTER +/-12V 9W |
18 |
|
Datasheet |
ICZ (9W) | 12-SIP Module, 6 Leads | Tube | Active | Isolated Module | 2 | 36V | 75V | 12V | -12V | - | - | 375mA, 375mA | 9 W | 1.6 kV | ITE (Commercial) | Remote On/Off, OCP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 87% | - | - | Through Hole | 12-SIP | - | - | 62368-1 | |
|
|
ISU0305S24-TRDC DC CONVERTER 24V 3W |
10 |
|
Datasheet |
ISU03 (3W) | 14-SMD Module, 7 Leads | Tape & Reel (TR) | Active | Isolated Module | 1 | 4.5V | 12V | 24V | - | - | - | 125mA | 3 W | 1.5 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 95°C (With Derating) | 82% | - | - | Surface Mount | - | - | CE, UKCA, UL | 62368-1 | |
|
ISU0305S12DC DC CONVERTER 12V 3W |
10 |
|
Datasheet |
ISU03 (3W) | 14-SMD Module, 7 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 12V | 12V | - | - | - | 250mA | 3 W | 1.5 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 95°C (With Derating) | 82% | - | - | Surface Mount | - | - | - | 62368-1 | |
|
|
ISU0305S24DC DC CONVERTER 24V 3W |
10 |
|
Datasheet |
ISU03 (3W) | 14-SMD Module, 7 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 12V | 24V | - | - | - | 125mA | 3 W | 1.5 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 95°C (With Derating) | 82% | - | - | Surface Mount | - | - | CE, UKCA, UL | 62368-1 | |
|
AM9G-2405DZDC DC CONVERTER +/-5V 9W |
6 |
|
Datasheet |
AM9G-Z (9W) | 8-SIP Module | Tube | Active | Isolated Module | 2 | 18V | 36V | -5 ~ 5V | -5V | - | - | 800mA, 800mA | 9 W | 1.6 kV | ITE (Commercial) | Remote On/Off | -40°C ~ 85°C | 86% | - | - | Through Hole | - | - | - | - | |
.jpg)
|
REC3-0505SRW/H6/C/SMD-RDC DC CONVERTER 5V 3W |
100 |
|
Datasheet |
ECONOLINE REC3-SRW (3W) | 24-SMD Module, 18 Leads | Tape & Reel (TR) | Active | Isolated Module | 1 | 4.5V | 9V | 5V | - | - | - | 600mA | 3 W | 6 kV | ITE (Commercial), Medical | SCP | -40°C ~ 80°C | 79% | - | - | Surface Mount | - | - | - | - | |
|

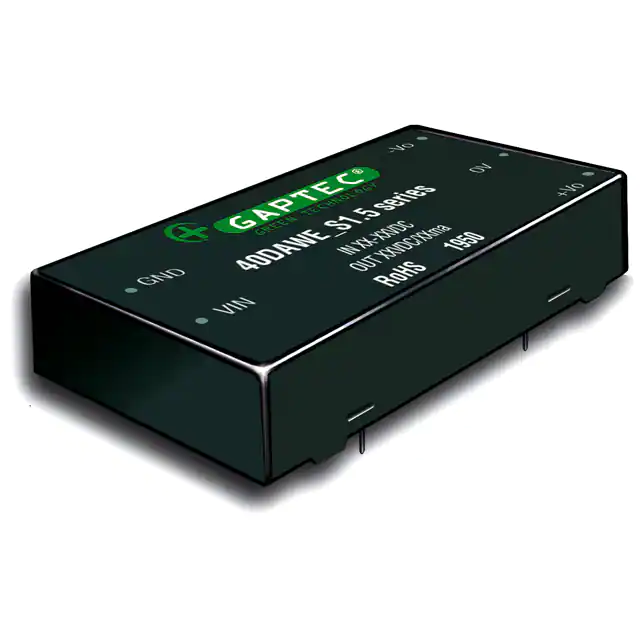

40DAWE_2412S1.5ISOLATED MODULE DC DC CONVERTERS |
46 |
|
Datasheet |
40DAWE_1.5 (40W) | 6-DIP Module | Tube | Obsolete | Isolated Module | 1 | 18V | 36V | 12V | - | - | - | 3.333A | 40 W | 1.5 kV | ITE (Commercial) | Remote On/Off | -40°C ~ 85°C (With Derating) | 90% | - | - | Through Hole | - | - | CE, cURus | 62368-1 | |
|

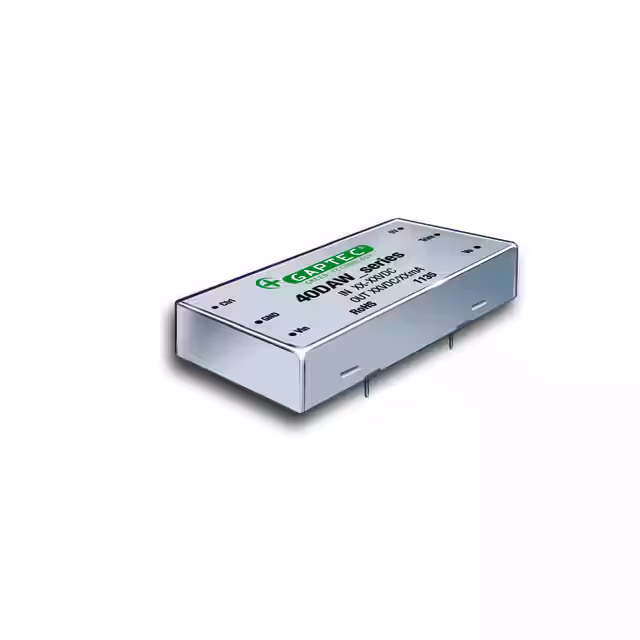

40DAWE_4815S1.5ISOLATED MODULE DC DC CONVERTERS |
40 |
|
Datasheet |
40DAWE_1.5 (40W) | 6-DIP Module | Tube | Obsolete | Isolated Module | 1 | 36V | 75V | 15V | - | - | - | 2.667A | 40 W | 1.5 kV | ITE (Commercial) | Remote On/Off | -40°C ~ 85°C (With Derating) | 91% | - | - | Through Hole | - | - | CE, cURus | 62368-1 | |
|
|
40DAWE_2405S1.5ISOLATED MODULE DC DC CONVERTERS |
40 |
|
Datasheet |
40DAWE_1.5 (40W) | 6-DIP Module | Tube | Obsolete | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 8A | 40 W | 1.5 kV | ITE (Commercial) | Remote On/Off | -40°C ~ 85°C (With Derating) | 88% | - | - | Through Hole | - | - | CE, cURus | 62368-1 | |
|
|
PT6644PDC DC CONVERTER -9V 2.5A |
0 |
|
Datasheet |
PT6640 (24W) | 14-SIP Module | Tray | Obsolete | Non-Isolated PoL Module | 1 | 8V | 21V | -9V | - | - | - | 2.5A | - | - | ITE (Commercial) | - | -40°C ~ 85°C | 84% | - | - | Through Hole | - | - | - | - | |
|
|
PT6673PDC DC CONVERTER 12V 1.25A |
0 |
|
Datasheet |
PT6670 | 14-SIP Module | Tray | Obsolete | Non-Isolated PoL Module | 1 | 3.1V | 3.6V | 12V | - | - | - | 1.25A | - | - | ITE (Commercial) | - | -40°C ~ 85°C | 82% | - | - | Through Hole | - | - | - | - | |
|
|
PT6521PDC DC CONVERTER 3.3V 8A |
0 |
|
Datasheet |
PT6520 | 14-SIP Module | Tray | Obsolete | Non-Isolated PoL Module | 1 | 4.5V | 5.5V | 3.3V | - | - | - | 8A | - | - | ITE (Commercial) | - | -40°C ~ 85°C | 89% | - | - | Through Hole | - | - | - | - | |
|
|
PT6621EDC DC CONVERTER 3.3V 20W |
0 |
|
Datasheet |
PT6620 | 14-SMD Module | Tray | Obsolete | Non-Isolated PoL Module | 1 | 9V | 16V | 3.3V | - | - | - | 6A | - | - | ITE (Commercial) | Remote On/Off, OTP | -40°C ~ 85°C | 83% | - | - | Surface Mount | - | - | - | - |
