DC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Number of Outputs | Voltage - Input (Min) | Voltage - Input (Max) | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Current - Output (Max) | Power (Watts) | Voltage - Isolation | Applications | Features | Operating Temperature | Efficiency | Grade | Qualification | Mounting Type | Size / Dimension | Supplier Device Package | Control Features | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ISU0248S05DC DC CONVERTER 5V 2W |
10 |
|
Datasheet |
ISU02 (2W) | 14-SMD Module, 7 Leads | Tube | Active | Isolated Module | 1 | 18V | 75V | 5V | - | - | - | 400mA | 2 W | 1.5 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 95°C (With Derating) | 78% | - | - | Surface Mount | - | - | CE, UKCA, UL | 62368-1 | |
|
|
PT6603LDC DC CONVERTER 2.5V 18W |
94 |
|
Datasheet |
PT6600 | 14-SMD Module | Tray | Obsolete | Non-Isolated PoL Module | 1 | 4.5V | 6V | 2.5V | - | - | - | 9A | - | - | ITE (Commercial) | Remote On/Off, OTP | -40°C ~ 85°C | 76% | - | - | Surface Mount | - | - | - | - | |
|
|
PT6603BDC DC CONVERTER 2.5V 18W |
58 |
|
Datasheet |
PT6600 | 14-SMD Module | Tray | Obsolete | Non-Isolated PoL Module | 1 | 4.5V | 6V | 2.5V | - | - | - | 9A | - | - | ITE (Commercial) | Remote On/Off, OTP | -40°C ~ 85°C | 76% | - | - | Surface Mount | - | - | - | - | |
|
|
PT6603RDC DC CONVERTER 2.5V 9A |
57 |
|
Datasheet |
PT6600 | 14-SIP Module | Tray | Obsolete | Non-Isolated PoL Module | 1 | 4.5V | 6V | 2.5V | - | - | - | 9A | - | - | ITE (Commercial) | - | -40°C ~ 85°C | 76% | - | - | Through Hole | - | - | - | - | |
|
|
PT6606BDC DC CONVERTER 1.8V 13W |
38 |
|
Datasheet |
PT6600 | 14-SMD Module | Tray | Obsolete | Non-Isolated PoL Module | 1 | 3.1V | 6V | 1.8V | - | - | - | 9A | - | - | ITE (Commercial) | Remote On/Off, OTP | -40°C ~ 85°C | 68% | - | - | Surface Mount | - | - | - | - | |
|
CP30B1225036PDC DC CONVERTER 12V 30W |
14 |
|
Datasheet |
CP30 (30W) | 6-DIP Module | Tray | Active | Isolated Module | 1 | 18V | 75V | 12V | - | - | - | 2.5A | 30 W | 2.25 kV | ITE (Commercial) | - | -40°C ~ 123°C (With Derating) | 90% | - | - | Through Hole | - | - | - | - | |
|
|
OSR03-12S3P3DC DC CONVERTER 0.59-6V 18W |
6 |
|
Datasheet |
OSR03 | 5-SIP Module | Tray | Active | Non-Isolated PoL Module | 1 | 4.5V | 14V | 0.59 ~ 6V | - | - | - | 3A | 18 W | - | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 85°C (With Derating) | 93% | - | - | Through Hole | - | Enable, Active High | CE | - | |
|

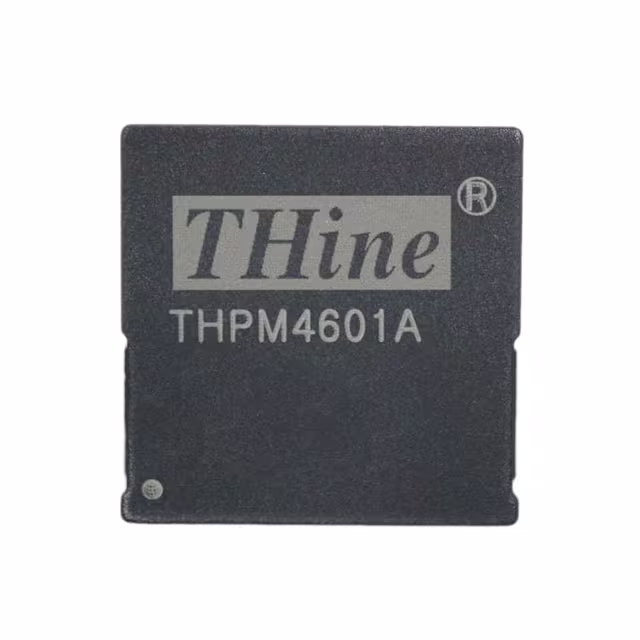

THPM4601ADC DC CONVERTER 0.6-5.5V |
25 |
|
Datasheet |
THine® | 133-BLGA Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 4V | 16V | 0.6 ~ 5.5V | - | - | - | 12A | - | - | ITE (Commercial) | Adjustable Output | -40°C ~ 85°C | 95% | - | - | Surface Mount | 133-LGA (15.2x15.2) | - | - | - | |
|
|
SDH05-24D12WDC DC CONVERTER +/-12V 5W |
10 |
|
Datasheet |
SDH05W (5W) | 7-DIP Module, 6 Leads | Tube | Active | Isolated Module | 2 | 9V | 36V | 12V | -12V | - | - | 210mA, 210mA | 5 W | 1.6 kV | ITE (Commercial) | Remote On/Off | -40°C ~ 105°C (With Derating) | 83% | - | - | Through Hole | - | - | CE | - | |
|
PYBE20-Q24-D15DC DC CONVERTER +/-15V 20W |
11 |
|
Datasheet |
PYBE20 (20W) | 6-DIP Module | Tube | Not For New Designs | Isolated Module | 2 | 9V | 36V | 15V | -15V | - | - | 667mA, 667mA | 20 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP | -40°C ~ 85°C (With Derating) | 88% | - | - | Through Hole | - | - | CB Scheme, EN, IEC, UL | 55024; 55032 Class A; 60950-1 | |
|
|
PYBE20-Q48-D15DC DC CONVERTER +/-15V 20W |
7 |
|
Datasheet |
PYBE20 (20W) | 6-DIP Module | Tube | Not For New Designs | Isolated Module | 2 | 18V | 75V | 15V | -15V | - | - | 667mA, 667mA | 20 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP | -40°C ~ 85°C (With Derating) | 89% | - | - | Through Hole | - | - | CB Scheme, EN, IEC, UL | 55024; 55032 Class A; 60950-1 | |
|
|
SDH05-24D15WDC DC CONVERTER +/-15V 5W |
10 |
|
Datasheet |
SDH05W (5W) | 7-DIP Module, 6 Leads | Tube | Active | Isolated Module | 2 | 9V | 36V | 15V | -15V | - | - | 168mA, 168mA | 5 W | 1.6 kV | ITE (Commercial) | Remote On/Off | -40°C ~ 105°C (With Derating) | 84% | - | - | Through Hole | - | - | CE | - | |
|
TIM 2-4812DC DC CONVERTER 12V 2W |
6 |
|
Datasheet |
TIM 2 (2W) | 16-DIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 36V | 75V | 12V | - | - | - | 167mA | 2 W | 5 kV | Medical | Remote On/Off, OVP, SCP | -40°C ~ 95°C (With Derating) | 80% | - | - | Through Hole | - | - | - | - | |
|
HEA2-48-12DC DC CONVERTER +/-12V 2W |
10 |
|
- |
HEA2 (2W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 36V | 75V | 12V | -12V | - | - | 83mA, 83mA | 2 W | 1.6 kV | ITE (Commercial) | Remote On/Off | -40°C ~ 105°C (With Derating) | 85% | - | - | Through Hole | - | - | CE | - | |
|
|
HEA2-24-5DC DC CONVERTER +/-5V 2W |
10 |
|
- |
HEA2 (2W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 18V | 36V | 5V | -5V | - | - | 200mA, 200mA | 2 W | 1.6 kV | ITE (Commercial) | Remote On/Off | -40°C ~ 105°C (With Derating) | 83% | - | - | Through Hole | - | - | CE | - | |
|
|
HEA2-5-5DC DC CONVERTER +/-5V 2W |
10 |
|
- |
HEA2 (2W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 13.2V | 5V | -5V | - | - | 200mA, 200mA | 2 W | 1.6 kV | ITE (Commercial) | Remote On/Off | -40°C ~ 105°C (With Derating) | 81% | - | - | Through Hole | - | - | CE | - | |
|
|
HEA2-12-5DC DC CONVERTER +/-5V 2W |
10 |
|
- |
HEA2 (2W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 9V | 18V | 5V | -5V | - | - | 200mA, 200mA | 2 W | 1.6 kV | ITE (Commercial) | Remote On/Off | -40°C ~ 105°C (With Derating) | 82% | - | - | Through Hole | - | - | CE | - | |
|
|
HEA2-5-12DC DC CONVERTER +/-12V 2W |
10 |
|
- |
HEA2 (2W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 13.2V | 12V | -12V | - | - | 83mA, 83mA | 2 W | 1.6 kV | ITE (Commercial) | Remote On/Off | -40°C ~ 105°C (With Derating) | 85% | - | - | Through Hole | - | - | CE | - | |
|
|
HEA2-12-12DC DC CONVERTER +/-12V 2W |
10 |
|
- |
HEA2 (2W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 9V | 18V | 12V | -12V | - | - | 83mA, 83mA | 2 W | 1.6 kV | ITE (Commercial) | Remote On/Off | -40°C ~ 105°C (With Derating) | 85% | - | - | Through Hole | - | - | CE | - | |
|
|
HEA2-48-5DC DC CONVERTER +/-5V 2W |
10 |
|
- |
HEA2 (2W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 36V | 75V | 5V | -5V | - | - | 200mA, 200mA | 2 W | 1.6 kV | ITE (Commercial) | Remote On/Off | -40°C ~ 105°C (With Derating) | 80% | - | - | Through Hole | - | - | CE | - |
