DC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Number of Outputs | Voltage - Input (Min) | Voltage - Input (Max) | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Current - Output (Max) | Power (Watts) | Voltage - Isolation | Applications | Features | Operating Temperature | Efficiency | Grade | Qualification | Mounting Type | Size / Dimension | Supplier Device Package | Control Features | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PT6522EDC DC CONVERTER 1.5V 12W |
0 |
|
Datasheet |
PT6520 | 14-SMD Module | Tray | Obsolete | Non-Isolated PoL Module | 1 | 3.1V | 5.5V | 1.5V | - | - | - | 8A | - | - | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C | 75% | - | - | Surface Mount | - | - | - | - | |
|
|
PT6626DDC DC CONVERTER 9V 3.33A |
0 |
|
Datasheet |
PT6620 | 14-SIP Module | Tray | Obsolete | Non-Isolated PoL Module | 1 | 12V | 16V | 9V | - | - | - | 6A | - | - | ITE (Commercial) | - | -40°C ~ 85°C | 92% | - | - | Through Hole, Right Angle | - | - | - | - | |
|
|
PT6521DDC DC CONVERTER 3.3V 8A |
0 |
|
Datasheet |
PT6520 | 14-SIP Module | Tray | Obsolete | Non-Isolated PoL Module | 1 | 4.5V | 5.5V | 3.3V | - | - | - | 8A | - | - | ITE (Commercial) | - | -40°C ~ 85°C | 89% | - | - | Through Hole, Right Angle | - | - | - | - | |
|
|
PT6621PDC DC CONVERTER 3.3V 7A |
0 |
|
Datasheet |
PT6620 | 14-SIP Module | Tray | Obsolete | Non-Isolated PoL Module | 1 | 9V | 16V | 3.3V | - | - | - | 6A | - | - | ITE (Commercial) | - | -40°C ~ 85°C | 83% | - | - | Through Hole | - | - | - | - | |
|
|
PT6523DDC DC CONVERTER 2.5V 8A |
0 |
|
Datasheet |
PT6520 | 14-SIP Module | Tray | Obsolete | Non-Isolated PoL Module | 1 | 3.1V | 5.5V | 2.5V | - | - | - | 8A | - | - | ITE (Commercial) | - | -40°C ~ 85°C | 85% | - | - | Through Hole, Right Angle | - | - | - | - | |
|
|
PT6683PDC DC CONVERTER 5V 5A |
0 |
|
Datasheet |
PT6680 | 14-SIP Module | Tray | Obsolete | Non-Isolated PoL Module | 1 | 18V | 36V | 5V | - | - | - | 5A | - | - | ITE (Commercial) | - | -40°C ~ 85°C | 82% | - | - | Through Hole | - | - | - | - | |
|
VAWQ3-Q24-D12HDC DC CONVERTER +/-12V 3W |
64 |
|
Datasheet |
VAWQ3 (3W) | 24-DIP Module, 15 Leads | Tube | Active | Isolated Module | 2 | 9V | 36V | 12V | -12V | - | - | 125mA, 125mA | 3 W | 3 kV | ITE (Commercial) | SCP | -25°C ~ 71°C | 72% | - | - | Through Hole | - | - | - | - | |
|
|
30DAWE_2415S1.5DC-DC INDUSTRIAL |
95 |
|
Datasheet |
30DAWE_1.5 (30W) | 6-DIP Module | Tube | Obsolete | Isolated Module | 1 | 18V | 36V | 15V | - | - | - | 2A | 30 W | 1.5 kV | ITE (Commercial) | Adjustable Output | -40°C ~ 80°C (With Derating) | 80% | - | - | Through Hole | - | - | CE, cURus | 60950-1 | |
|
|
30DAWE_2405S1.5DC-DC INDUSTRIAL |
85 |
|
Datasheet |
30DAWE_1.5 (30W) | 6-DIP Module | Tube | Obsolete | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 6A | 30 W | 1.5 kV | ITE (Commercial) | Adjustable Output | -40°C ~ 80°C (With Derating) | 88% | - | - | Through Hole | - | - | CE, cURus | 60950-1 | |
|
|
VCB4815QBO-200WR3-NISOLATED MODULE DC DC CONVERTER1 |
53 |
|
Datasheet |
VCB48_QBO-200WR3N (200W) | Quarter Brick | Tray | Not For New Designs | Isolated Module | 1 | 36V | 75V | 15V | - | - | - | 13.33A | 200 W | 1.5 kV | ITE (Commercial) | Adjustable Output, Remote Sense | -40°C ~ 100°C (With Derating) | 93% | - | - | Through Hole | Quarter Brick | - | CE, cURus, EN, UKCA, UL | 62368-1 | |
|
|
VCB4805QBO-200WR3-NISOLATED MODULE DC DC CONVERTER1 |
44 |
|
Datasheet |
VCB48_QBO-200WR3N (200W) | Quarter Brick | Tray | Not For New Designs | Isolated Module | 1 | 36V | 75V | 5V | - | - | - | 36A | 180 W | 1.5 kV | ITE (Commercial) | Adjustable Output, Remote Sense | -40°C ~ 100°C (With Derating) | 91% | - | - | Through Hole | Quarter Brick | - | CE, cURus, EN, UKCA, UL | 62368-1 | |
|
|
VCB4812QBO-200WR3-NISOLATED MODULE DC DC CONVERTER1 |
33 |
|
Datasheet |
VCB48_QBO-200WR3N (200W) | Quarter Brick | Tray | Not For New Designs | Isolated Module | 1 | 36V | 75V | 12V | - | - | - | 16.67A | 200 W | 1.5 kV | ITE (Commercial) | Adjustable Output, Remote Sense | -40°C ~ 100°C (With Derating) | 93% | - | - | Through Hole | Quarter Brick | - | CE, cURus, EN, UKCA, UL | 62368-1 | |
|
|
VCB4824QBO-200WR3-NISOLATED MODULE DC DC CONVERTER1 |
28 |
|
Datasheet |
VCB48_QBO-200WR3N (200W) | Quarter Brick | Tray | Not For New Designs | Isolated Module | 1 | 36V | 75V | 24V | - | - | - | 8.33A | 200 W | 1.5 kV | ITE (Commercial) | Adjustable Output, Remote Sense | -40°C ~ 100°C (With Derating) | 92% | - | - | Through Hole | Quarter Brick | - | CE, cURus, EN, UKCA, UL | 62368-1 | |
|
THR 3-7223WI3 WATT DC/DC CONVERTER, INDUSTRI |
10 |
|
Datasheet |
THR 3WI (3W) | 24-DIP Module, 6 Leads | Tube | Active | Isolated Module | 2 | 40V | 160V | 15V | -15V | - | - | 100mA, 100mA | 3 W | 3 kV | ITE (Commercial) | - | -40°C ~ 92°C (With Derating) | 85% | - | - | Through Hole | - | - | CB, cURus | 62368-1 | |
|
|
THR 3-7222WI3 WATT DC/DC CONVERTER, INDUSTRI |
10 |
|
Datasheet |
THR 3WI (3W) | 24-DIP Module, 6 Leads | Tube | Active | Isolated Module | 2 | 40V | 160V | 12V | -12V | - | - | 125mA, 125mA | 3 W | 3 kV | ITE (Commercial) | - | -40°C ~ 92°C (With Derating) | 83% | - | - | Through Hole | - | - | CB, cURus | 62368-1 | |
|
|
PT6426EDC DC CONVERTER 1.8V 5W |
36 |
|
Datasheet |
PT6420 | 14-SMD Module | Tray | Obsolete | Non-Isolated PoL Module | 1 | 4.5V | 5.5V | 1.8V | - | - | - | 3A | - | - | ITE (Commercial) | - | 0°C ~ 85°C | 74% | - | - | Surface Mount | - | - | - | - | |
|
PDQE15-Q24-D15-DDC DC CONVERTER +/-15V 15W |
85 |
|
Datasheet |
PDQE15-D (15W) | 6-DIP Module | Tube | Not For New Designs | Isolated Module | 2 | 9V | 36V | 15V | -15V | - | - | 500mA, 500mA | 15 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP | -40°C ~ 105°C (With Derating) | 90% | - | - | Through Hole | - | - | EN | 55024; 55032 Class A | |
|

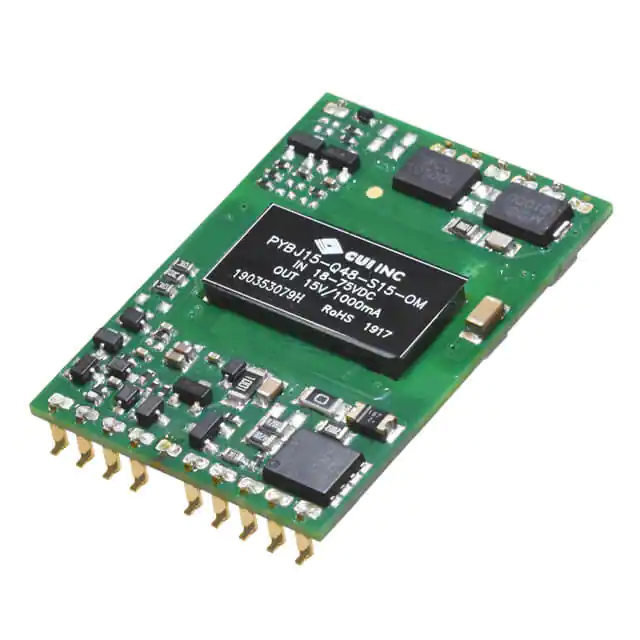

PYBJ15-Q24-S15-OMDC DC CONVERTER 15V 15W |
18 |
|
Datasheet |
PYBJ15 (15W) | 15-SMD Module | Tray | Not For New Designs | Isolated Module | 1 | 9V | 36V | 15V | - | - | - | 1A | 15 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP | -40°C ~ 85°C (With Derating) | 89% | - | - | Surface Mount | - | - | EN | 55024; 55032 Class A | |
|

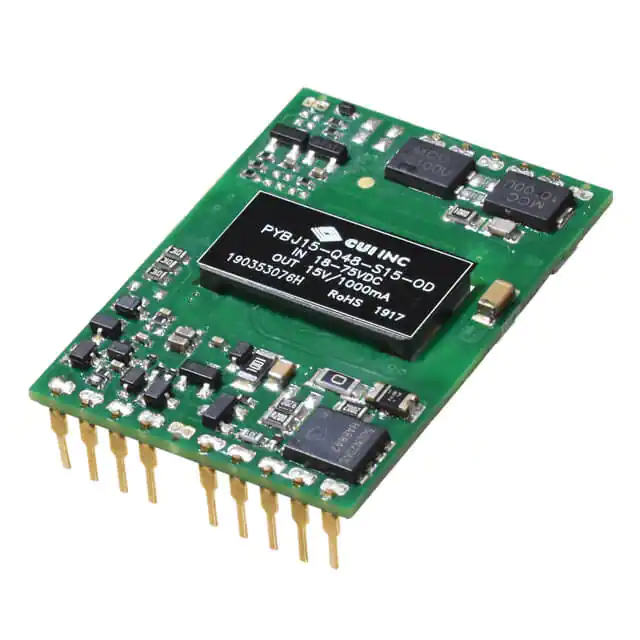

PYBJ15-Q48-S12-ODDC DC CONVERTER 12V 15W |
18 |
|
Datasheet |
PYBJ15 (15W) | 14-DIP Module | Tray | Not For New Designs | Isolated Module | 1 | 18V | 75V | 12V | - | - | - | 1.25A | 15 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP | -40°C ~ 85°C (With Derating) | 89% | - | - | Through Hole | - | - | EN | 55024; 55032 Class A | |
|
|
PYBJ15-Q48-S12-OMDC DC CONVERTER 12V 15W |
6 |
|
Datasheet |
PYBJ15 (15W) | 15-SMD Module | Tray | Not For New Designs | Isolated Module | 1 | 18V | 75V | 12V | - | - | - | 1.25A | 15 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP | -40°C ~ 85°C (With Derating) | 89% | - | - | Surface Mount | - | - | EN | 55024; 55032 Class A |
