DC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Number of Outputs | Voltage - Input (Min) | Voltage - Input (Max) | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Current - Output (Max) | Power (Watts) | Voltage - Isolation | Applications | Features | Operating Temperature | Efficiency | Grade | Qualification | Mounting Type | Size / Dimension | Supplier Device Package | Control Features | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TMV 0512ENDC DC CONVERTER 12V 1W |
111 |
|
Datasheet |
TMV-EN (1W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 12V | - | - | - | 80mA | 1 W | 3 kV | ITE (Commercial) | SCP | -25°C ~ 85°C (With Derating) | 66% | - | - | Through Hole | - | - | - | - | |
|

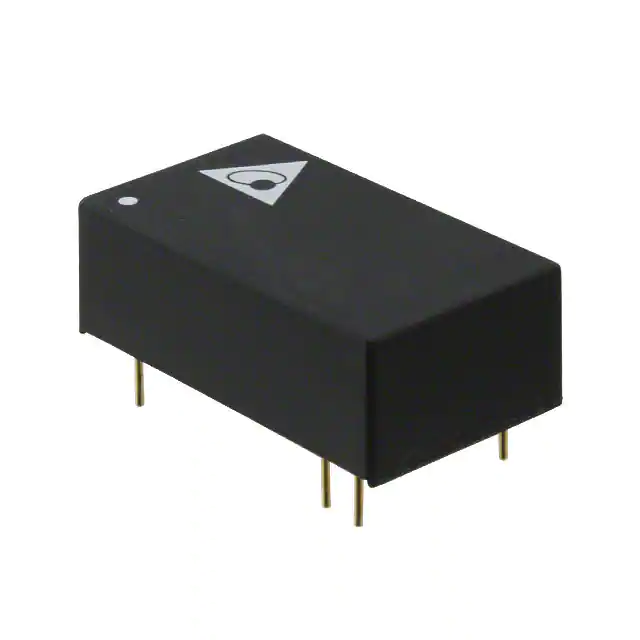

DB02S2412ADC DC CONVERTER 12V 2W |
736 |
|
Datasheet |
DB02S/D (2W) | 16-DIP Module, 6 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 12V | - | - | - | 167mA | 2 W | 1.5 kV | Medical | SCP, UVLO | -40°C ~ 80°C | 80% | - | - | Through Hole | - | - | - | - | |
|
171012401DC DC CONVERTER 5-24V |
1,639 |
|
Datasheet |
MagI³C, VDRM | 7-SMD Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 6V | 42V | 5 ~ 24V | - | - | - | 1A | - | - | ITE (Commercial) | SCP, UVLO | -40°C ~ 125°C | 94% | - | - | Surface Mount | - | Enable, Active High | - | - | |
|
PH02S2405ADC DC CONVERTER 5V 2W |
188 |
|
Datasheet |
PH02S/D (2W) | 9-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 400mA | 2 W | 1.5 kV | Medical | Remote On/Off, SCP, UVLO | -40°C ~ 85°C | 76% | - | - | Through Hole | - | Enable, Active Low | - | - | |
|
RP-0509SDC DC CONVERTER 9V 1W |
2,407 |
|
Datasheet |
ECONOLINE RP (1W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 9V | - | - | - | 111mA | 1 W | 5.2 kV | ITE (Commercial), Medical | SCP | -40°C ~ 85°C | 75% | - | - | Through Hole | - | - | - | - | |
|
MGXS1R52415DC DC CONVERTER 15V 1.5W |
269 |
|
Datasheet |
MGX (1.5W) | 6-SIP Module, 4 Leads | Bulk | Active | Isolated Module | 1 | 6V | 60V | 15V | - | - | - | 100mA | 1.5 W | 1.5 kV | ITE (Commercial) | OCP | -40°C ~ 85°C (With Derating) | 82% | - | - | Through Hole | - | - | - | - | |
|
TRN 1-0511SMDC DC CONVERTER 5V 1W |
107 |
|
Datasheet |
TRN 1SM (1W) | 7-SMD Module, 6 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 13.2V | 5V | - | - | - | 200mA | 1 W | 1.6 kV | ITE (Commercial) | SCP | -40°C ~ 90°C | 79% | - | - | Surface Mount | - | - | - | - | |
|
MGFS1R5243R3DC DC CONVERTER 3.3V 1.3W |
1,674 |
|
Datasheet |
MGFS (1.5W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 3.3V | - | - | - | 400mA | 1.3 W | 1.5 kV | ITE (Commercial) | OCP | -40°C ~ 85°C | 77% | - | - | Through Hole | - | - | - | - | |
|
R05P09SDC DC CONVERTER 9V 1W |
203 |
|
Datasheet |
ECONOLINE RxxPxx (1W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 9V | - | - | - | 111mA | 1 W | 6.4 kV | ITE (Commercial), Medical | SCP | -40°C ~ 90°C | 75% | - | - | Through Hole | - | - | - | - | |
|
DCV010505P-U/700DC DC CONVERTER 5V 1W |
1,339 |
|
Datasheet |
DCV01 (1W) | 14-SMD Module, 7 Leads | Tape & Reel (TR) | Active | Isolated Module | 1 | 4.5V | 5.5V | 5V | - | - | - | 200mA | 1 W | 1.5 kV | ITE (Commercial) | OTP, SCP | -40°C ~ 85°C | 78% | - | - | Surface Mount | - | Enable, Active High | - | - | |
|
NSD10-48S5DC DC CONVERTER 5V 10W |
440 |
|
Datasheet |
NSD10-S (10W) | 6-DIP Module | Tray | Active | Isolated Module | 1 | 22V | 72V | 5V | - | - | - | 2A | 10 W | 1 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP | -25°C ~ 70°C (With Derating) | 77% | - | - | Through Hole | - | - | - | - | |
|
BMR4612101/001DC DC CONVERTER 0.6-5V 30W |
1,719 |
|
Datasheet |
BMR461 (60W) | 32-BLGA Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module, Digital | 1 | 4.5V | 14V | 0.6 ~ 5V | - | - | - | 6A | 30 W | - | ITE (Commercial) | Adjustable Output, PMBus™, Remote On/Off, Remote Sense | -40°C ~ 120°C (With Derating) | 95.6% | - | - | Surface Mount | - | Enable, Active Low | CB, CSA, IEC, TUV, UL | 62368-1 | |
|
|
R2S-2405-RDC DC CONVERTER 5V 2W |
1,541 |
|
Datasheet |
ECONOLINE R2S (2W) | 8-SMD Module, 5 Leads | Tape & Reel (TR) | Active | Isolated Module | 1 | 21.6V | 26.4V | 5V | - | - | - | 400mA | 2 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 100°C | 85% | - | - | Surface Mount | - | - | - | - | |
|
BTA05-12W06SDC DC CONVERTER +/-12V 1.4W |
179 |
|
Datasheet |
BTA (1.5W) | 10-SMD Module, 7 Leads | Bulk | Active | Isolated Module | 2 | 4.5V | 9V | 12V | -12V | - | - | 60mA, 60mA | 1.4 W | 500 V | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 85°C (With Derating) | 79% | - | - | Surface Mount | - | - | - | - | |
|
R-78T5.0-1.0/FC-TRAYDC DC CONVERTER 5V 5W |
142 |
|
Datasheet |
INNOLINE R-78T-1.0 | 5-SMD Module, 3 Leads | Tray | Active | Non-Isolated PoL Module | 1 | 8V | 42V | 5V | - | - | - | 1A | 5 W | - | ITE (Commercial) | SCP | -40°C ~ 85°C | 92% | - | - | Surface Mount | - | - | - | - | |
|
TEL 2-2413DC DC CONVERTER 15V 2W |
169 |
|
Datasheet |
TEL 2 (2W) | 16-DIP Module, 6 Leads | Tube | Not For New Designs | Isolated Module | 1 | 18V | 36V | 15V | - | - | - | 135mA | 2 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 75°C | 81% | - | - | Through Hole | - | - | - | - | |
|
NMJ0509SCDC DC CONVERTER +/-9V 1W |
467 |
|
Datasheet |
NMJ (1W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 5.5V | 9V | -9V | - | - | 55mA, 55mA | 1 W | 5.2 kV | ITE (Commercial) | - | -40°C ~ 60°C | 65% | - | - | Through Hole | - | - | - | - | |
|
|
NMJ1205SCDC DC CONVERTER +/-5V 1W |
133 |
|
Datasheet |
NMJ (1W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 10.8V | 13.2V | 5V | -5V | - | - | 100mA, 100mA | 1 W | 5.2 kV | ITE (Commercial) | - | -40°C ~ 60°C | 60% | - | - | Through Hole | - | - | - | - | |
|
SUS1R52415CDC DC CONVERTER 15V |
307 |
|
Datasheet |
SUS (1.5W) | 5-DIP Module | Tray | Active | Isolated Module | 1 | 18V | 36V | 15V | - | - | - | 100mA | - | 500 V | ITE (Commercial) | OCP | -40°C ~ 85°C (With Derating) | 77% | - | - | Through Hole | - | - | - | - | |
|
SUW1R50515CDC DC CONVERTER +/-15V |
258 |
|
Datasheet |
SUW (1.5W) | 6-DIP Module | Box | Active | Isolated Module | 2 | 4.5V | 9V | 15V | -15V | - | - | 50mA, 50mA | - | 500 V | ITE (Commercial) | OCP | -40°C ~ 85°C (With Derating) | 72% | - | - | Through Hole | - | - | - | - |
