DC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Number of Outputs | Voltage - Input (Min) | Voltage - Input (Max) | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Current - Output (Max) | Power (Watts) | Voltage - Isolation | Applications | Features | Operating Temperature | Efficiency | Grade | Qualification | Mounting Type | Size / Dimension | Supplier Device Package | Control Features | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SUS1R52412CDC DC CONVERTER 12V |
189 |
|
Datasheet |
SUS (1.5W) | 5-DIP Module | Tray | Active | Isolated Module | 1 | 18V | 36V | 12V | - | - | - | 130mA | - | 500 V | ITE (Commercial) | OCP | -40°C ~ 85°C (With Derating) | 77% | - | - | Through Hole | - | - | - | - | |
|
|
SUS1R51205CDC DC CONVERTER 5V |
165 |
|
Datasheet |
SUS (1.5W) | 5-DIP Module | Tray | Active | Isolated Module | 1 | 9V | 18V | 5V | - | - | - | 300mA | - | 500 V | ITE (Commercial) | OCP | -40°C ~ 85°C (With Derating) | 76% | - | - | Through Hole | - | - | - | - | |
|
SUW1R52412CDC DC CONVERTER +/-12V |
144 |
|
Datasheet |
SUW (1.5W) | 6-DIP Module | Box | Active | Isolated Module | 2 | 18V | 36V | 12V | -12V | - | - | 65mA, 65mA | - | 500 V | ITE (Commercial) | OCP | -40°C ~ 85°C (With Derating) | 75% | - | - | Through Hole | - | - | - | - | |
|

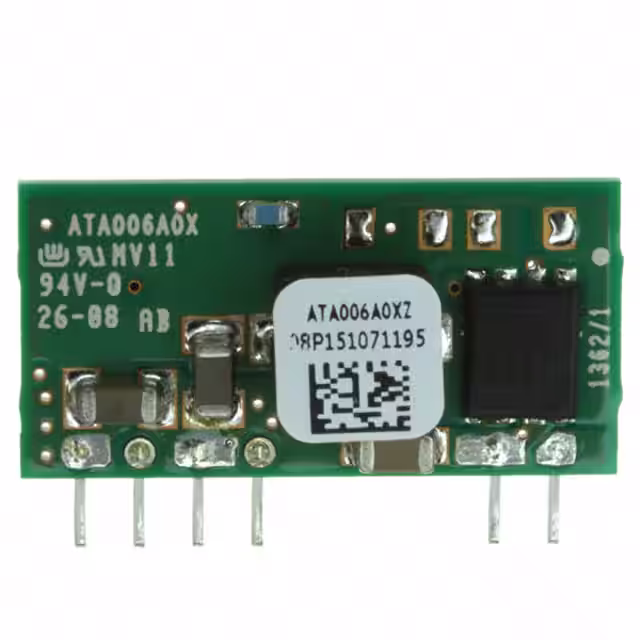

ATA006A0XZDC DC CONVERTER 0.8-5.5V 33W |
569 |
|
Datasheet |
Austin MicroLynx™ II | 6-SIP Module | Bulk | Active | Non-Isolated PoL Module | 1 | 8.3V | 14V | 0.8 ~ 5.5V | - | - | - | 6A | 33 W | - | ITE (Commercial) | Remote On/Off, OCP, OTP, UVLO | -40°C ~ 85°C | 89% | - | - | Through Hole | - | Enable, Active Low | - | - | |
|
RP-1212DDC DC CONVERTER +/-12V 1W |
1,098 |
|
Datasheet |
ECONOLINE RP (1W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 10.8V | 13.2V | 12V | -12V | - | - | 42mA, 42mA | 1 W | 5.2 kV | ITE (Commercial), Medical | SCP | -40°C ~ 85°C | 82% | - | - | Through Hole | - | - | - | - | |
|
|
RP-2412SDC DC CONVERTER 12V 1W |
216 |
|
Datasheet |
ECONOLINE RP (1W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 12V | - | - | - | 84mA | 1 W | 5.2 kV | ITE (Commercial), Medical | SCP | -40°C ~ 85°C | 78% | - | - | Through Hole | - | - | - | - | |
|

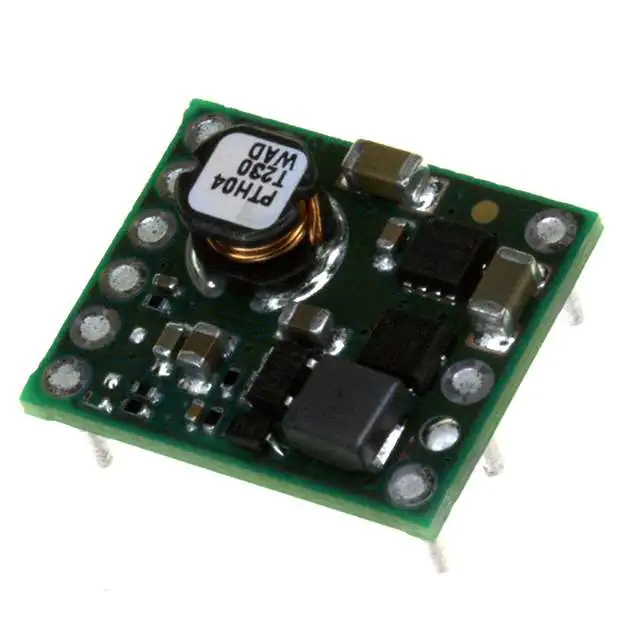

PTH04T230WADDC DC CONVERTER 0.69-3.6V |
148 |
|
Datasheet |
PTH04T230W | 10-DIP Module | Tray | Active | Non-Isolated PoL Module | 1 | 2.2V | 5.5V | 0.69 ~ 3.6V | - | - | - | 6A | - | - | ITE (Commercial) | - | -40°C ~ 85°C | 94% | - | - | Through Hole | - | - | - | - | |
|
RP-1205DDC DC CONVERTER +/-5V 1W |
425 |
|
Datasheet |
ECONOLINE RP (1W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 10.8V | 13.2V | 5V | -5V | - | - | 100mA, 100mA | 1 W | 5.2 kV | ITE (Commercial), Medical | SCP | -40°C ~ 85°C | 76% | - | - | Through Hole | - | - | - | - | |
|
MSN12AD12-MPDC DC CONVERTER 0.6-5.5V |
920 |
|
Datasheet |
- | 37-BLGA Module | Tray | Active | Non-Isolated PoL Module | 1 | 4.5V | 16V | 0.6 ~ 5.5V | - | - | - | 12A | - | - | ITE (Commercial) | Adjustable Output, Remote On/Off, Remote Sense | -40°C ~ 85°C | 94.5% | - | - | Surface Mount | 37-LGA (8.6x7.5) | Enable, Active High | - | - | |
|
EC4A12H-EDC DC CONVERTER 12V 6W |
160 |
|
Datasheet |
EC4A-E (6W) | 24-DIP Module, 14 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 12V | - | - | - | 500mA | 6 W | 3 kV | ITE (Commercial) | SCP, UVLO | -40°C ~ 100°C (With Derating) | 86% | - | - | Through Hole | - | - | CE, cURus | 60950-1 | |
|
CCG1R5-12-12SFDC DC CONVERTER 12V 1.56W |
150 |
|
Datasheet |
CCG1R5-10 (1.5W) | 6-DIP Module | Tray | Active | Isolated Module | 1 | 4.5V | 18V | 12V | - | - | - | 130mA | 1.6 W | 1.5 kV | ITE (Commercial) | Adjustable Output, Remote On/Off, OCP | -40°C ~ 100°C (With Derating) | 79% | - | - | Through Hole | - | Enable, Active Low | IEC, UL, CSA, EN, CE, UKCA | 62368-1 | |
|
|
EC4A02H-EDC DC CONVERTER 12V 6W |
142 |
|
Datasheet |
EC4A-E (6W) | 24-DIP Module, 14 Leads | Tube | Active | Isolated Module | 1 | 9V | 18V | 12V | - | - | - | 500mA | 6 W | 3 kV | ITE (Commercial) | SCP, UVLO | -40°C ~ 100°C (With Derating) | 84% | - | - | Through Hole | - | - | CE, cURus | 60950-1 | |
|
EC4A21HDC DC CONVERTER 5V 5W |
109 |
|
Datasheet |
EC4A (6W) | 24-DIP Module, 14 Leads | Tube | Active | Isolated Module | 1 | 36V | 72V | 5V | - | - | - | 1A | 5 W | 3 kV | ITE (Commercial) | SCP | -25°C ~ 71°C | 79% | - | - | Through Hole | - | - | CE, cURus | 60950-1 | |
|
EC3AW03HDC DC CONVERTER 15V 3W |
165 |
|
Datasheet |
EC3AW (3W) | 24-DIP Module, 14 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 15V | - | - | - | 200mA | 3 W | 3 kV | ITE (Commercial) | SCP | -25°C ~ 71°C | 76% | - | - | Through Hole | - | - | CE | - | |
|
R05P205S/X2DC DC CONVERTER 5V 2W |
1,389 |
|
Datasheet |
ECONOLINE RxxP2xx (2W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 5V | - | - | - | 400mA | 2 W | 6.4 kV | ITE (Commercial), Medical | - | -40°C ~ 85°C | 75% | - | - | Through Hole | - | - | - | - | |
|
R-78T5.0-1.0/FC-RDC DC CONVERTER 5V 5W |
1,508 |
|
Datasheet |
INNOLINE R-78T-1.0 | 5-SMD Module, 3 Leads | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 8V | 42V | 5V | - | - | - | 1A | 5 W | - | ITE (Commercial) | SCP | -40°C ~ 85°C | 92% | - | - | Surface Mount | - | - | - | - | |
|
TEN 3-2410NDC DC CONVERTER 3.3V 2.5W |
340 |
|
Datasheet |
TEN 3N (3W) | 24-DIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 3.3V | - | - | - | 750mA | 2.5 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 79% | - | - | Through Hole | - | - | CB, cCSAus | - | |
|
R2D-2412DC DC CONVERTER +/-12V 2W |
116 |
|
Datasheet |
ECONOLINE R2D (2W) | 10-SMD Module, 6 Leads | Tube | Active | Isolated Module | 2 | 21.6V | 26.4V | 12V | -12V | - | - | 83mA, 83mA | 2 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 100°C | 83% | - | - | Surface Mount | - | - | - | - | |
|
EC3A21HDC DC CONVERTER 5V 3W |
120 |
|
Datasheet |
EC3A (3W) | 24-DIP Module, 14 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 600mA | 3 W | 3 kV | ITE (Commercial) | SCP | -25°C ~ 71°C | 79% | - | - | Through Hole | - | - | CE, cURus | 60950-1 | |
|
EC3AB21DC DC CONVERTER 5V 3W |
208 |
|
Datasheet |
EC3AB (3W) | 24-DIP Module, 14 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 600mA | 3 W | 500 V | ITE (Commercial) | SCP | -25°C ~ 71°C | 77% | - | - | Through Hole | - | - | - | - |
