DC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Number of Outputs | Voltage - Input (Min) | Voltage - Input (Max) | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Current - Output (Max) | Power (Watts) | Voltage - Isolation | Applications | Features | Operating Temperature | Efficiency | Grade | Qualification | Mounting Type | Size / Dimension | Supplier Device Package | Control Features | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IM4805SADC DC CONVERTER 5V 2W |
229 |
|
Datasheet |
IM (2W) | 9-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 18V | 75V | 5V | - | - | - | 400mA | 2 W | 1.5 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 100°C | 80% | - | - | Through Hole | - | Enable, Active Low | - | 62368-1 | |
|
IZ1205SADC DC CONVERTER 5V 3W |
3,610 |
|
Datasheet |
IZ (3W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 9V | 18V | 5V | - | - | - | 600mA | 3 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 100°C | 81% | - | - | Through Hole | - | Enable, Active Low | - | 62368-1 | |
|

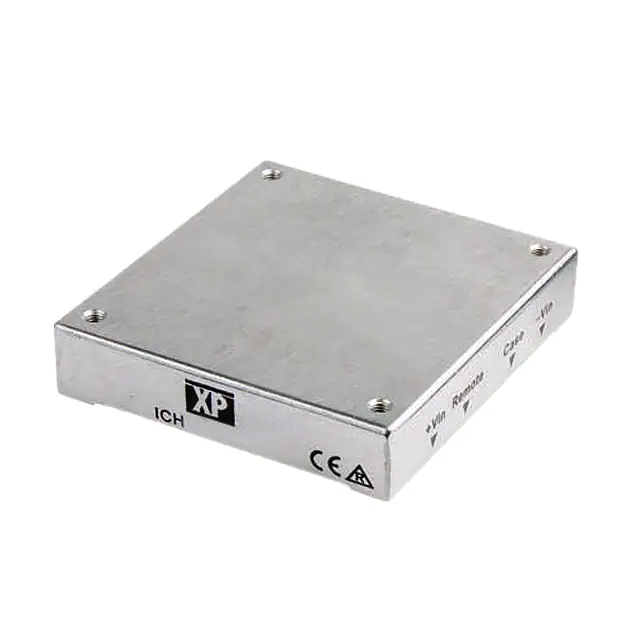

ICH12012A007V-007-RDC DC CONVERTER 0.7-8.5V |
711 |
|
Datasheet |
iCH (85W) | 14-SMD Module, 12 Leads | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 4.5V | 14V | 0.7 ~ 8.5V | - | - | - | 12A | - | - | ITE (Commercial) | Remote On/Off, OCP, OTP, SCP | -40°C ~ 115°C | 97% | - | - | Surface Mount | - | Enable, Active Low | - | - | |
|

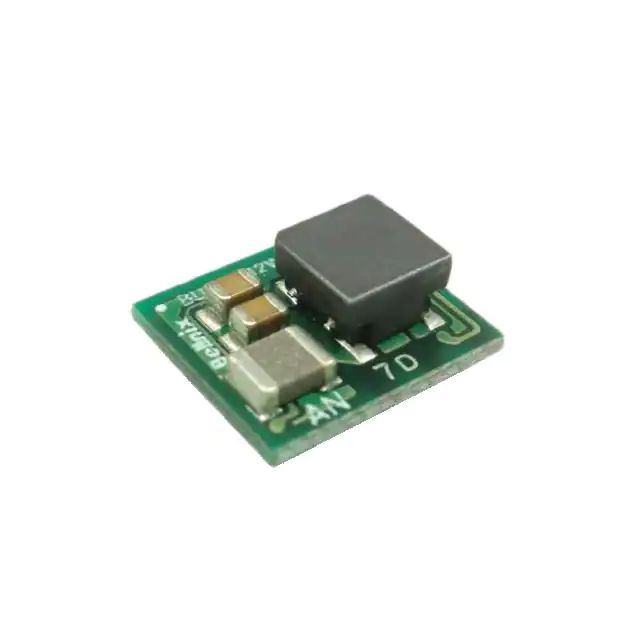

BUD12-12W042DC DC CONVERTER +/-12V 1.8W |
169 |
|
Datasheet |
BUD | 6-SMD Module | Bulk | Active | Non-Isolated PoL Module | 2 | 3V | 18V | 12V | -12V | - | - | - | - | - | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 85°C | 87.5% | - | - | Surface Mount | - | - | - | - | |
|

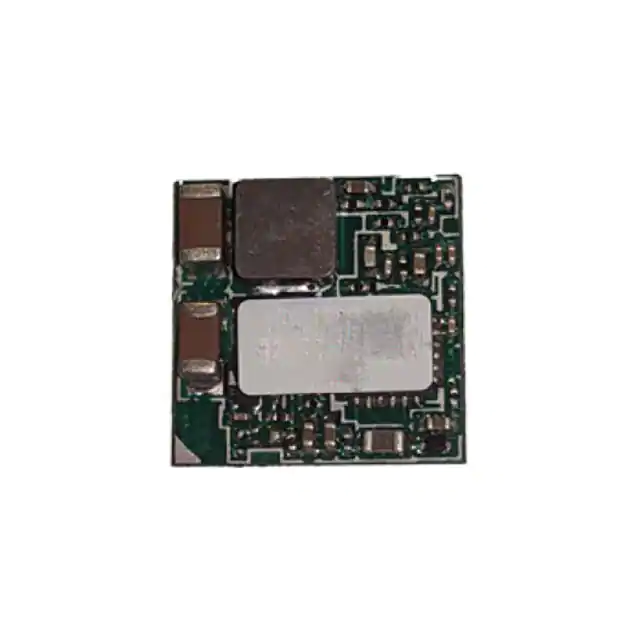

EPM12V2-05R5-12R0NDCDC CONV 12A 0.6-5.5VDC NEG LOG |
1,628 |
|
Datasheet |
- | 17-SMD Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 3V | 14.4V | 0.6 ~ 5.5V | - | - | - | 12A | - | - | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 90°C (With Derating) | 91% | - | - | Surface Mount | - | Enable, Active Low | - | - | |
|
EC4SAW-24D15HNDC/DC CONVERTER |
112 |
|
Datasheet |
EC4SAW (6W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 9V | 36V | 15V | -15V | - | - | 200mA, 200mA | 6 W | 1.5 kV | ITE (Commercial) | Remote On/Off | -40°C ~ 85°C (With Derating) | 88% | - | - | Through Hole | - | Enable, Active Floating | CE | - | |
|
R05P209DDC DC CONVERTER +/-9V 2W |
351 |
|
Datasheet |
ECONOLINE RxxP2xx (2W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 5.5V | 9V | -9V | - | - | 111mA, 111mA | 2 W | 6.4 kV | ITE (Commercial), Medical | - | -40°C ~ 85°C | 75% | - | - | Through Hole | - | - | - | - | |
|
|
R12P215DDC DC CONVERTER +/-15V 2W |
115 |
|
Datasheet |
ECONOLINE RxxP2xx (2W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 10.8V | 13.2V | 15V | -15V | - | - | 66mA, 66mA | 2 W | 6.4 kV | ITE (Commercial), Medical | - | -40°C ~ 85°C | 80% | - | - | Through Hole | - | - | - | - | |
|
TMV 1205ENDC DC CONVERTER 5V 1W |
881 |
|
Datasheet |
TMV-EN (1W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 5V | - | - | - | 200mA | 1 W | 3 kV | ITE (Commercial) | SCP | -25°C ~ 85°C (With Derating) | 66% | - | - | Through Hole | - | - | - | - | |
|

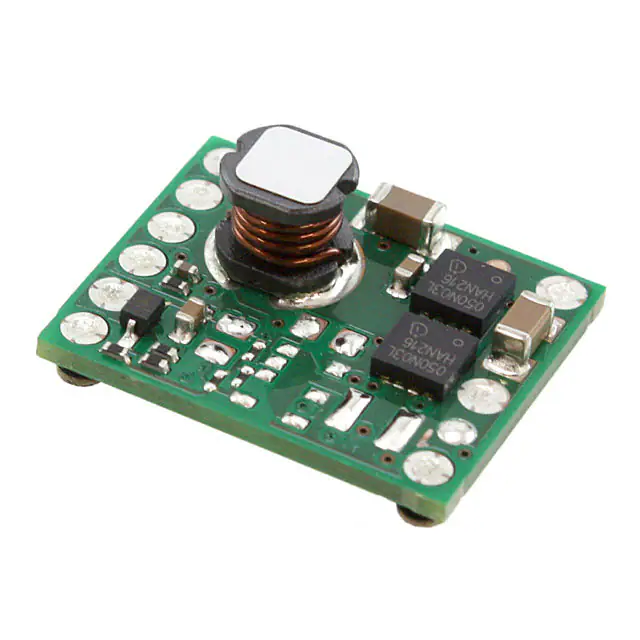

PTH08T230WASDC DC CONVERTER 0.69-5.5V |
244 |
|
Datasheet |
PTH08T230W | 10-SMD Module | Bulk | Active | Non-Isolated PoL Module | 1 | 4.5V | 14V | 0.69 ~ 5.5V | - | - | - | 6A | - | - | ITE (Commercial) | Remote On/Off, OCP, OTP, UVLO | -40°C ~ 85°C | 95% | - | - | Surface Mount | - | - | - | - | |
|
RP-1205S/PDC DC CONVERTER 5V 1W |
205 |
|
Datasheet |
ECONOLINE RP (1W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 5V | - | - | - | 200mA | 1 W | 5.2 kV | ITE (Commercial), Medical | SCP | -40°C ~ 85°C | 72% | - | - | Through Hole | - | - | - | - | |
|
TMR 1-0513SMDC DC CONVERTER 15V 1W |
108 |
|
Datasheet |
TMR 1SM (1W) | 14-SMD Module, 7 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 9V | 15V | - | - | - | 67mA | 1 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, SCP | -40°C ~ 82°C (With Derating) | 81% | - | - | Surface Mount | Module | - | CB, CSA | - | |
.jpg)
|
DCR012405PDC DC CONVERTER 5V 1W |
350 |
|
Datasheet |
DCR01 (1W) | 18-DIP Module, 10 Leads | Bulk | Active | Isolated Module | 1 | 21.6V | 26.4V | 5V | - | - | - | 200mA | 1 W | 1 kV | ITE (Commercial) | Remote On/Off, OTP, SCP | -40°C ~ 85°C | - | - | - | Through Hole | - | Enable, Active High | - | - | |
|
|
IZ4812SDC DC CONVERTER +/-12V 3W |
514 |
|
Datasheet |
IZ (3W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 36V | 72V | 12V | -12V | - | - | 125mA | 3 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 100°C | 80% | - | - | Through Hole | - | Enable, Active Low | - | 62368-1 | |
|

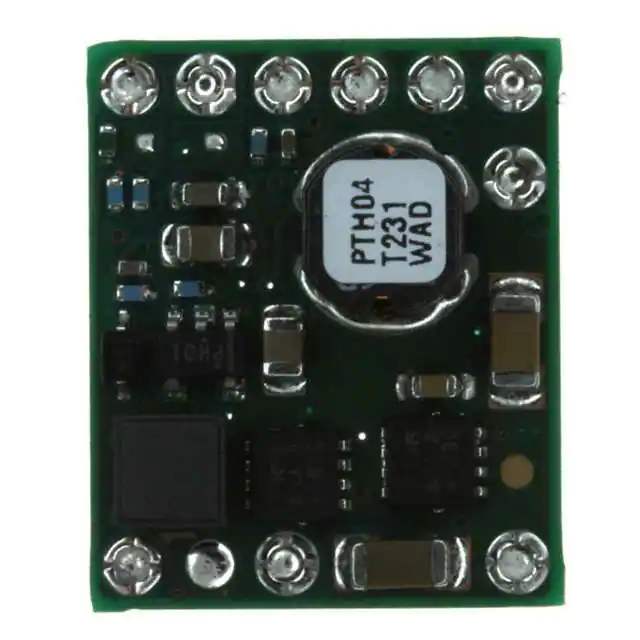

PTH04T231WADDC DC CONVERTER 0.69-3.6V |
134 |
|
Datasheet |
PTH04T231W | 10-DIP Module | Bulk | Active | Non-Isolated PoL Module | 1 | 2.2V | 5.5V | 0.69 ~ 3.6V | - | - | - | 6A | - | - | ITE (Commercial) | - | -40°C ~ 85°C | 94% | - | - | Through Hole | - | - | - | - | |
|
EC3SAW-24S15PDC DC CONVERTER 15V 3W |
121 |
|
Datasheet |
EC3SAW (3W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 15V | - | - | - | 200mA | 3 W | 1.5 kV | ITE (Commercial) | Remote On/Off, SCP, UVLO | -40°C ~ 85°C (With Derating) | 84% | - | - | Through Hole | - | Enable, Active High | CE | 60950-1 | |
|

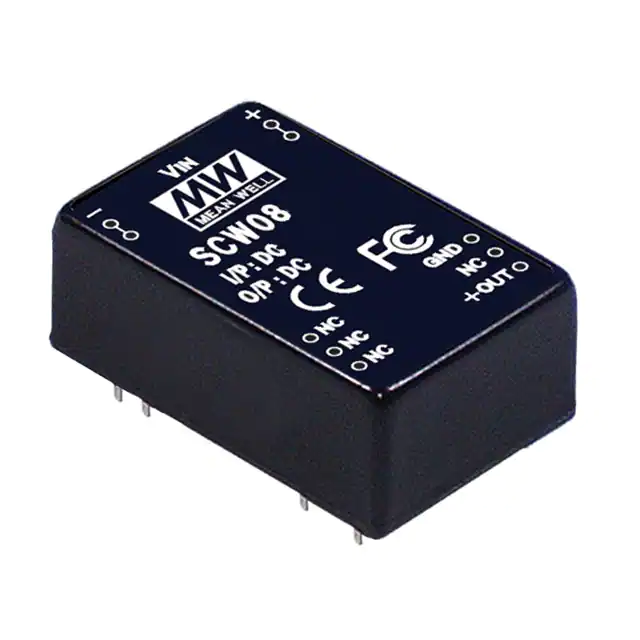

SCW08A-05DC DC CONVERTER 5V 8W |
1,402 |
|
Datasheet |
SCW08 (8W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 1 | 9V | 18V | 5V | - | - | - | 1.6A | 8 W | 1 kV | ITE (Commercial) | OCP, SCP | -40°C ~ 71°C (With Derating) | 75% | - | - | Through Hole | - | - | - | - | |
|
|
SCW08C-05DC DC CONVERTER 5V 8W |
681 |
|
Datasheet |
SCW08 (8W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 1 | 36V | 72V | 5V | - | - | - | 1.6A | 8 W | 1 kV | ITE (Commercial) | OCP, SCP | -40°C ~ 71°C (With Derating) | 78% | - | - | Through Hole | - | - | - | - | |
|
TEM 3-2423NDC DC CONVERTER +/-15V 3W |
277 |
|
Datasheet |
TEM 3N (3W) | 24-DIP Module, 12 Leads | Tube | Active | Isolated Module | 2 | 21.6V | 26.4V | 15V | -15V | - | - | 100mA, 100mA | 3 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 82% | - | - | Through Hole | - | - | - | - | |
|
|
TEM 3-0522NDC DC CONVERTER +/-12V 3W |
115 |
|
Datasheet |
TEM 3N (3W) | 24-DIP Module, 12 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 5.5V | 12V | -12V | - | - | 125mA, 125mA | 3 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 78% | - | - | Through Hole | - | - | - | - |
