DC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Number of Outputs | Voltage - Input (Min) | Voltage - Input (Max) | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Current - Output (Max) | Power (Watts) | Voltage - Isolation | Applications | Features | Operating Temperature | Efficiency | Grade | Qualification | Mounting Type | Size / Dimension | Supplier Device Package | Control Features | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DH06S2412ADC DC CONVERTER 12V 6W |
142 |
|
Datasheet |
DH06S/D (6W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 12V | - | - | - | 500mA | 6 W | 1.5 kV | Medical | OCP, SCP, UVLO | -40°C ~ 85°C | 84% | - | - | Through Hole | - | - | - | - | |
|
EC4AB11HMDC DC CONVERTER 5V 5W |
127 |
|
Datasheet |
EC4AB (6W) | 24-DIP Module, 14 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 1A | 5 W | 1.5 kV | ITE (Commercial) | SCP | -25°C ~ 71°C | 79% | - | - | Through Hole | - | - | CE, cURus | - | |
|
R24P209D/PDC DC CONVERTER +/-9V 2W |
343 |
|
Datasheet |
ECONOLINE RxxP2xx (2W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 21.6V | 26.4V | 9V | -9V | - | - | 111mA, 111mA | 2 W | 6.4 kV | ITE (Commercial), Medical | SCP | -40°C ~ 90°C | 75% | - | - | Through Hole | - | - | - | - | |
.JPG)
|

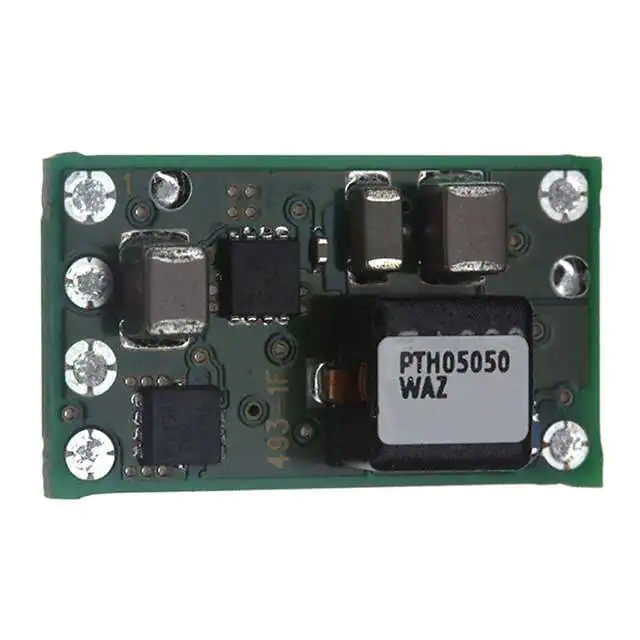

PTH05050WAZTDC DC CONVERTER 0.8-3.6V 6A |
675 |
|
Datasheet |
PTH05050W | 6-SMD Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 4.5V | 5.5V | 0.8 ~ 3.6V | - | - | - | 6A | - | - | ITE (Commercial) | Remote On/Off, OCP, UVLO | -40°C ~ 85°C | 95% | - | - | Surface Mount | - | - | - | - | |
|
PTH05050WAZDC DC CONVERTER 0.8-3.6V 6A |
143 |
|
Datasheet |
PTH05050W | 6-SMD Module | Tray | Active | Non-Isolated PoL Module | 1 | 4.5V | 5.5V | 0.8 ~ 3.6V | - | - | - | 6A | - | - | ITE (Commercial) | Remote On/Off, OCP, UVLO | -40°C ~ 85°C | 95% | - | - | Surface Mount | - | - | - | - | |
|
RV-0505SDC DC CONVERTER 5V 2W |
2,286 |
|
Datasheet |
ECONOLINE RV (2W) | 24-DIP Module, 14 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 5V | - | - | - | 400mA | 2 W | 6 kV | ITE (Commercial), Medical | SCP | -40°C ~ 85°C | 75% | - | - | Through Hole | - | - | - | - | |
|
SUW32412BDC DC CONVERTER +/-12V 24V 3.1W |
407 |
|
Datasheet |
SUW (3W) | 7-SMD Module | Box | Active | Isolated Module | 2 | 18V | 36V | 12V | -12V | - | - | 130mA, 130mA | 3.1 W | 500 V | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 78% | - | - | Surface Mount | - | - | - | - | |
|
SUS32412BDC DC CONVERTER 12V |
266 |
|
Datasheet |
SUS (3W) | 6-SMD Module | Box | Active | Isolated Module | 1 | 18V | 36V | 12V | - | - | - | 250mA | - | 500 V | ITE (Commercial) | Remote On/Off, OCP | -40°C ~ 85°C (With Derating) | 81% | - | - | Surface Mount | - | - | - | - | |
|
|
SUW32415BDC DC CONVERTER +/-15V 3W |
167 |
|
Datasheet |
SUW (3W) | 7-SMD Module | Box | Active | Isolated Module | 2 | 18V | 36V | 15V | -15V | - | - | 100mA, 100mA | 3 W | 500 V | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 78% | - | - | Surface Mount | - | - | - | - | |
|
|
SUS31212BDC DC CONVERTER 12V |
101 |
|
Datasheet |
SUS (3W) | 6-SMD Module | Box | Active | Isolated Module | 1 | 9V | 18V | 12V | - | - | - | 250mA | - | 500 V | ITE (Commercial) | Remote On/Off, OCP | -40°C ~ 85°C (With Derating) | 81% | - | - | Surface Mount | - | - | - | - | |
|
SMT05E-12W3V3JDC DC CONVERTER 0.8-3.63V 16W |
309 |
|
Datasheet |
SMT05E (16W) | 5-SMD Module | Tray | Active | Non-Isolated PoL Module | 1 | 10V | 14V | 0.8 ~ 3.63V | - | - | - | 5A | 16 W | - | ITE (Commercial) | Remote On/Off, OTP, SCP | -40°C ~ 100°C | 91% | - | - | Surface Mount | - | - | - | - | |
|
TMR 1221DC DC CONVERTER +/-5V 2W |
184 |
|
Datasheet |
TMR 2 (2W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 9V | 18V | 5V | -5V | - | - | 200mA, 200mA | 2 W | 1.5 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C | 81% | - | - | Through Hole | Module | - | - | - | |
|
|
TMR 0522DC DC CONVERTER +/-12V 2W |
144 |
|
Datasheet |
TMR 2 (2W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 9V | 12V | -12V | - | - | 85mA, 85mA | 2 W | 1.5 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C | 82% | - | - | Through Hole | Module | - | - | - | |
|
RS3-1205SDC DC CONVERTER 5V 3W |
699 |
|
Datasheet |
ECONOLINE RS3 (3W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 9V | 18V | 5V | - | - | - | 600mA | 3 W | 1 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 71°C | 79% | - | - | Through Hole | - | Enable, Active Low | - | - | |
|
EC4A15HMDC DC CONVERTER +/-15V 5.7W |
134 |
|
Datasheet |
EC4A (6W) | 24-DIP Module, 14 Leads | Tube | Active | Isolated Module | 2 | 18V | 36V | 15V | -15V | - | - | 190mA, 190mA | 5.7 W | 1.5 kV | ITE (Commercial) | SCP | -25°C ~ 71°C | 81% | - | - | Through Hole | - | - | CE, cURus | 60950-1 | |
|
PTH08T230WAZTDC DC CONVERTER 0.69-5.5V |
1,023 |
|
Datasheet |
PTH08T230W | 10-SMD Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 4.5V | 14V | 0.69 ~ 5.5V | - | - | - | 6A | - | - | ITE (Commercial) | OCP, OTP, UVLO | -40°C ~ 85°C | 95% | - | - | Surface Mount | - | - | - | - | |
|

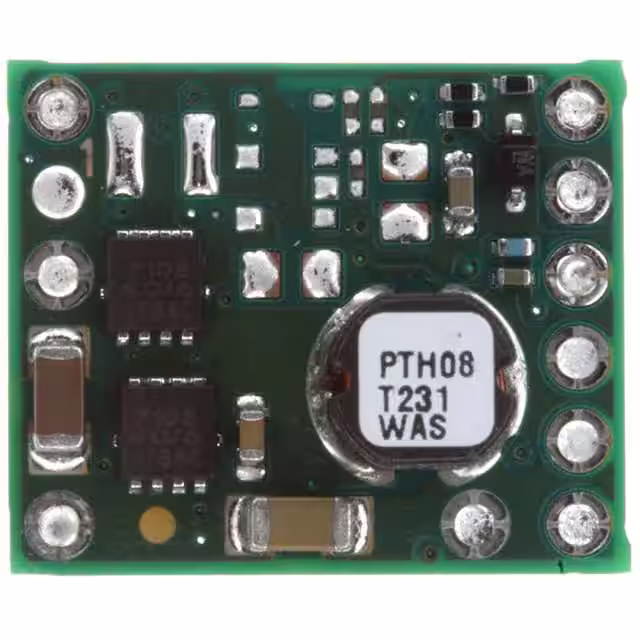

PTH08T231WASDC DC CONVERTER 0.69-5.5V |
108 |
|
Datasheet |
PTH08T231W | 10-SMD Module | Tray | Active | Non-Isolated PoL Module | 1 | 4.5V | 14V | 0.69 ~ 5.5V | - | - | - | 6A | - | - | ITE (Commercial) | Remote On/Off, OCP, OTP, UVLO | -40°C ~ 85°C | 95% | - | - | Surface Mount | - | - | - | - | |
|
JTE0324D03DC DC CONVERTER +/-3.3V 3W |
122 |
|
Datasheet |
JTE (3W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 2 | 9V | 36V | 3.3V | -3.3V | - | - | 450mA, 450mA | 3 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 100°C | 75% | - | - | Through Hole | - | - | - | 62368-1 | |
|
CC6-1203SF-EDC DC CONVERTER 3.3V 6W |
571 |
|
Datasheet |
CC-E (6W) | 7-DIP Module | Tray | Active | Isolated Module | 1 | 9V | 18V | 3.3V | - | - | - | 1.2A | 6 W | 500 V | ITE (Commercial) | - | -40°C ~ 85°C | - | - | - | Through Hole | - | Enable, Active Low | - | - | |
|
CC6-2403SR-EDC DC CONVERTER 3.3V 6W |
165 |
|
Datasheet |
CC-E (6W) | 7-SMD Module | Tray | Active | Isolated Module | 1 | 18V | 36V | 3.3V | - | - | - | 1.2A | 6 W | 500 V | ITE (Commercial) | - | -40°C ~ 85°C | - | - | - | Surface Mount | - | Enable, Active Low | - | - |
