DC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Number of Outputs | Voltage - Input (Min) | Voltage - Input (Max) | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Current - Output (Max) | Power (Watts) | Voltage - Isolation | Applications | Features | Operating Temperature | Efficiency | Grade | Qualification | Mounting Type | Size / Dimension | Supplier Device Package | Control Features | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SUS1R50505BDC DC CONVERTER 5V |
76 |
|
Datasheet |
SUS (1.5W) | 5-SMD Module | Tray | Active | Isolated Module | 1 | 4.5V | 9V | 5V | - | - | - | 300mA | - | 500 V | ITE (Commercial) | OCP | -40°C ~ 85°C (With Derating) | 74% | - | - | Surface Mount | - | - | - | - | |
|
SUS1R50505CDC DC CONVERTER 5V |
60 |
|
Datasheet |
SUS (1.5W) | 5-DIP Module | Tray | Active | Isolated Module | 1 | 4.5V | 9V | 5V | - | - | - | 300mA | - | 500 V | ITE (Commercial) | OCP | -40°C ~ 85°C (With Derating) | 74% | - | - | Through Hole | - | - | - | - | |
|
|
SUS1R51205BDC DC CONVERTER 5V |
59 |
|
Datasheet |
SUS (1.5W) | 5-SMD Module | Tray | Active | Isolated Module | 1 | 9V | 18V | 5V | - | - | - | 300mA | - | 500 V | ITE (Commercial) | OCP | -40°C ~ 85°C (With Derating) | 76% | - | - | Surface Mount | - | - | - | - | |
|
|
SUS1R51212BDC DC CONVERTER 12V |
38 |
|
Datasheet |
SUS (1.5W) | 5-SMD Module | Tray | Active | Isolated Module | 1 | 9V | 18V | 12V | - | - | - | 130mA | - | 500 V | ITE (Commercial) | OCP | -40°C ~ 85°C (With Derating) | 76% | - | - | Surface Mount | - | - | - | - | |
|
|
SUS1R5053R3CDC DC CONVERTER 3.3V 1.3W |
26 |
|
Datasheet |
SUS (1.5W) | 5-DIP Module | Box | Active | Isolated Module | 1 | 4.5V | 9V | 3.3V | - | - | - | 400mA | 1.3 W | 500 V | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 70% | - | - | Through Hole | - | - | - | - | |
|
|
SUS1R52412BDC DC CONVERTER 12V |
24 |
|
Datasheet |
SUS (1.5W) | 5-SMD Module | Tray | Active | Isolated Module | 1 | 18V | 36V | 12V | - | - | - | 130mA | - | 500 V | ITE (Commercial) | OCP | -40°C ~ 85°C (With Derating) | 77% | - | - | Surface Mount | - | - | - | - | |
|
|
SUS1R50512CDC DC CONVERTER 12V |
23 |
|
Datasheet |
SUS (1.5W) | 5-DIP Module | Tray | Active | Isolated Module | 1 | 4.5V | 9V | 12V | - | - | - | 130mA | - | 500 V | ITE (Commercial) | OCP | -40°C ~ 85°C (With Derating) | 74% | - | - | Through Hole | - | - | - | - | |
|
|
SUS1R5243R3CDC DC CONVERTER 3.3V 1.3W |
19 |
|
Datasheet |
SUS (1.5W) | 5-DIP Module | Box | Active | Isolated Module | 1 | 18V | 36V | 3.3V | - | - | - | 400mA | 1.3 W | 500 V | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 72% | - | - | Through Hole | - | - | - | - | |
|
SUW1R52415CDC DC CONVERTER +/-15V |
14 |
|
Datasheet |
SUW (1.5W) | 6-DIP Module | Box | Active | Isolated Module | 2 | 18V | 36V | 15V | -15V | - | - | 50mA, 50mA | - | 500 V | ITE (Commercial) | OCP | -40°C ~ 85°C (With Derating) | 75% | - | - | Through Hole | - | - | - | - | |
|

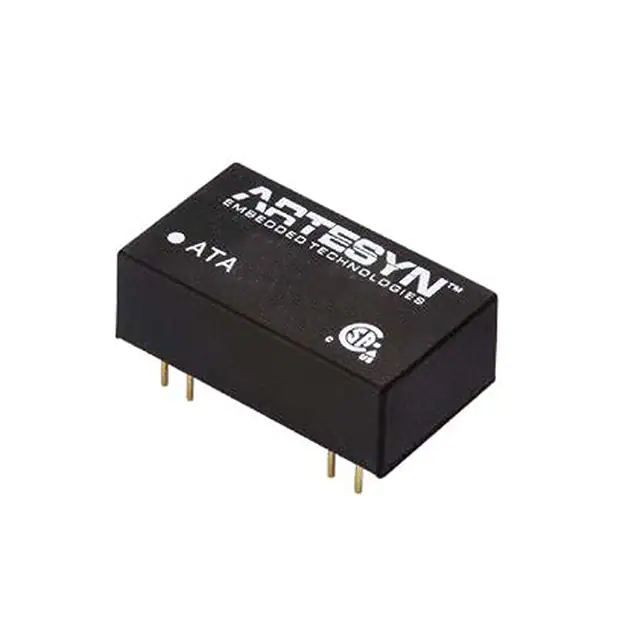

ATA00B18-LDC DC CONVERTER 12V 3W |
13 |
|
Datasheet |
ATA (3W) | 16-DIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 250mA | 3 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, SCP | -40°C ~ 85°C | 80% | - | - | Through Hole | - | - | - | - | |
|
|
SUW1R51212CDC DC CONVERTER +/-12V |
12 |
|
Datasheet |
SUW (1.5W) | 6-DIP Module | Box | Active | Isolated Module | 2 | 9V | 18V | 12V | -12V | - | - | 65mA, 65mA | - | 500 V | ITE (Commercial) | OCP | -40°C ~ 85°C (With Derating) | 75% | - | - | Through Hole | - | - | - | - | |
|
RP-2415SDC DC CONVERTER 15V 1W |
98 |
|
Datasheet |
ECONOLINE RP (1W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 15V | - | - | - | 66mA | 1 W | 5.2 kV | ITE (Commercial), Medical | SCP | -40°C ~ 85°C | 80% | - | - | Through Hole | - | - | - | - | |
|
|
RP-0515DDC DC CONVERTER +/-15V 1W |
74 |
|
Datasheet |
ECONOLINE RP (1W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 5.5V | 15V | -15V | - | - | 33mA, 33mA | 1 W | 5.2 kV | ITE (Commercial), Medical | SCP | -40°C ~ 85°C | 82% | - | - | Through Hole | - | - | - | - | |
|
|
RP-1209DDC DC CONVERTER +/-9V 1W |
43 |
|
Datasheet |
ECONOLINE RP (1W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 10.8V | 13.2V | 9V | -9V | - | - | 56mA, 56mA | 1 W | 5.2 kV | ITE (Commercial), Medical | SCP | -40°C ~ 85°C | 75% | - | - | Through Hole | - | - | - | - | |
|

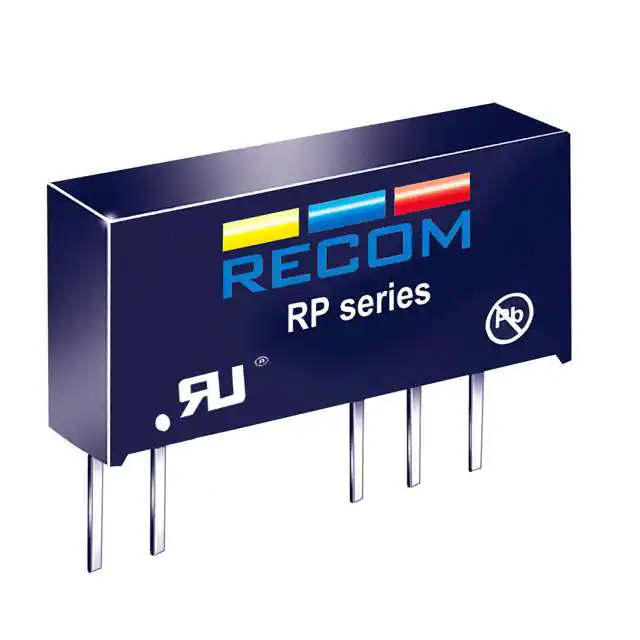

RP-0512DDC DC CONVERTER +/-12V 1W |
27 |
|
Datasheet |
ECONOLINE RP (1W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 5.5V | 12V | -12V | - | - | 42mA, 42mA | 1 W | 5.2 kV | ITE (Commercial), Medical | SCP | -40°C ~ 85°C | 82% | - | - | Through Hole | - | - | - | - | |
|
RP-0506SDC DC CONVERTER 6V 1W |
12 |
|
Datasheet |
RP-xx06S (1W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 6V | - | - | - | 167mA | 1 W | 5.2 kV | ITE (Commercial) | - | -40°C ~ 80°C | 81% | - | - | Through Hole | - | - | - | - | |
|
|
RP-0524DDC DC CONVERTER +/-24V 1W |
10 |
|
Datasheet |
ECONOLINE RP (1W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 5.5V | 24V | -24V | - | - | 21mA, 21mA | 1 W | 5.2 kV | ITE (Commercial), Medical | SCP | -40°C ~ 85°C | 80% | - | - | Through Hole | - | - | - | - | |
|
TES 2-1222HDC DC CONVERTER +/-12V 2W |
60 |
|
Datasheet |
TES 2H (2W) | 10-SMD Module, 6 Leads | Tube | Active | Isolated Module | 2 | 10.8V | 13.2V | 12V | -12V | - | - | 83mA, 83mA | 2 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 80% | - | - | Surface Mount | - | - | - | - | |
|
TES 2-0523HDC DC CONVERTER +/-15V 2W |
57 |
|
Datasheet |
TES 2H (2W) | 10-SMD Module, 6 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 5.5V | 15V | -15V | - | - | 66mA, 66mA | 2 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 76% | - | - | Surface Mount | - | - | - | - | |
|
TES 2-2423HDC DC CONVERTER +/-15V 2W |
26 |
|
Datasheet |
TES 2H (2W) | 10-SMD Module, 6 Leads | Tube | Active | Isolated Module | 2 | 21.6V | 26.4V | 15V | -15V | - | - | 66mA, 66mA | 2 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 79% | - | - | Surface Mount | - | - | - | - |
