DC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Number of Outputs | Voltage - Input (Min) | Voltage - Input (Max) | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Current - Output (Max) | Power (Watts) | Voltage - Isolation | Applications | Features | Operating Temperature | Efficiency | Grade | Qualification | Mounting Type | Size / Dimension | Supplier Device Package | Control Features | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

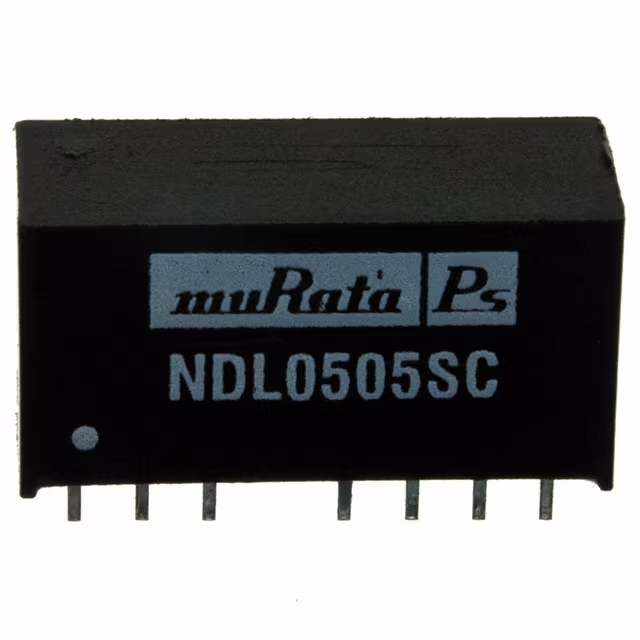

NDL0505SCDC DC CONVERTER 5V 2W |
21 |
|
Datasheet |
NDL (2W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 9V | 5V | - | - | - | 400mA | 2 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 66% | - | - | Through Hole | - | - | - | - | |
|
TEC 3-1221DC DC CONVERTER +/-5V 3W |
42 |
|
Datasheet |
TEC 3 (3W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 9V | 18V | 5V | -5V | - | - | 300mA, 300mA | 3 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 90°C (With Derating) | 81% | - | - | Through Hole | - | - | - | - | |
|
EC4A22HDC DC CONVERTER 12V 5.6W |
93 |
|
Datasheet |
EC4A (6W) | 24-DIP Module, 14 Leads | Tube | Active | Isolated Module | 1 | 36V | 72V | 12V | - | - | - | 470mA | 5.6 W | 3 kV | ITE (Commercial) | SCP | -25°C ~ 71°C | 83% | - | - | Through Hole | - | - | CE, cURus | 60950-1 | |
|
EC4A11H-EDC DC CONVERTER 5V 5W |
89 |
|
Datasheet |
EC4A-E (6W) | 24-DIP Module, 14 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 1A | 5 W | 3 kV | ITE (Commercial) | SCP, UVLO | -40°C ~ 100°C (With Derating) | 83% | - | - | Through Hole | - | - | CE, cURus | 60950-1 | |
|
CCG1R5-24-12SFDC DC CONVERTER 12V 1.56W |
47 |
|
Datasheet |
CCG1R5-10 (1.5W) | 6-DIP Module | Tray | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 130mA | 1.6 W | 1.5 kV | ITE (Commercial) | Adjustable Output, Remote On/Off, OCP | -40°C ~ 100°C (With Derating) | 82% | - | - | Through Hole | - | Enable, Active Low | IEC, UL, CSA, EN, CE, UKCA | 62368-1 | |
|
|
EC4A17H-EDC DC CONVERTER 3.3V 4W |
36 |
|
Datasheet |
EC4A-E (6W) | 24-DIP Module, 14 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 3.3V | - | - | - | 1.2A | 4 W | 3 kV | ITE (Commercial) | SCP, UVLO | -40°C ~ 100°C (With Derating) | 79% | - | - | Through Hole | - | - | CE, cURus | 60950-1 | |
|
|
CCG1R5-24-15DFDC DC CONVERTER +/-15V 1.5W |
36 |
|
Datasheet |
CCG1R5-10 (1.5W) | 6-DIP Module | Tray | Active | Isolated Module | 2 | 9V | 36V | 15V | -15V | - | - | 50mA, 50mA | 1.5 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP | -40°C ~ 100°C (With Derating) | 80% | - | - | Through Hole | - | Enable, Active Low | IEC, UL, CSA, EN, CE, UKCA | 62368-1 | |
|
|
EC4A21H-EDC DC CONVERTER 5V 5W |
30 |
|
Datasheet |
EC4A-E (6W) | 24-DIP Module, 14 Leads | Tube | Active | Isolated Module | 1 | 36V | 72V | 5V | - | - | - | 1A | 5 W | 3 kV | ITE (Commercial) | SCP, UVLO | -40°C ~ 100°C (With Derating) | 83% | - | - | Through Hole | - | - | CE, cURus | 60950-1 | |
|
|
CCG1R5-24-05SFDC DC CONVERTER 5V 1.5W |
28 |
|
Datasheet |
CCG1R5-10 (1.5W) | 6-DIP Module | Tray | Active | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 300mA | 1.5 W | 1.5 kV | ITE (Commercial) | Adjustable Output, Remote On/Off, OCP | -40°C ~ 100°C (With Derating) | 78% | - | - | Through Hole | - | Enable, Active Low | IEC, UL, CSA, EN, CE, UKCA | 62368-1 | |
|
|
EC4A17HDC DC CONVERTER 3.3V 3.3W |
24 |
|
Datasheet |
EC4A (6W) | 24-DIP Module, 14 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 3.3V | - | - | - | 1A | 3.3 W | 3 kV | ITE (Commercial) | SCP | -25°C ~ 71°C | 74% | - | - | Through Hole | - | - | CE, cURus | 60950-1 | |
|
|
EC4A12HDC DC CONVERTER 12V 5.6W |
23 |
|
Datasheet |
EC4A (6W) | 24-DIP Module, 14 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 12V | - | - | - | 470mA | 5.6 W | 3 kV | ITE (Commercial) | SCP | -25°C ~ 71°C | 84% | - | - | Through Hole | - | - | CE, cURus | 60950-1 | |
|
|
CCG1R5-12-15DFDC DC CONVERTER +/-15V 1.5W |
20 |
|
Datasheet |
CCG1R5-10 (1.5W) | 6-DIP Module | Tray | Active | Isolated Module | 2 | 4.5V | 18V | 15V | -15V | - | - | 50mA, 50mA | 1.5 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP | -40°C ~ 100°C (With Derating) | 78% | - | - | Through Hole | - | Enable, Active Low | IEC, UL, CSA, EN, CE, UKCA | 62368-1 | |
|
|
CCG1R5-24-03SFDC DC CONVERTER 3.3V 1.32W |
14 |
|
Datasheet |
CCG1R5-10 (1.5W) | 6-DIP Module | Tray | Active | Isolated Module | 1 | 9V | 36V | 3.3V | - | - | - | 400mA | 1.3 W | 1.5 kV | ITE (Commercial) | Adjustable Output, Remote On/Off, OCP | -40°C ~ 100°C (With Derating) | 73% | - | - | Through Hole | - | Enable, Active Low | IEC, UL, CSA, EN, CE, UKCA | 62368-1 | |
|
|
EC4A01HDC DC CONVERTER 5V 5W |
13 |
|
Datasheet |
EC4A (6W) | 24-DIP Module, 14 Leads | Tube | Active | Isolated Module | 1 | 9V | 18V | 5V | - | - | - | 1A | 5 W | 3 kV | ITE (Commercial) | SCP | -25°C ~ 71°C | 77% | - | - | Through Hole | - | - | CE, cURus | 60950-1 | |
|
|
EC4A13HDC DC CONVERTER 15V 6W |
8 |
|
Datasheet |
EC4A (6W) | 24-DIP Module, 14 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 15V | - | - | - | 400mA | 6 W | 3 kV | ITE (Commercial) | SCP | -25°C ~ 71°C | 84% | - | - | Through Hole | - | - | CE, cURus | 60950-1 | |
|
PDQ2-D5-D5-SDC DC CONVERTER +/-5V 2W |
92 |
|
Datasheet |
PDQ2-S (2W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 9V | 5V | -5V | - | - | 200mA, 200mA | 2 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, SCP | -40°C ~ 100°C | 77% | - | - | Through Hole | - | Enable, Active Low | EN | 55032 Class A | |
|
|
PDQ2-D5-D15-SDC DC CONVERTER +/-15V 2W |
42 |
|
Datasheet |
PDQ2-S (2W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 9V | 15V | -15V | - | - | 67mA, 67mA | 2 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, SCP | -40°C ~ 100°C | 80% | - | - | Through Hole | - | Enable, Active Low | EN | 55032 Class A | |
|
|
PDQ2-D5-D12-SDC DC CONVERTER +/-12V 2W |
28 |
|
Datasheet |
PDQ2-S (2W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 9V | 12V | -12V | - | - | 83mA, 83mA | 2 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, SCP | -40°C ~ 100°C | 79% | - | - | Through Hole | - | Enable, Active Low | EN | 55032 Class A | |
|
JCB0312D12DC DC CONVERTER +/-12V 3W |
20 |
|
Datasheet |
JCB (3W) | 24-DIP Module, 14 Leads | Tube | Active | Isolated Module | 2 | 9V | 18V | 12V | -12V | - | - | 125mA, 125mA | 3 W | 1.5 kV | ITE (Commercial) | OCP, OVP, SCP, UVLO | -40°C ~ 100°C | 78% | - | - | Through Hole | - | - | - | - | |
|
|
JCB0324D24DC DC CONVERTER +/-24V 3W |
20 |
|
Datasheet |
JCB (3W) | 24-DIP Module, 14 Leads | Tube | Active | Isolated Module | 2 | 18V | 36V | 24V | -24V | - | - | 63mA, 63mA | 3 W | 1.5 kV | ITE (Commercial) | OCP, OVP, SCP, UVLO | -40°C ~ 100°C | 80% | - | - | Through Hole | - | - | - | - |
